Station-IC Virtual Client for Eclipse HX

Station-IC is a virtual desktop client that provides a scalable intercom user station on WindowsOS and MacOS computers. Connecting to Eclipse HX IP-capable matrices, Station-IC provides access to the system’s resources which can include one-to-one, one-to-many, partyline, ISO and IFB communication in addition to call signals and logic controls. Individual keyset listening levels help users focus on specific channels while monitoring others. All of this functionality can be tailored to each user to create an efficient intercom user station. Ready to try out Station-IC for yourself? Register to download Station-IC and demo for Windows and/or Mac.

Details

  • For: Eclipse HX

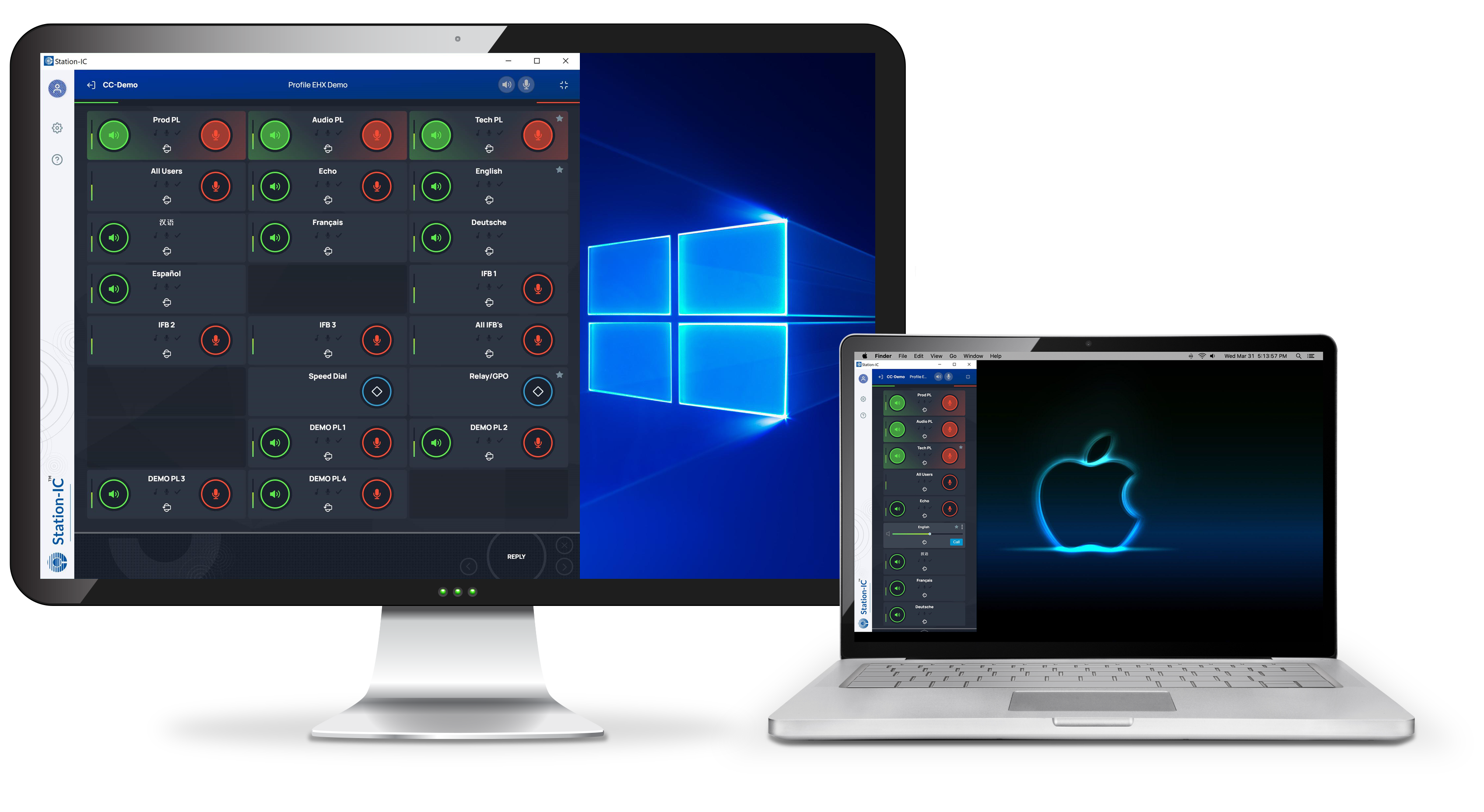

  • On: Windows and MacOS

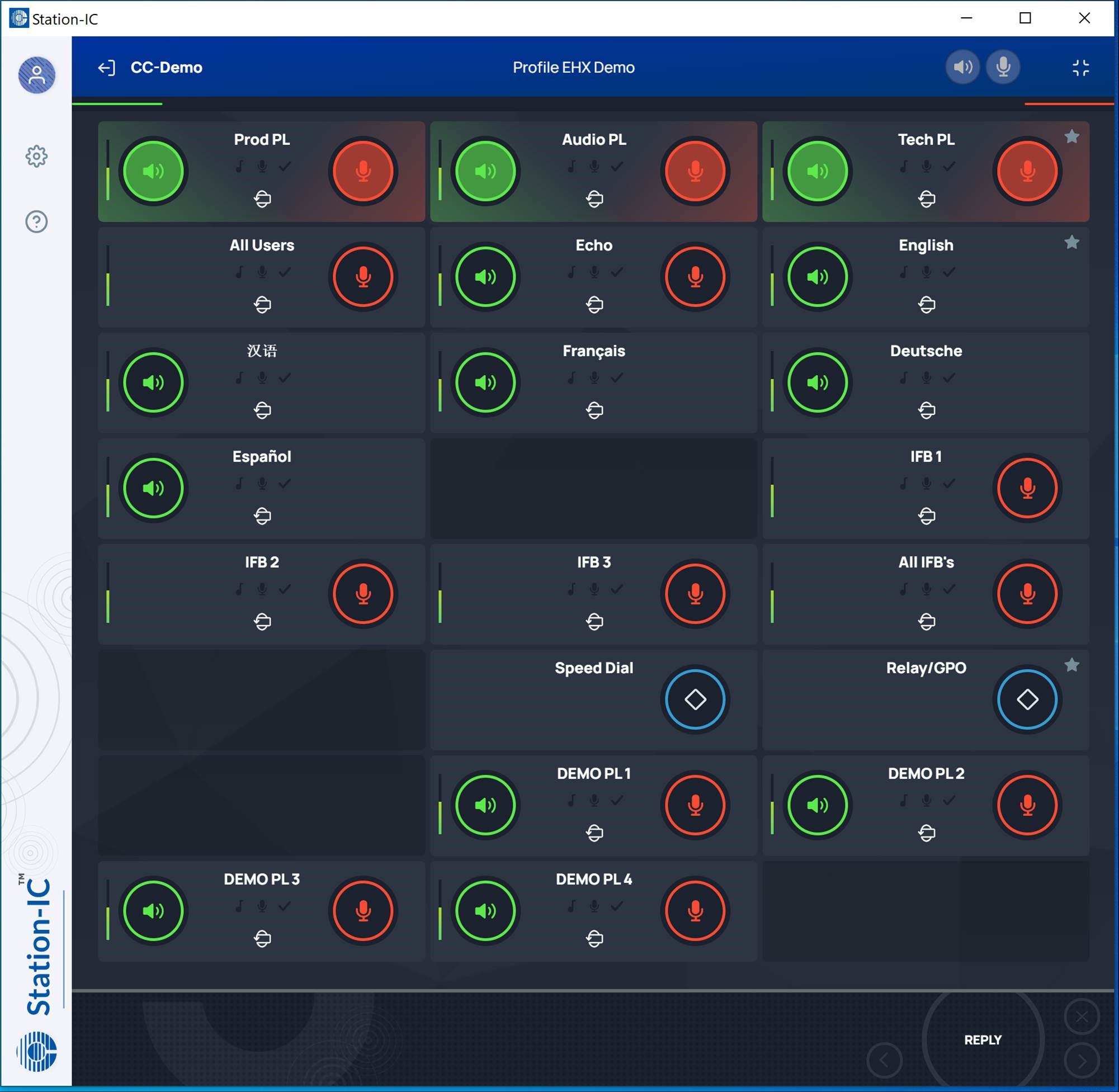

  • Scalable UI for multitasking desktops

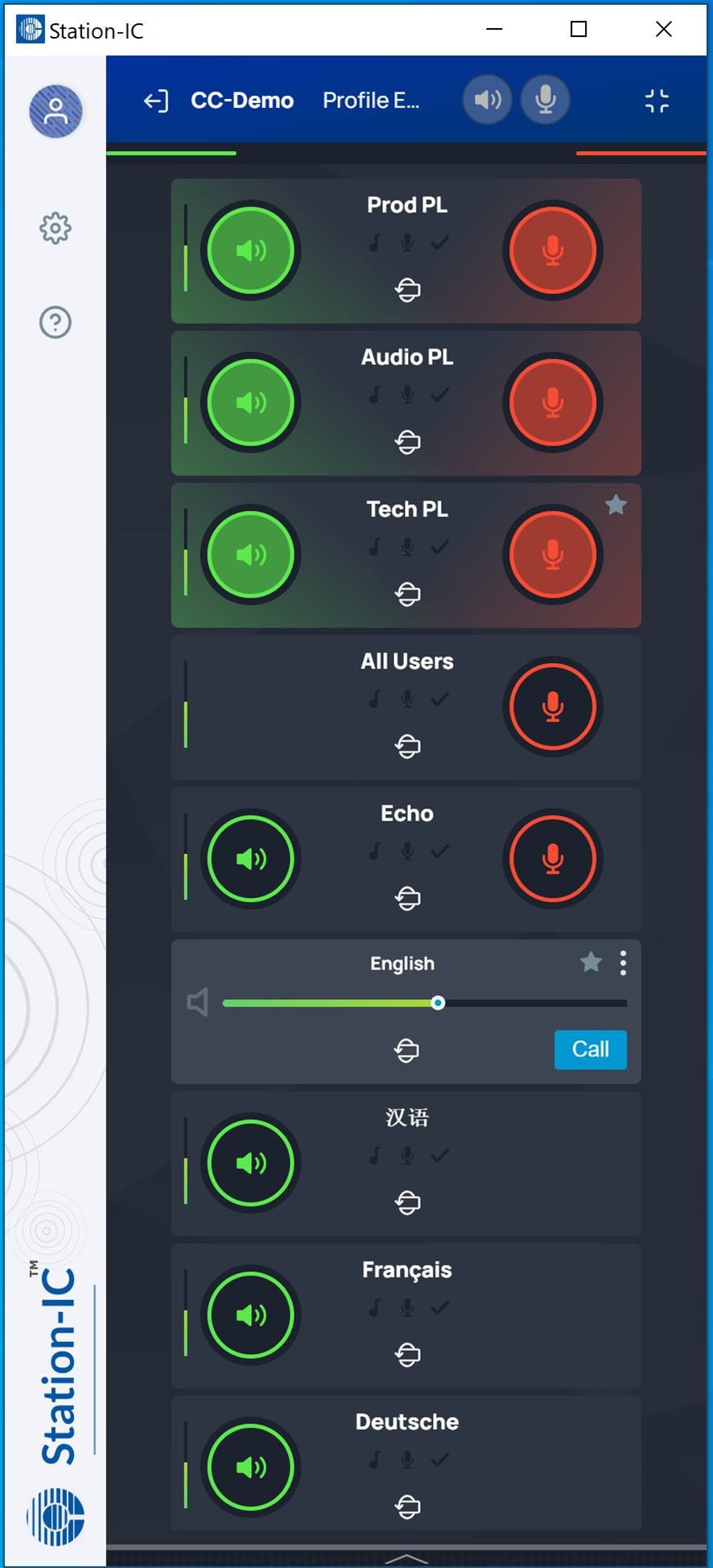

  • Compact UI mode configured by the user
  • Global Key state and Audio Presence indicators
  • Audio routing to computers I/O
  • Easy download from Clear-Com Website

Virtual Desktop Client for Eclipse HX

  • (23) Keysets assignable to: Partylines, Groups, IFB, Point-to-Point, Directs & Controls
  • Individual Keyset Listen Level Controls
  • Reply for Incoming Point-to-Points
  • OS Notifications for incoming Calls

Network Agnostic

  • Supported by mission-built hardware
  • Robust intercom over LAN, WAN & Internet
  • IT friendly networking for Internet connectivity
  • Encrypted Connection

Flexible Licensing

  • Perpetual Eclipse licensing
  • Subscription Client licenses for continuous use
  • Event Client Licenses for time limited use

Item Code

PERPETUAL ECLIPSE HOSTED LICENSES:

Permanent for major version

STATION-IC-HX: 1 user

STATION-IC8-HX: 8 users

Permanent license for major version of Station-IC installed on Eclipse

Eclipse Dongle ID required with order



SUBSCRIPTION CLIENT HOSTED LICENSES:

For ongoing continuous use

ST-IC-1Y: 1 user, 1 year

ST-IC-ADD1Y: 1 user, +1 year

ST-IC-8-1Y: 8 users, 1 year

ST-IC-8-ADD1Y: 8 users, +1 year

Installed on the Virtual Client Computer



EVENT CLIENT HOSTED LICENSES:

For time-limited use

ST-IC-1W: 1 user, 1 week

ST-IC-1M: 1 user, 1 month

Installed on the Virtual Client Computer

Technical
Specifications

Software Application

Audio Settings

Assignment to any operating system audio input and output

Audio test capability for computer audio

Audio level meters

Far-end Silence Suppression

Echo Cancellation



Audio Controls & Indication

Talk/Listen indication and level meter

Talk/Listen master mute

Listen level per key/keyset

Master level & balance by operating systems



Eclipse

Host Connection Profiles: 2

Keysets: 23

Assignable: Talk, Listen and Controls in EHX

Talk/Listen: Tap to latch (if allowed), push for momentary

Call signal: Initiation and indication

Tally Indication: Audio Presence, In-Use, Panel/Client Connected

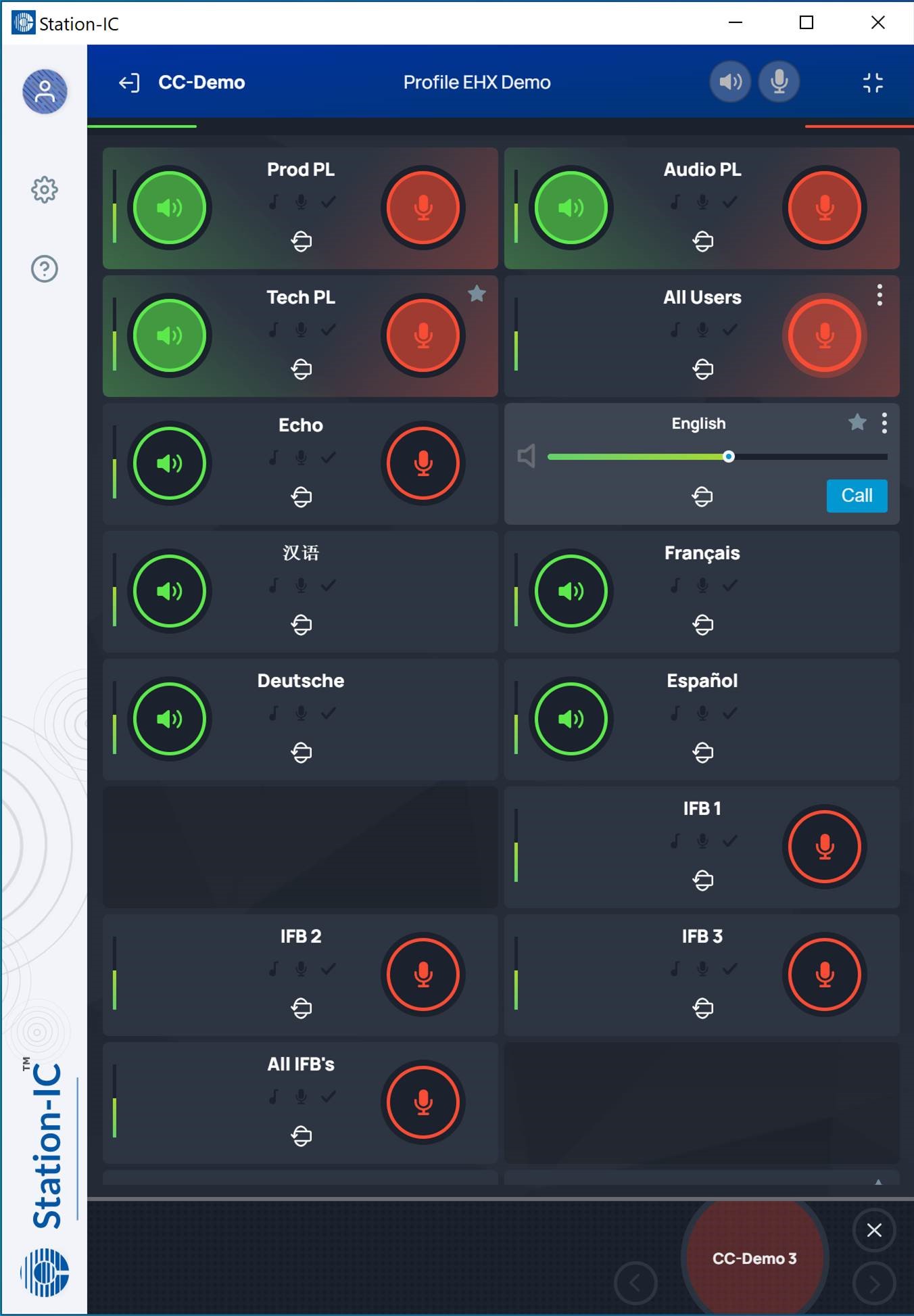

Reply key: 1 - Shows incoming Point-to-Point talk for immediate response. Hidden by default, pops up and provides operating system notification

Character Support: Arabic, Cyrillic, Hangeul, Hebrew, Hiragana, Kanji, Katakana, Latin


System Minimum Requirements

Host Intercom System

Eclipse:

Perpetual Licenses*: 13.0+ with E-IPA (or IVC-32)

Client Licenses: 12.1+** with E-IPA (or IVC-32)



Windows

Version: 8 (min), 10+

Computer and processor: 1.6GHz, 2 core (min)

Memory: 4.0GB RAM (min)

Hard disk: 3.0GB (available)

Display: 1024 x 768 (min)



MacOS

Version: 10.14 (min), 10.16+ (recommended)

Computer and processor: Intel Duo Core Processor (min), Apple M1

Memory: 4.0GB RAM (min)

Hard disk: 1.5GB (available)

Display: 1280 x 800 (min)


Audio

Eclipse: Audio Encoding: G.722 – Fixed Wideband 7kHz within 64kbit/s

Frequency Response: 50Hz-7kHz
Frequency Response is additionally filtered depending on use



*Perpetual Station-IC License is not available for LQ.

**Please contact your Clear-Com representative for use with older Eclipse versions.

Latency

Windows

Station-IC to 4-wire: LAN 85ms, WAN 92ms, Internet 117ms

4-wire to Station-IC: LAN135ms, WAN 158ms, Internet 216ms

Station-IC to Station-IC: LAN 220ms, WAN 245ms, Internet 333ms



MacOS

Station-IC to 4-wire: LAN 109ms, WAN 115ms, Internet 145ms

4-wire to Station-IC: LAN 85ms, WAN 107ms, Internet 177ms

Station-IC to Station-IC: LAN 185ms, WAN 205ms, Internet 305ms

MacOS Station-IC to 4-wire: High 109ms, Balanced 109ms, Low 109ms

4-wire to Station-IC: High 77ms, Balanced 96ms, Low 137ms

Station-IC to Station-IC: High 171ms, Balanced 177ms, Low 183ms


Network Specifications (Version 1.1+)

Network Protocols

Ethernet IPv4 – Unicast Audio and Control

Layer 3 – IP Routable

DNS – Domain Name Server

HTTP – License Transfer

HTTPS – Optional Usage Data / Diagnostic Service

IVP – Proprietary Intercom Audio and Control

G722 – Audio Codec for Eclipse IPA/IVC

WavPack – Audio Codec for LQ in HelixNet HMS-4X Link Group

AES-128 – Audio and Control Encryption

Network Connectivity: Ethernet, Wi-Fi, 3G, 4G, LTE (as available on device)


Network Ports

Unicast:

Port 443 TCP – Optional Usage Data to Diagnostic Service

Port 6001(configurable) TCP – System Management to/from Station-IC

Port 6001(configurable) UDP –IVP Audio Streams to/from Station-IC

Port 8080 TCP – Online Licensing Activation to/from CodeMeter



Multicast: No multicast ports are used for Station-IC



Endpoint Resource Use:

Eclipse: 1 port on IPA/IVC card



Bandwidth:

Eclipse:

140 kbps from Eclipse to Station-IC

140 kbps from Station-IC to Eclipse

With Far-end Silence Suppression & bidirectional Forward Error Correction


Network Jitter Tolerance

Eclipse:

Station-IC Rx: LAN: <=160ms, WAN: <= 400ms, Internet: <= 600ms

E-IPA Rx: (Configurable) LAN: <=12ms, WAN: <= 120ms, Internet: <= 200ms
