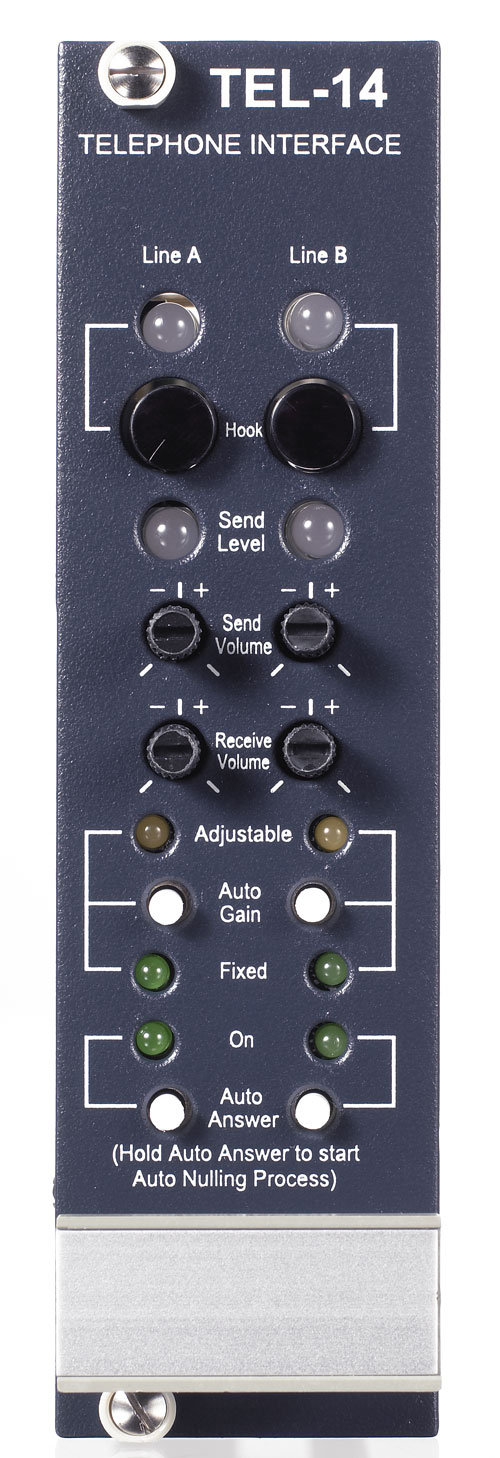

TEL-14 (Last Time Buy)

TEL-14 (Last Time Buy)

2-Line Digital Telephone Hybrid Interface Module

  • Auto-nulling
  • Establishes IFB connections between main and remote intercoms
  • Enables telephone calls directly from an Eclipse HX system
  • Eclipse HX Configuration Software (EHX)


Item Part Number:


NOTE: This product has a limited supply remaining, please visit this site to view alternative telephone interfacing solutions.

Technical Specifications


Frequency Response: 300 Hz – 3.4 kHz
Send Gain Control Range: +/-12 dB
Receive Gain Control Range: +/-12 dB
Ring Detect Sensitivity: Operates with most international telephone ring signal standards.
Auto-Mode Levels: -12 dBv on intercom line for -9 dBm on telephone line; -27 dBm on telephone line for -12 dBv on intercom line.

Telephone Disconnect

Dial Tone: 350 Hz + 440 Hz, continuous
Busy Tone: 480 Hz + 620 Hz, 0.5 sec on / 0.5 sec off
Reorder Tone: 480 Hz + 620 Hz, 0.25 sec on / 0.25 sec off
Loop Current Interruption: >5 ms
DC Isolation: >10M Ohms between each telephone line and the IMF interface frame.


Supplied by the PSU-101 power supply

Voltage Required: Between +/-8 and +/-12 Volts

DC unregulated
Current Required: +370 mA /-130 mA

Connectors (via IMF Frame)

To Matrix Frame: (2) RJ-45
DB-9M Connector:

(2) telephone line connections
(2) for relay contacts

Relay Contacts: Type “A1”, “Dry”, normally open when TEL-14 is on-hook

Controls and Indicators

(2) Hook switch and LED

(2) Send Volume control and LED

(2) Receive Volume control

(2) Auto Gain switch and LED

(2) Auto Answer switch and LED

(2) Auto Nulling reset switch


Operating Temperature: 32°F – 104°F (0°C – 40°C)

Storage Temperature: -67°F – 158°F (-55°C – 70°C)

Humidity: 90% non-condensing


5.06 x 1.38 x 9.16 in (HxWxD)

129 x 35 x 233 mm)


12.5 oz (0.32 kg)
