V12PD

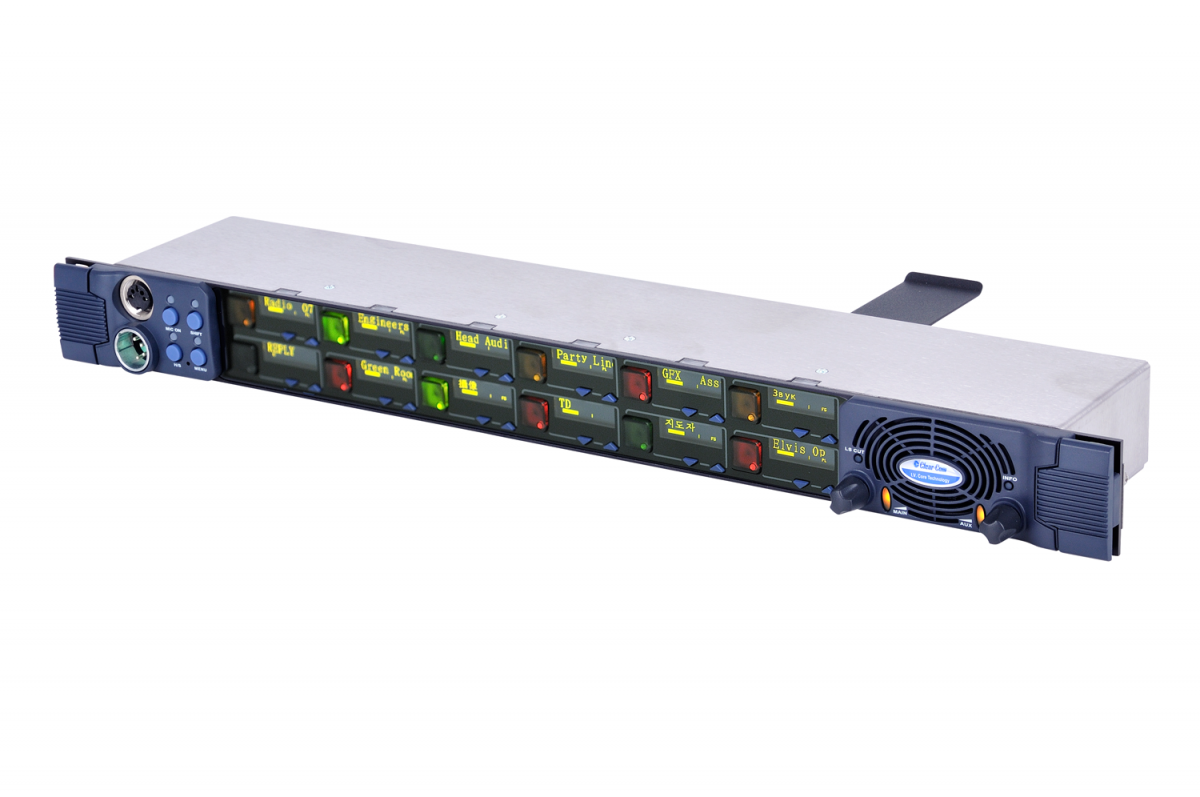

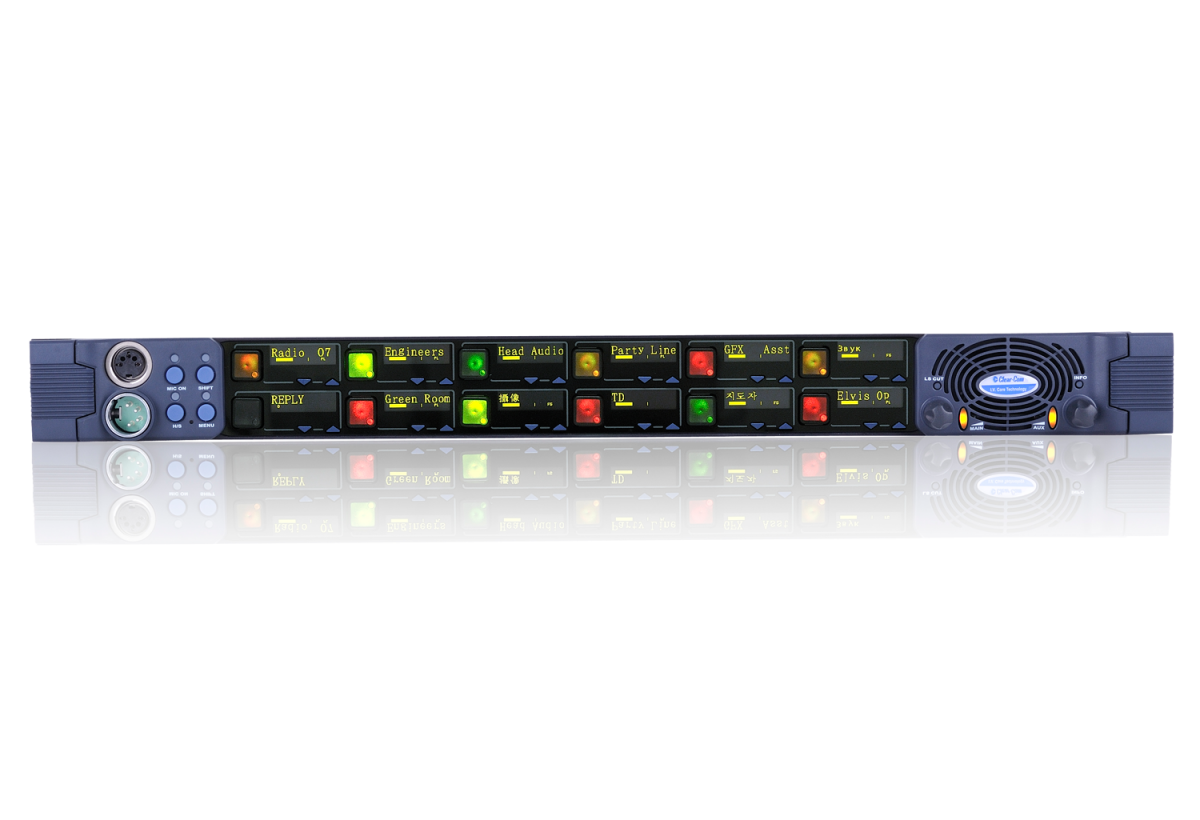

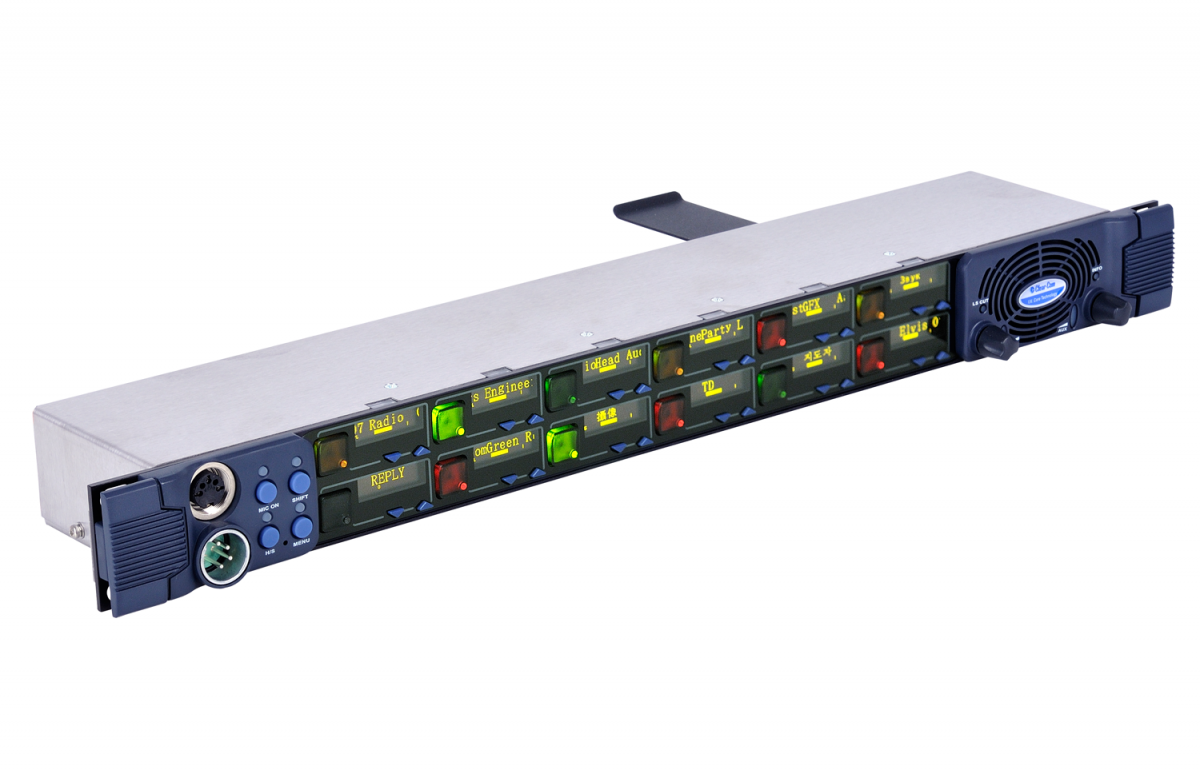

V-Series 12-key 1RU Pushbutton Panel

12 configurable pushbuttons and 24 up/down level buttons for use with Eclipse HX matrix frames
Individual up/down audio level controls for personal mixes
Yellow OLEDs for better contrast and visibility
Horizontal or vertical font display options
Listen Again function to replay calls
Fast key assign from pre-defined scroll lists and/or keypad
International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces
Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)

Item Part Number:

V12PDX4Y-IP

V12PDX5Y-IP

V12PDX7Y-IP

V12PDX4Y-AES-IP

V12PDX5Y-AES-IP

The V-Series Pushbutton key-panels are user control key-panels that operate in conjunction with the Eclipse and Eclipse HX Digital Matrix Systems. Pushbutton key-panels feature one a display window per key. For each key, a red tally light indicates Talk only, green indicates Listen only and amber is for both Talk and Listen. A special mode provides dual Talk/Listen with a latchable Listen and momentary Talk on one button.
