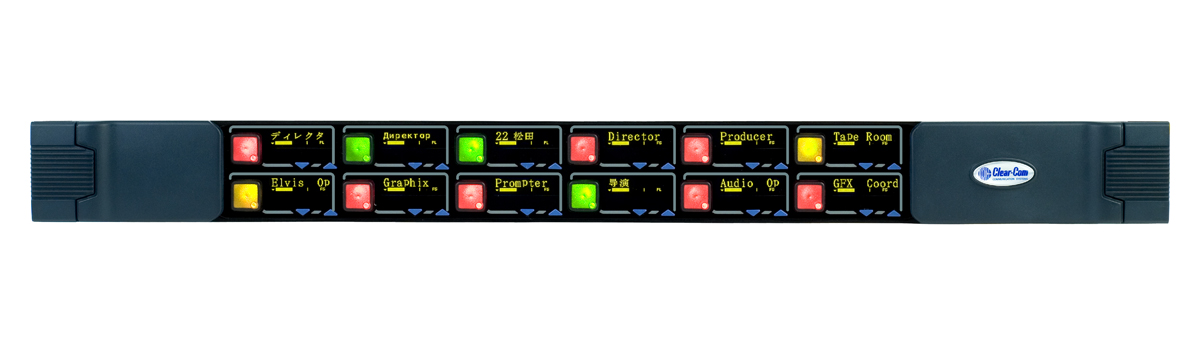

V-Series 12-key 1RU Pushbutton Expansion Panel

  • 12 configurable pushbuttons and 24 up/down level buttons for use with Eclipse HX matrix frames
  • Up to 8 expansions panels can be added to each host panel and up to 16ft (5m) away
  • Individual up/down audio level controls for personal mixes
  • Yellow OLEDs for better contrast and visibility
  • Horizontal or vertical font display options
  • Listen Again function to replay calls
  • Fast key assign from pre-defined scroll lists and/or keypad
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)
Item Part Number:

V12PDEY

The V-Series Pushbutton key-panels are user control key-panels that operate in conjunction with the Eclipse and Eclipse HX Digital Matrix Systems. Pushbutton key-panels feature one a display window per key. For each key, a red tally light indicates Talk only, green indicates Listen only and amber is for both Talk and Listen. A special mode provides dual Talk/Listen with a latchable Listen and momentary Talk on one button.

Technical Specifications

Front Panel Controls & Connectors

Talk/Listen Switches: 12

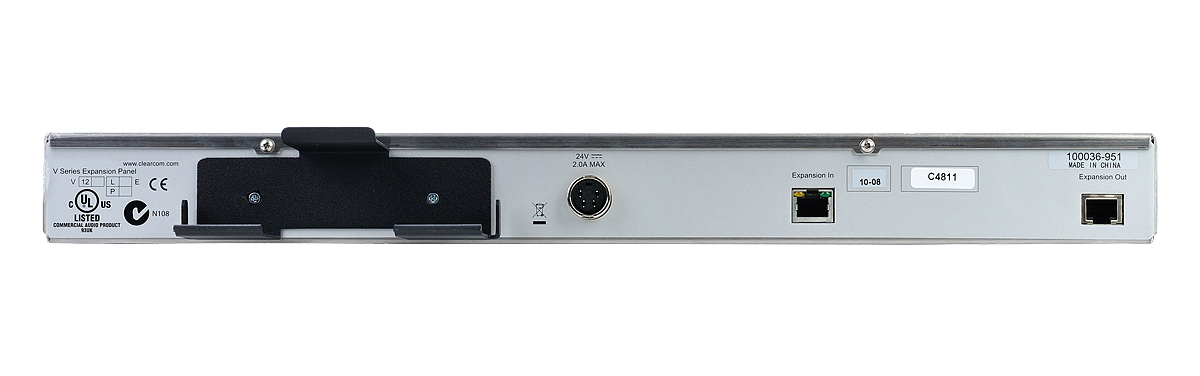

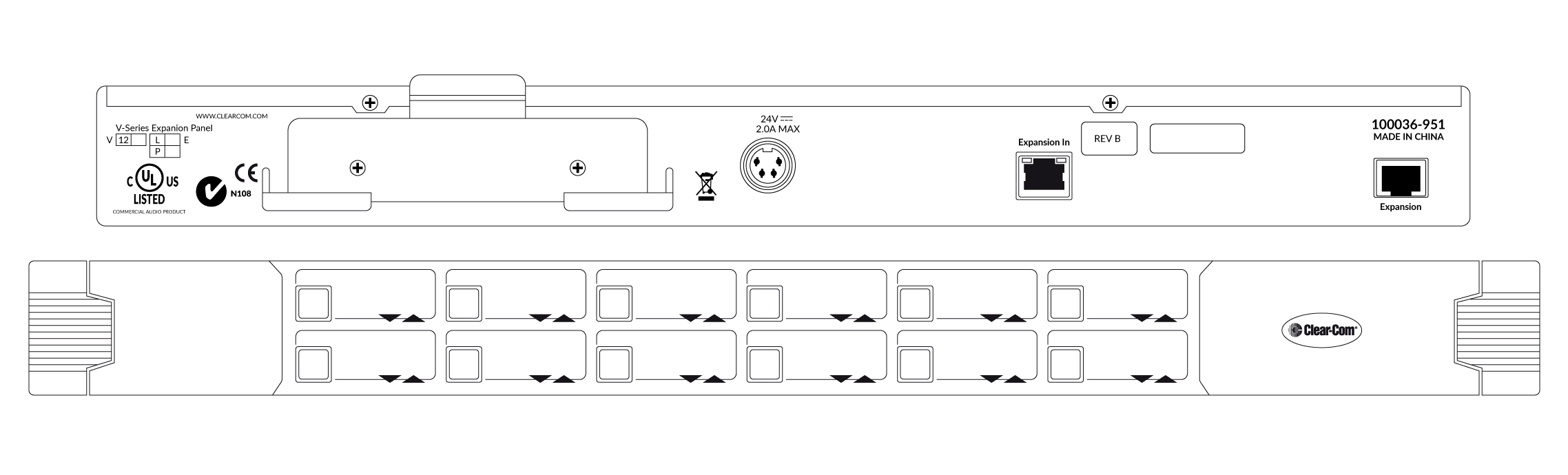

Rear Panel Connectors

Expansion Panel: RJ-45

DC Power: 4-pin DIN

Main Power Supply (External)

Voltage: 100/240 VAC +/- 10%

Frequency: 50 – 60 Hz

Power: 50W maximum



Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing

Dimensions

1.76 x 19 x 6.75 (HxWxD)

(44 x 483 x 172 mm)

Weight

3.5 lbs (1.6 kg)
