V12RDE

V12RDE

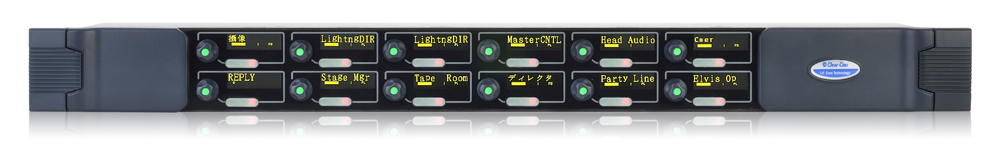

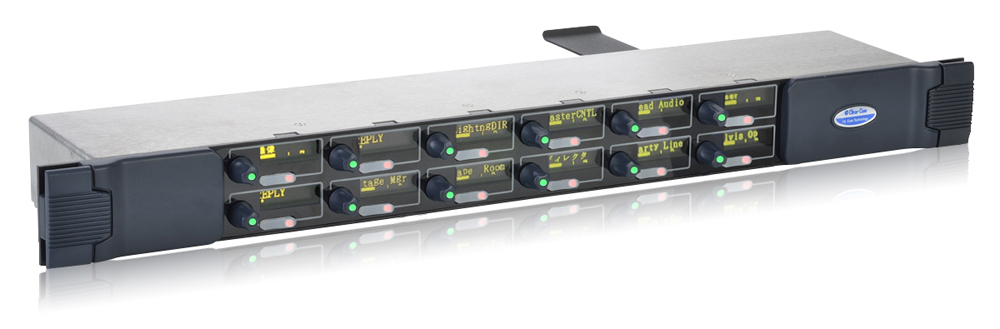

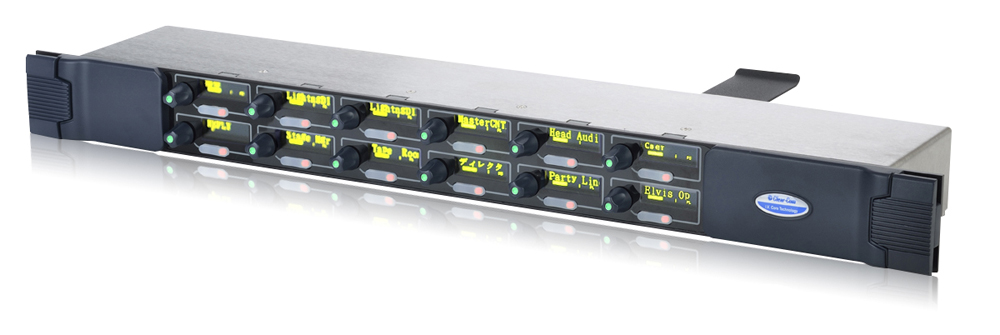

V-Series 12-key 1RU Rotary Expansion Panel

  • 12 Talk pushbuttons and 12 Listen rotary switches for use with Eclipse HX matrix frames
  • Up to 8 expansions panels can be added to each host panel and up to 16ft (5m) away
  • Individual rotary audio level controls for personal mixes
  • Yellow OLEDs for better contrast and visibility
  • Horizontal or vertical font display options
  • Color-coded keys for easily identifiable color tallies
  • Listen Again function to replay calls
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)
Item Part Number:

V12RDE

The V-Series Rotary Panels are user control key-panels that operate in conjunction with the Eclipse and Eclipse HX Digital Matrix Systems. Rotary key-panels feature one display window per “key” and have two individual controls for the same display; a rotary encoder for level control with a pushbutton switch feature for Listen (push on/off) and separate pushbutton for Talk (push on/off). Each control offers discrete LED tally indication; red for Talk and green for Listen.

Technical Specifications

Front Panel Controls and Connectors

Talk/Listen Switches: 12

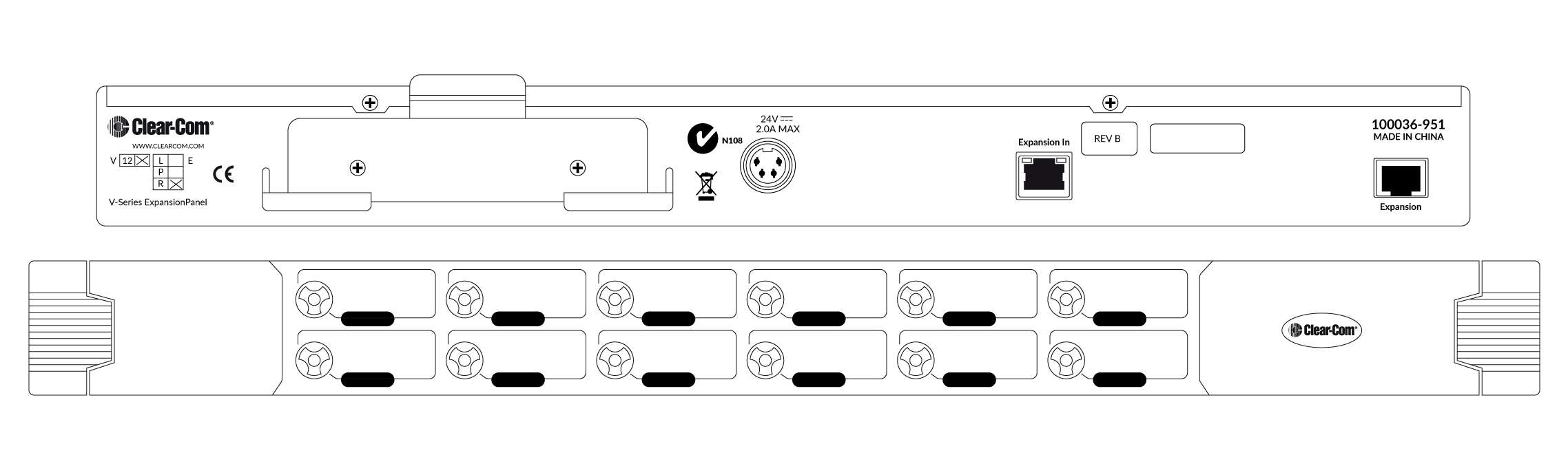

Rear Panel Connectors

Expansion Panel: RJ-45

DC Power: 4-pin DIN

Main Power Supply (External)

Voltage: 100/240V AC +/- 10%

Frequency: 50 – 60Hz

Power: 50W maximum

Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing

Dimensions

1.76 x 19 x 6.75in (HxWxD)

(44 x 483 x 172mm)

Weight

3.5lbs (1.6kg)
