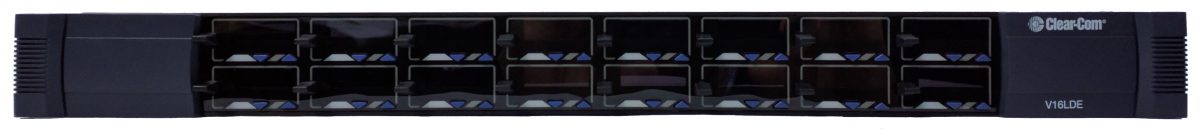

V-Series 16-key 1RU Lever Expansion Panel

  • 16 lever keys and 32 up/down level control buttons for use with Eclipse HX matrix frames
  • Up to 8 expansions panels can be added to each host panel and up to 16ft (5m) away
  • Individual up/down audio level controls for personal mixes
  • Yellow OLEDs for better contrast and visibility
  • Horizontal or vertical font display options
  • Listen Again function to replay calls
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)
Item Part Number:

V16LDE

The V-Series Lever Panels are user control key-panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Lever key-panels feature one display window per “key” and provide Listen (up) and Talk (down) operation for the displayed label. Latching and momentary operation is software configurable. The Listen (up) path does not have to be the same as the Talk (down) path. A Talk/Listen LED status indicator is provided below the display window. When a talk path is active (down) the status will indicate a red color, and when a listen path is active (up) the status will indicate a green color

Technical Specifications

Front Panel Controls and Connectors

Talk/Listen Switches: 12

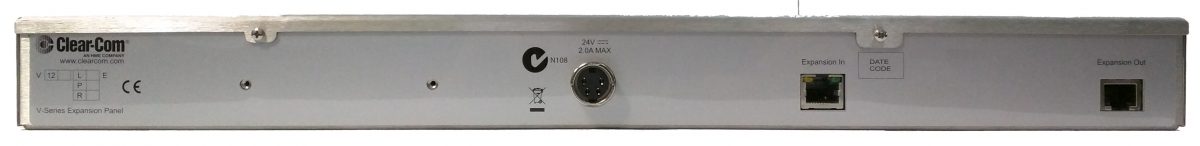

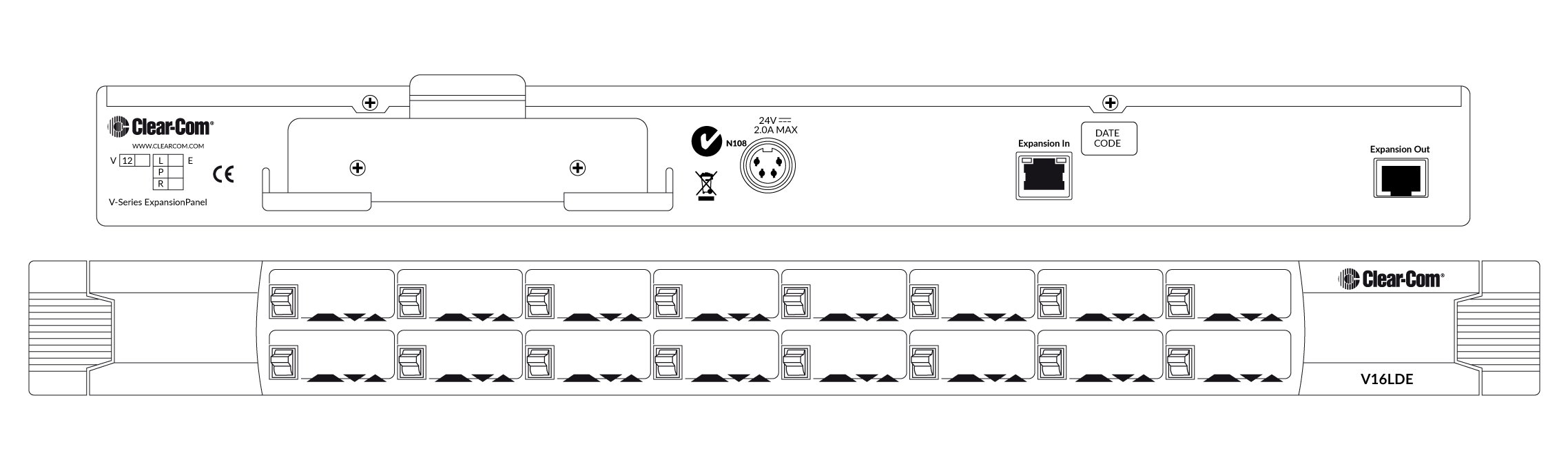

Rear Panel Connectors

Expansion Panel: RJ-45

DC Power: 4-pin DIN

Main Power Supply (External)

Voltage: 100/240 VAC +/- 10%

Frequency: 50 – 60 Hz

Power: 50W maximum

Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing

Dimensions

1.76 x 19 x 6.75 (HxWxD)

(44 x 483 x 172 mm)

Weight

3.5 lbs (1.6 kg)
