V32LD

V32LD

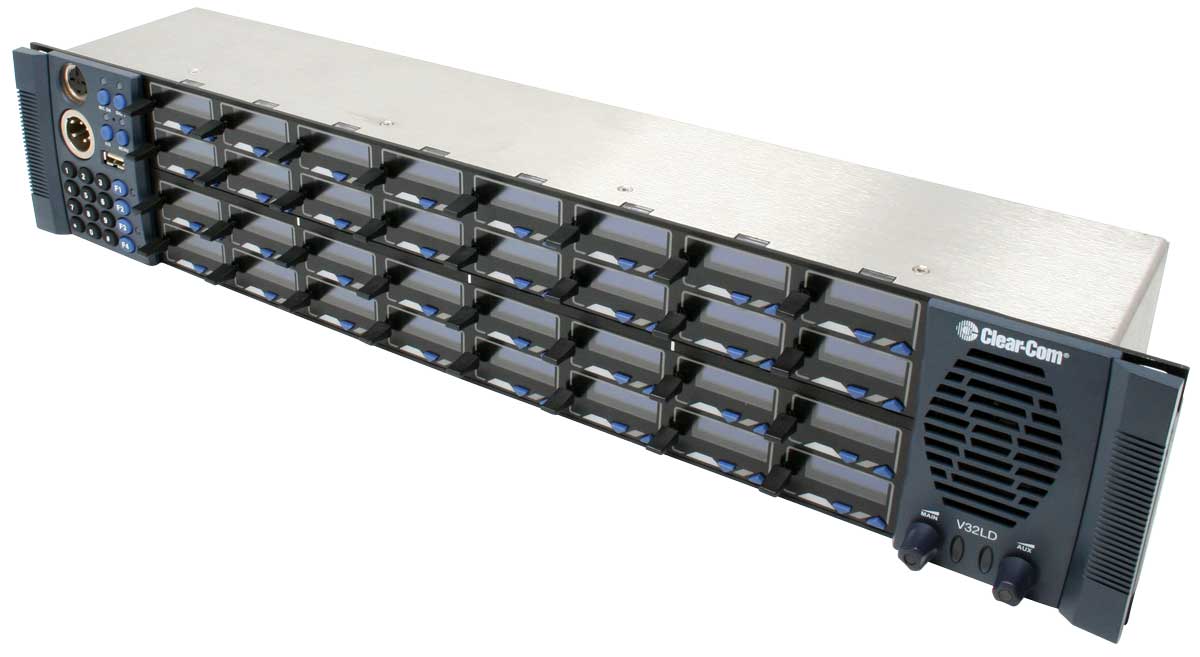

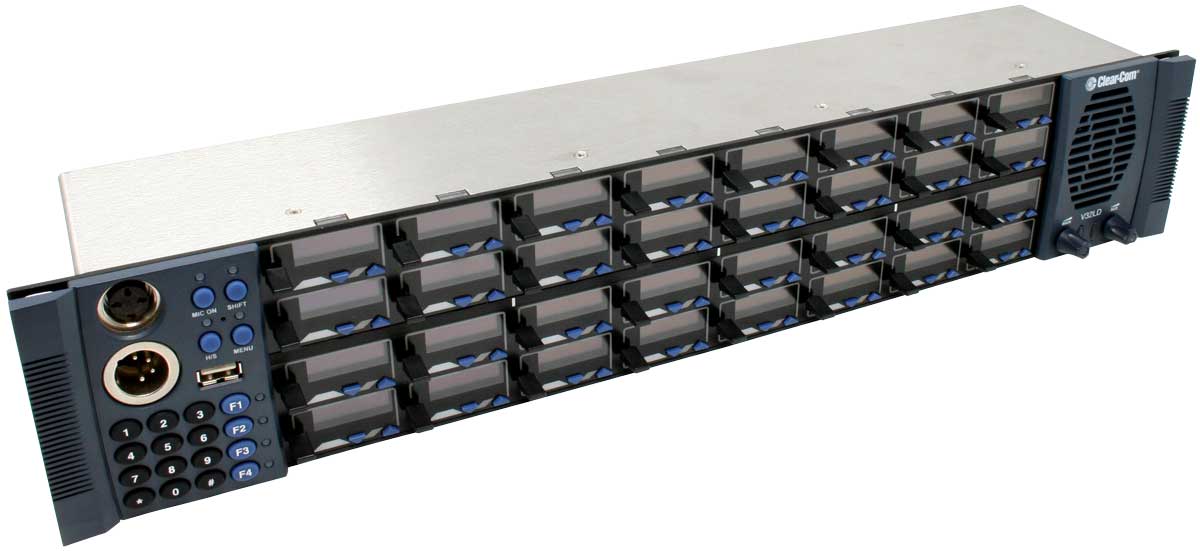

V-Series 32-key 2RU Lever Panel

  • 32 lever keys and 64 up/down level control buttons for use with Eclipse HX matrix frames
  • Individual up/down audio level controls for personal mixes
  • 4 configurable function keys for fast access to common menu features and controls
  • Yellow OLEDs for better contrast and visibility
  • Horizontal or vertical font display options
  • Listen Again function to replay calls
  • Fast key assign from pre-defined scroll lists and/or keypad
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)
Item Part Number:

V32LDX4

V32LDX5

The V-Series Lever Panels are user control key-panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Lever key-panels feature one display window per “key” and provide Listen (up) and Talk (down) operation for the displayed label. Latching and
momentary operation is software configurable. The Listen (up) path does not have to be the same as the Talk (down) path. A Talk/Listen LED status indicator is provided below the display window. When a talk path is active (down) the status will indicate a red color, and when a listen path is active (up) the status will indicate a green color.

Technical Specifications

Front Panel Controls and Connectors

Talk/Listen Switches: 32

Answer Back Switch: Configurable (None, 1 or 2)

Volume Controls: 2 (Main and Aux)

Headset Connector: 1 (XLR-4M or XLR-5F)

Panel Mic Connector: 1 (3-pin)

USB “A” Socket: 5V DC to 500mAh with short circuit and overload protection

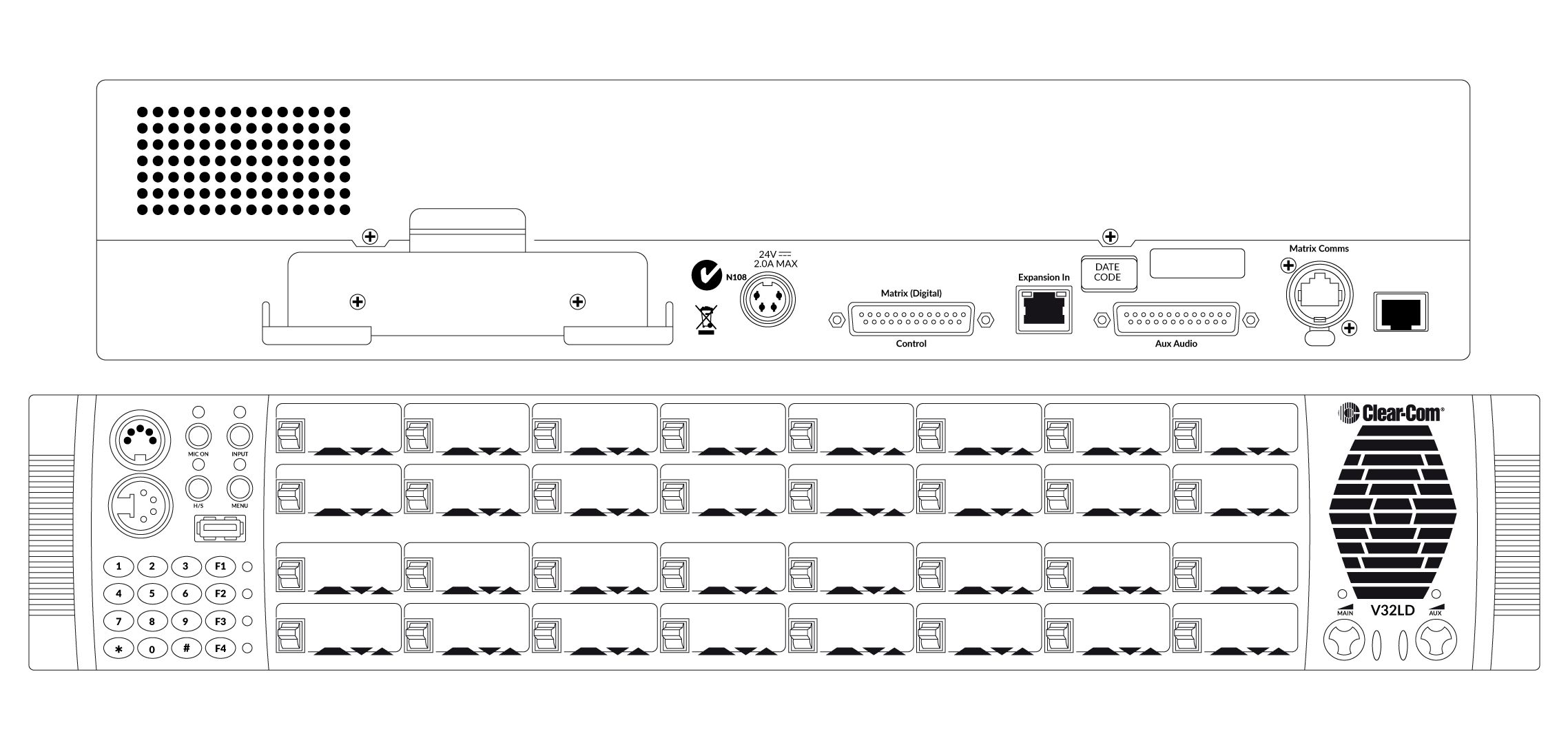

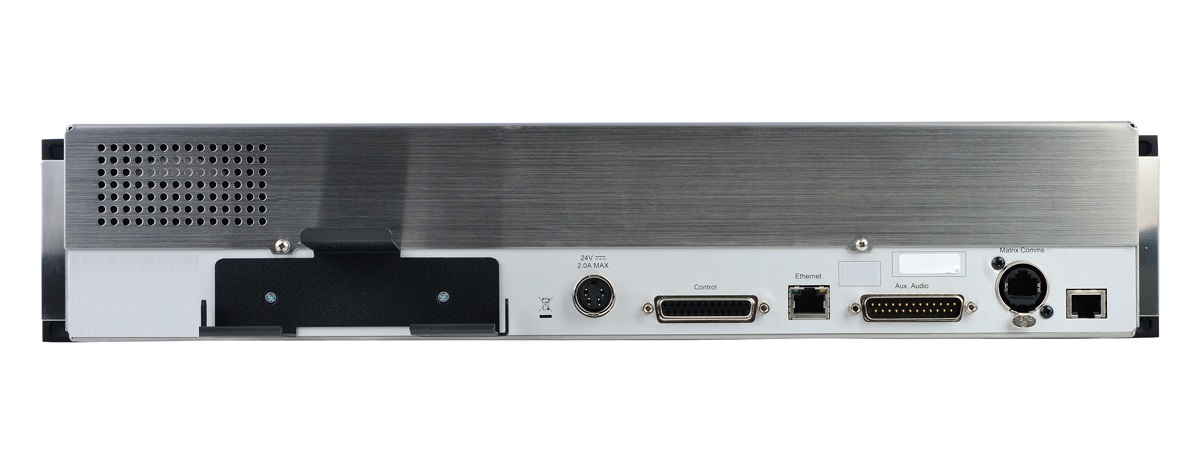

Rear Panel Connectors

GPIO: DB-25F

Matrix: RJ-45 (single-channel)

Matrix (IP): RJ-45 (multi-channel)

Auxiliary Audio: DB-25M

Expansion Panel: RJ-45

DC Power: 4-pin DIN

Headset Audio

Earphone Impedance: From 32 Ohms

Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio

Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input

Type: Electret

Level: 40-70 dBu

Impedance: 1700 Ohms +/- 10%

Headset Microphone Input

ype: Dynamic or Electret

Level: -40 – 0 dBu



Main Power Supply (External)

Voltage: 100/240 VAC +/- 10%

Frequency: 50 – 60 Hz

Power: 50W maximum

Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing

Dimensions

3.5 x 19 x 6.75 (HxWxD)

(89 x 483 x 172 mm)

Weight

7.5 lbs (4.0 kg)
