VI-PNL-32L

VI-PNL-32L

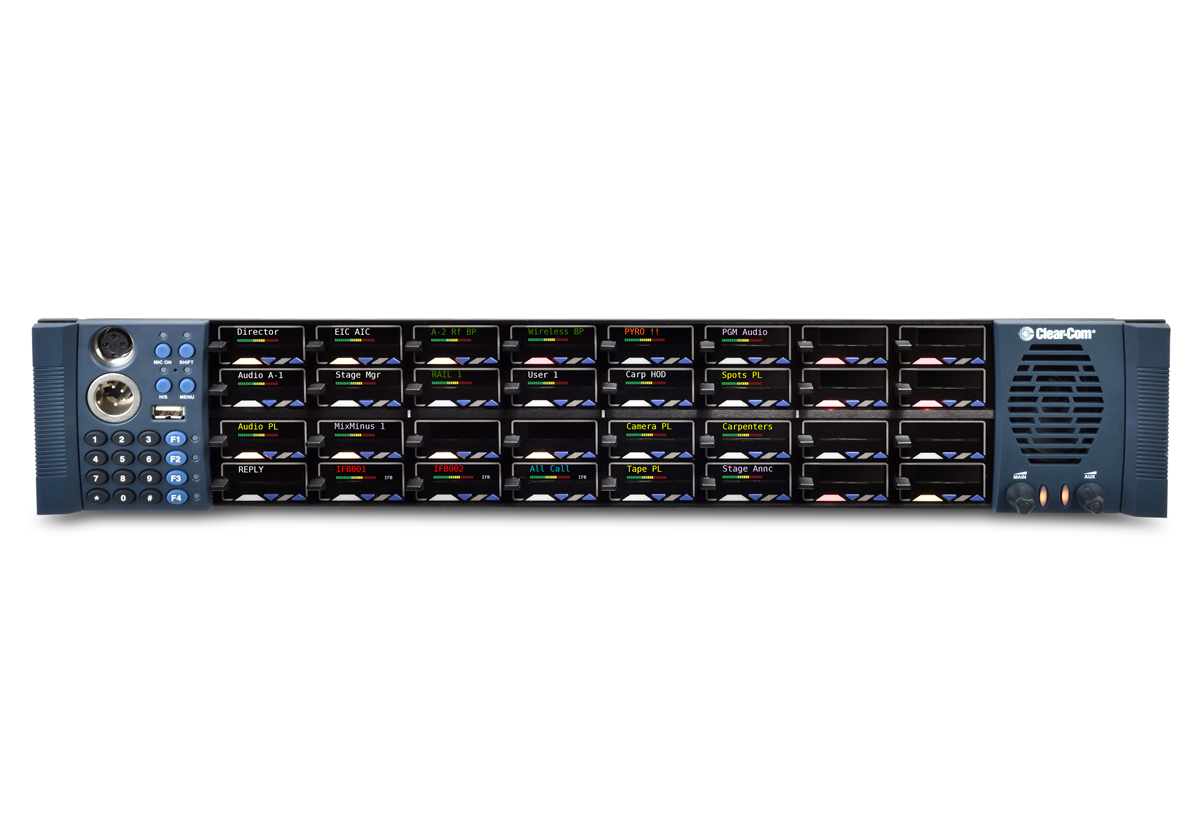

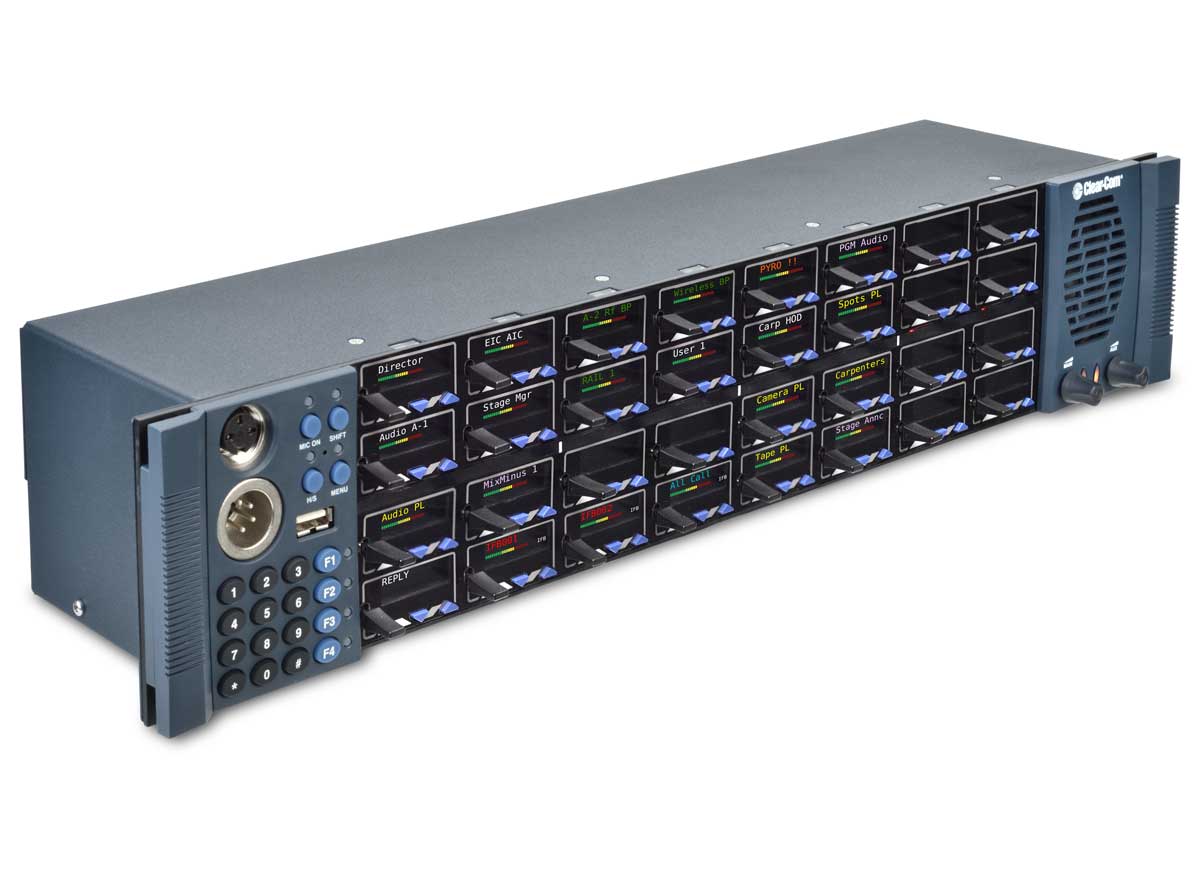

V-Series Iris 32-key 2RU Lever Panel

  • Color OLEDs for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual up/down audio level controls for personal mixes
  • Fast key assign from pre-defined scroll lists or using numeric pad
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • Vertical font display options
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
Item Part Number:

VI-PNL-32L-X4

VI-PNL-32L-X5

VI-PNL-32L-X7

The V-Series Iris Lever Panels are user control panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Lever panels feature one display window per “key” and provide Listen (up) and Talk (down) operation for the displayed label. Latching and momentary operation is software configurable. The Listen (up) path does not have to be the same as the Talk (down) path. A Talk/Listen LED status indicator is provided below the display window. When a talk path is active (down) the status will indicate a red color, and when a listen path is active (up) the status will indicate a green color.

Technical Specifications

Front Panel Controls & Connectors

Talk/Listen Switches: 32 (2RU)
Answer Back Switch: Configurable (None, 1 or 2)
Volume Controls: 2 (Main and Aux)
Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)
Panel Mic Connector: 1 (3-pin)

Rear Panel Connectors

GPIO: DB25F
Matrix: RJ45 (single-channel)
Matrix (IP): RJ45 (multi-channel)
Auxiliary Audio: DB25M
Expansion Panel: RJ45
DC Power: 4-pin DIN (with locking sleeve)

Headset Audio

Earphone Impedance: From 32 Ohms
Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio

Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input

Type: Electret
Level: 40-70 dBu
Impedance: 1700 Ohms +/- 10%

Headset Microphone Input

Type: Dynamic or Electret
Level: -40 – 0 dBu

Main Power Supply (External)

Voltage: 100/240 VAC +/- 10%
Frequency: 50 – 60 Hz
Power: 60W maximum

Environmental

Operating: +32º – +113º F (0º – +45º C)
Storage: +32º – +150º F (0º – +70º C)
Humidity: Between 20% and 90%, Non-Condensing

Dimensions

19 x 3.5 x 6.75 in (WxHxD)
(483 x 89 x 172 mm)

Weight

6.2 lbs (2.78 kg)
