VI-PNLB-12R

V-Series IrisX 12-key 1RU Rotary Panel

TFT displays for quick and easy key differentiation
AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
Individual key menus help ease of use and assignment
Individual rotary audio level controls for personal mixes
Color-coded keys for easily identifiable color tallies
Vertical font display options
Fast key assign from pre-defined scroll lists or using numeric pad
Optional repositioning of Reply key
Optional additional Reply key for busy positions
International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
“Listen Again” function to replay calls up to 5 mins

Item Part Number:

VI-PNLB-12R-X4

VI-PNLB-12R-X5

VI-PNLB-12R-X7

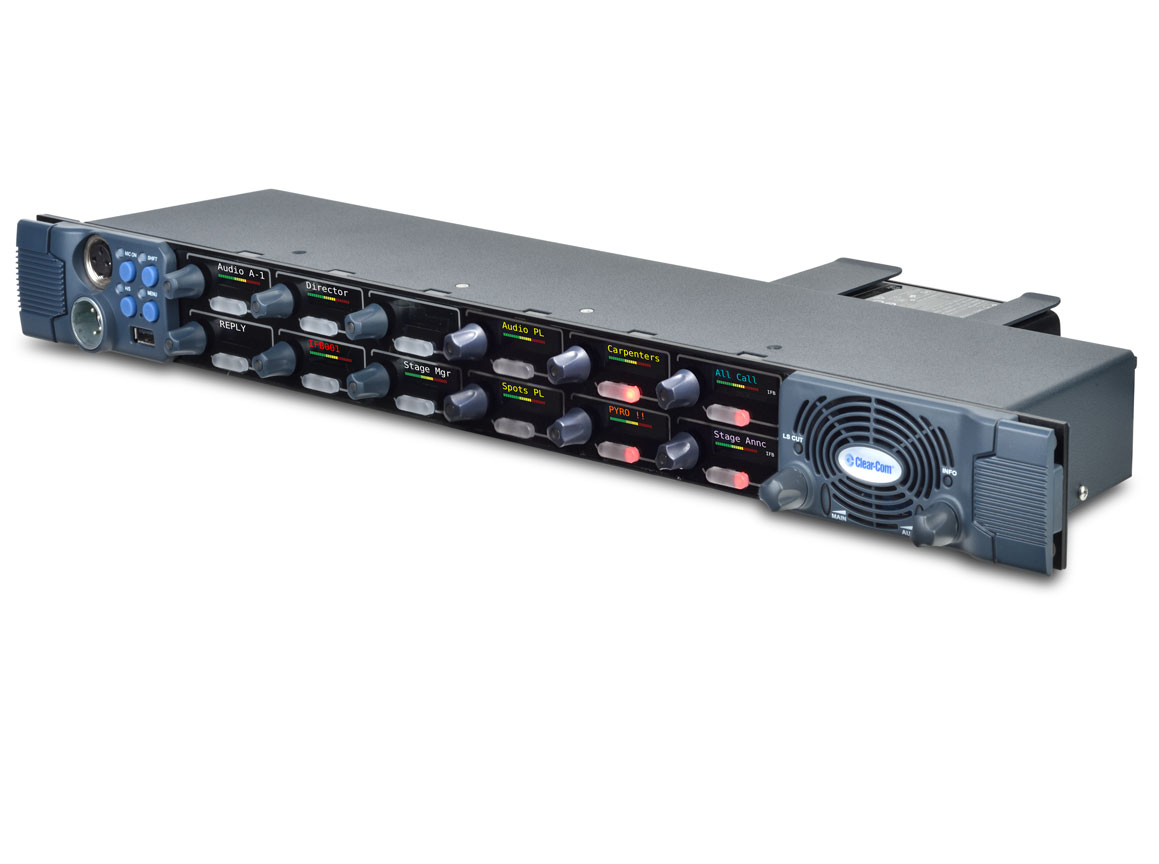

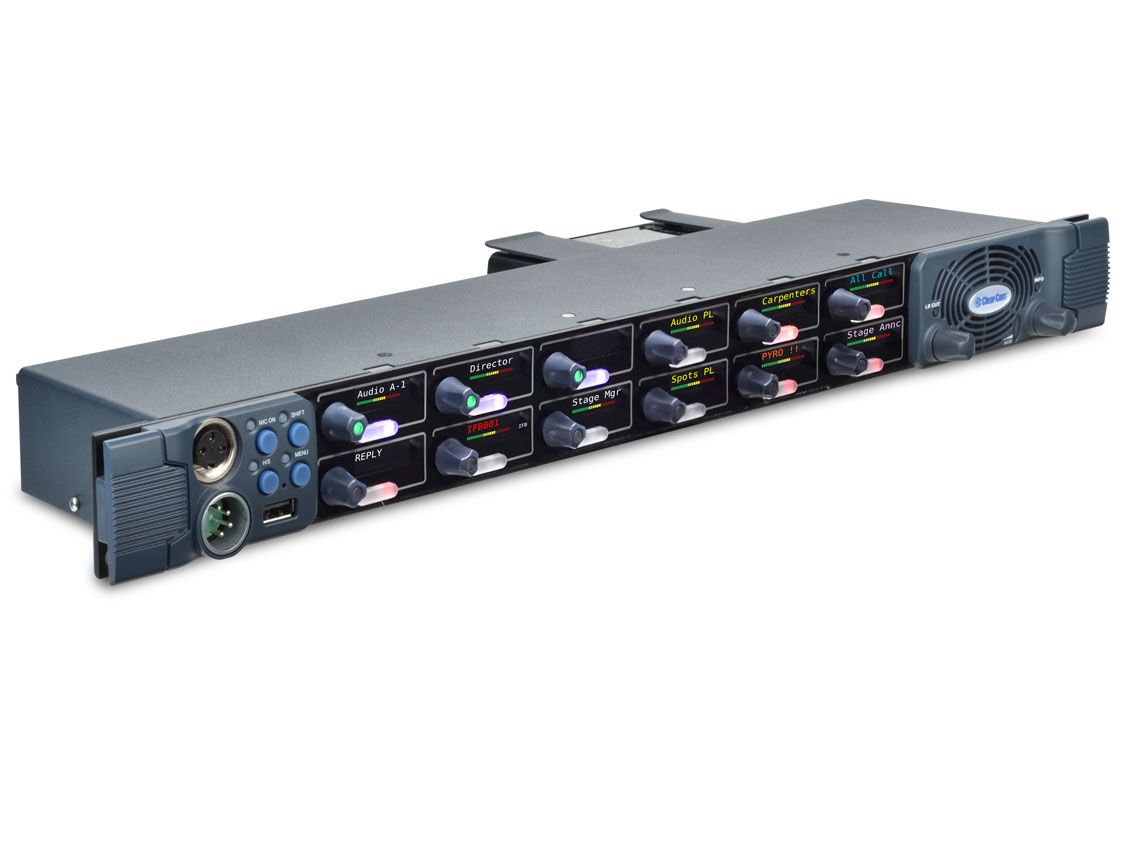

The V-Series IrisX Rotary Panels are user control panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Rotary panels feature one display window per “key” and have two individual controls for the same display; a rotary encoder for level control with a pushbutton switch feature for Listen (push on/off) and separate pushbutton for Talk (push on/off). Each control offers discrete LED tally indication; red for Talk and green for Listen.

With IrisX panel’s IP capability, users can connect via AES67 or with Clear-Com’s AoIP I.V. Core™ protocol, as well as connect locally with a 4-wire connection. Using an E-IPA-HX
card, users can deploy up to 64 panels in an AES67-based network. IrisX panels also have a dual NIC connection which allows for seamless communication, even if the primary IP
network fails.

Technical Specifications

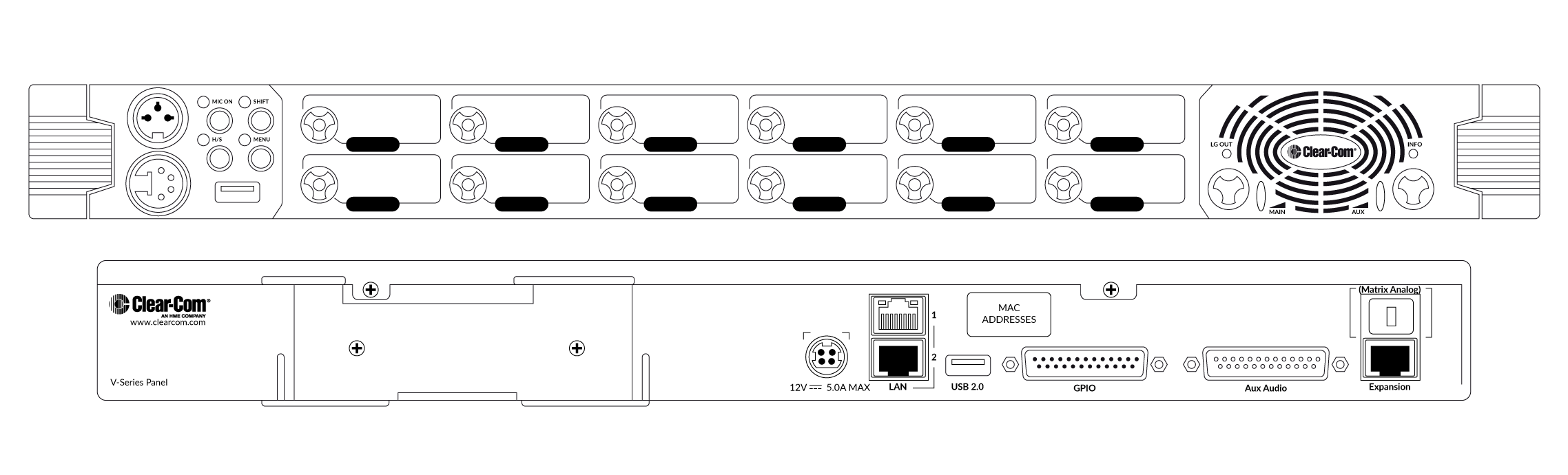

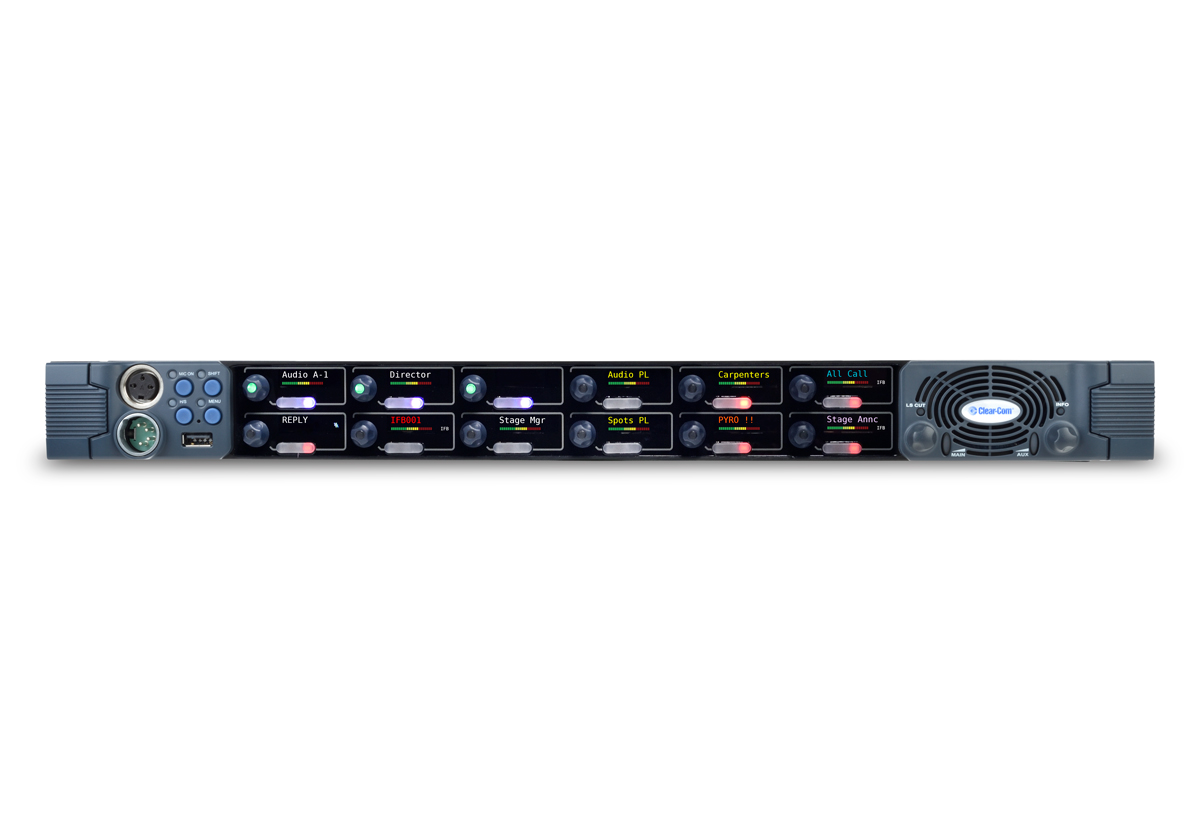

Front Panel Controls & Connectors
Talk/Listen Switches: 12 (1RU)
Answer Back Switch: Configurable (None, 1 or 2)
Volume Controls: 2 (Main and Aux)
Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)
Panel Mic Connector: 1 (3-pin)

Rear Panel Connectors
GPIO: DB-25F
Matrix: RJ45 (single-channel)
Matrix (IP): RJ45 (multi-channel)
Auxiliary Audio: DB-25M
Expansion Panel: RJ45
DC Power: 4-pin DIN (with locking sleeve)
Physical LAN: 2x 100/1000BASE-T Full-Duplex Ethernet (100 used for IVC, 1000 used for AoIP)

Headset Audio
Earphone Impedance: From 32 Ohms
Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio
Frequency Response: 40Hz-20kHz +/- 3dB

Panel Microphone Input
Type: Electret
Level: 40-70 dBu
Impedance: 1700 Ohms +/- 10%

Headset Microphone Input
Type: Dynamic or Electret
Level: -40 – 0 dBu

Main Power Supply (External)
Voltage: 100/240V AC +/- 10%
Frequency: 50 – 60 Hz
Power: 60W maximum

Environmental
Operating: +32º – +113º F (0º – +45º C)
Storage: +32º – +150º F (0º – +70º C)
Humidity: Between 20% and 90%, Non-Condensing

Dimensions
19 x 1.76 x 6.84in (WxHxD)
(483 x 44 x 174mm)

Weight
4.2lbs (1.92kg)
