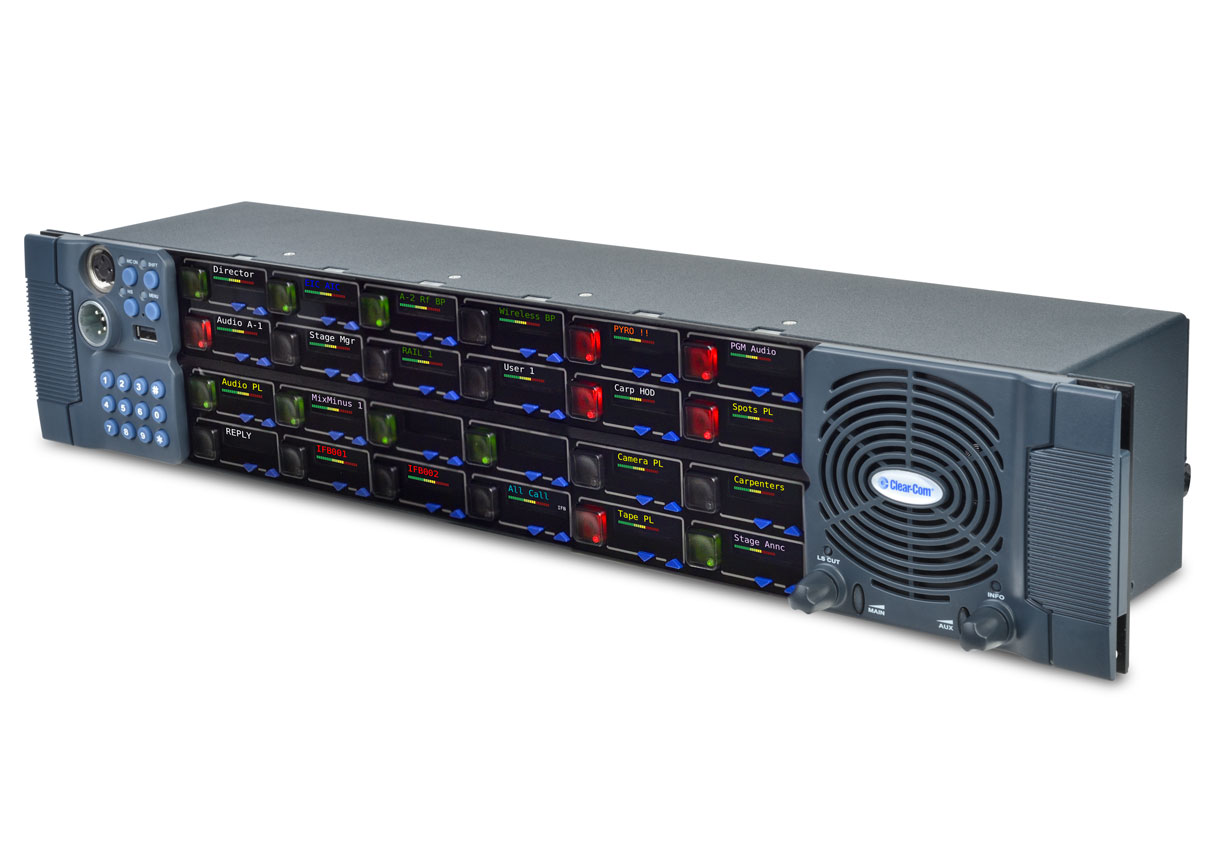

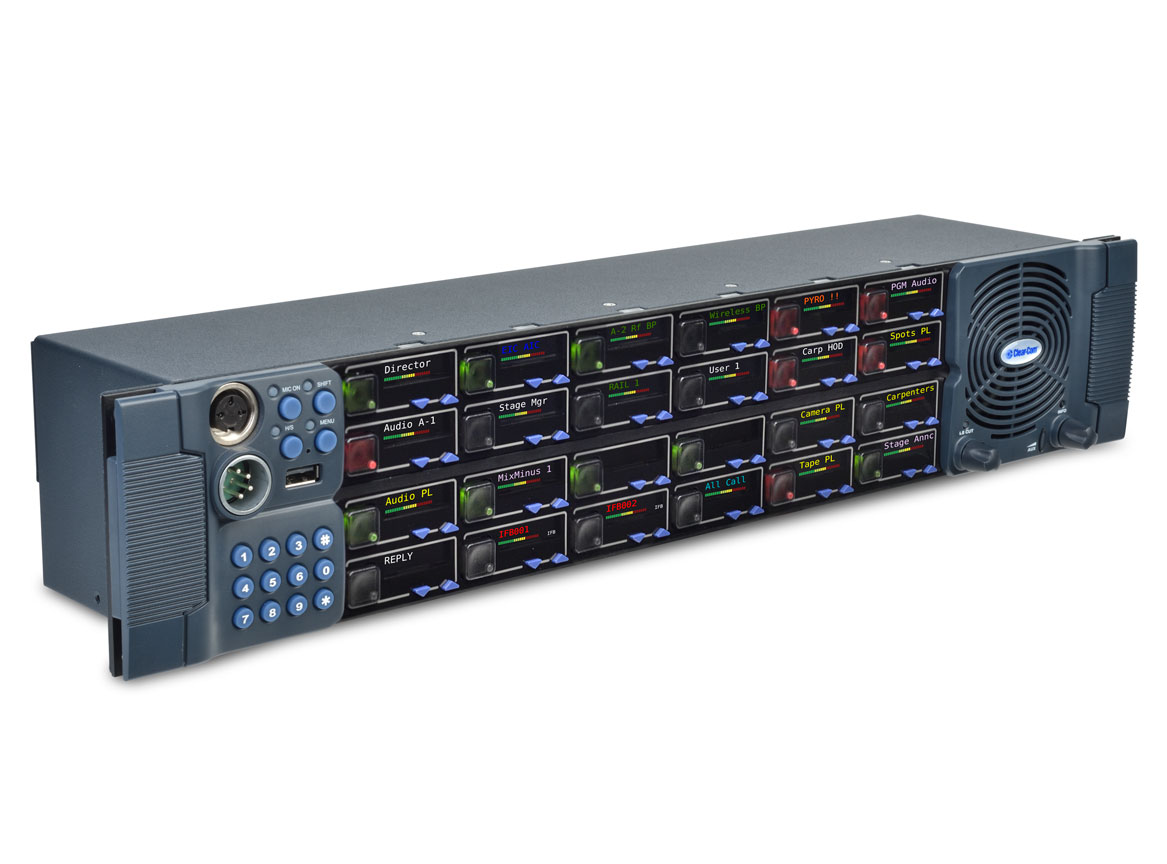

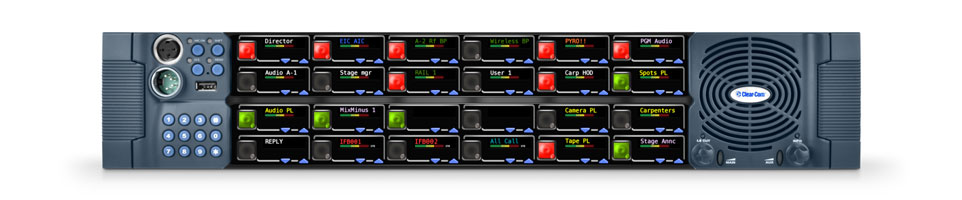

V-Series IrisX 24-key 2RU Pushbutton Panel
VI-PNLB-24P-X4
VI-PNLB-24P-X5
VI-PNLB-24P-X7
The V-Series IrisX Pushbutton panels are user control panels that operate in conjunction with the Eclipse HX Digital Matrix Systems. Pushbutton panels feature one display window per key. For each key, a red tally light indicates Talk only, green indicates Listen only and amber is for both Talk and Listen. A special mode provides dual Talk/Listen with a latchable Listen and momentary Talk on one button.
With IrisX panel’s IP capability, users can connect via AES67 or with Clear-Com’s AoIP I.V. as well as connecting locally via 4-wire connection. Core protocol. Using an E-IPA-HX card, users can deploy up to 64 panels in an AES67-based network. IrisX panels also have a dual NIC connection which allows for seamless communication, even if the primary IP network fails.
Talk/Listen Switches: 24 (2RU)
Answer Back Switch: Configurable (None, 1 or 2)
Volume Controls: 2 (Main and Aux)
Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)
Panel Mic Connector: 1 (3-pin)
GPIO: DB-25F
Matrix: RJ45 (single-channel)
Matrix (IP): RJ45 (multi-channel)
Auxiliary Audio: DB-25M
Expansion Panel: RJ45
DC Power: 4-pin DIN (with locking sleeve)
Physical LAN: 2x 100/1000BASE-T Full-Duplex Ethernet (100 used for IVC, 1000 used for AoIP)
Earphone Impedance: From 32 Ohms
Output Power: 75mW into 50 Ohms for <1% distortion
Loudspeaker Audio
Frequency Response: 40Hz-20kHz +/- 3dB
Type: Electret
Level: 40-70 dBu
Impedance: 1700 Ohms +/- 10%
Type: Dynamic or Electret
Level: -40 – 0 dBu
Voltage: 100/240V AC +/- 10%
Frequency: 50 – 60Hz
Power: 60W maximum
Operating: +32º – +113º F (0º – +45º C)
Storage: +32º – +150º F (0º – +70º C)
Humidity: Between 20% and 90%, Non-Condensing

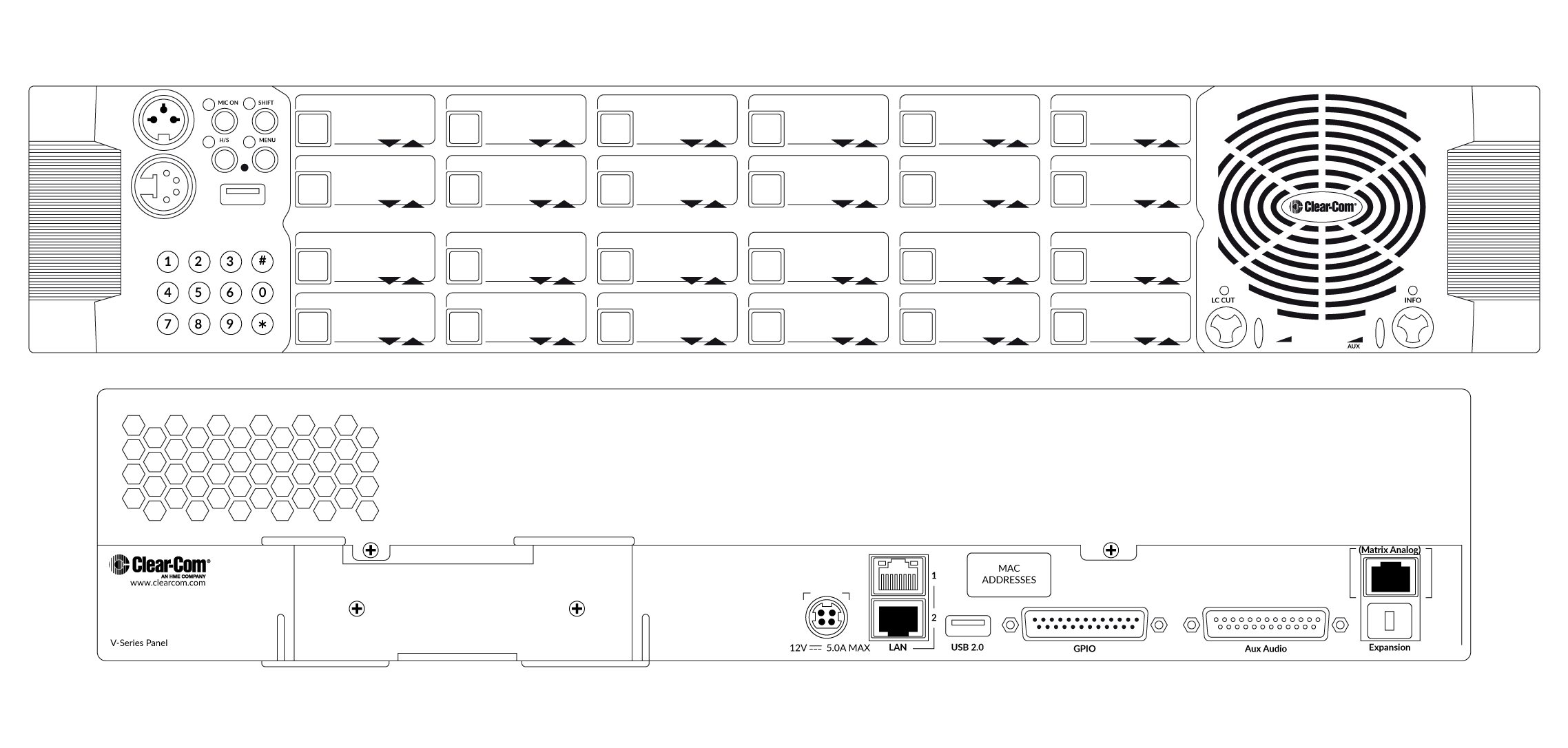

19 x 3.5 x 6.84in (WxHxD)
(483 x 89 x 174mm)
6.3lbs (2.85kg)
