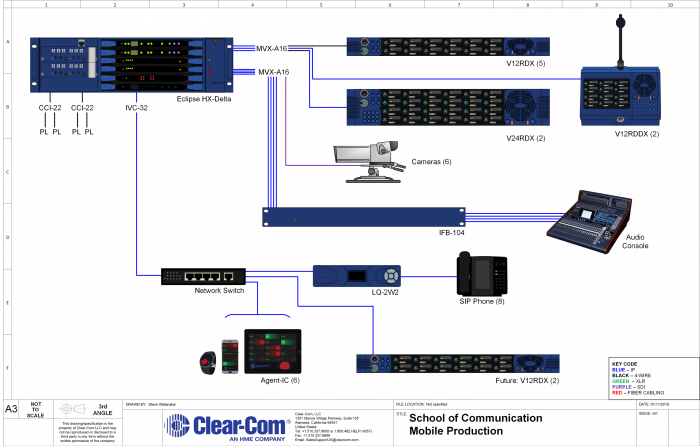

Application Diagram




School of Communication and Mobile Production

-->

Many colleges have sprawling campuses that house sports venues, auditoriums, theatres or very large conference rooms. At various times, each may need the ability to execute a production from that locale. The combination of small matrix frame, Agent-IC and SIP end points allows a crew to easily move from venue to venue.



How it Works

An Eclipse HX-Delta frame allows point-to-point communication between panels, and IFB capabilities to talent. An IVC-32 card connected to a switch with an LQ device provides SIP capability and mobile users on Agent-IC. This fairly light weight solution gives a school the ability to manage productions from any locale. The system can easily be scaled to fit various types of productions, from sports to major school announcements.
