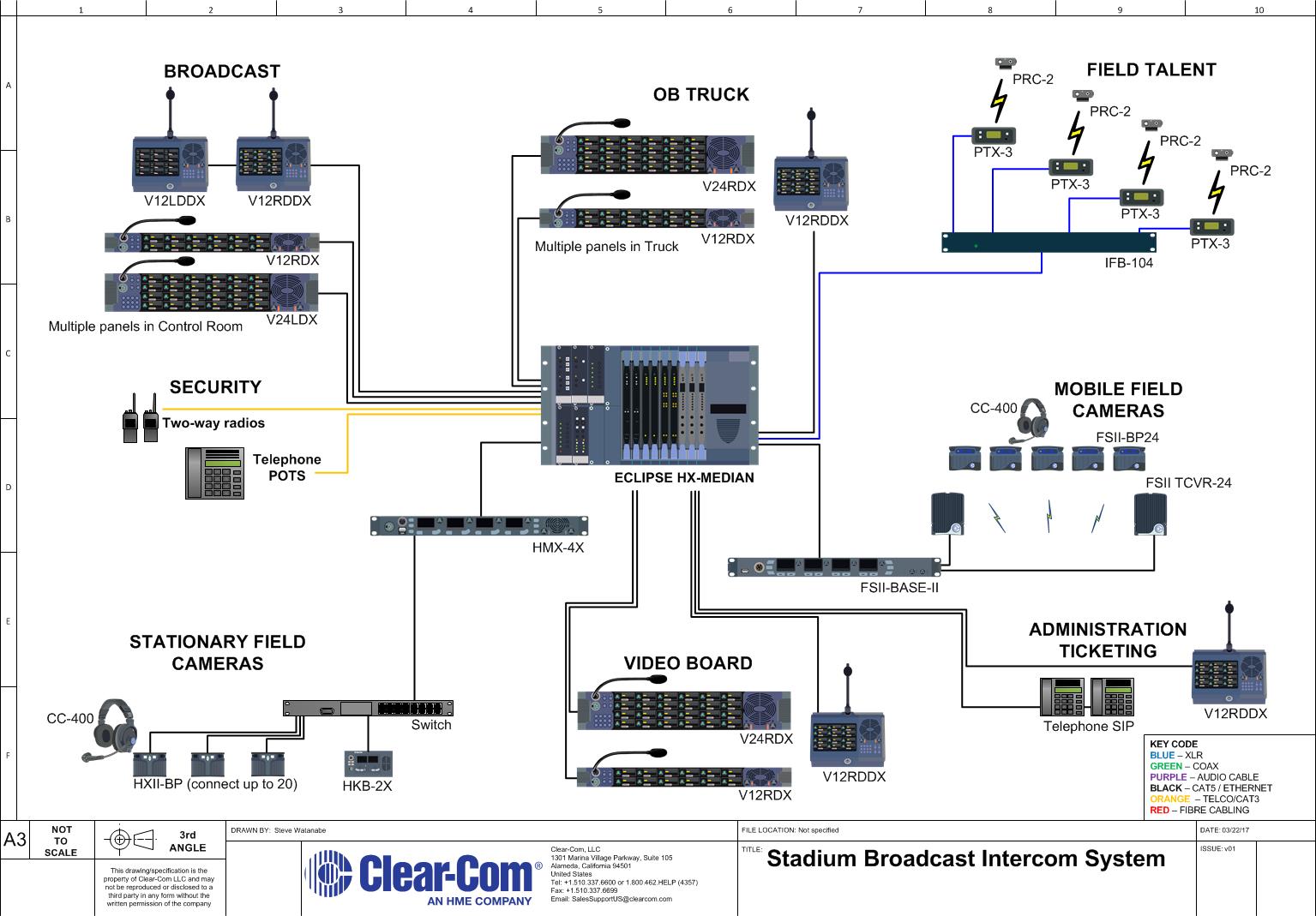

Application Diagram

Stadium Broadcast with Matrix, Digital Partyline, Wireless, and Wireless IFB

-->

Producing a broadcast from a stadium or arena is a large undertaking. Connecting staff from all endpoints in the stadium is critical to delivering a seamless sports production.



How it Works

A Digital Matrix frame connects staff on panels, wireless/wired devices, and radios/phones through multiple ports. For example, the Control room easily can direct stationary field cameras and field talent to a specific area for sideline interview – all while video board operators manage game stats and the video feeds.



Application Notes

Eclipse-HX Median is a 6RU digital matrix frame. V-Series Panels connect the truck, control room and video board directly to the Median. Stationary positions leverage HelixNet digital partyline, while mobile users utilize FreeSpeak II wireless system.
