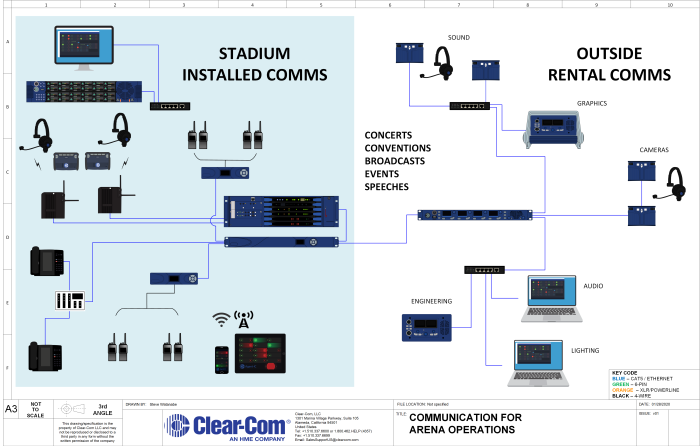

Application Diagram




Stadium Ops – Eclipse w added Comms

-->

At sports stadiums all over the world, there is an expectation that the entertainment in the building is equal to the game itself. The carefully coordinated fan experience can start with an aircraft flyover and continue with giant video screen games, crowd shots and game replays and highlights – all interlaced with the action on the field.

Application Notes

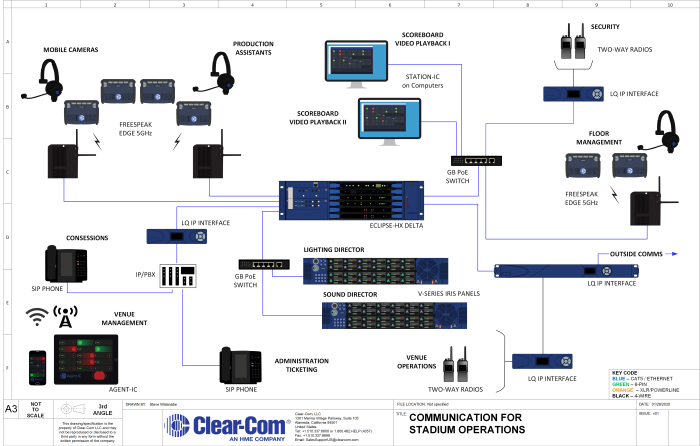

The Eclipse HX-Delta matrix frame carries point-to-point communication over network gigabit switches to individual panels at static positions. The LQ Series IP interface extends communication to 3rd party communication devices like IP phones and two-way radios. The E-IPA network card also allows for eight licenses each of the Agent-IC mobile app and the Station-IC desktop client. Agent-IC works on any iOS or leading Android device – it gives users a multi-channel virtual panel that can take a signal from Wi-Fi, LTE and 3G transmitters. Station-IC functions on any device running Windows or MacOS. The addition of FreeSpeak Edge to the system allows for mobile staff to communicate from anywhere in the arena.

Featured Products used in this Application:
