Configure audio routes in FreeSpeak II Base

Channels

In FreeSpeak II Base, audio routes can be made between beltpacks and external interfaces by putting all members (audio feeds and beltpacks) in a Channel together. In this way, beltpacks, audio and the controller all communicate with each other. A Channel operates as a Partyline or conference.

You can see all sources in a Channel in the Assignments page. Click/touch image to enlarge/minimize.

Note: Channels are set to 'Talk and Forced Listen' by default. See Key behavior for more information.

Groups

Audio can also be configured into Groups. Groups are programed in a similar way to Channels; simply assign the audio sources to the Group (Group Members) and then program a key to talk to the Group. Ports, the Base headset, and beltpacks can all become Group members. Once a Group member, users will be able to hear announcements to the Group, and reply using the Reply key.

Note: You can see all members of a Group at a glance in the Assignments page of the CCM. Navigate to Assignments and click/touch the Group tab. Beltpacks will not be visible in the Group until they are online.

Example audio assignment

Follow steps 1. to 3. to connect audio from external devices to the Base Station, populate Channels and set up communication with beltpacks.

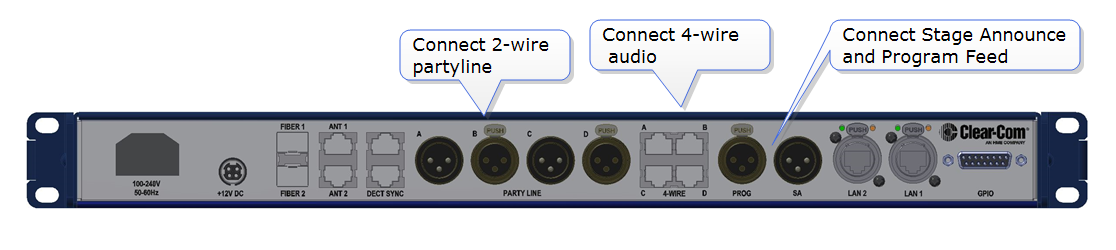

1. Connect 2-Wire or 4-Wire audio devices to interfaces/ports.

Show me

2. Assign interfaces/ports to Channels.

Setting audio on interfaces/ports can be done from the CCM or the Base Station:

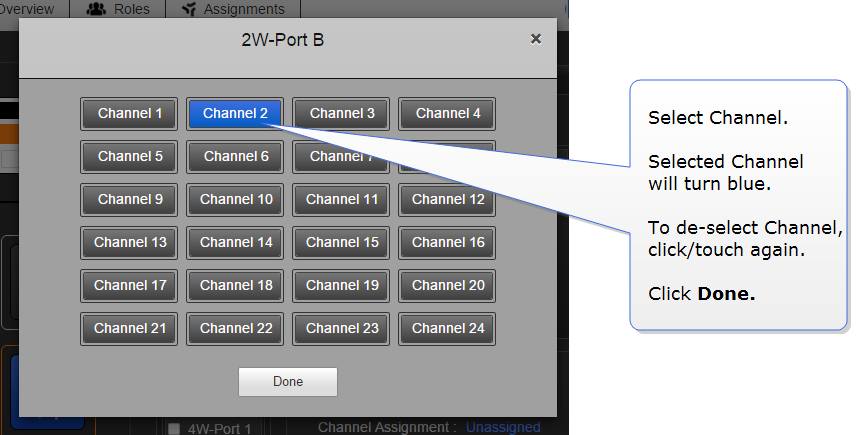

Show me port assignment in the CCM. 1. 2.

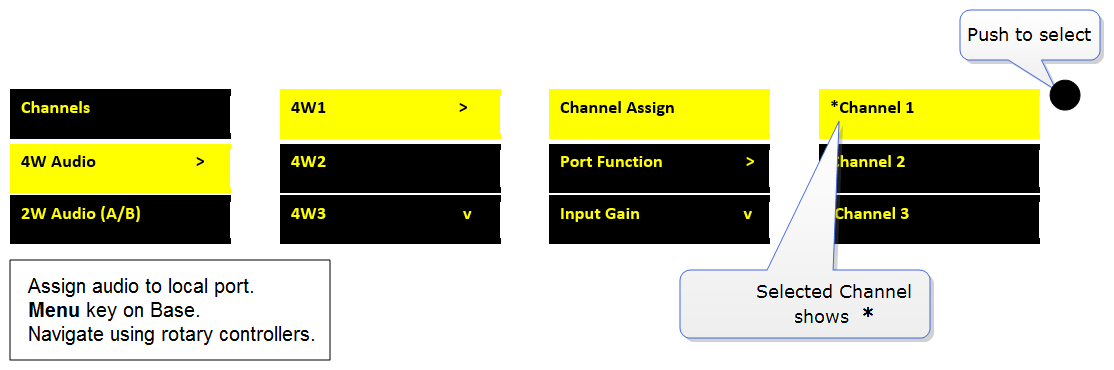

Show me port assignment from the Base Station menu screens

Note: Configure port settings (power, termination, port function, port levels etc.) as required.

3. Assign Channels to beltpack keys (A,B,C,D,Reply)

Audio assignment for beltpacks is always done with a Role. A Role is a pre-defined beltpack configuration map. You select a Role for a beltpack when it is first powered on. The Role a beltpack is using can be changed from the Base station, the CCM or the beltpack itself.

In the first case, it is easiest to use the default Role. This puts Channel 1 and Channel 2 on to the beltpack keys. See Default Role settings for how to do this.

To change the Channel on a beltpack you need to edit the Role that beltpack is using. Find the beltpack Role name at the bottom of the beltpack screen:

Show me how to edit beltpack Role in the CCM. 1. 2.
Show me how to edit beltpack Role from the Base Station menu screens.

Note: You can assign audio to keys C, D and Reply. To return the status of these keys to Call and Reply, you must deselect or unassign the audio assignment. A selected assignment turns blue in the CCM. Click on a blue assignment again to deselect it. From the Base Station menu screens go to Key Assign/Role/Key/Unassigned.

Change key assignments on the Base Station

Change Channel settings on the Base Station.

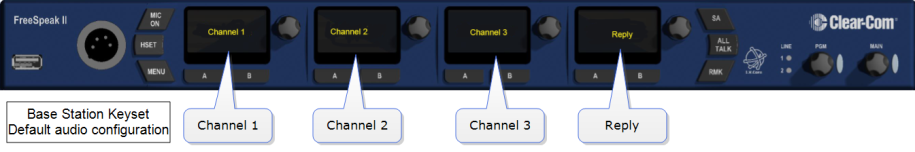

The Base Station default setting has Channels 1 - 3 on the first three Keysets. The 4th Keyset is a Reply key.

This can be edited:

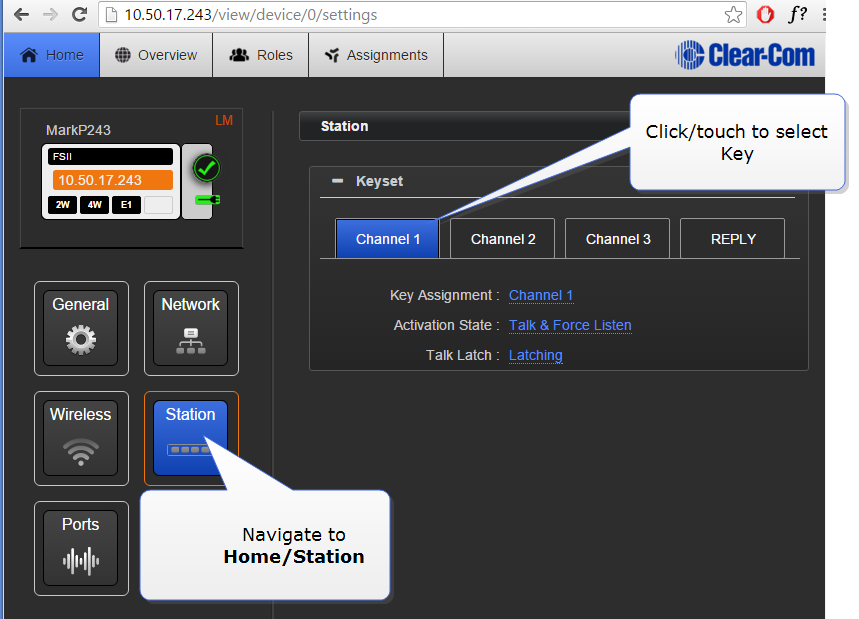

Change Base Station key assignment from the CCM: Step 1. Step 2.

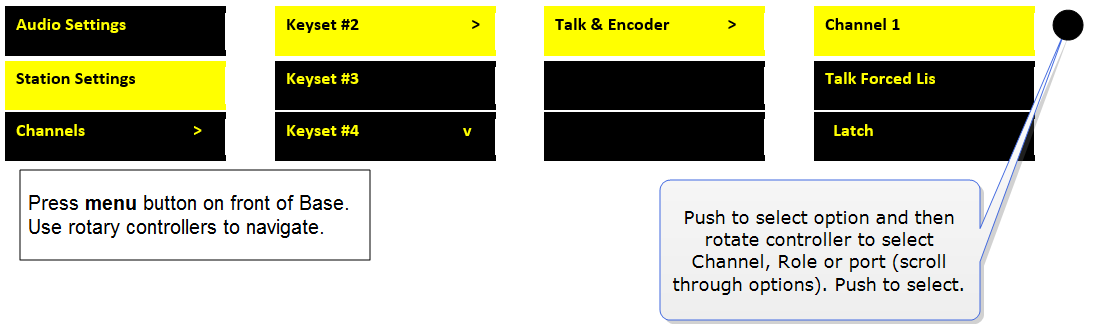

Change Base Station key assignment from the Base:

Configure a one-to-one connection

As well as into Channels, audio can be configured in a point-to-point relationship (for instance, one beltpack to another in a private communication).

Example point-to-point audio assignment

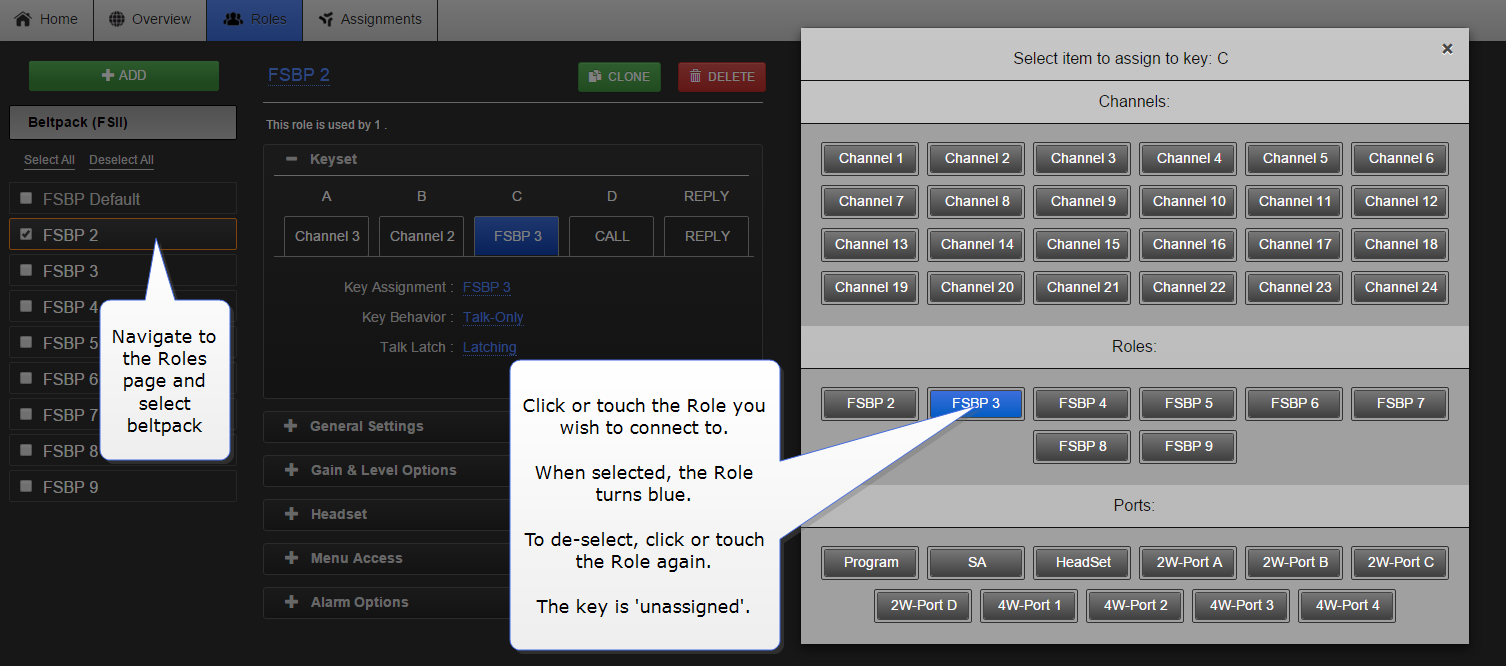

When selecting an audio source for any key, (in this example key C on a beltpack), instead of selecting a Channel, select a beltpack Role or port.

Show me

This creates a point-to-point connection. A similar effect could be achieved by putting two beltpacks into a Channel of their own.
