What is FreeSpeak II?

Home >Topics > What is FreeSpeak II > Introduction

Click/touch a heading to expand.

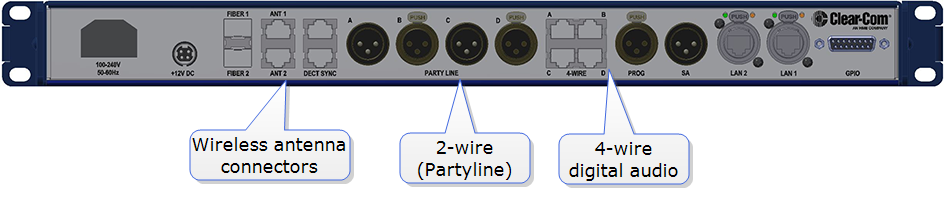

2-wire, 4-wire and wireless intercom

These different devices communicate seamlessly.

Show me. Click/touch to enlarge/minimize.

Flexible configuration

Pre-configured beltpack Roles allow both rapid set-up and flexible configuration.

Use simple default set-up; all beltpacks on Channel 1 and 2
or, customize the set-up to suit your needs.
System has either 25 (FSII-BASE-II) or 5 (FSII-BASE-II-5) beltpack Roles. FSII-BASE-II-5 offers a license to upgrade to 25 beltpacks if required.

Live set-up and control

Use the front panels of the Base Station, or the browser-based Core Configuration Manager (CCM).

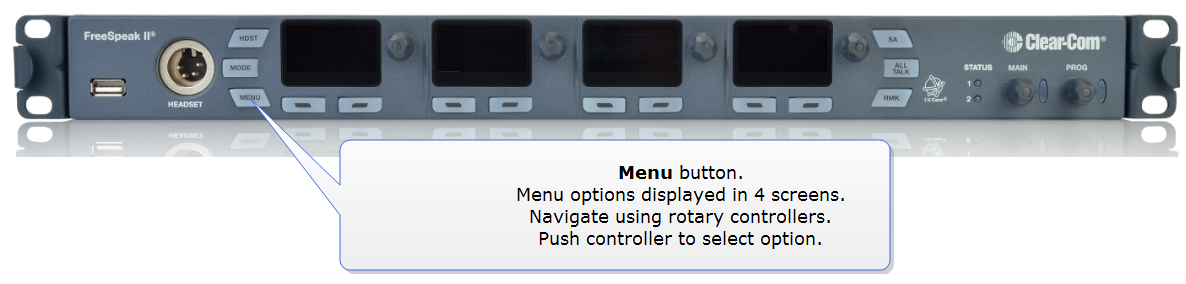

Press Menu button on the Base Station to access controls:

Show me how to control audio from the Base Station. Click/touch to enlarge/minimize.

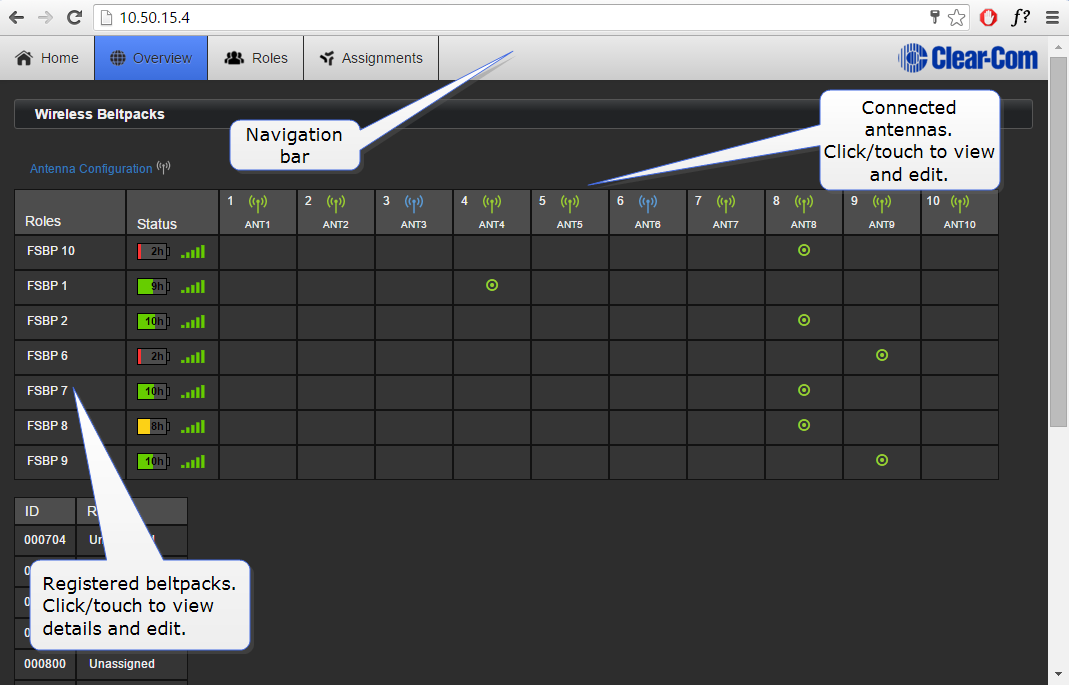

Browser-based Core Configuration Manager (CCM), accessed via device IP address.

Show me how to control audio from the CCM. Click/touch to enlarge/minimize.

System capacity

Up to 25 wireless beltpacks,10 antenna/transceivers per base
FSII-BASE-II: 25 beltpack capacity.
FSII-BASE-II-5: 5 beltpack capacity. To upgrade to 25 beltpacks you need to obtain a licence from your Clear-Com dealer.
12 Partyline Channels
12 Group set-ups
Beltpack to beltpack connection (point-to-point)
Completely scalable and configurable
Unrivalled audio quality
