Arcadia® Central Station System

Arcadia® Central Station is a scalable IP intercom platform integrating FreeSpeak® wireless and HelixNet® wired intercom user stations with Dante, 2-Wire and 4-Wire interfaces in a compact 1RU device. Arcadia’s compact 1RU form factor is capable of mixing 180 audio signals, features front panel intercom user station, fast and easy setup, configuration and monitoring.

Unlock the power and explore the Arcadia Central Station.

Features and/or Benefits

Wired and Wireless Integration

Integration of both wired and wireless partyline systems. The 1RU device provides 2-wire, 4-wire, SFP and GPIO connections allowing both analog and digital intercom capability including the full range of FreeSpeak® products (E1/IP TCVRs; 1.9, 2.4 and 5 GHz beltpacks), HelixNet® Wired Intercom (HRM-4X, HKB-2X, and HXII-BP), and Dante Audio Network Interfaces.

IP Interoperability

With a multitude of third-party devices running on IP, the Central Station provides tremendous flexibility by allowing communication routes to Dante devices via 64 licensable ports.

Flexible and Future-Proof

The Central Station allows the user to increase the number of ports to 128 – with port licenses available in increments of 16. As the need for greater capacity grows or a new feature is needed, field deployable Licensed Port Upgrades can be used to increase Arcadia’s intercom footprint.

Easy Setup and Monitoring

The system is configured through a redesigned Core Configuration Manager (CCM™) enabling rapid setup, configuration and monitoring. The intuitive user interface has a consistent design for a quick and simple means of configuring the Central Station with role-based beltpacks, including save and restore, text messaging, individual beltpack and group call signal and remote mic kill.

Products In Family

Central Station

A 1RU IP-based standalone device that supports wired and wireless endpoints.

ARCADIA-STATION

FreeSpeak® Integration

Arcadia can integrate the full range of FreeSpeak wireless beltpacks and transceivers. To view the entire line of FreeSpeak products, please view the FreeSpeak Wireless Family page.

HelixNet® Integration

Arcadia can integrate various HelixNet endpoints. To view the entire line of HelixNet products, please view the HelixNet Digital Network Partyline Family page.

Encore® Integration

Arcadia can integrate various Encore analog partyline endpoints. To view the entire line of Encore products, please view the Encore Analog Partyline Family page.

PS-702

Software

Central Control and Monitoring of Arcadia

CCM™ for Arcadia

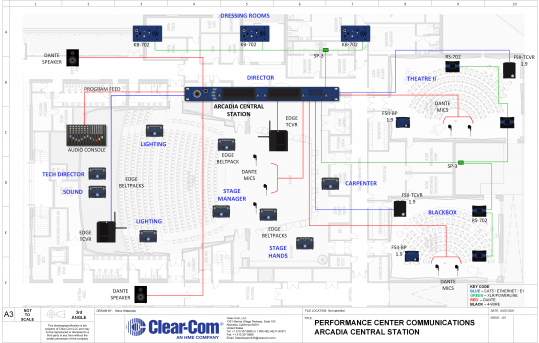

Performance Center Communications

A Performance Center could have multiple theaters, multiple dressing rooms, a carpentry area and additional the box office and administrative space. The Arcadia Central Station is a 1RU device that supports up to 32 beltpacks from all three FreeSpeak frequency bands. An additional 64 ports of Dante and AES67 can be added through a flexible port licensing system. The device also houses 2-wire and 4-wire ports to add analog intercom equipment and third-party devices. This scalability makes covering the entire Performance Center with a single device a reality.

Featured Products:

>>View Diagram

Large Church Communications

A large church production team has to manage multiple pastors and speakers, singers, band members, mobile mics in the crowd and more. Allowing the production staff to move freely around different areas of the church while still in communication with the rest of the team provides a seamless and smooth live delivery. The flexibility of the Arcadia Central Station provides the team with a single 1RU device that powers multiple FreeSpeak frequency bands. The 2-wire connection points give new life to legacy analog systems like Encore.

Featured Products:

>>View Diagram
