FreeSpeak Edge® Wireless System

FreeSpeak Edge® Wireless System

FreeSpeak Edge is a multi-channel duplex digital wireless intercom system. With the FreeSpeak Edge Base Station, users can also connect to FreeSpeak II 1.9 GHz, FreeSpeak II 2.4 GHz, and FreeSpeak Edge 5 GHz as well as third-party Dante devices. With the wide 5 GHz band, the FreeSpeak Edge system can take advantage of reflection to provide higher performance. The wide bandwidths available enable very low latency and best in class 12 kHz audio quality.

The FreeSpeak Edge Digital Wireless RF Configuration Guide provides specifications, best practices and guidance for using the 5 GHz band and RF channels.


Features and/or Benefits

IP Connectivity

With the addition of the FreeSpeak Edge Base Station, users now have extensive connectivity to a wide range of Clear-Com endpoints with support for both FreeSpeak Edge and FreeSpeak II systems along with third-party Dante devices.

Increased Capability and Flexibility

The FreeSpeak Edge beltpack is designed with nine programmable buttons with level control for four channels and a master volume. The large easy-to-read TFT color display delivers key communication details at a glance. The beltpack has a curved frame that fits closely on the hip along with additional features to make communication seamless and easy.

Scanner Mode

The FreeSpeak Edge Scanner Mode allows you to quickly scan for available channels within the 5 GHz band. Built into the beltpack itself, the RF Scanner works to avoid channels in use by other devices. The Mode then provides channels for communication which keep the system free of any Wi-Fi interference.

Best Audio Quality

With best-in-class 12 kHz audio, FreeSpeak Edge delivers high audio quality with ultra-low latency and an almost imperceptible noise floor. Dual encrypted (AES256) radios in the beltpack and transceiver provide packet redundancy which deliver robust and secure audio performance.

Products In Family

Base Station

Standalone 1RU Base Station

5 GHz digital wireless beltpack

Transceiver for 5 GHz FreeSpeak Edge beltpacks

Quick charger and long-lasting batteries for the FreeSpeak Edge beltpacks

Central Control and Monitoring of FreeSpeak Edge

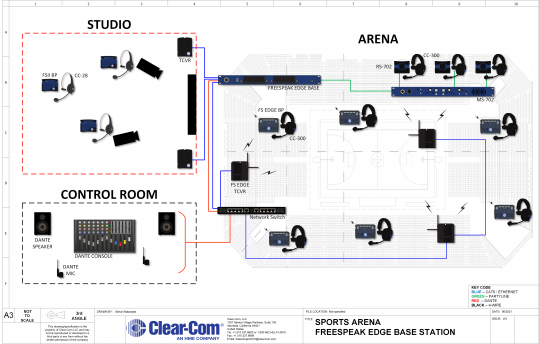

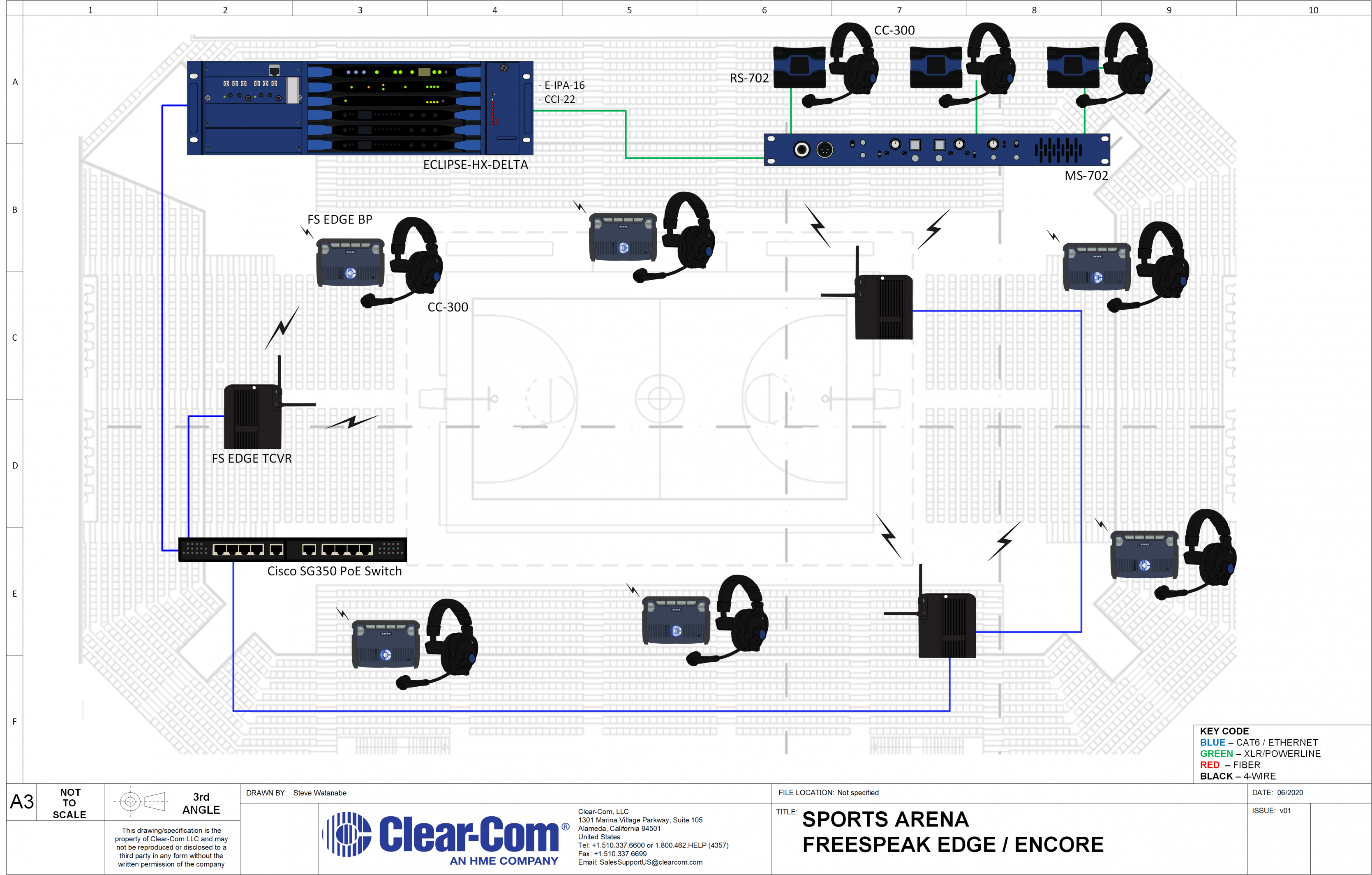

Sports Arena

For smaller sports arenas used for basketball, hockey or concerts, it isn’t necessary to have a large number of system endpoints for a given production. The FreeSpeak Edge Base Station provides the versatility of employing multiple bands of wireless capability along with legacy 2 and 4-wire connections. Additionally, the base station provides connection capability to both Dante and AES67 devices through the Dante Controller. Adding 3rd party devices to the existing intercom mix makes the FreeSpeak Edge Base an incredibly flexible tool all within a 1RU box.

Featured FreeSpeak Edge Products:

Other Featured Products:

>>View Diagram

Large Performance Theater

The cavernous facilities and layered decks and balconies found in Performance Art Centers and Operas create a perfect communication scenario for Clear-Com’s FreeSpeak Edge system. The reflection of the audio signal off the odd angles common to these large performance facilities enables precise, low-latent audio communication throughout the center.

Featured FreeSpeak Edge Products:

Other Featured Products:

>>View Diagram

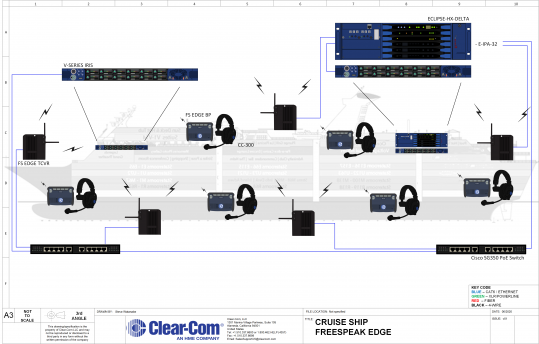

Cruise Ship

With multiple decks and levels, the structure of a cruise ship is ideal for the FreeSpeak Edge 5 GHZ wireless system. The system relies on reflection to propagate the audio signal from transceiver to beltpack and back.

Featured FreeSpeak Edge Products:

Other Featured Products:

>>View Diagram

Market Applications

Live Production & Events
Broadcast Productions
House of Worship
Sports Operations
Film & TV Production
Industrial & Critical Communications
