For group intercommunication with a digital experience, HelixNet offers the simplicity of partyline communication, digital audio clarity and ease of deployment on a facility’s standard IT network infrastructure via an Ethernet/LAN connection. The standard 1RU system is capable of increasing channels for additional intercom or Input/Output ports for interfacing with other systems.
The overall design of HelixNet Partyline was developed on an innovative set of advanced core technologies called I.V.Core. The I.V.Core platform provides a flexible basis for carrying all the familiar attributes of a traditional analog partyline intercom—simple communication functions and plug-and-go setup—onto the digital realm. I.V.Core also unlockes the system capability to network and operate over modern-day infrastructures such as Ethernet/IP.
Features and/or Benefits
Networked Partyline Simplicity
Take advantage of all the features and functions of industry-standard partyline systems familiar to generations of intercom users on the HelixNet digital partyline system. User-friendly and intuitive controls that make it easy to operate and configure: Talk/Call, Individual Volume Control, Stage Announce, Remote Mic Kill and All Talk buttons are all Main Station features. Up to three Stations can be linked together and are automatically detected and configured so that any beltpack has access to any two of the available active intercom channels.
Expandable Channel Density
Maximize your audio and communication channels on a small 1RU system. HelixNet comes with interface module option bays for integration with 2- or 4-wire intercom systems or for intelligent networking of HelixNet Main Stations (HMS-4X). The HMS-4X offers 12 channels of full-duplex audio and program audio feed that can support up to 20 beltpacks on a single station. It can be further expanded to 24 channels on a single Main Station and capable of expanding its I/O ports exponentially by simply interfacing with LQ Series.
Digital Audio Clarity
Hear the legendary “Clear-Com Sound”, the highly intelligible audio quality that is only featured in Clear-Com intercom systems. No Hum. No Buzz. The all-digital system is immune to electro-magnetic interference and ground loops, reducing ear fatigue after extensive use and eliminates trouble-shoot time.
Ease of Deployment
Effortless system setup and maintenance with unique features such as hardware auto-discovery, intuitive menu operations, and channel accessibility. The system can be wired using a standard single pair shielded (16AWG-24AWG), AES-rated or Category cable—no rewiring of existing in-house cables. Using Clear-Com’s Core Configuration Manager (CCM), HelixNet system configuration and setup is easy with the free, browser-based software.
System interfaces to enable connection with 2- or 4-wire intercom systems or for intelligent networking. Fits in the HelixNet main station module bays.
HelixNetPartyline can be deployed using a wide range of topologies: Daily-chain, Star, and Tree.
In a daisy-chain topology (as shown as channel B), the Main Station is connected to the first unit. The units are then connected in a series, using the pass-through connector on the back / rear of the device to pass on the connection. No termination is required.
In a star topology (as shown as channel C), the Main Station is connected to a passive (Y) splitter such as an XLR Bulkhead or Multi-box. The units are then connected to the splitter point-to-point.
A tree topology is a more complex version of the star topology, using serially connected passive ( Y ) splitters. The units are connected to each splitter.

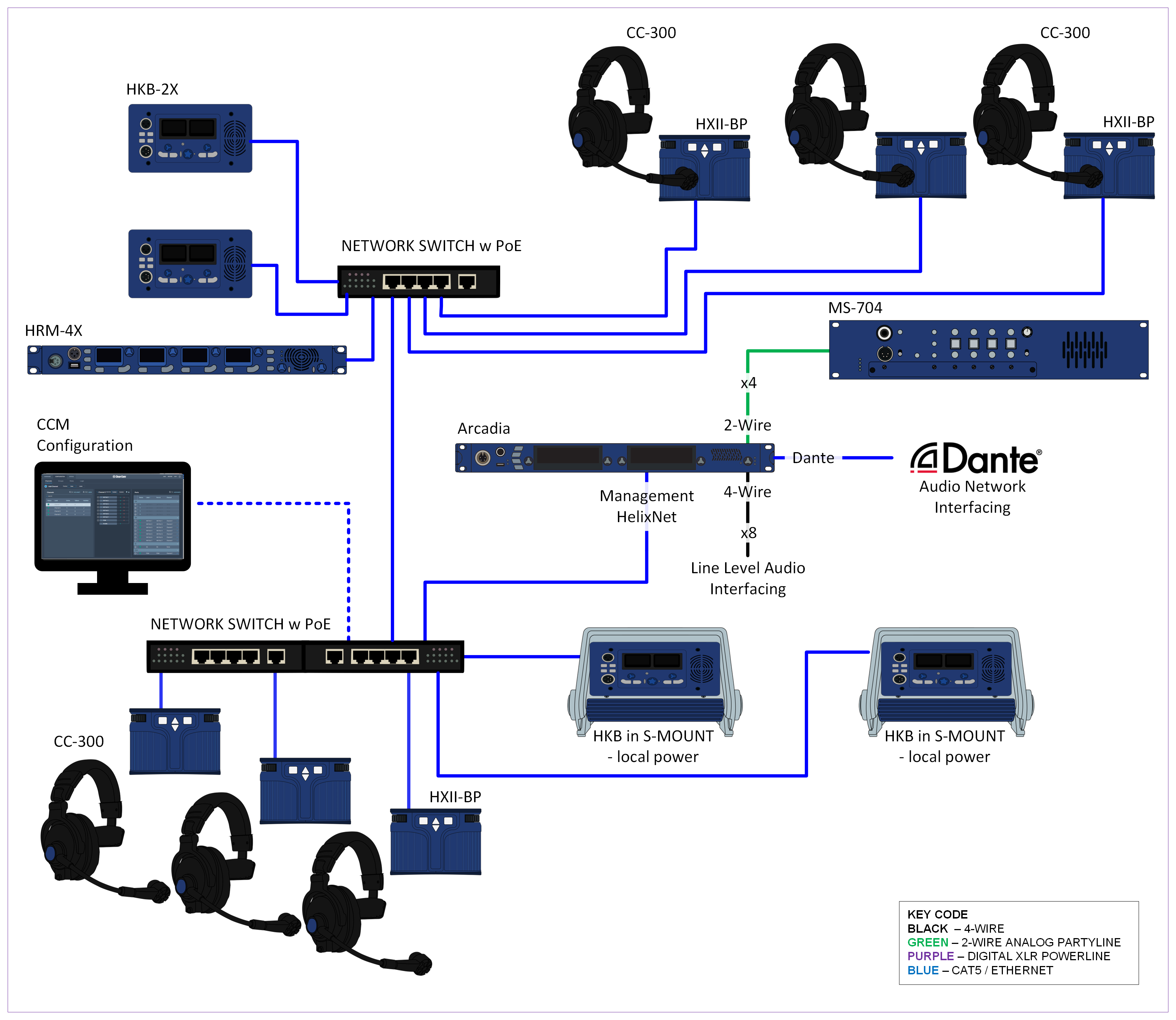

Multi-Channel Diagram Description

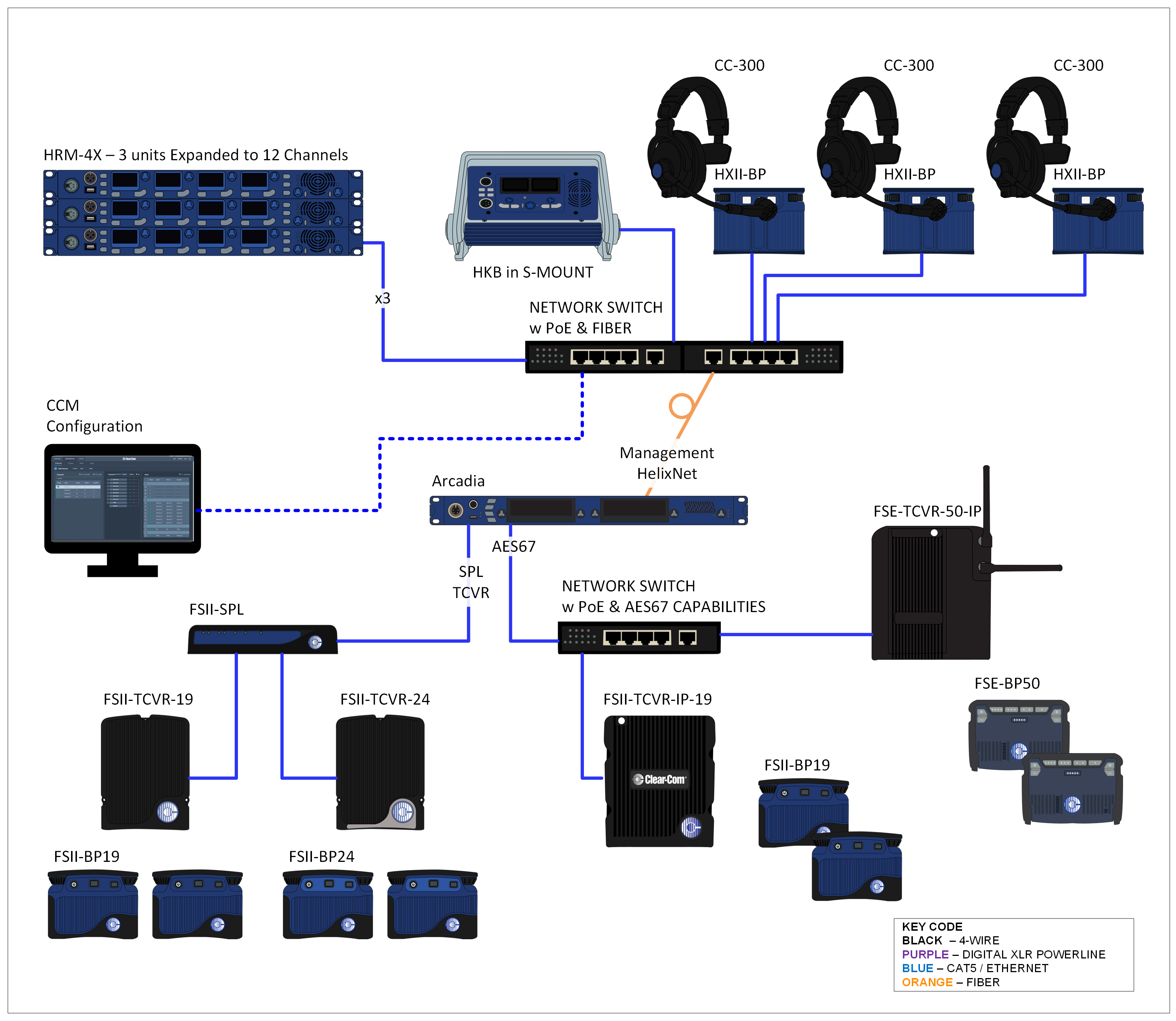

Up to three HelixNet Main Stations (HMS) can be linked. A system, regardless of the number of linked HMS units, will have 12 channels by default with the potential of increasing that number to 24 with the purchase of a license for each HMS within the Link-Group.
Market Applications
Leveraging multiple studios and production spaces with minimal set-up and integration time is becoming more common. Adding more resources to the production’s intercom is also increasing. This makes the HelixNet Digital Partyline a perfect fit – the HelixNet system can support up to 24 PL channels over both traditional intercom cable and/or IP networks and provide low-latency communication anywhere the internet is available.
HelixNet Digital Partyline is a great fit for large live productions. With up to 24 channels of audio I/O, Producers and Directors can manage scores of personnel in multiple roles.
With advanced-level remote stations, beltpacks and speaker stations, HelixNet can be utilized in numerous Live scenarios ranging from concerts and theatrical productions to multi-site corporate or sports events. Additionally, channel stacking and Binaural (separate channel per ear) programming within the beltpack gives Live production users innovative communication capabilities.
At modern sports facilities, more and more personnel are required to manage all aspects of the entertainment package. From fireworks after a scoring play to intra-stadium camera shots of fans in seats to music and sound effects. A smooth production relies on the need for fast communication on multiple channels over a reliable system. The HelixNet digital partyline system matches all requirements for a large sports facility production.
With up to 24 channels, multiple main station bridging, and 60 endpoints per station, the HelixNet system has the necessary feature set to manage all sports production requirements. HelixNet’s ability to use an IP network to carry data makes it an obvious choice when it comes to large structure communications.
large sports facilities, long cable runs between the control room, OB truck and various positions around the structure can lend to power related latency, trouble points and choppy audio.
Safety, especially at its rides, is at the core of a theme park’s success. At any given ride, there are communication points at queue lines, rider loading and unloading, control room and at specific sections of the overall ride route. HelixNet’s IP capability make the digital partyline system a match for communications.
A HelixNet main station connected to a switch can be based in a Network Operations Center (NOC), it is then bridged to a second switch and mainstation at the ride’s locale. The main station at the ride then utilizes beltpacks and speaker stations at all communication endpoints. Constant communication between the NOC and the ride, and the endpoints along the ride’s route ensures all customers are accounted for and safe.
To spread the word, churches have taken a significant technological step to offer their sermons to local congregations and as well as audiences abroad. Sermons are well produced and delivered in person or live to online audiences all over the world.
The HelixNet system offers a digital communications network that allows a production crew to simultaneously coordinate sermons or presentations between multiple remote locations. Delivered over IP, low-latency direction of crew and personnel at camera positions, mixing boards, lighting and talent can all be cued from anywhere at any time. This ensures a smooth delivery of the Church’s production and grateful congregations everywhere.
One of the key benefits HelixNet has over 2-wire partyline systems is its ability to carry communications over CAT5/6 cabling. A HelixNet system can be built into a ship utilizing managed network switches. Lightweight 4-wire cable runs can then be made to the necessary positions and decks throughout a ship.
Crew on the bridge can make announcements to personnel on various decks through HKB speaker stations, or communicate directly to stationary crew with connected beltpacks. From crane operators to deep sea rescue teams, all individuals can rely on the dependable HelixNet system.
The HelixNet platform offers IP network ready communications, superior audio clarity with the embedded “Clear-Com Sound,” and reliable communication technology for the most demanding applications. Trusted by thousands of military, aerospace and government personnel around the world, Clear-Com Encore digital partyline systems are used by the Army, Navy, Air Force, Homeland Security and every major U.S. government contractor. They are also utilized for space and missile defense programs as well as missile test ranges and ground control stations for unmanned aircraft systems.
Organizations operating in markets such as Utilities, Transportation or Public Safety look to Clear-Com’s HelixNet system as a reliable solution for communication. Combined with two-way or Land Mobile Radios (LMRs), HelixNet becomes a very powerful tool for dispatch, management and coordination of teams of people working in public infrastructure.
In Emergency situations, public agencies cannot rely on the telephone system, cell phone system or hand-held radios alone. Traditional communications equipment combined with a quality analog partyline system like HelixNet makes team members more effective and efficient in serving the general public.
