V12RD

V12RD

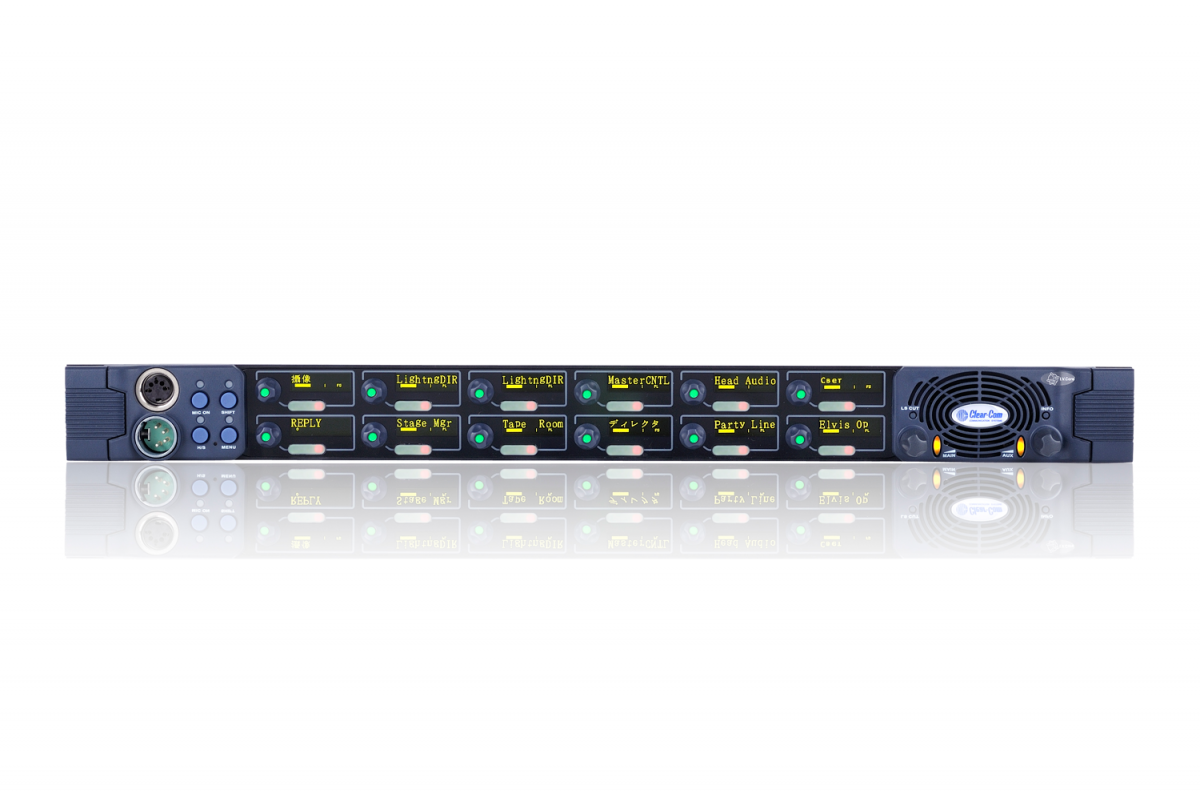

V-Series 12-key 1RU Rotary Panel

12 Talk pushbuttons and 12 Listen rotary switches (1RU) for use with Eclipse HX matrix frames

Individual rotary audio level controls for personal mixes

Yellow OLEDs for better contrast and visibility

Horizontal or vertical font display options

Color-coded keys for easily identifiable color tallies

Listen Again function to replay calls

Fast key assign from pre-defined scroll lists and/or keypad

International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic

Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming

Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces

Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)

Technical Specifications

Front Panel Controls and Connectors

Talk/Listen Switches: 12

Answer Back Switch: Configurable (None, 1 or 2)

Volume Controls: 2 (Main and Aux)

Headset Connector: 1 (XLR-4M or XLR-5F)

Panel Mic Connector: 1 (3-pin)

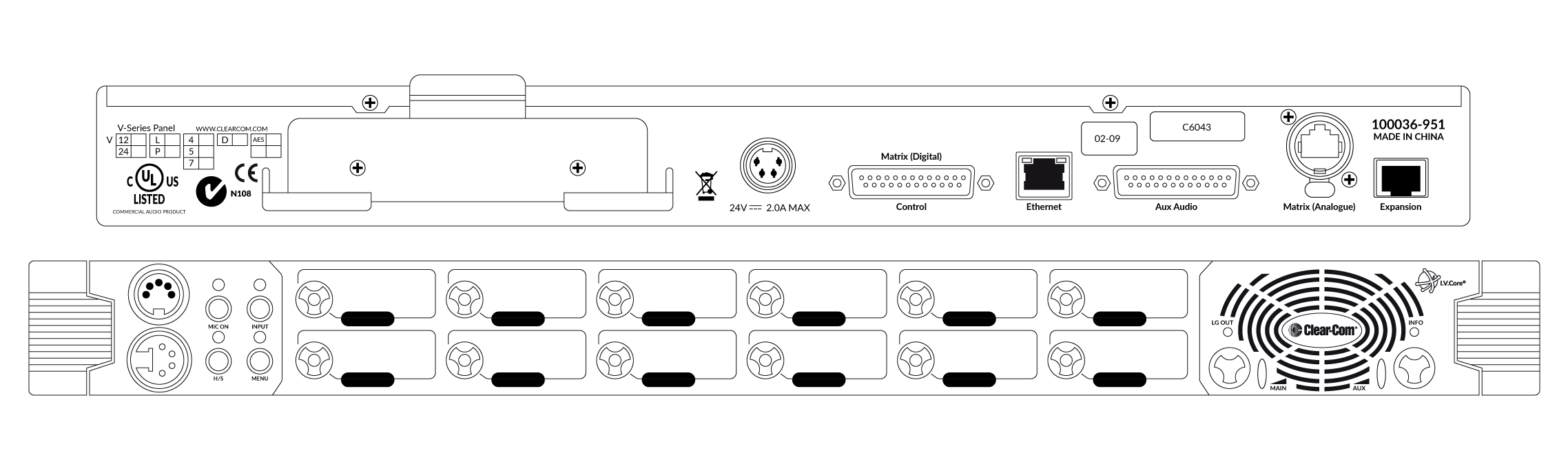

Rear Panel Connectors

GPIO: DB-25F

Matrix: RJ-45 (single-channel)

Matrix (IP): RJ-45 (multi-channel)

Auxiliary Audio: DB-25M

Expansion Panel: RJ-45

DC Power: 4-pin DIN

With AES Option:

AES (75 Ohms Co-Ax): BNC (dual channel)

AES (CAT5): RJ-45 (dual channel)

Headset Audio

Earphone Impedence: From 32 Ohms

Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio

Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input

Type: Electret

Level: 40-70 dBu

Impedence: 1700 Ohms +/- 10%

Headset Microphone Input

Type: Dynamic or Electret

Level: -40 – 0 dBu

Main Power Supply (External)

Voltage: 100/240 VAC +/- 10%

Frequency: 50 – 60 Hz

Power: 50W maximum

Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing

Dimensions

1.76 x 19 x 6.75 (HxWxD)

(44 x 483 x 172 mm)

Weight

3.5 lbs (1.6 kg)

Features and/or Benefits

Adaptable Display Options

Yellow OLED displays provide easy viewing in dim or bright environments, while the 10-character alpha-numeric windows support several international fonts and can be configured for a horizontal or vertical display.

Color-coded Keys for Easy Identification

Keys can be configured to have color-coded tallies: red for partyline, 4-wire or other panels, blue for phone lines, and purple for IFB.
