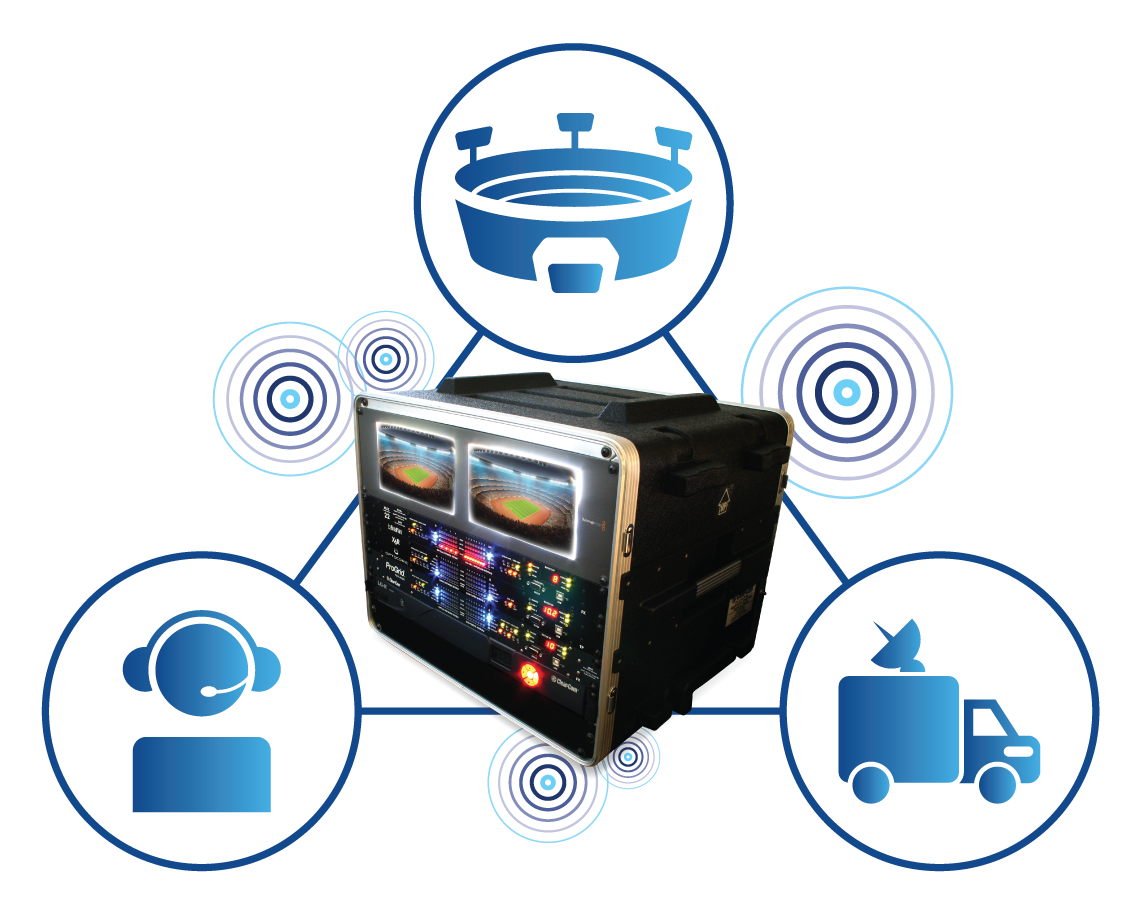

COMduit Diagram

COMduit Diagram

The unique COMduit solution provides everything you need for transporting audio,
video, data, IP, and intercom for remote broadcast productions. BroaMan, ProGrid, and
LQ Series devices are configured to transport all your signals together over a fiber cable.
Connect an OB truck to the announcer booth or sideline, on a duplex fiber cable.




It’s that Simple.



As an example, a system could be built into three flight cases to support fiber transmission
for a typical remote sports or news broadcast using dark fiber between multiple sites.
One case would be located at the Truck, one located at the Booth, and one located on the Field.

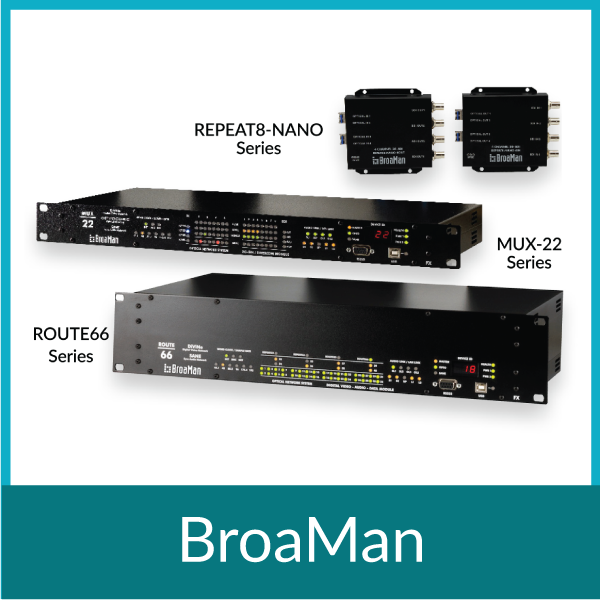

BroaMan

Incorporating technology pioneered by BroaMan, market leaders in Fiber transport solutions for over 25 years

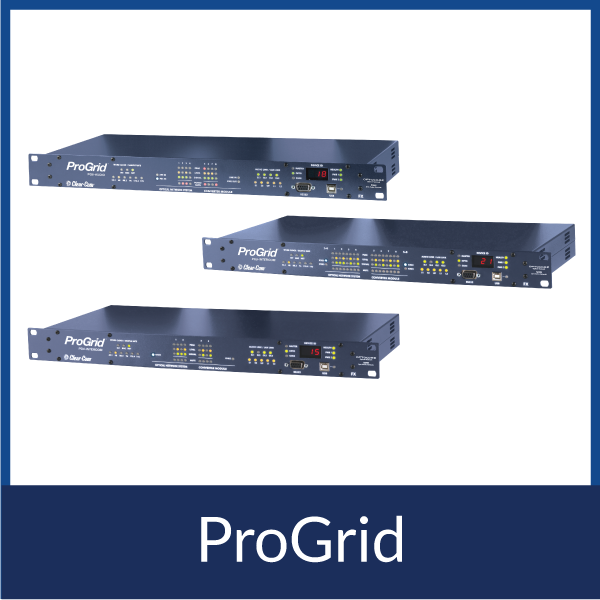

ProGrid

Fiber and IP networks multiplexed for transport over a single duplex fiber

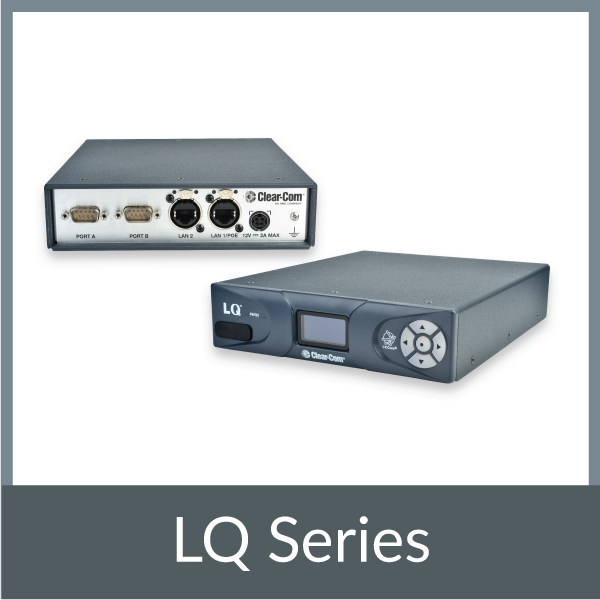

LQ Series

Combined with a single E-IPA card and EHX v11 software, a user can deploy up to 64 panels in an AES67-based network

Clear-Com is the US Distributor for

BroaMan
