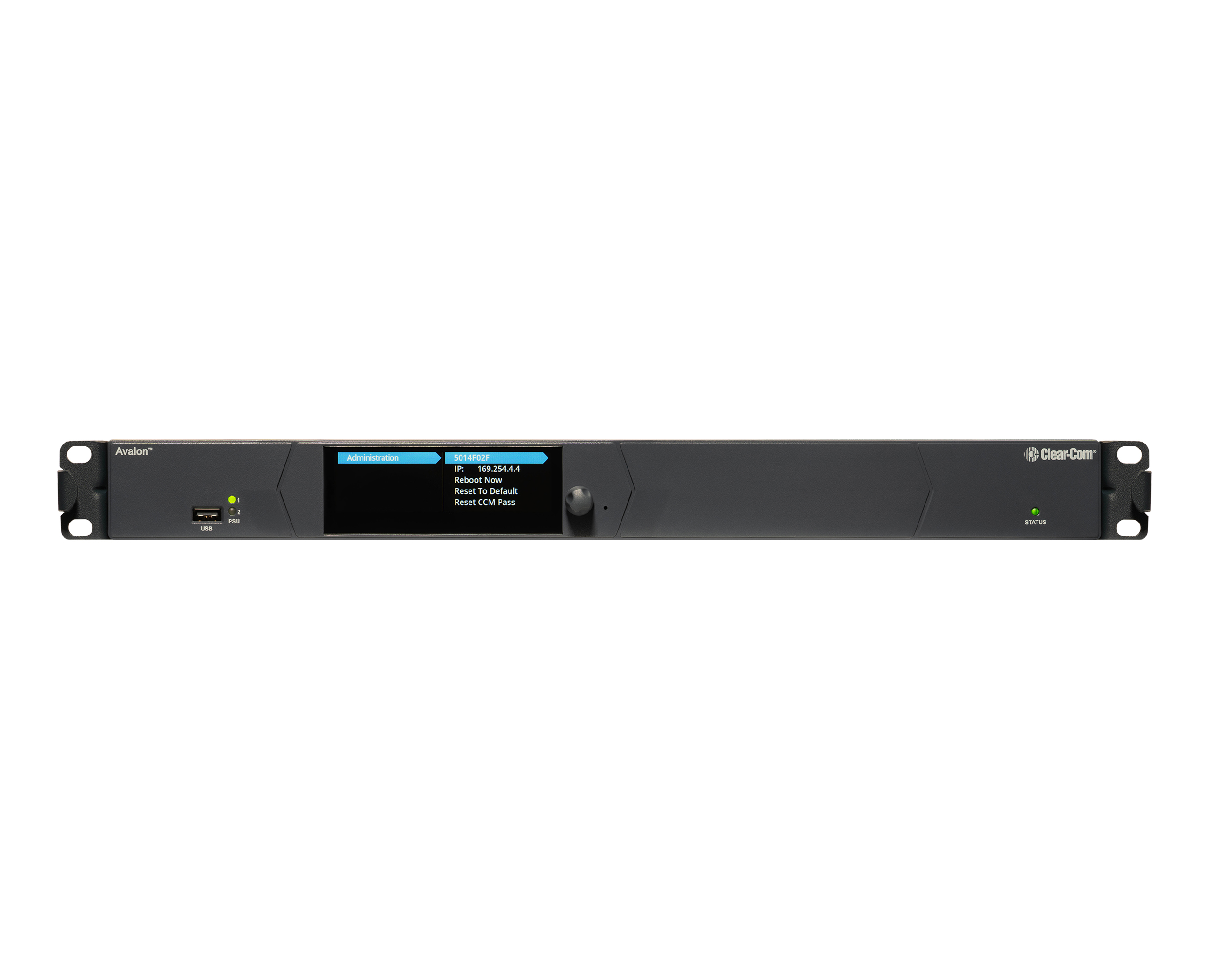

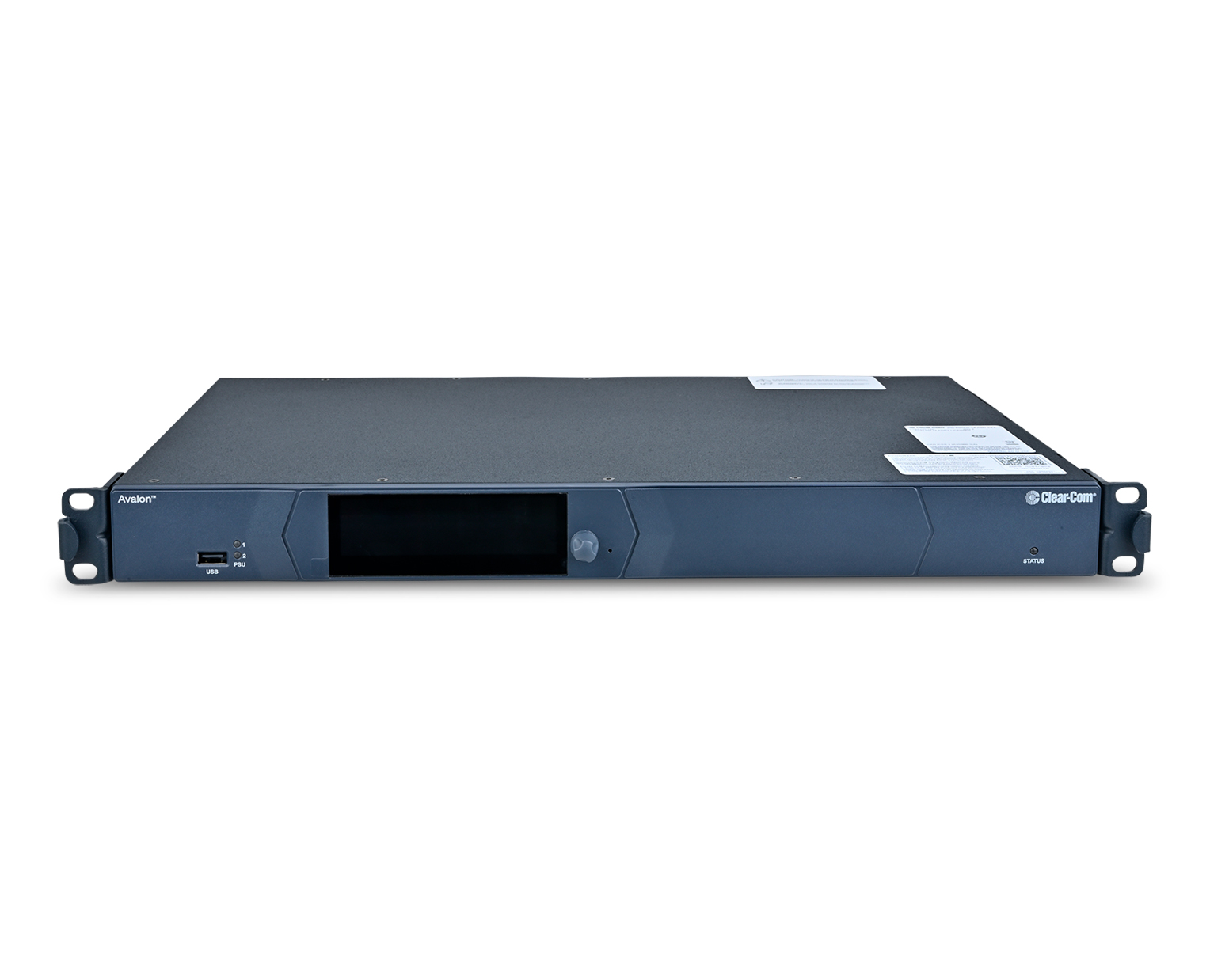

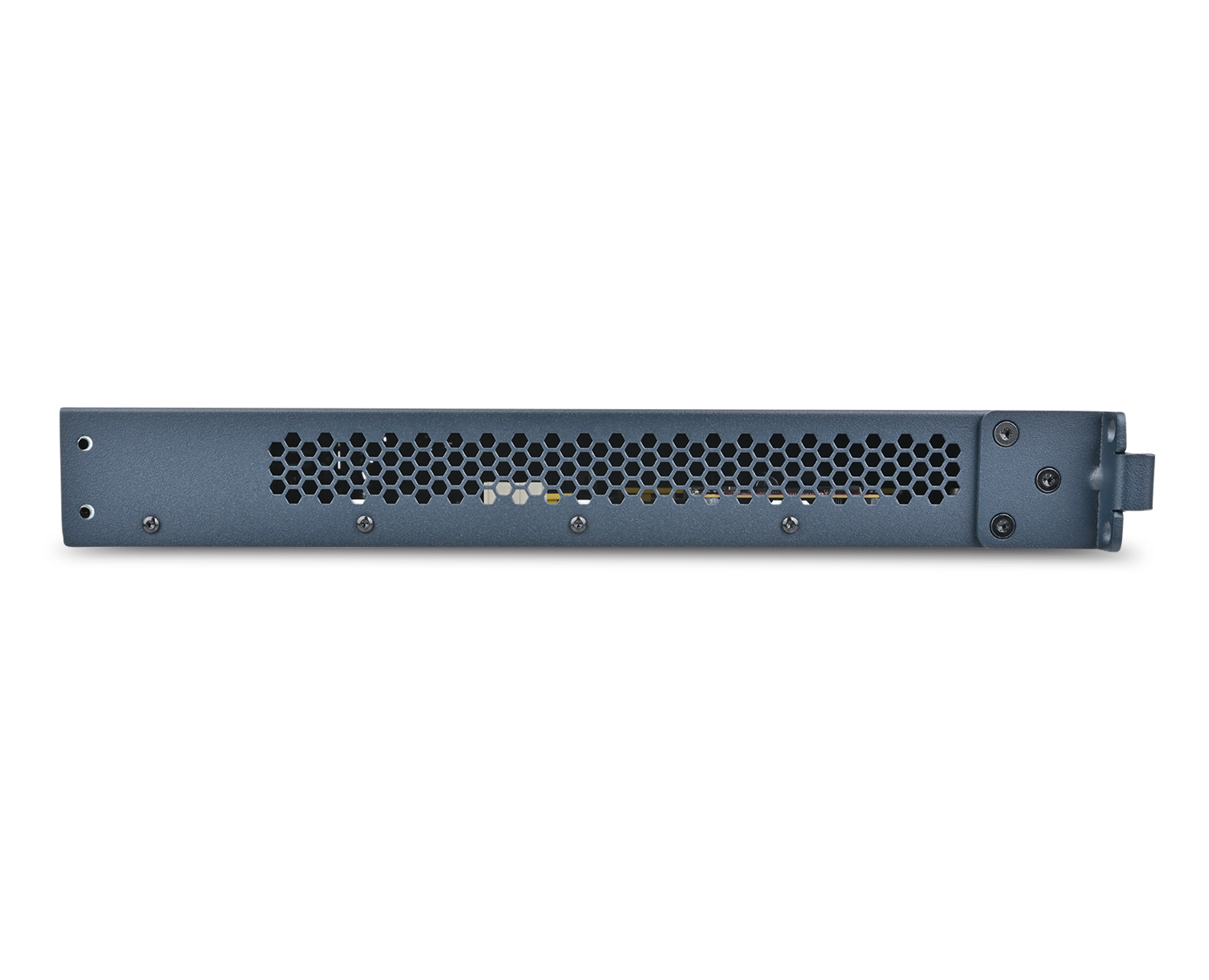

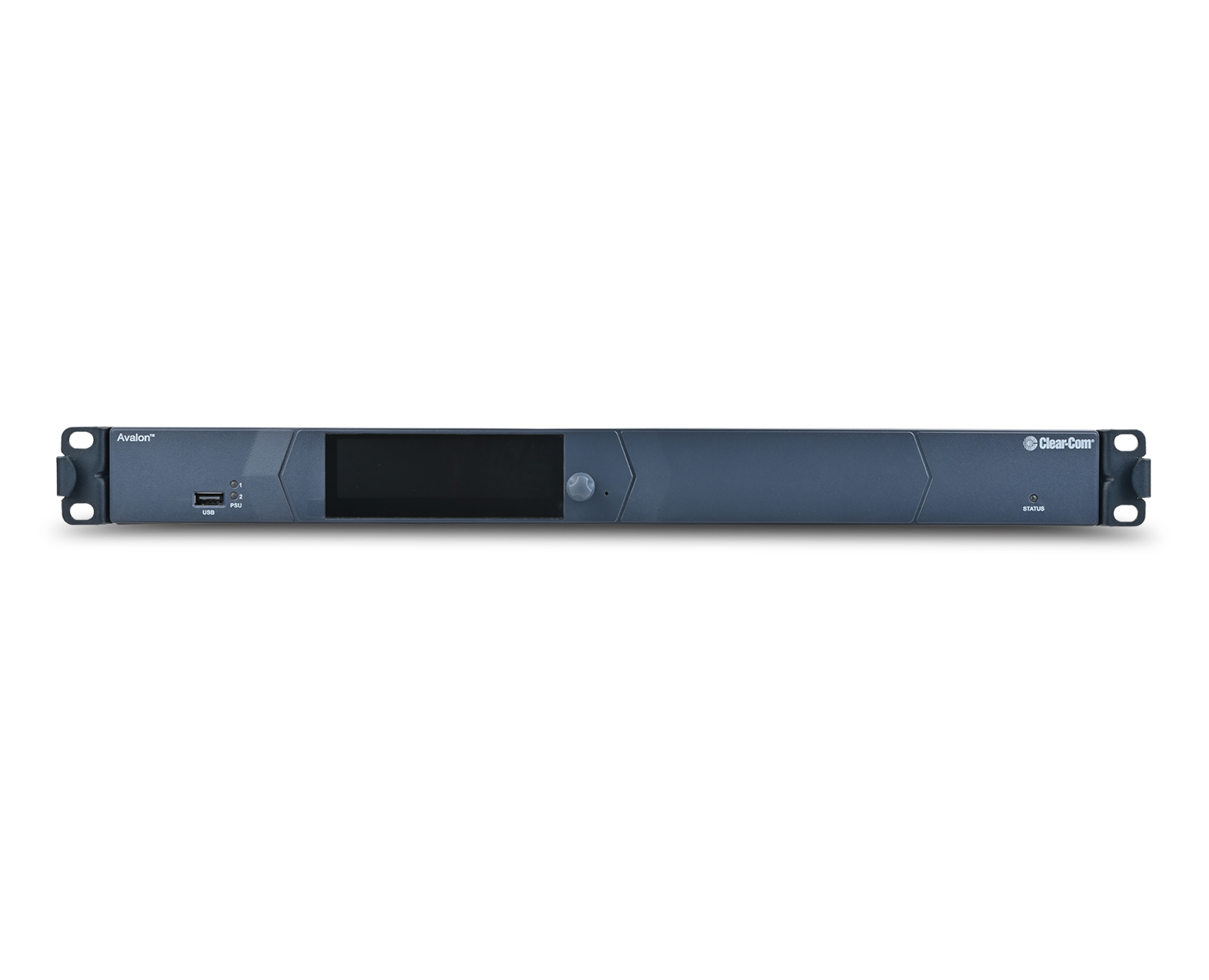

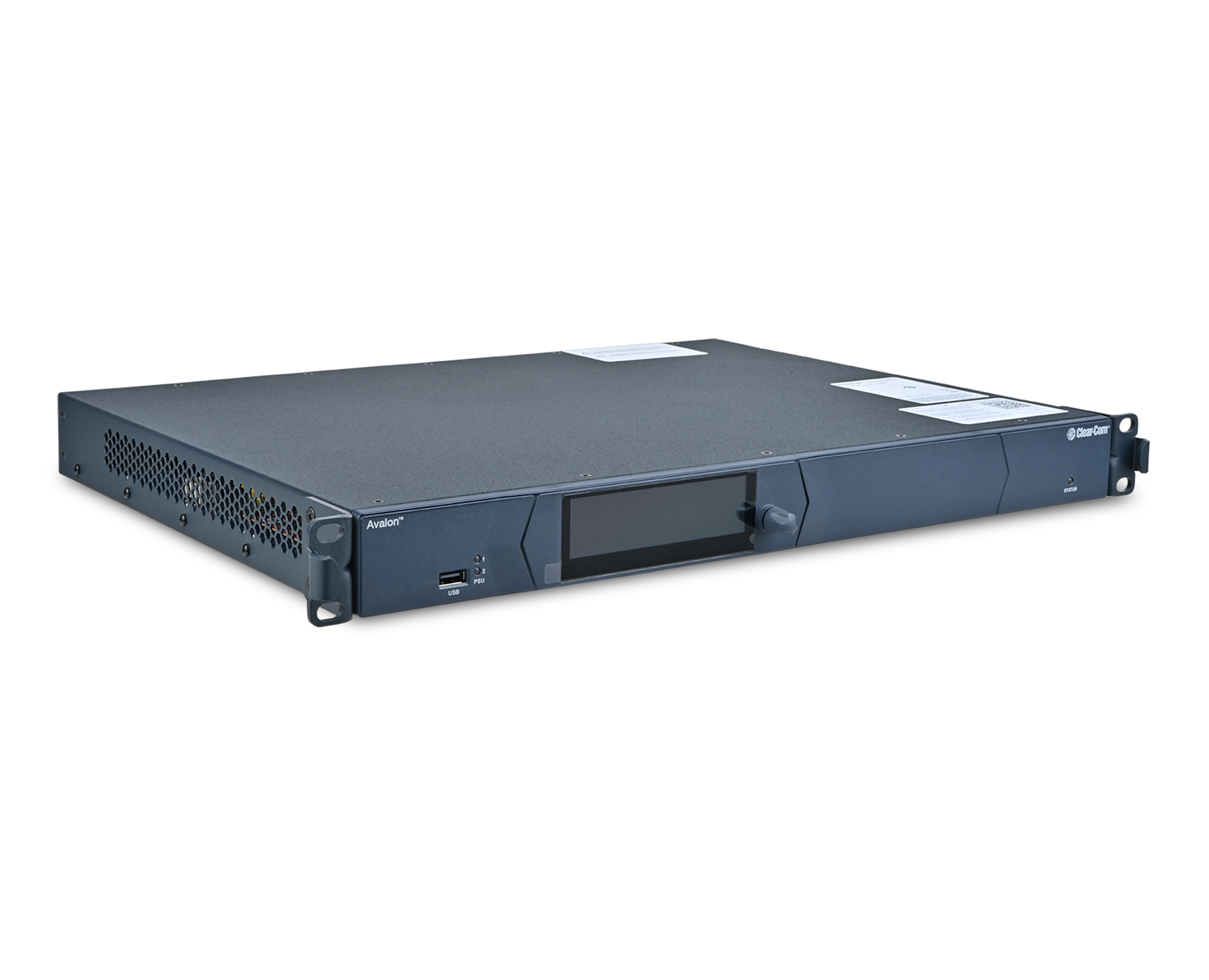

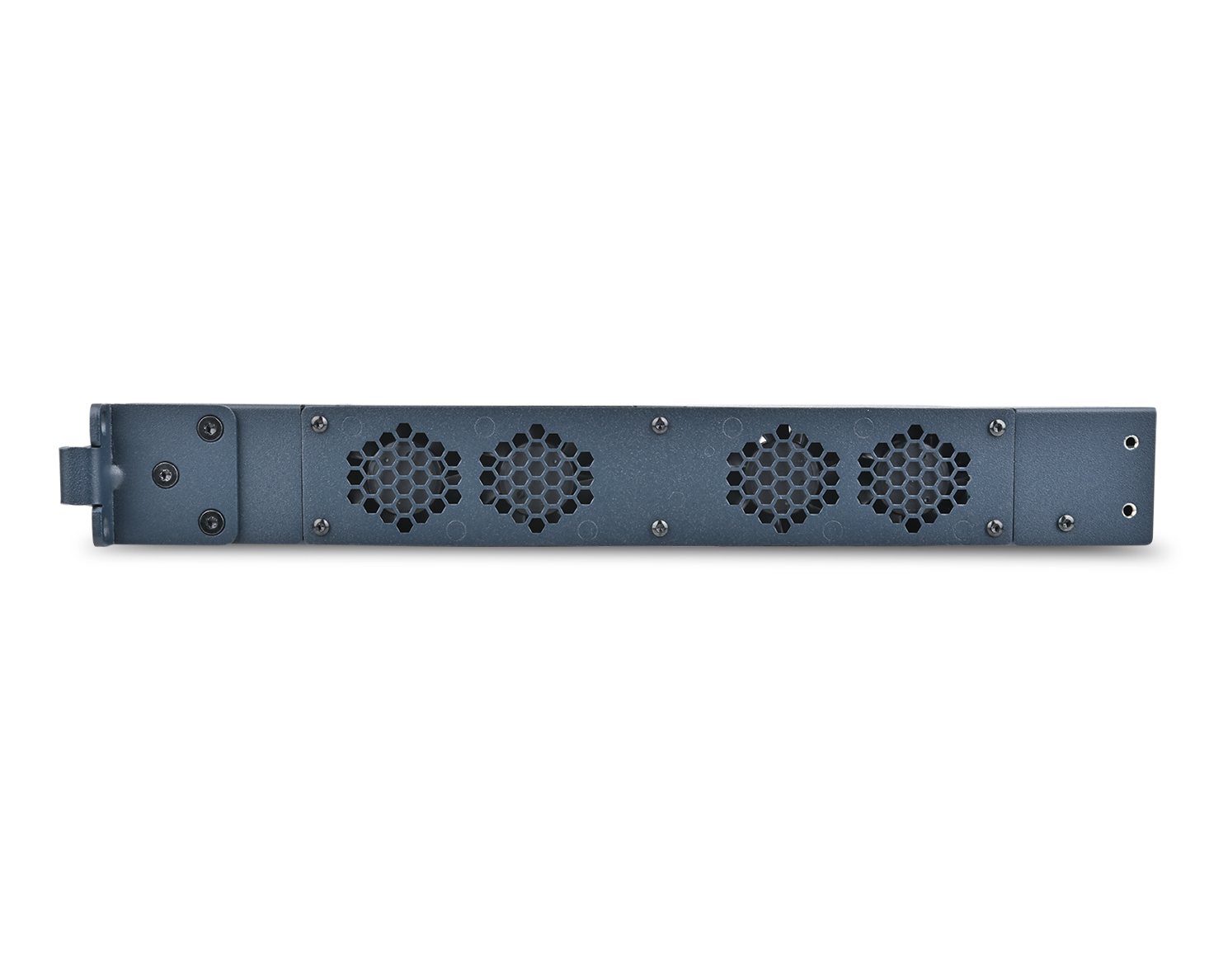

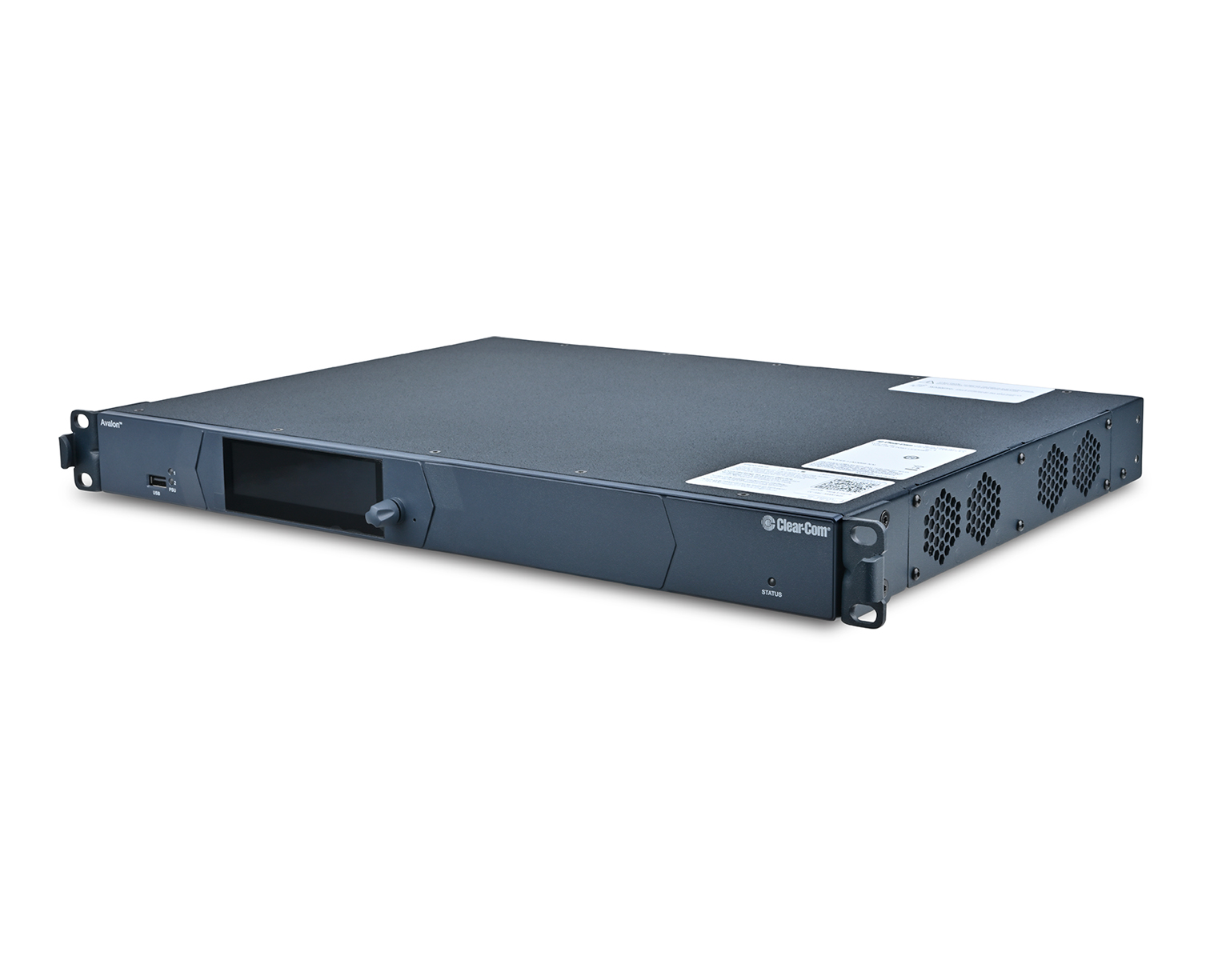

Avalon IP Station*

Avalon IP Station is a networked intercom system core supporting all types of intercom user stations from FreeSpeak Wireless Beltpacks, HelixNet Wired User Stations, and V-Series Keypanels. Coupled with Clear-Com’s LQ Series analog and digital interfaces, I.V. Direct, and Dante interfacing, Avalon fits any networked infrastructure, locally and globally. Avalon’s CCM browser configured Essential features are optimized for efficient intercom deployments, right sized with licensing & field upgrades as needs grow. The Avalon IP Station and Arcadia Central Station are a family of highly capable intercom system cores.



*Coming Soon. Product information and details subject to change.

Details

Avalon IP Station
  • Combined Wired and Wireless Intercom
  • Keypanels with Essential feature set
  • I.V. Direct Clear-Com Global Interfacing

            - LQ
            - Eclipse E-IPA
            - Arcadia, Avalon

  • Local Dante Interfacing
  • CCM™ browser setup, configuration & monitoring
  • Scalable Licensed Port capacity
Capacity

FreeSpeak Wireless Intercom

  • (32) IP Transceivers (1.9, 5 GHz)
  • (64) Beltpacks (1.9, 5 GHz)

HelixNet Wired Intercom

  • (≤24) Enabled Channels1
  • (24) Powerline Devices
  • (128) User Stations (Beltpack, Speaker & Remote)

• V-Series Keypanel Essential Features

  • (32) AES67 Connected1,2
  • (≤32) I.V. Connected1,2

• I.V. Direct Clear-Com Interface

  • (≤32) I.V. Direct Ports1

Dante Audio Network Interfaces

  • (64) Dante Ports1
Configuration
  • • (200) Licensed Ports1
    - FreeSpeak Beltpack
    – HelixNet Enabled Channel
    – V-Series Keypanel
    – I.V. Direct Port
    – Dante Port
  • (100) Channels
  • (100) Groups
  • (100) IFB
  • (300) Roles for FreeSpeak, HelixNet & V-Series
Connectivity

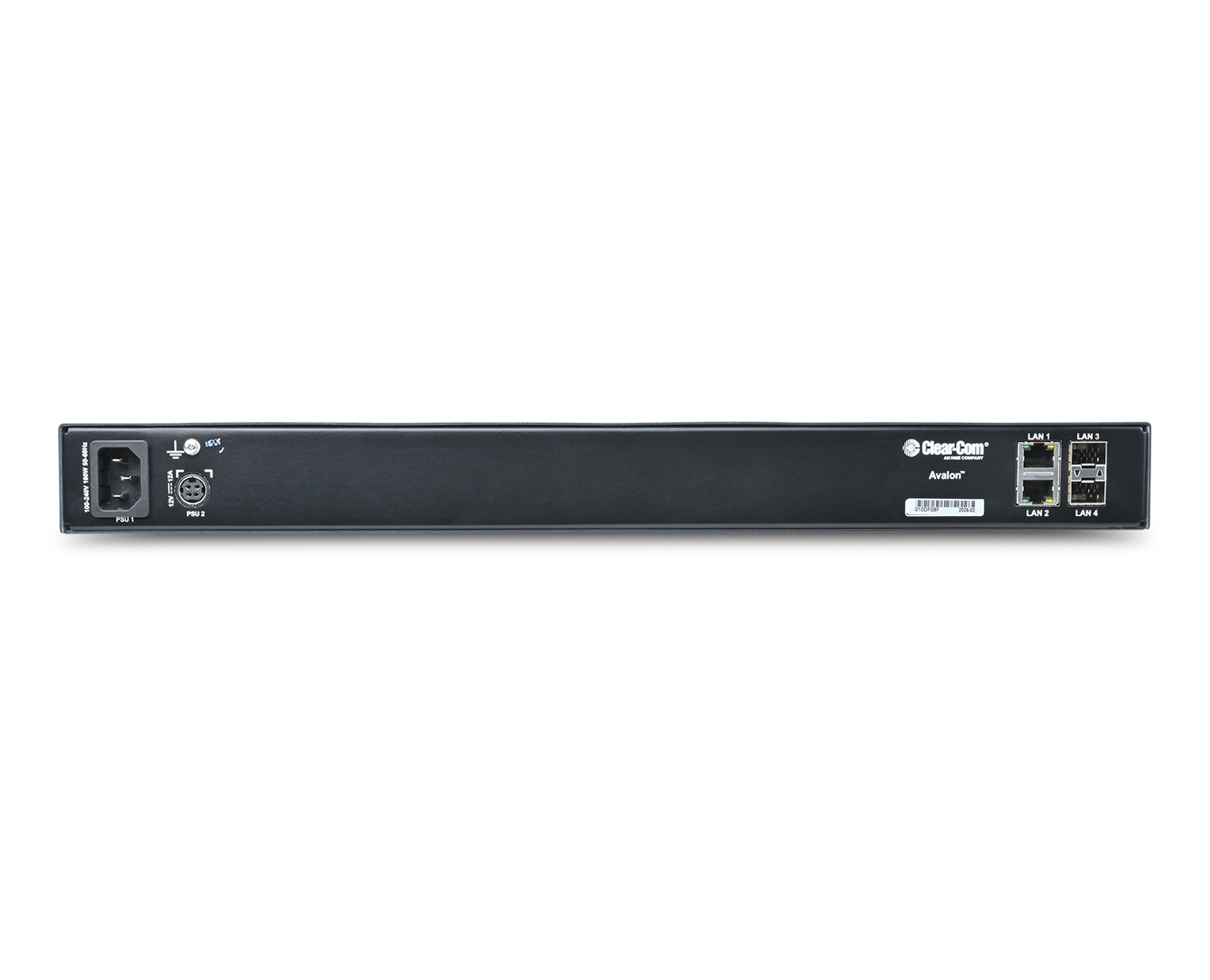

  • (4) LAN - (2) RJ45, (2) SFP; Assignable to management (with HelixNet & I.V. Connectivity), AES67/AoIP, Dante Primary & Secondary

Footnotes:

1Requires Avalon with sufficient number of Licensed Ports and an appropriate Device Allocation configuration.
2V-Series Iris and IrisX keypanels fully support all Avalon features while original V-Series has limited support using I.V. ports. Non-Iris desktop panels can be configured using the 12 key 1RU Role layout. Non-Iris cannot be upgraded from Avalon, requiring alternative methods. Expansion panels are not supported on Avalon.

Item Code

*COMING SOON

Technical
Specifications

Frequency Response

FreeSpeak Edge: 200Hz to 12kHz

FreeSpeak II & Icon: 200Hz to 7.1kHz

HelixNet: 200Hz to 10kHz

V-Series (AES67): 20Hz-20kHz

V-Series (I.V. Port): 50Hz-7.1kHz

I.V. Direct: 50Hz to 7.1kHz

Dante: 20Hz to 20kHz



Power

AC Internal Power Supply:

Input Voltage Range: 100 - 240V AC

Input Frequency Range: 50 - 60Hz

Input Power (Max): 160W

BTU (Max): 545BTU/h

Input Power Connector: IEC-C14

DC Power Input:

Voltage: 12V DC ± 5%

Current (Max): 12A

Power (Max): 144W

BTU (Max): 491BTU/hr

Input Power Connector: KPJX-4S-S

This unit can be powered via DC input using:

AC Adapter - Inline:

Type: PSU-EXT-001 (supplied)

Mounting Bracket: 272G048-SP (optional)

Input Voltage Range: 100 - 240V AC

Input Frequency Range: 50 - 60Hz

Input Power Connector: IEC-C14

Output Voltage: 12V DC ± 5%

Output Current (Max): 12.5A

Output Power (Max): 150W

Output Power Connector: KPPX-4-P

Environmental

Operating: 32° to 113°F (0° to 45°C)

Storage: -22° to 158°F (-30° to 70°C)

Humidity: 20-90% Non-Condensing



Dimensions

1RU

19 x 1.7 x 13.9in (WxHxD)

(482.6 x 43.2 x 353.1mm)



Weight

~5.5 lbs (~2.5 kg)
