V-BOX (DISCONTINUED)

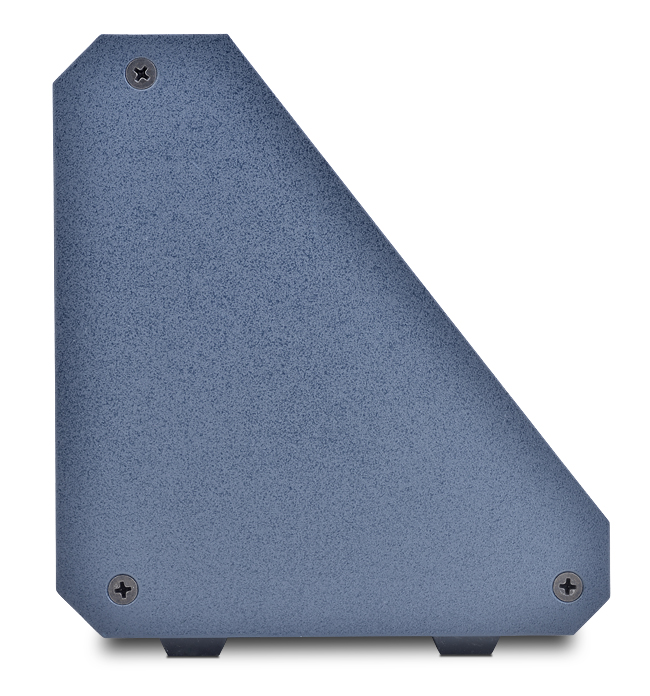

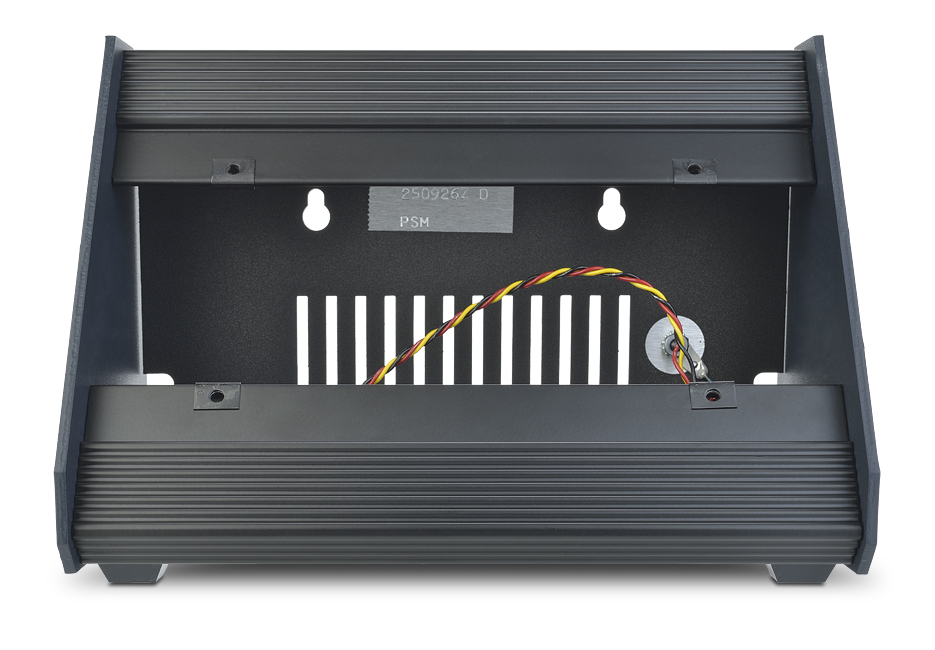

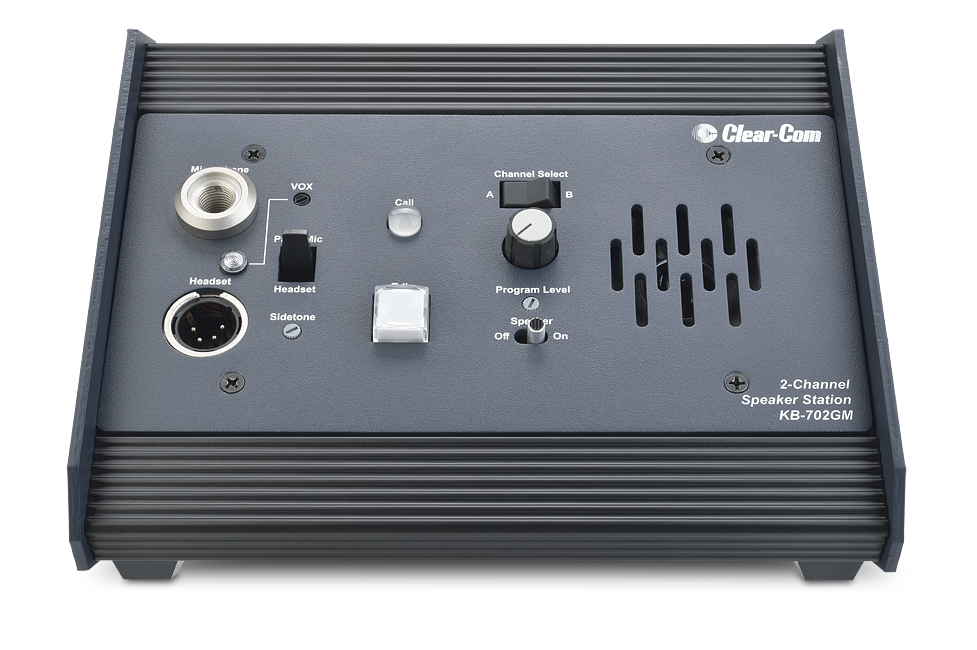

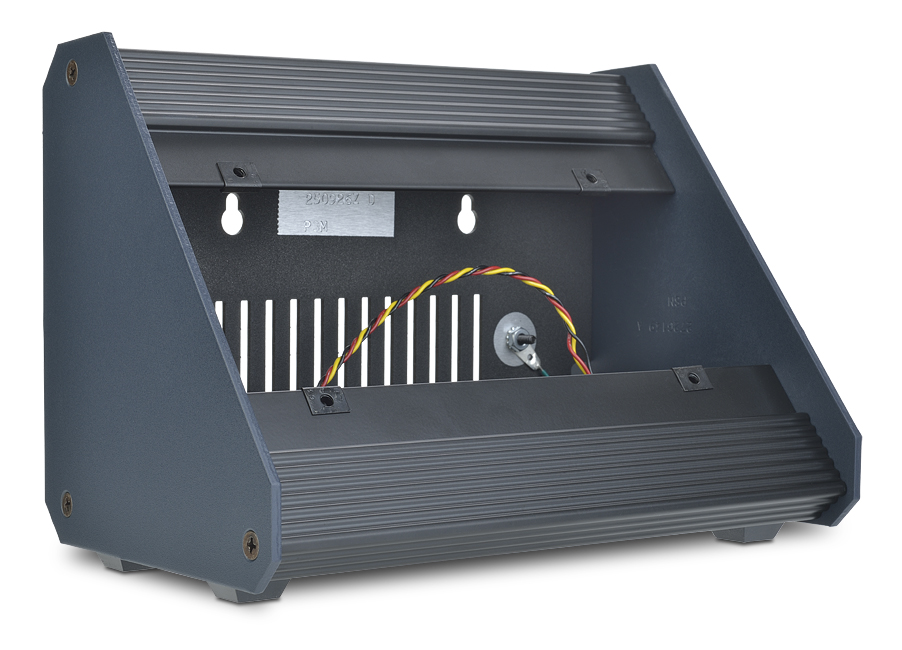

V-Box is a highly versatile enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a portable desktop, shelf- or wall mount unit. KB speaker station is secured to the V-Box with four screws in either a vertical or an angled mounting slot. Blank plate with cable passthroughs and wall mounting keyholes is provided to cover the second mounting slot. The rugged metal enclosure is durable for long-term professional use. KB Stations not included Note: The V-Box is being replaced by the U-Box.

Details

  • Vertical or angled mounting options

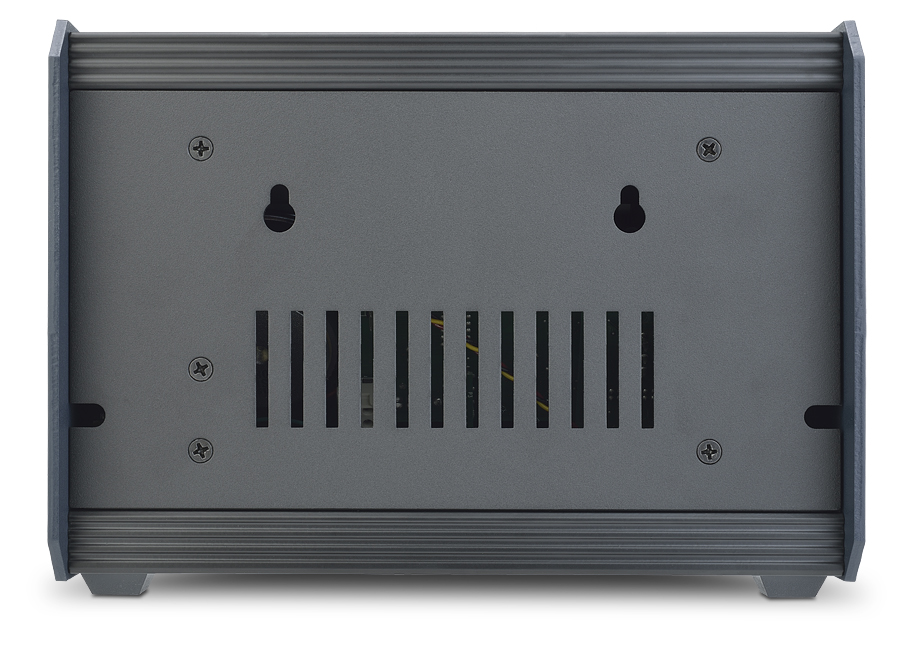

  • Screw holes for wall mounting
  • Rubberized feet for desktop use
  • Rugged metal construction for durability
  • Pre-wired wiring harness for KB station

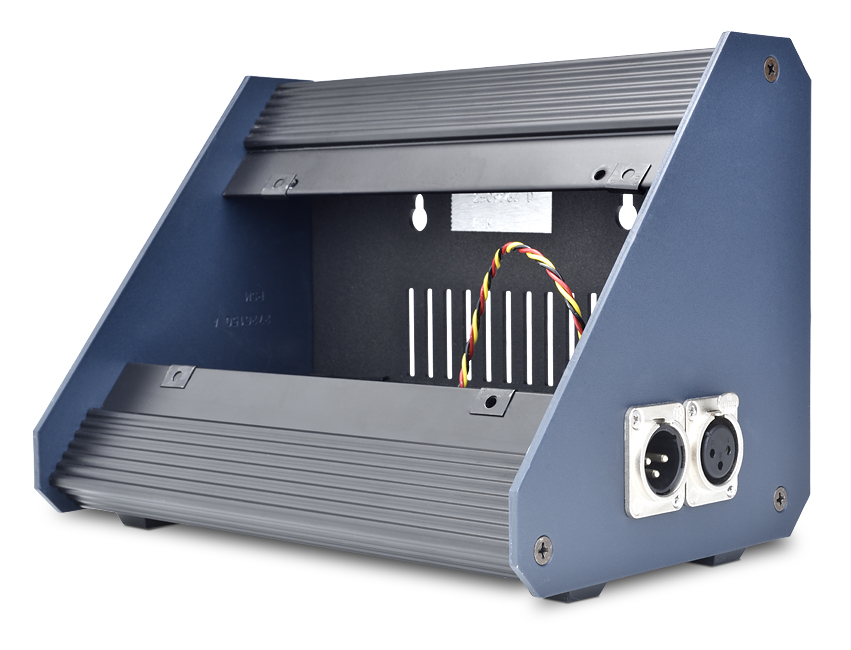

V-BOX
  • Single-channel 3-pin XLR loop through connection

V-BOX-X6
  • Dual-channel 6-pin XLR loop through connection
  • Switchcraft-style 6-pin male and female XLR connectors

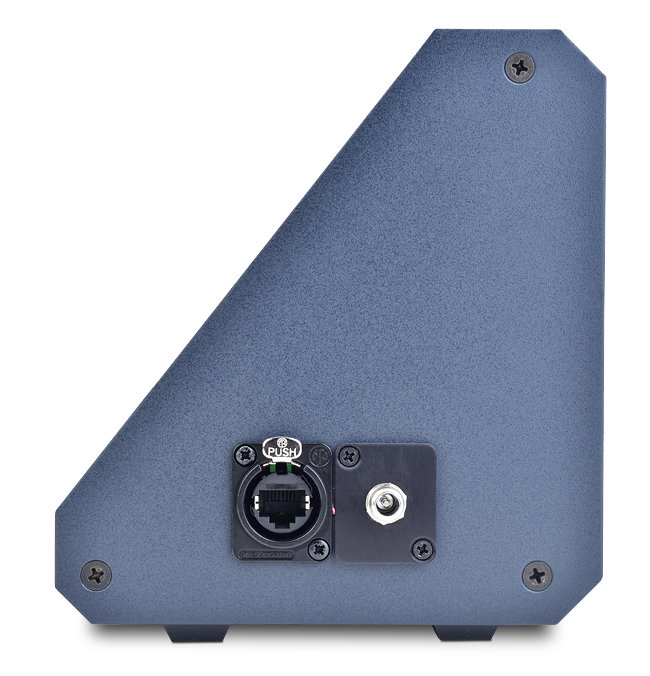

V-BOX-RJ45
  • Four-wire adaptor for use with EB7-4W
  • Includes EtherCON RJ45 connector and DC power jack
  • PSU required for power

Item Code

V-BOX V-BOX-X6 V-BOX-RJ45 453G042

Technical
Specifications

Environmental
32 - 122°F (0 - 50°C)

Dimensions
6.24 x 8.73 x 5.56 in (HxWxD)
(158 x 222 x 141 mm)




Weight
Empty: 3.4 lbs (1.5 kg)
