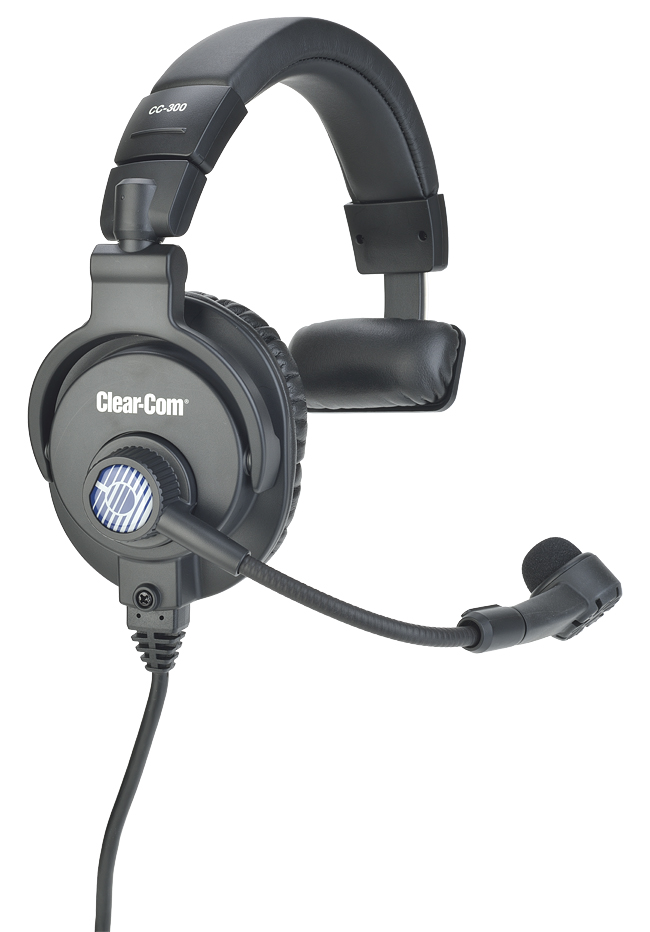

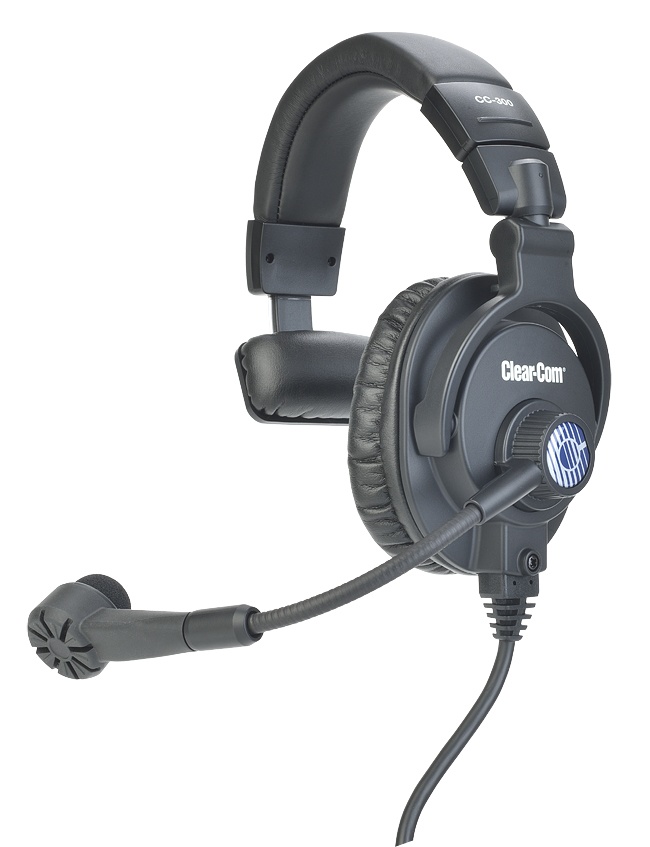

CC-300

CC-300

  • Single-ear standard headset
  • High quality dynamic cardioid microphone
  • High ambient-noise attenuation headphones
  • Microphone: 300Hz – 20kHz frequency response
  • Headphone: 40Hz – 20kHz frequency response
  • Cushioned with soft leatherette padding
  • Flexible gooseneck microphone positioning
  • 300-degrees boom mic rotation for ON/OFF mic-mute switch
  • Rugged design
Item Part Number:
  • CC-300-X4: Single-ear 4-pin Female XLR
  • CC-300-X5: Single-ear 5-pin Male XLR
  • CC-300-X6: Single-ear 6-pin male XLR (balanced mic)
  • CC-300-X7: Single-ear 7-pin Female XLR
  • CC-300-Y5: Single-ear 5-pin Female XLR
  • CC-300-B6: Single-ear no connector

Technical Specifications

Headphone

Type: Closed-back
Driver: 40mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response: 40Hz – 20kHz

Microphone

Element: Dynamic
Polar Pattern: Hyper-cardioid
Frequency Response: 300Hz – 20kHz

Sensitivity

Open Circuit Sensitivity: -61.0 dB ±3.5 dB; at 1kHz, typical
102 dB ±3 dB; at 1kHz typical

Impedance

400 ohms ±30%; at 1kHz typical
Microphone: 200 ohms ±30%; at 1kHz typical

Connector

Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR

Dimension

Packaging for CC-300:
4.8 x 13 x 10.43 in (WxHxD)
(122 x 330 x 265 mm)

Weight

8.6oz (245g) without 8-pin cable assembly and M3*18mm SCREW
