Input Type: Opto-isolated 4 – 30 DC or AC
0 mA from PSU-101 power supply
Operating Temperature: 32°F – 104°F (0°C – 40°C)
Storage Temperature: -67°F – 158°F (-55°C – 70°C)
Humidity: 90% non-condensing
5.06 x 1.38 x 9.16 in (HxWxD)
129 x 35 x 233 mm)
12.5 oz (0.32 kg)

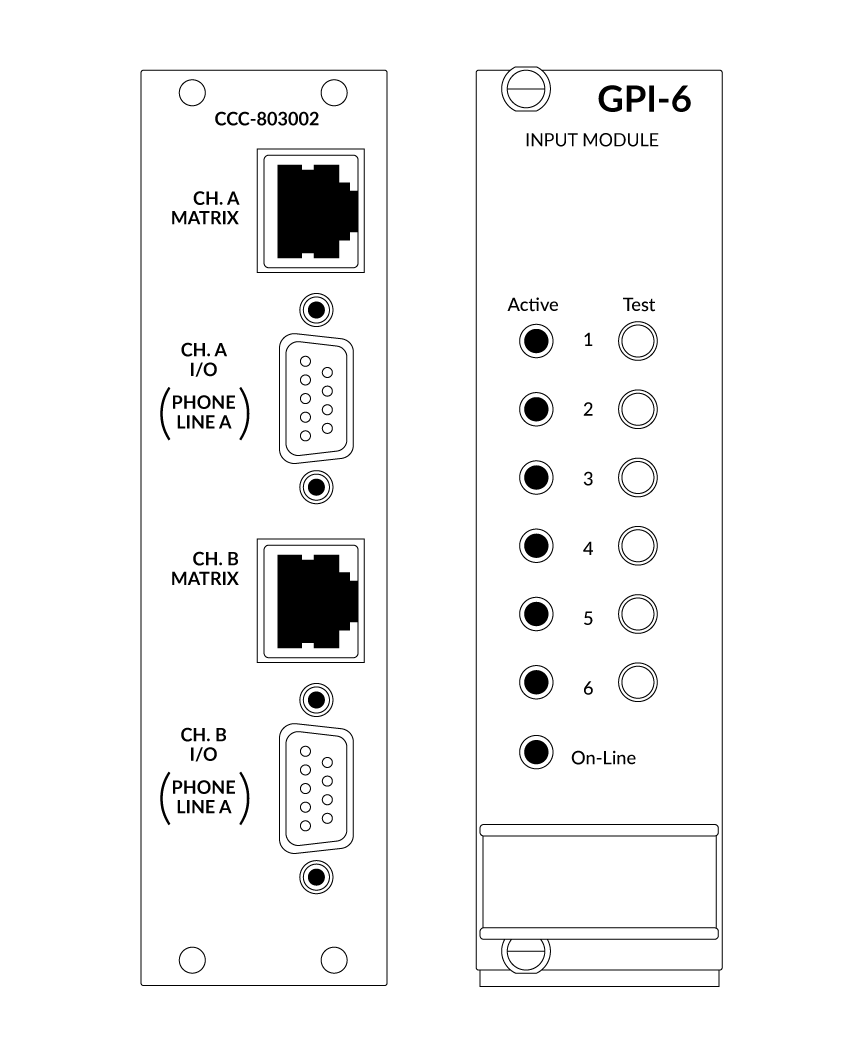

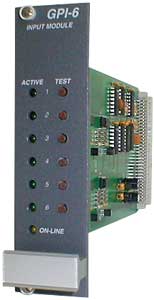

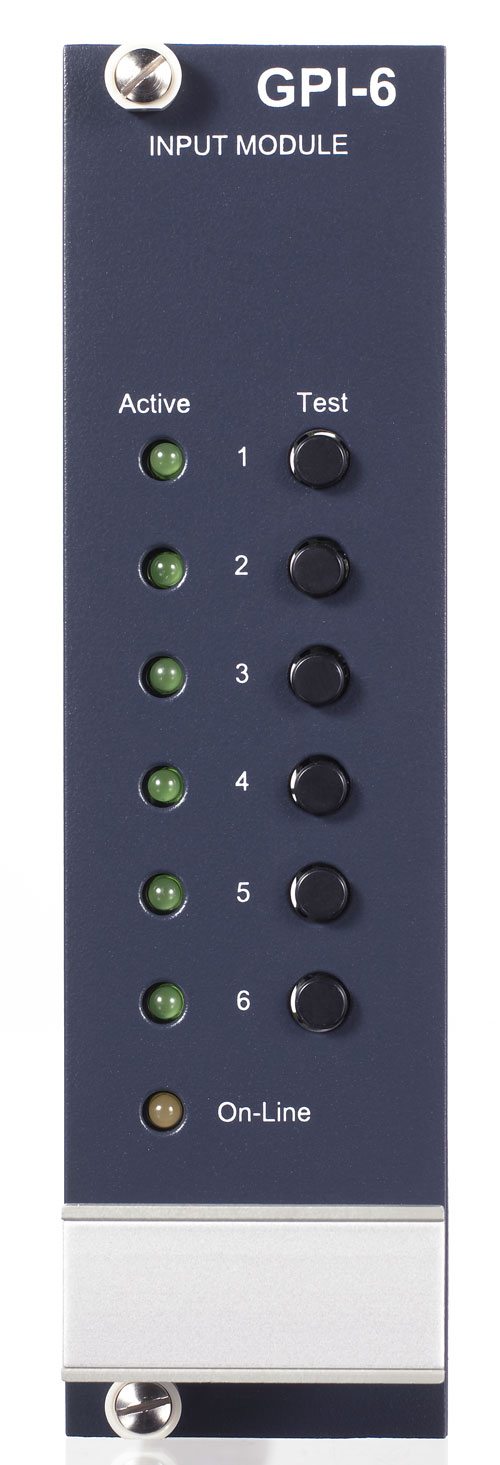

Connect 6 general purpose opto logic input interfacing to Eclipse HX matrices, allowing external sources to trigger routing changes and other events.
