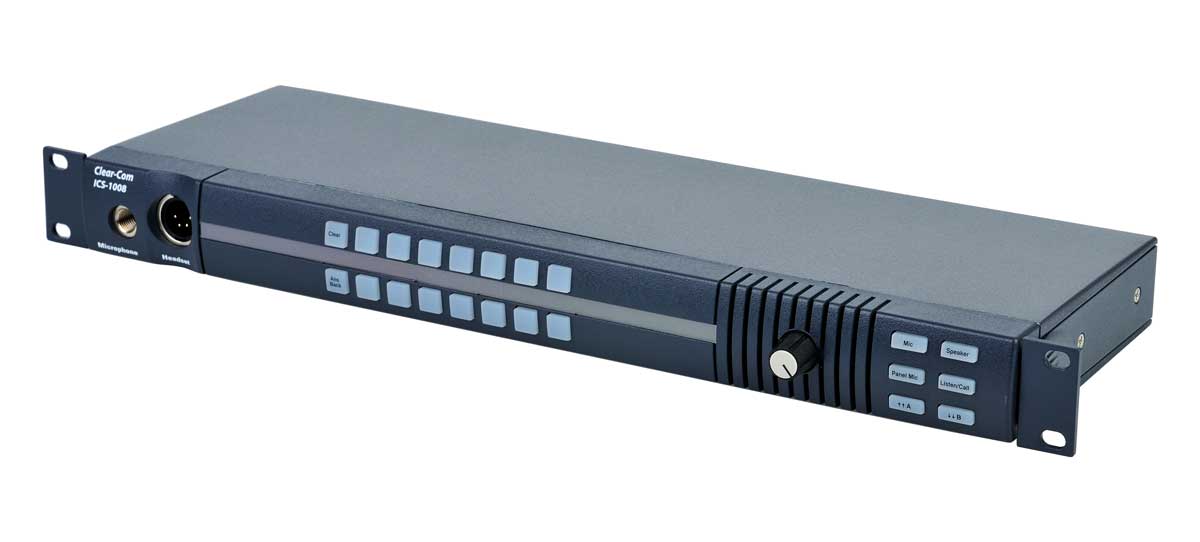

ICS-1008E

16-key Non-Display Pushbutton Panel.

Details

  • 14 Talk/Listen pushbuttons and 2 Clear buttons for use with Eclipse HX matrix frames
  • Individual programmable buttons can be designated as Talk, Listen or Talk with Listen
  • Adjust listen levels per button
  • Momentary/Latching buttons can be individually programmed as Momentary only
  • Answer-back button and Call waiting tallies
  • Controls sidetone, microphone gains, page override, and speaker mute
  • Supported on Eclipse HX platforms (v9.0 and higher)

Item Code

ICS-1008E

Technical
Specifications

Line Input/Output

Type: Transformer Balanced

Input Impedance: 8K

Ohms Bridging Output Impedance: 150 Ohms

Level: 0dBv nominal

Frequency Response: 50Hz - 15kHz, +/-2dB


Panel Microphone Input

Type: Electret with proprietary phone jack

Input Level: -40 dBv

Gain Adjustment Range: +/-5 dB (software)

Impedance: 200 Ohms


Headset Microphone Input

Type: Dynamic

Input Level: -55 dBv Gain

Adjustment Range: +/-5 dB (software)

Impedance: 200 Ohms


Headphone Outputs

Impedance: 50 - 600 Ohms

Power: 1/2 Watt into 50 Ohms


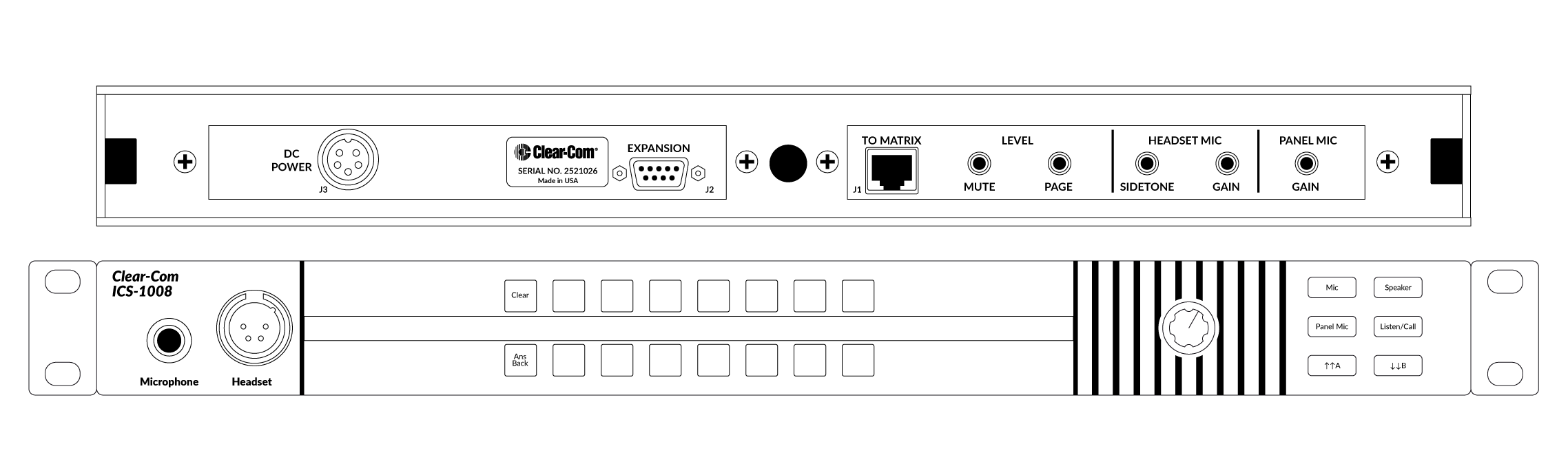

Front Panel Controls and Connectors

Selector Keys: 32

Keypad Keys: 6

Answer Back Selector Key: 1

Volume Controls: intercom

Headset Connector: XLR-4M

Panel Mic Connector: Locking 1/4\" phone jack

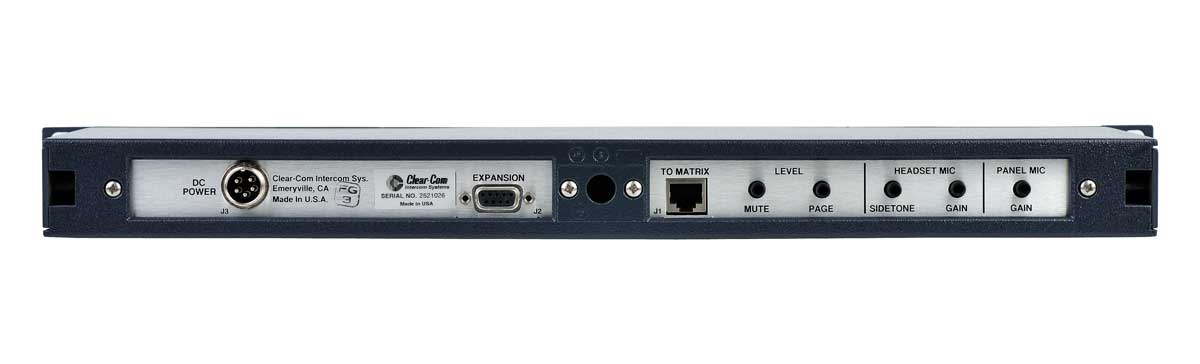

Rear Panel Connectors

Miscellaneous: To

Matrix: RJ45

Expansion Option: DB-9F

Environmental

Operating Temperature: 0º - 50ºC (32º - 125ºF)

Humidity: 20% to 90%, non-condensing


Power

In-Line Power Supply, with 3-pin EIA connector, UL approved power supply

Voltage: 90 - 250V AC, 50 - 60Hz, 50V A max.

Dimensions

1.75 x 19 x 6.75in (HxWxD)

(89 x 483 x 172mm)

Weight

4.0lbs (1.84kg)
