ICS-1016E

ICS-1016E

  • ICS-Series 32-key Non-Display Pushbutton Panel
  • 30 Talk/Listen pushbuttons and 2 Clear buttons for use with Eclipse HX matrix frames
  • Individual programmable buttons can be designated as Talk, Listen or Talk with Listen
  • Adjust listen levels per button
  • Momentary/Latching buttons can be individually programmed as Momentary only
  • Answer-back button and Call waiting tallies
  • Controls sidetone, microphone gains, page override, and speaker mute
  • Supported on Eclipse HX platforms (v9.0 and higher)
Item Part Number:
  • ICS-1016E

Technical Specifications

Line Input/Output

Type: Transformer Balanced

Input Impedance: 8K Ohms Bridging

Output Impedance: 150 Ohms

Level: 0 dBv nominal

Frequency Response: 50 Hz – 15 kHz, +/-2 dB

Panel Microphone Input

Type: Electret with proprietary phone jack

Input Level: -40 dBv

Gain Adjustment Range: +/-5 dB (software)

Impedance: 200 Ohms



Headset Microphone Input

Type: Dynamic

Input Level: -55 dBv

Gain Adjustment Range: +/-5 dB (software)

Impedance: 200 Ohms

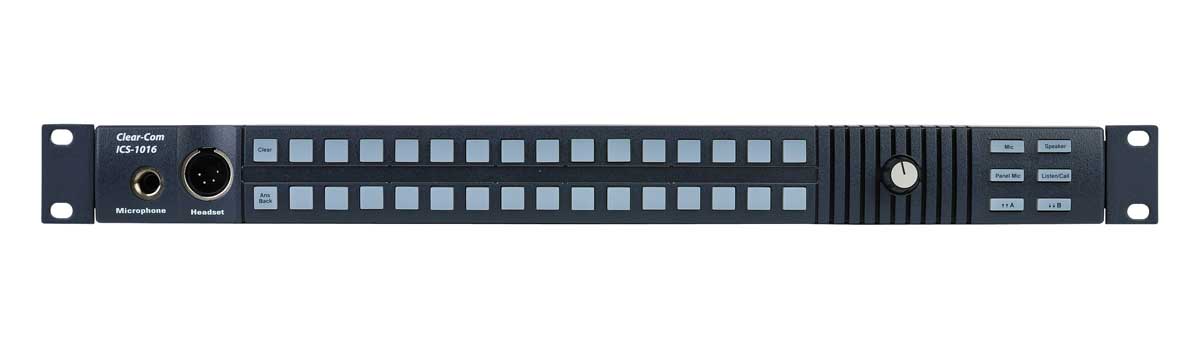

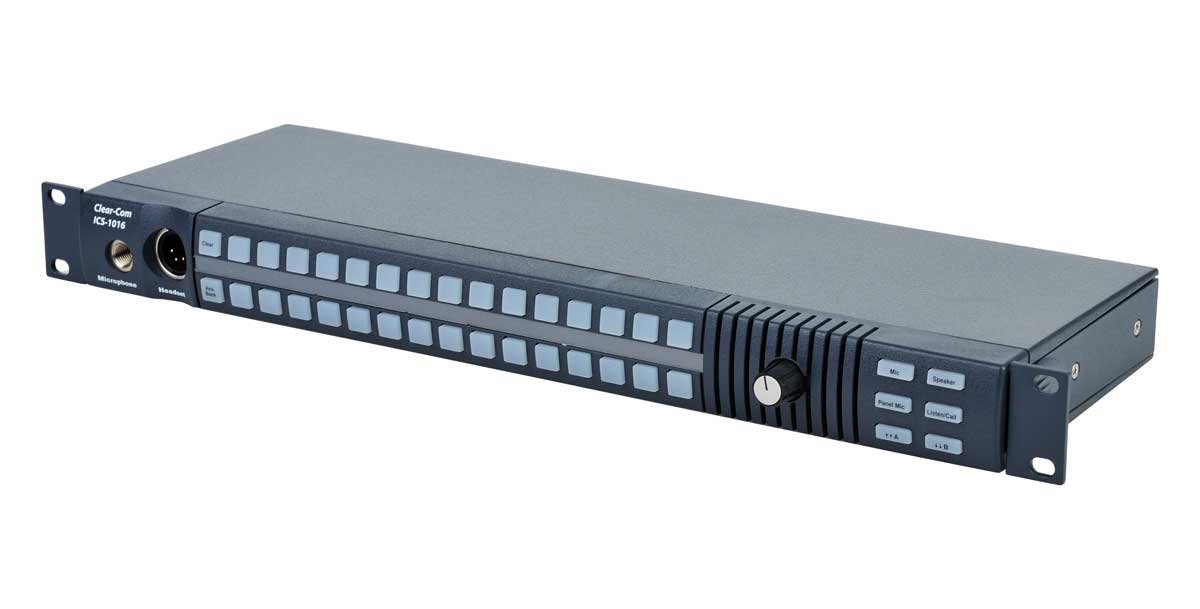

Front Panel Controls and Connectors

Selector Keys: 32

Keypad Keys: 6

Answer Back Selector Key: 1

Volume Controls: intercom

Headset Connector: XLR-4M

Panel Mic Connector: Locking 1/4″ phone jack

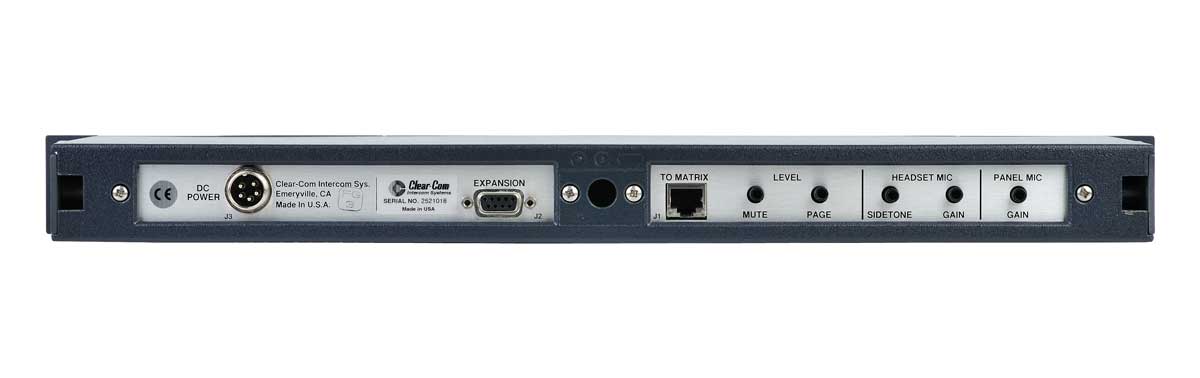

Rear Panel Connectors

Miscellaneous:

To Matrix: RJ-45

Expansion Option: DB-9F

Environmental

Operating Temperature: 0º – 50º C (32º – 125º F)

Humidity: 20% to 90%, non-condensing



Power

In-Line Power Supply, with 3-pin EIA connector, UL approved power supply

Voltage: 90 – 250 VAC, 50 – 60 Hz, 50 VA max.

Dimensions

1.75 x 19 x 6.75 in (HxWxD)

(89 x 483 x 172 mm)

Weight

4.0 lbs (1.84 kg)
