MUX-22 Series

1RU 8-Port Fiber Transport Interface Devices

Seamlessly transports, routes and distributes audio, video, intercom and control data over one fiber optic cable
Full integration into SANE, DiViNe and Optocore network
SD/HD/3G-SDI capacity
- 8 SD/HD/3G-SDI ports
- 4 simplex LC fiber ports
CWDM (Coarse Wavelength Division Multiplexing) module
Tri/Bi-level video clock input and output module
Optocore module
- 2 x Optocore 2Gbps ports
- 2 x SANE/LAN ports
- 2 x LAN ports
- 4 x RS485/422 ports
- Word Clock I/O
Redundant power supplies
Full control with ProGrid control software
LAN, USB and RS232 ports for configuration

Item Part Number:

MUX-22-CC

MUX-22-CC-2IN-6OUT

MUX-22-CC-6IN-2OUT

MUX-22-CC-8IN

MUX-22-CC-8OUT

MUX-22-MADI-BNC

MUX-22-MADI-BNC-8IN

MUX-22-MADI-BNC-8OUT

MUX-22-MADI-OPT

MUX-22-MADI-OPT-8IN

MUX-22-MADI-OPT-8OUT

MUX-22-RTS

MUX-22-RTS-8IN

MUX-22-RTS-8OUT

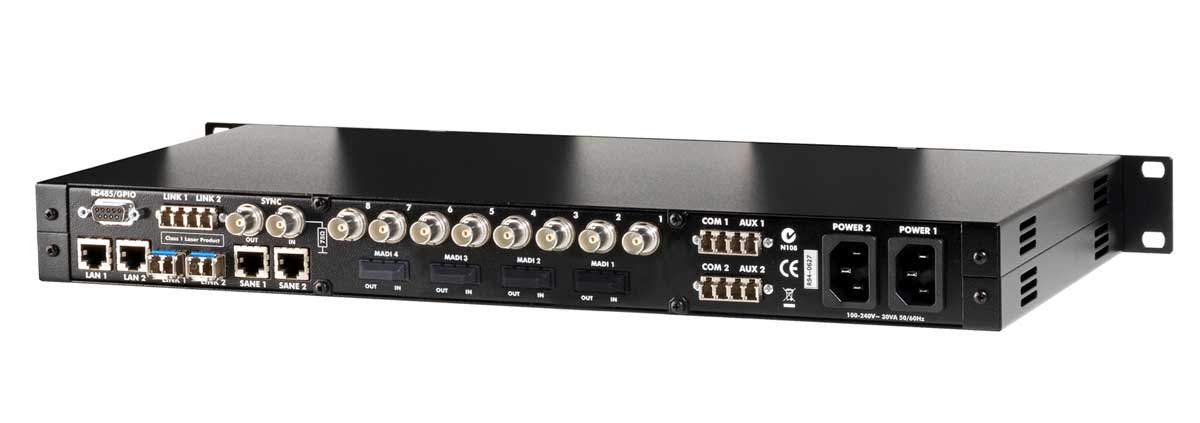

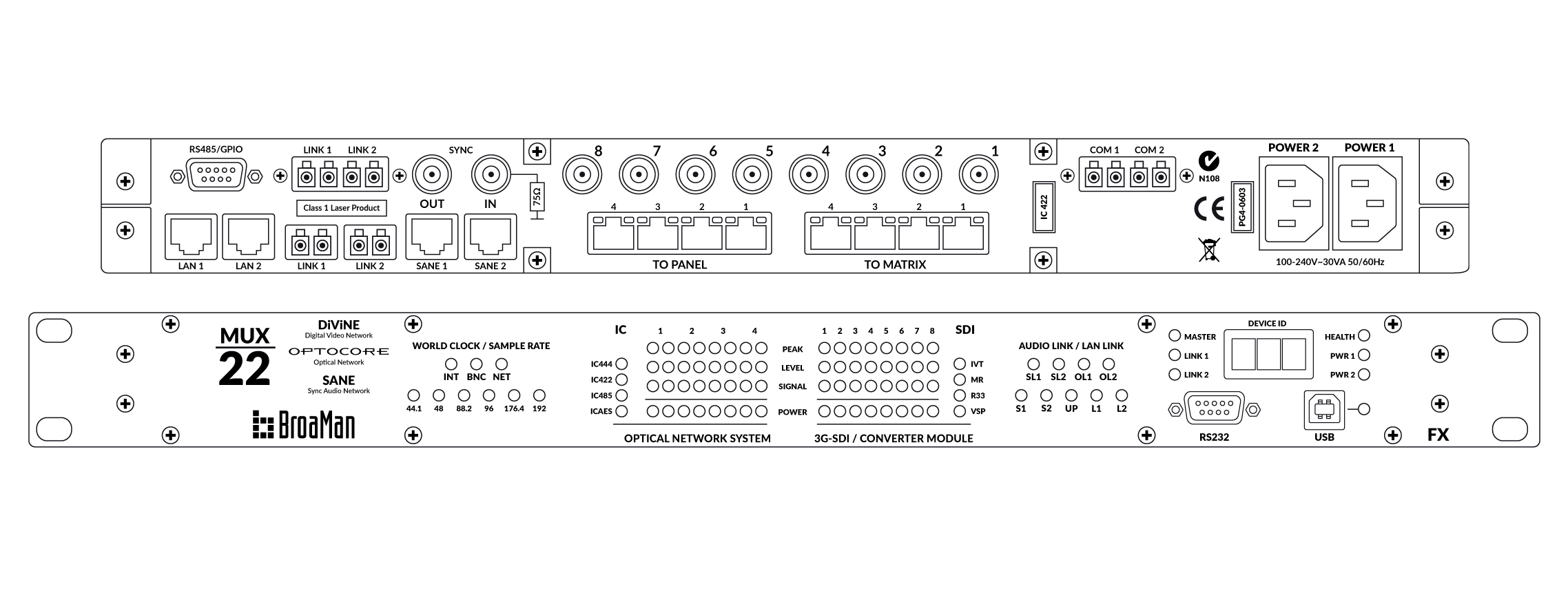

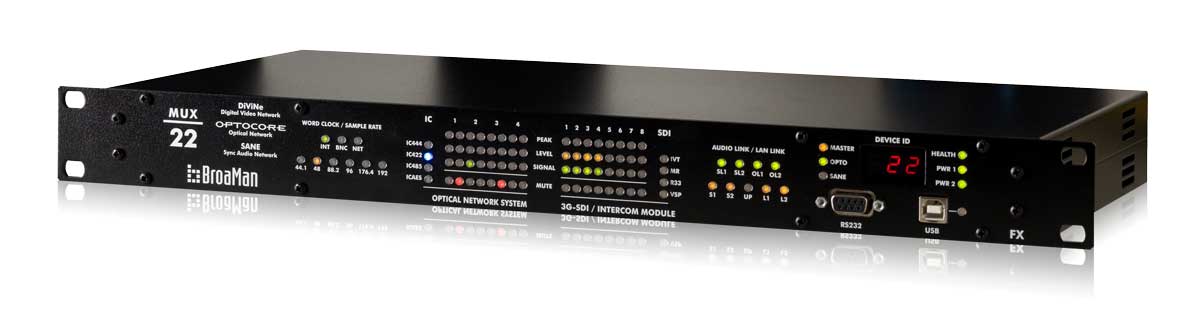

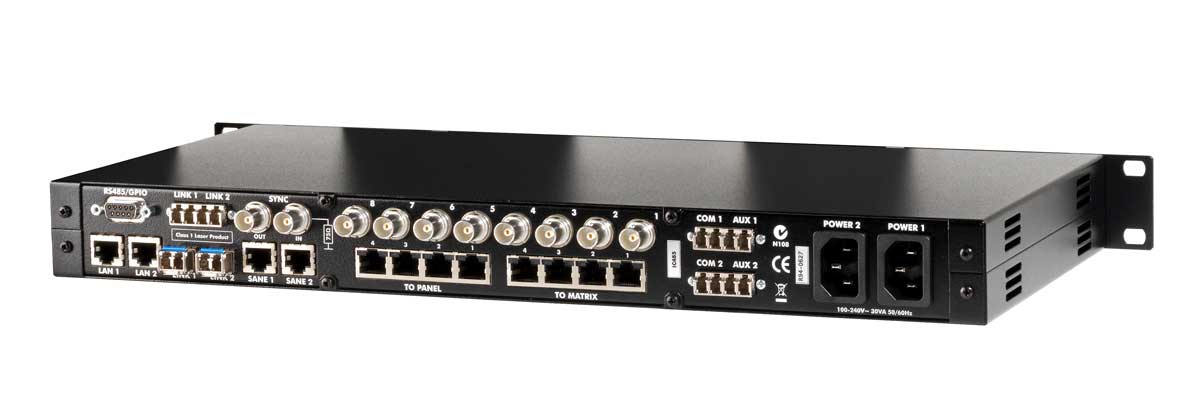

The MUX-22 Series is a group of fiber interfaces that distribute multiple professional video and audio signals, such as SD/HD/3G-SDI over the same optical fiber. The panels have 8 SD/HD/3G-SDi coaxial video inputs or outputs, a Coarse Wavelength Division Multiplexing (CWDM) module, and 4 video inputs, 4 video outputs and 4 4-wire RJ45 matrix ports.

Technical Specifications

Intercom Ports

Connector: 4-wire Clear-Com standard; 4 x input, 4 x output RJ45, Clear-Com convention

Optical Link

Connection: Duplex LC
Protocol: Optocore
Transmission: Full Duplex
Fiber Cable Lengths: Standard singlemode transceiver <10 km; Special singlemode transceiver < 80 km (on request)

SANE, LAN ports

Auxiliary Ports
Convention EIA / TIA-485
Data channels: Digital control data; 4
Data rate: Up to 10 Mbps
Impedance: Termination; 330 Ω; Source; ≤ 10 Ω

Video

Standards: SD, ED, HD, Dual Link, 3G
Complies with SMPTE: 259M, 292M, 344M, 372M, 424M
Interface: SDI – Serial Digital Interface

Word Clock

Hardware standard
BNC – 75 Ω

Data Rate: Dependent on sample rate; Up to 192kHz
Impedance: Output ≤ 5 Ω; Input 75 Ω
Drive Level: Output; ≥ 1 Vpp
Zero Level: Referring to GND; +1.7 V
Sense Level: Input; ≥ 400 mVpp

Optical Connection

Complies with 21 CFR 1040.10 and 1040.11

Remote Control

RS232: EIA / TIA – 232; 57 600 Baud
USB: USB 2.0 – Device; 12 Mbit/s
LAN: IEEE – 802.3; 10/100 Mbit/s

Power Supply

Type: Switch-mode, universal input
Main Voltage: 100-240V; 50-60Hz
Frequency: 50-60 Hz
Cooling: Passive, via surface and ventilation openings on both sides of the device
