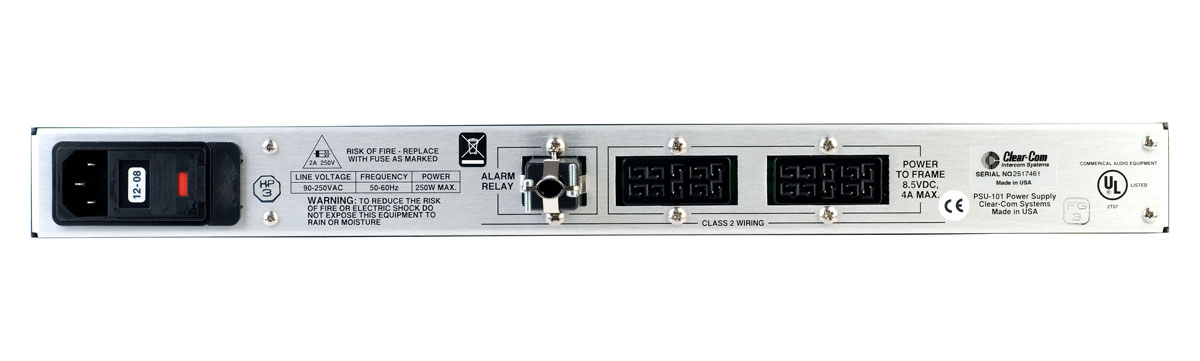

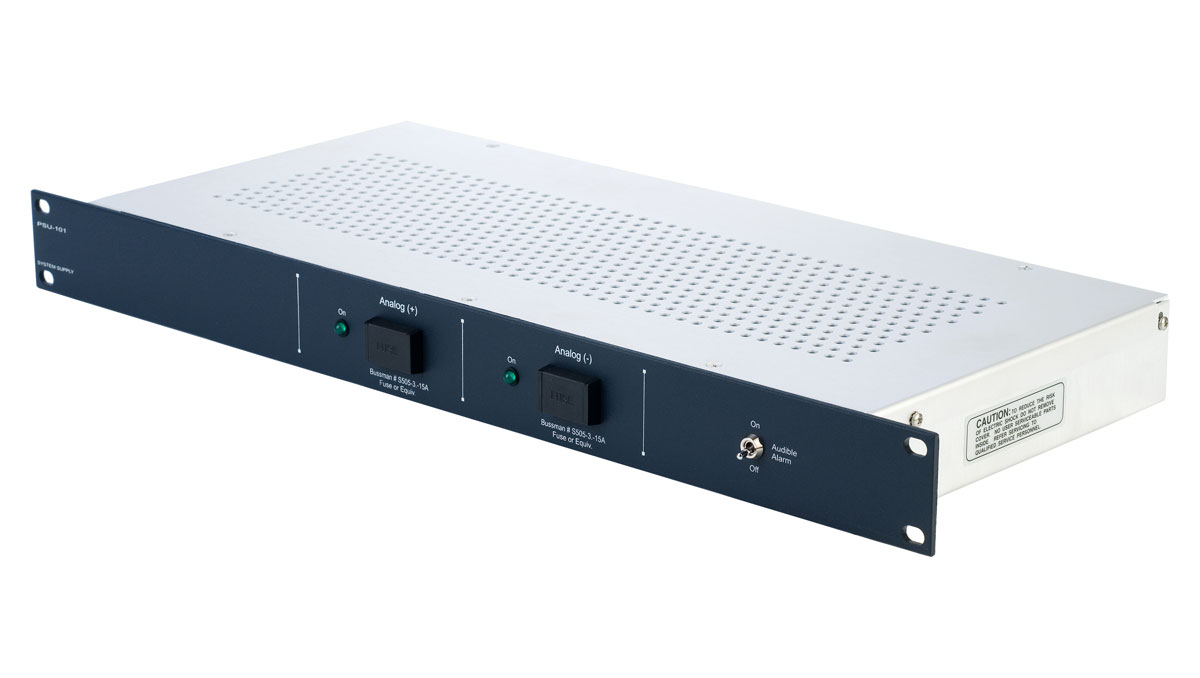

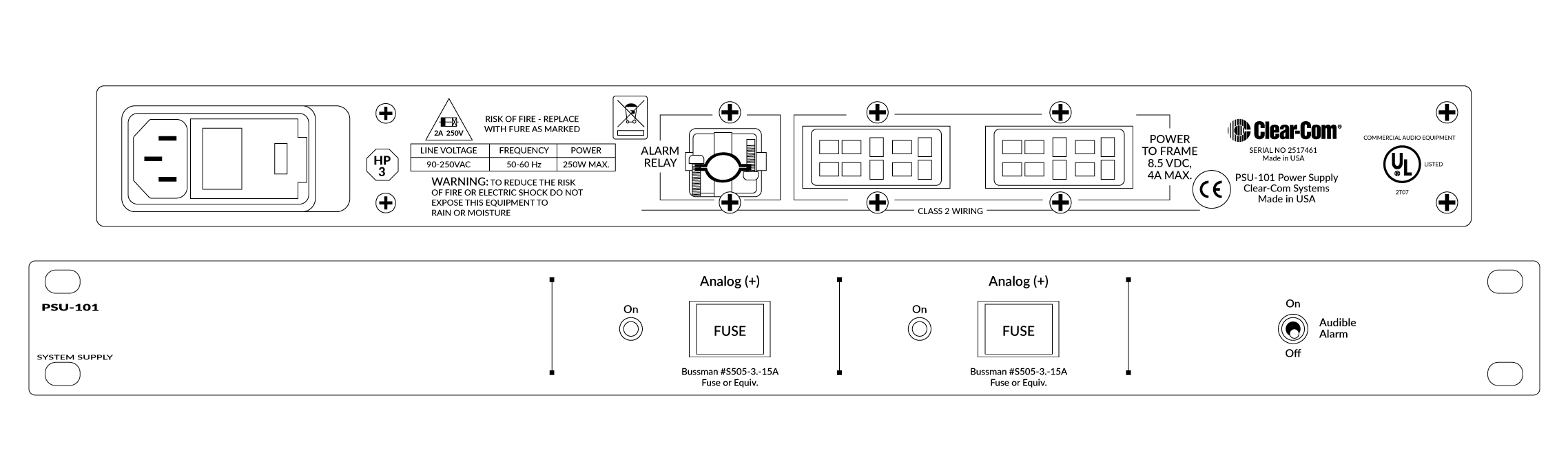

Details Specialty Interface Modules For use with MVX-16A Interface Card Audio - Line-Level Isolated Partyline - Unbalanced Telephony - POTS* Audio - Digital AES6* For use with Eclipse CPU Card Control - GPIO Isolated* Interface Module Options CCI-22 FOR-22 RLY-6 GPI-6* TEL-14* AES-6* Interface Frame Options Median Delta Delta-Lite IMF-102 IMF-3 with PSU-101 Eclipse Digital Matrix System Advanced Intercom System Scalable, Modular & Redundant Flexible Connectivity Effortless Networking Self-Contained System Item Code PSU-101 Product Description Description Eclipse HX specialty Interface Modules seamlessly connect Eclipse HX intercom systems to external communication, audio, and control systems—including generic 4-wire audio, 2-wire Partylines, two-way radios, telephone lines, and contact closures. Audio interface modules are supported by the MVX-16A Interface card, while the contact closure modules daisy-chain from the Eclipse frame’s CPU card. These auto-discovering interface modules mount within matrix or interface frames to simplify installation and ensure robust interoperability. Frames Interface Modules can be housed directly in Eclipse HX Median, Delta, and Delta-Lite frames, or within dedicated external interface frames. The high-density IMF-3 (3RU) holds up to 11 modules and utilizes the PSU-101 power supply, with support for a second unit for redundancy. For compact requirements, the IMF-102 (1RU) hosts two modules and combines an internal power supply and external redundancy connections into a single chassis. Technical Specifications Two 9-volt switching supplies with audible failure alarm Rear Panel Connectors AC Power Input: (1) IEC C14 DC Power Output: (2) 10-pin Jones (to IMF frames) Alarm: SPST Relay @ 1 A DC maximum DC Output Specifications Module & Frame Output: 3 A Indicators: (2) Power supply LEDs AC Input Specifications Input Voltage Range: 100 – 240 VAC Input Frequency Range: 50 – 60 Hz Input Power (Max): 125 W (load dependent) BTU (Max): 427 BTU/hr Dimensions 19 x 1.75 x 7.75in (WxHxD) (44 x 483 x 197mm) Weight 4.5lbs (2kg)
