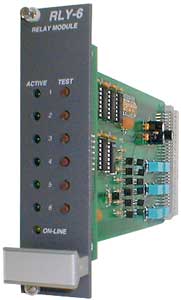

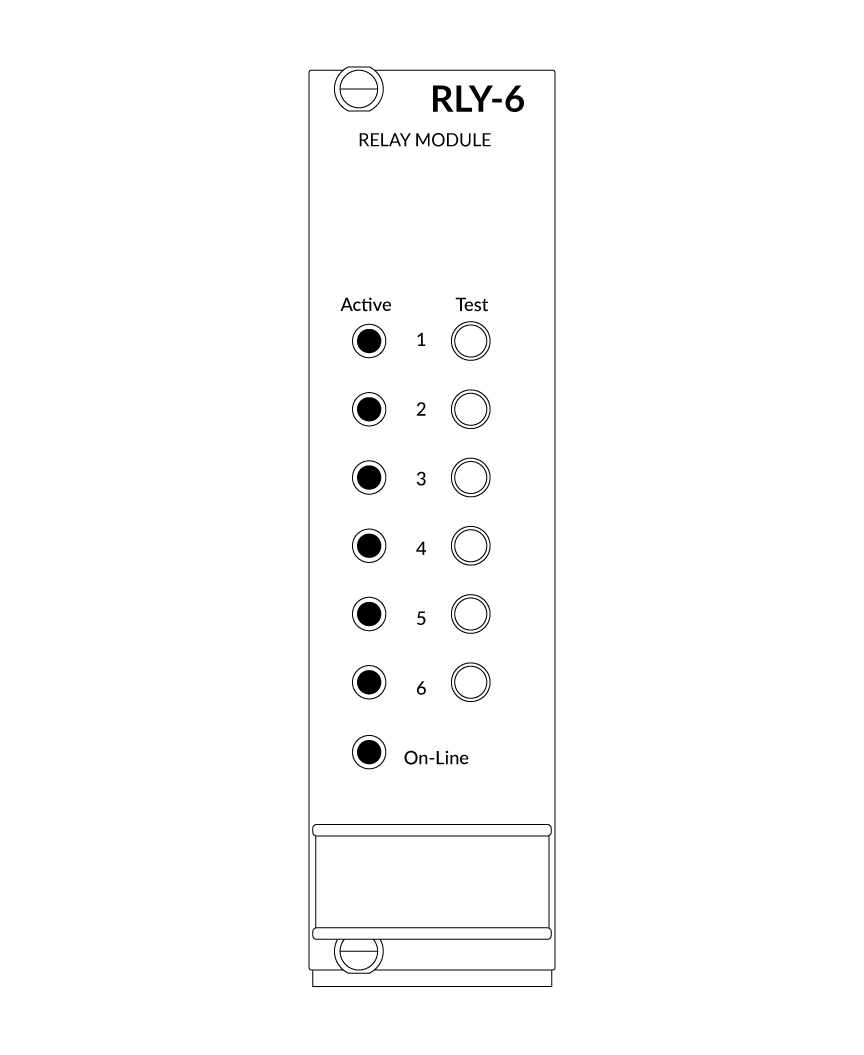

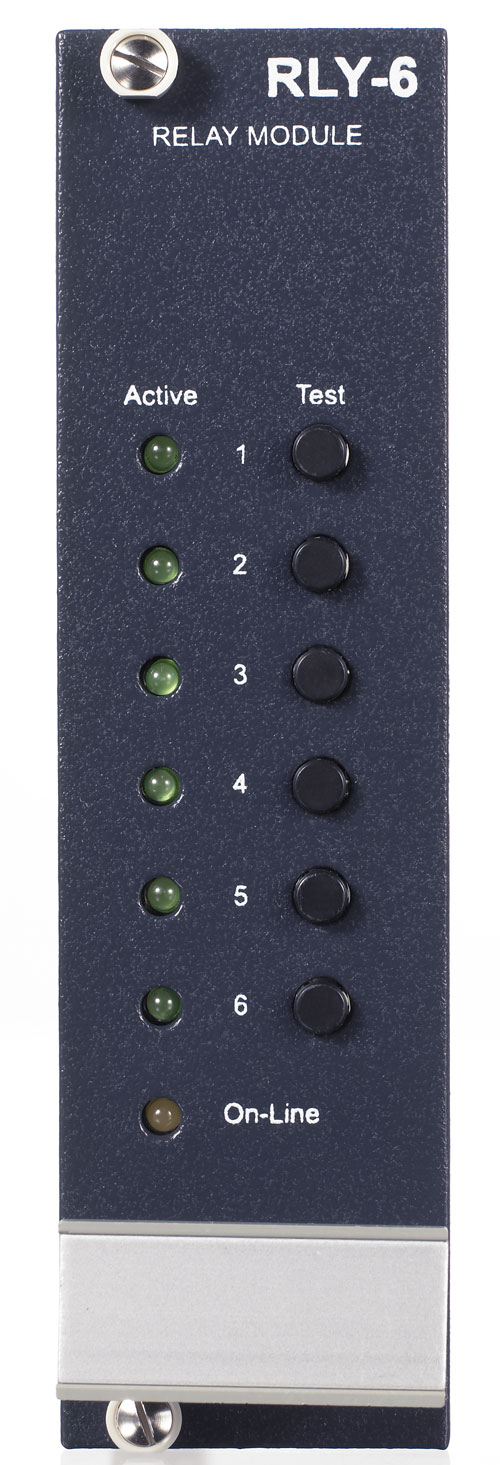

6-way Relay Control Interface Module
RLY-6
Relays: Six SPDT 24V DC @ 1 Amp
Power Requirements: 150mA max from PSU-101 power supply
Operating Temperature: 32° – 104°F (0° – 40°C)
Storage Temperature: -67° – 158°F (-55° – 70°C)
Humidity: 90% non-condensing
5.06 x 1.38 x 9.16in (HxWxD)
(129 x 35 x 233mm)
12.5oz (0.32kg)
