RM-702

RM-702

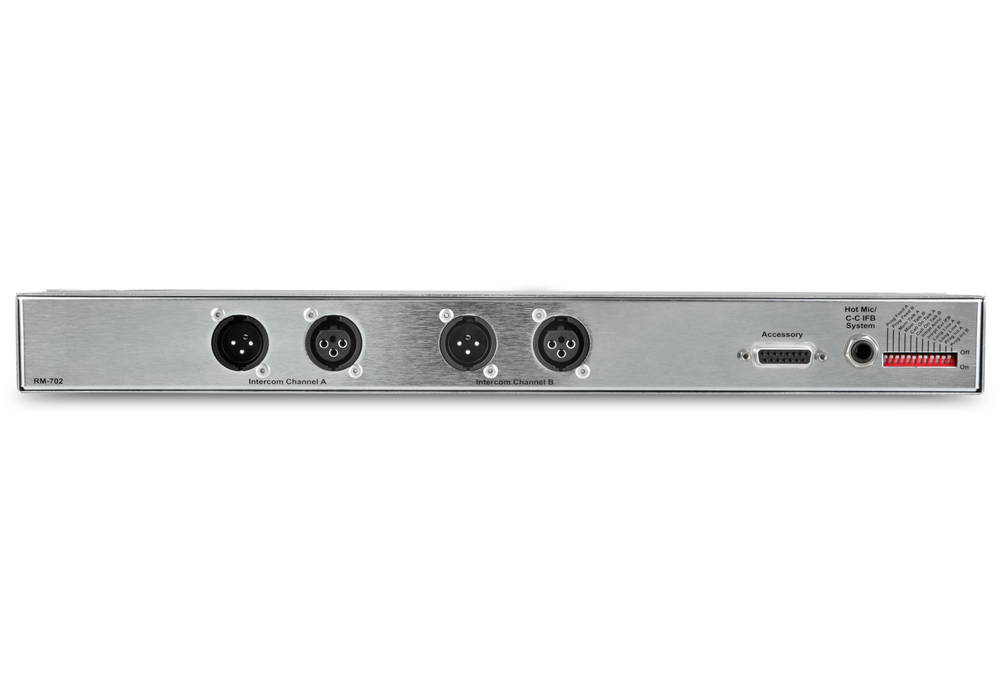

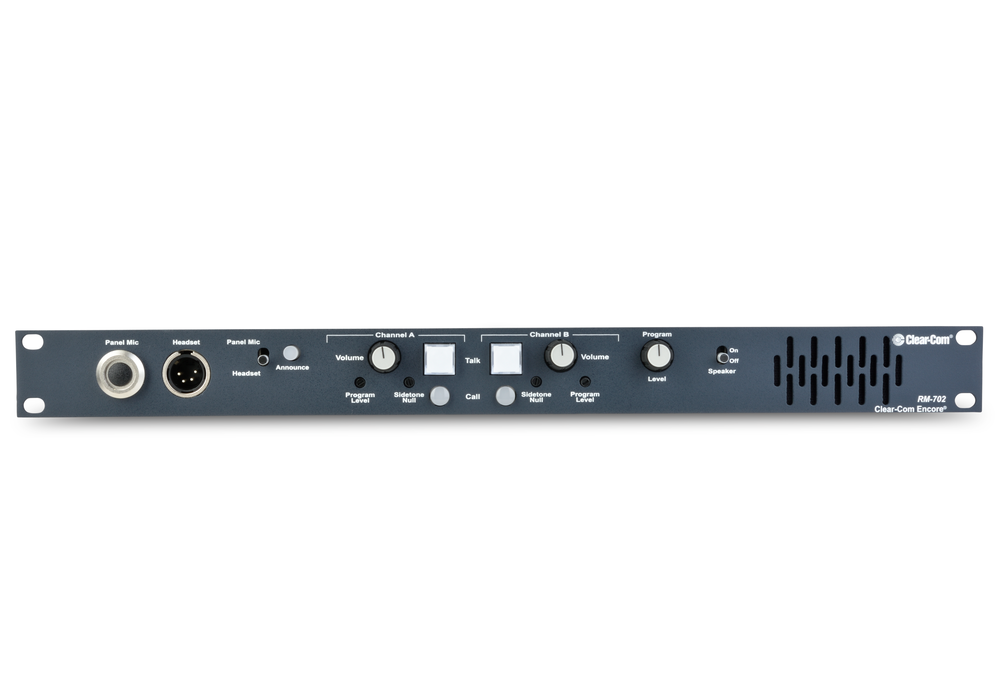

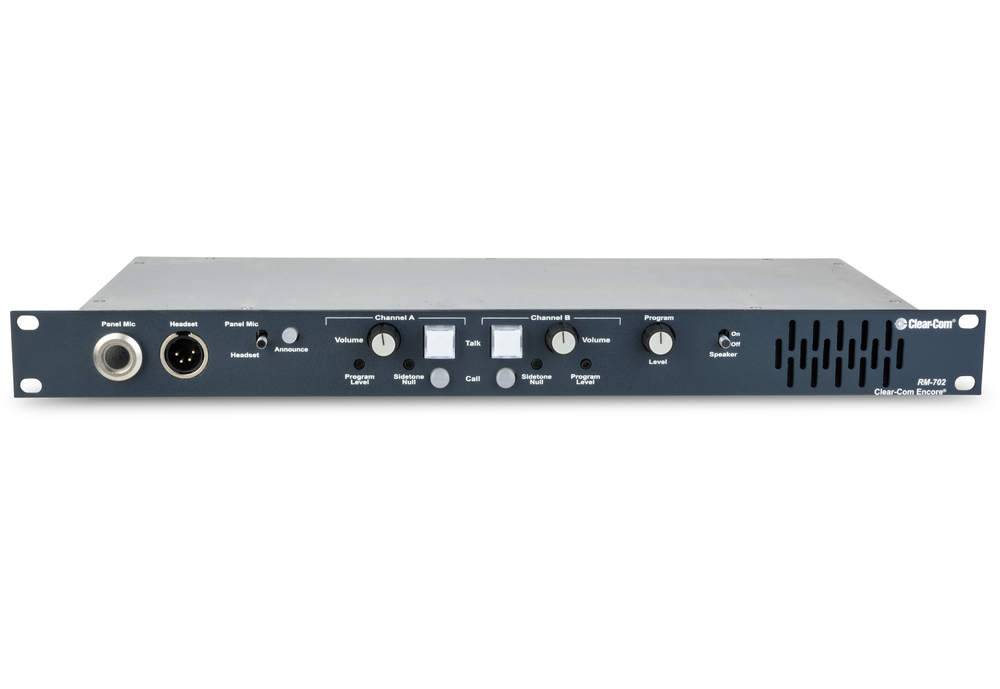

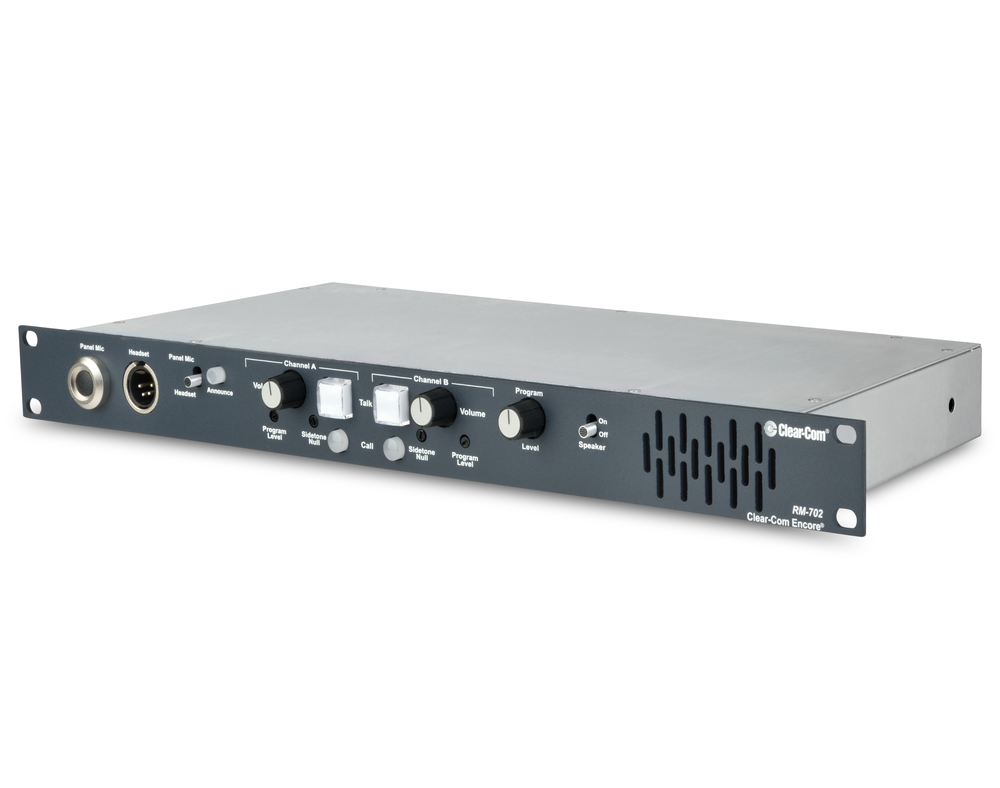

  • 2-Channel 1RU Remote Station with built-in Speaker
  • Selectable one- or two-channel communication
  • Momentary/Latching talk buttons
  • Individual call buttons
  • Visual and audible call signaling
  • Balanced audio input with program interrupt (IFB)
  • Hot mic and line-level outputs
  • Stage announce output with relay
  • Built-in speaker
Item Part Number:
  • RM-702

Technical Specifications

Panel Microphone Input

Input Type: Electret

Input Impedance: >=2K

Mic Limiter Threshold: 0dBu ±3dB

Mic Limiter Range: >= 20dB

Headset Microphone Input

Input Type: Dynamic

Input Impedance: >= 1K

Mic Limiter Threshold: 0dBu ± 3dB

Mic Limiter Range: >= 15dB

Program Line Input

Maximum Level before Clipping: >= 20dBu

Input Impedance: >= 5K

Headset Output

Load Impedance: >= 8

Output Impedance: <= 25

Output Limiter Threshold: +5dBu ± 3dB

Maximum Output Level before Distortion: >= 17dBu

Speaker Output

Load Impedance: >= 4

Max Output Level before 1% Distortion: 20dBu ± 2dBu

Partyline Output

Output Noise: < -74dBu

Output Impedance: >10K

Partyline Input

Crosstalk: < -60dB

Max level before Clipping: >= 12dBu

Sidetone Null Capability: > 25dB

Stage Announce/Balanced Line Out

Type: Balanced

Output Impedance: >= 200

Load Impedance: >= 600

IFB/Hot Mic

Type: Unbalanced

Output Impedance: 180

Load Impedance: >= 600

Frequency Response

Panel Mic – Partyline: 600 – 10KHz ± 3dB

Headset Mic – Partyline: 200 – 12KHz ± 3dB

Headset Mic – Line Out: 200 – 12KHz ± 3dB

Program Input – Partyline: 100 – 17KHz ± 3dB

Program Input – Headset Out: 200 – 10KHz ± 3dB

Program Input – Speaker Out: 300 – 10KHz ± 3dB

Partyline – Headset Out: 200 – 10KHz ± 3dB

Partyline – Speaker Out: 300 – 10KHz ± 3dB

Max Distortion

Panel Mic – Partyline: <= 0.5%

Headset Mic – Partyline: <= 0.5%

Headset Mic – Line Out: <= 0.5%

Program Input – Partyline: <= 0.2%

Program Input – Headset Out: <= 0.2%

Program Input – Speaker Out: <= 0.5%

Partyline – Headset Out: <= 0.2%

Partyline – Speaker Out: <= 0.5%

Noise

Panel Mic – Partyline: < -65dBu

Headset Mic – Partyline: < -70dBu

Headset Mic – Line Out: < -55dBu

Program Input – Partyline: < -85dBu

Program Input – Headset Out: < -60dBu

Program Input – Speaker Out: < -60dBu

Partyline – Headset Out: < -50dBu

Partyline – Speaker Out: < -50dBu

Max Gain

Panel Mic – Partyline: >= 37dB

Headset Mic – Partyline: 41dB ± 2dB

Headset Mic – Hot Mic Out: 55dB ± 3dB

Headset Mic – Announce Out: 55dB ± 3dB

Program Input – Partyline: >= -16dB

Program Input – Headset Out: >= 18dB

Program Input – Speaker Out: >= 24dB

Partyline – Headset Out: >= 34dB

Partyline – Speaker Out: >= 40dB

Min Gain

Panel Mic – Partyline: <= 25dB

Power

Input Voltage Range: 20-30 VDC

Input Current (Idle):<= 90mA

Input Current (Max):<=110mA

Environmental

32 – 122°F (0 – 50°C)

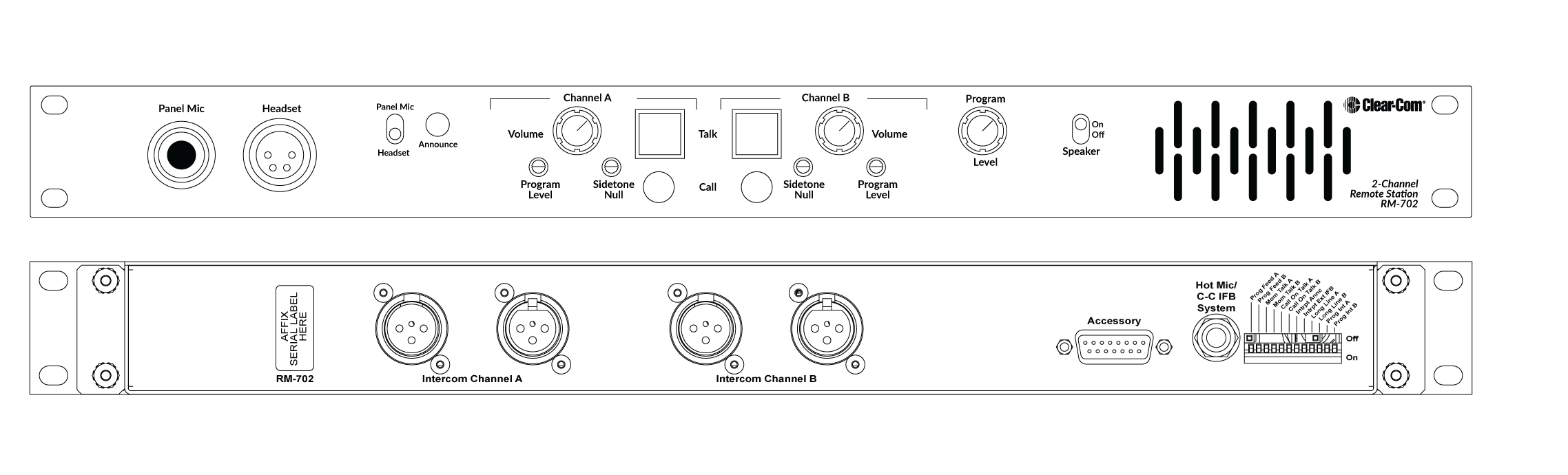

Dimensions

1.75 x 19 x 7.0 in (HxWxD)

(44 x 483 x 178 mm)

Weight

5.2 lbs (2.4 kg)
