Route66 Series

Route66 Series

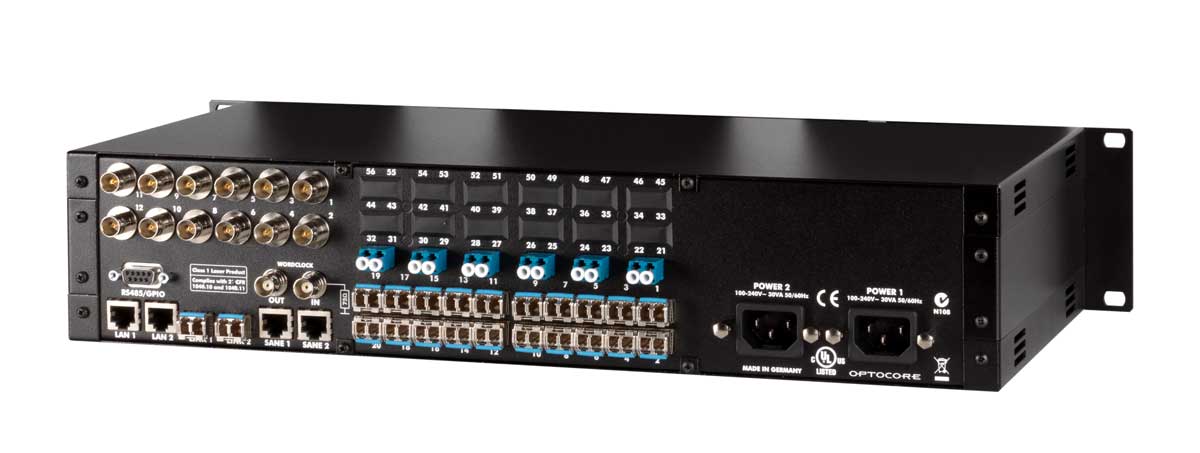

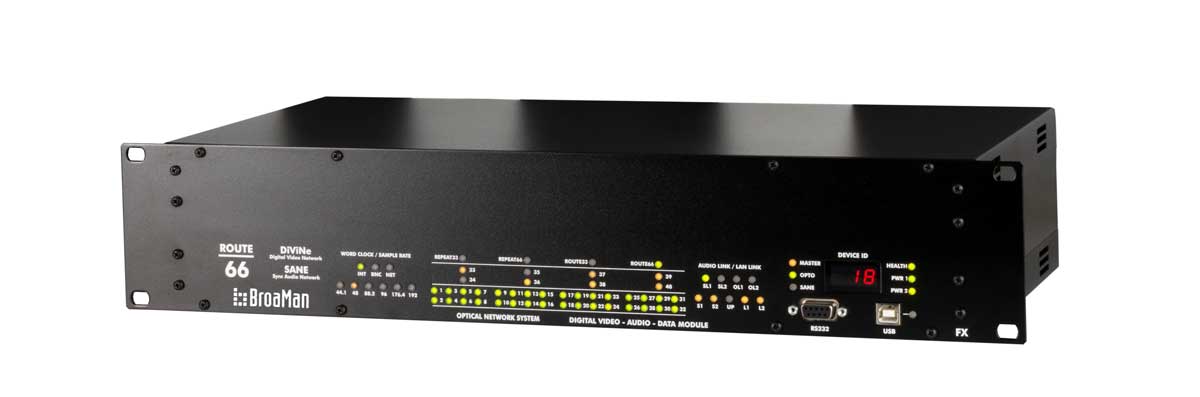

2RU 40×40 Optical Multiplexer Devices

Uses CWDM or DWDM to single-fiber I/O ports

Up to 24 BNC-SDI ports for 3G/HD/SD video input or output with or without reclockers

Up to 20 additional general protocol-independent duplex LC fiber ports

Up to 36 general protocol-independent simplex LC fiber ports

Protocol Independence for routing 1G Ethernet, SMPTE311m camera feeds, intercom, MADI, Optocore signals and 3rd-party digital audio at the same time on the same device

Compatible with BroaMan devices for distributed transport solutions

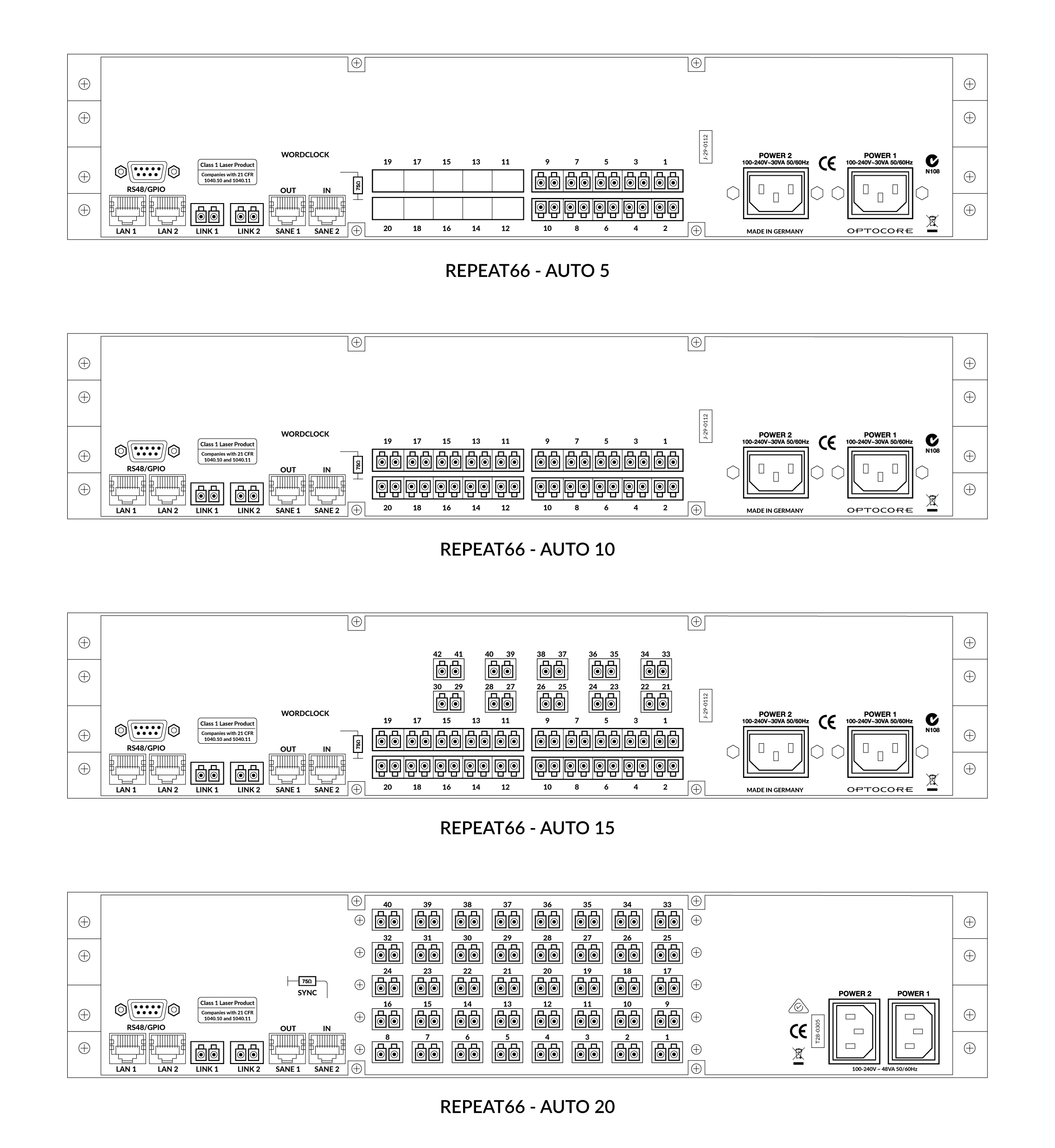

Optional Route66 will automatically patch assigned channels to 5, 10, or 20 satellite stageboxes

Technical Specifications

Optical Link

Connection: Duplex LC

Protocol: Independent (no restriction)

Transmission: Full Duplex

Fiber Cable Lengths: Standard singlemode transceiver ≥10 km; Special singlemode transceiver ≥ 80 km (on request)

SANE, LAN Ports

Audio: TIA – 568A/B, Optocore; 200 Mbit/s

LAN: TIA – 568A/B, IEEE – 802.3; 10/100 Mbit/s

Auxiliary Ports

Fiber Duplex LC 1310nm fiber tunnel Protocol: Independent (no restrictions)

Data Port

Data Channels: Digital control data; 4

Data Rate: Up to 10 Mbps

Impedance

Termination: 330 Ω

Source: ≤ 10 Ω

Video

Standards: SD, ED, HD, Dual Link, 3G

Complies with SMPTE: 259M, 292M, 344M, 372M, 424M

Interface: SDI – Serial Digital Interface

Word Clock

Hardware Standard: BNC – 75 Ω

Data Rate: Dependent on sample rate; Up to 192 kHz

Impedance: Output ≤ 5, Ω Input 75 Ω

Drive Level: Output; ≥ 1 Vpp

Zero Level: Referring to GND; +1.7 V

Sense Level: Input; ≥ 400 mVpp

Optical Connection

Complies with 21 CFR 1040.10 and 1040.11

Remote Control

RS232: EIA / TIA – 232; 57 600 Baud

USB: USB 2.0 – Device; 12 Mbit/s

LAN: IEEE – 802.3; 10/100 Mbit/s

Power Supply

Type: Switch-mode, universal input

Main Voltage: 100-240 V; 50-60 Hz

Frequency: 50-60 Hz

Cooling: Passive, via surface and ventilation openings on both sides of the device

Dual Redundancy

Dimensions

3.46 x 19 x 7.87 in (HxWxD)

(88 x 483 x 200 mm)

Weight

Dependent on configuration

Features and/or Benefits

Route66

The Route66 Series is a group of fiber interfaces that routes multiple professional video and audio signals, such as SD/HD/3G-SDI over the same optical fiber. The panels have a 40×40 optical MUX and router for up to 24 BNC-SDI 3G/HD/SD video ports, up to 20 duplex or 36 simplex protocol-independent LC fiber ports.

The Route66 routes inputs from 3rd-party video or from fiber from other BroaMan devices, such as MUX-22 Series or Repeat48 Series, under user control. The protocol independence provides for full flexibility and as Route66 Series interfaces do not code or decode the signals, the latency is near zero.

One Route66 AutoRouter can transform Optocore rings, ProGrid or DiGiCo rings into intelligent star with automatic stream patch. It closes the optical loop automatically depending on connected ports.
