RS-703

RS-703

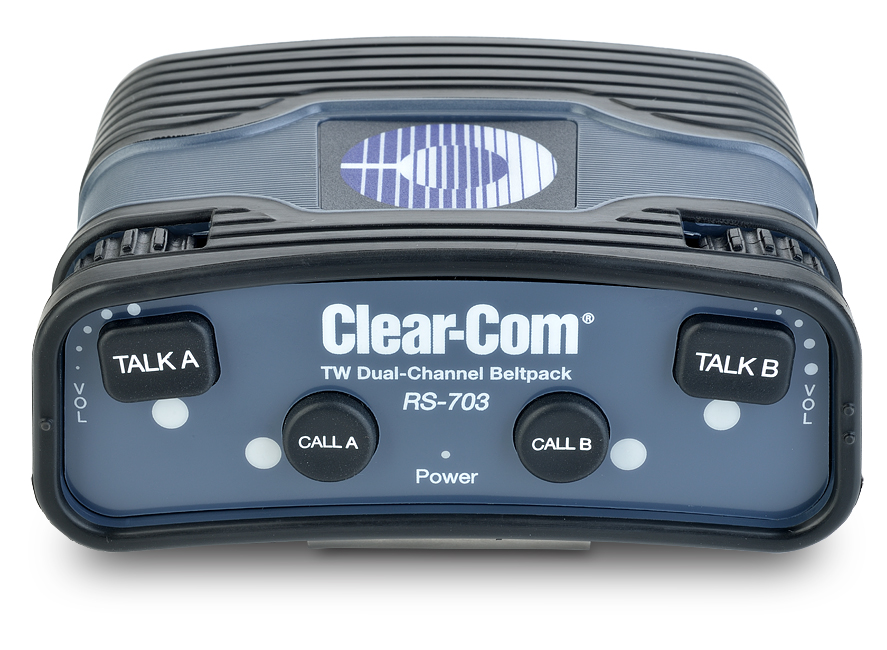

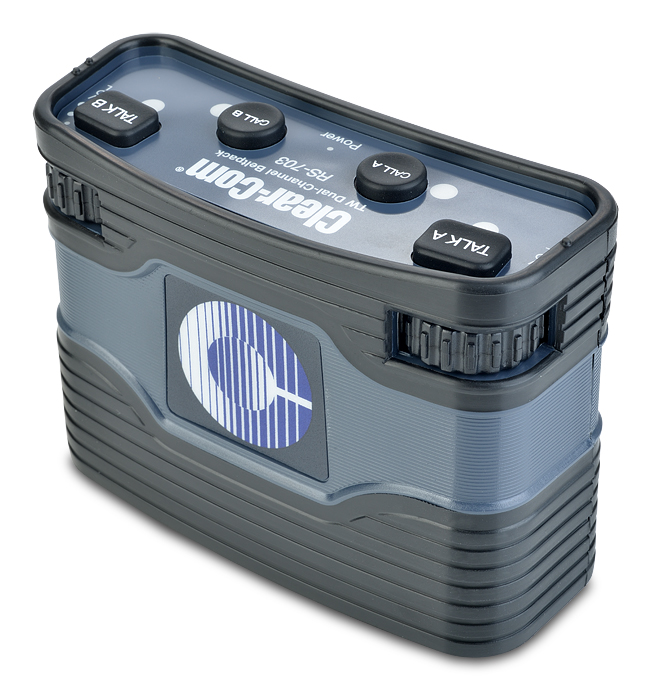

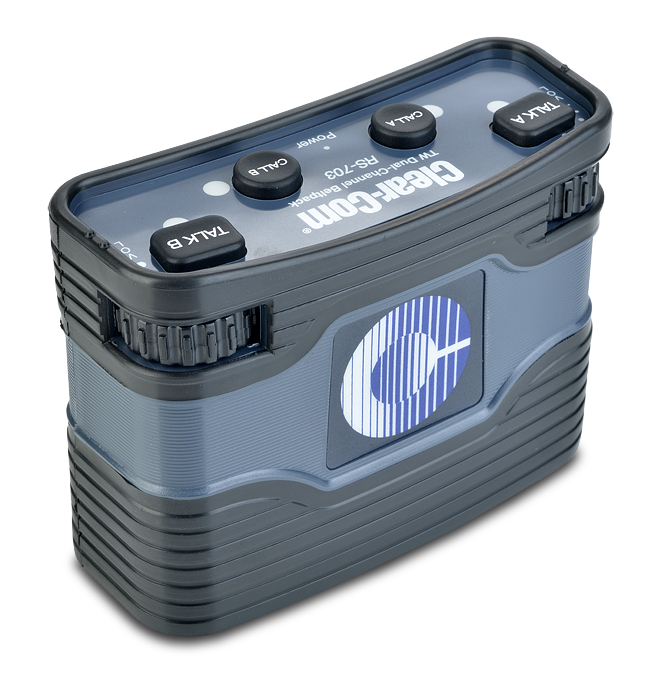

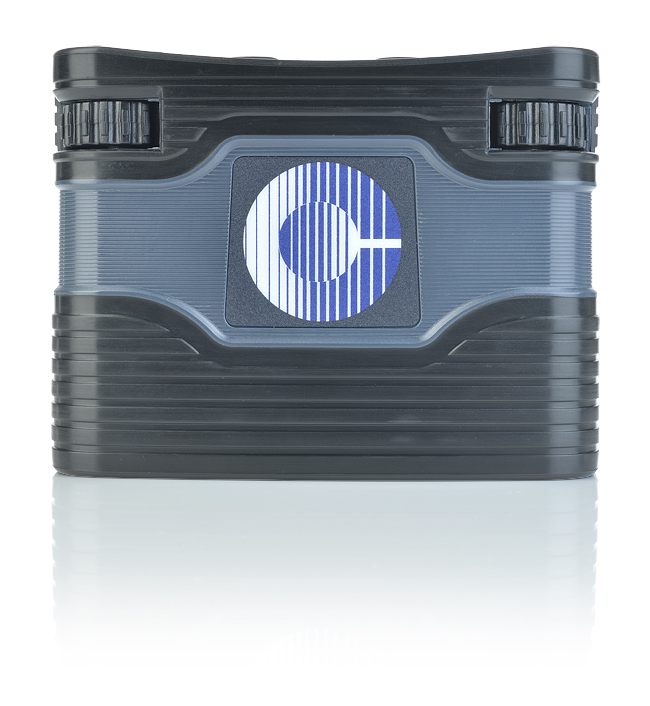

  • 2-Channel Beltpack with XLR-3 Connector
  • Visual LED indicators on top of keypad
  • Tactile buttons for Call and Talk
  • Recessed rotary controls for Volume with end stops

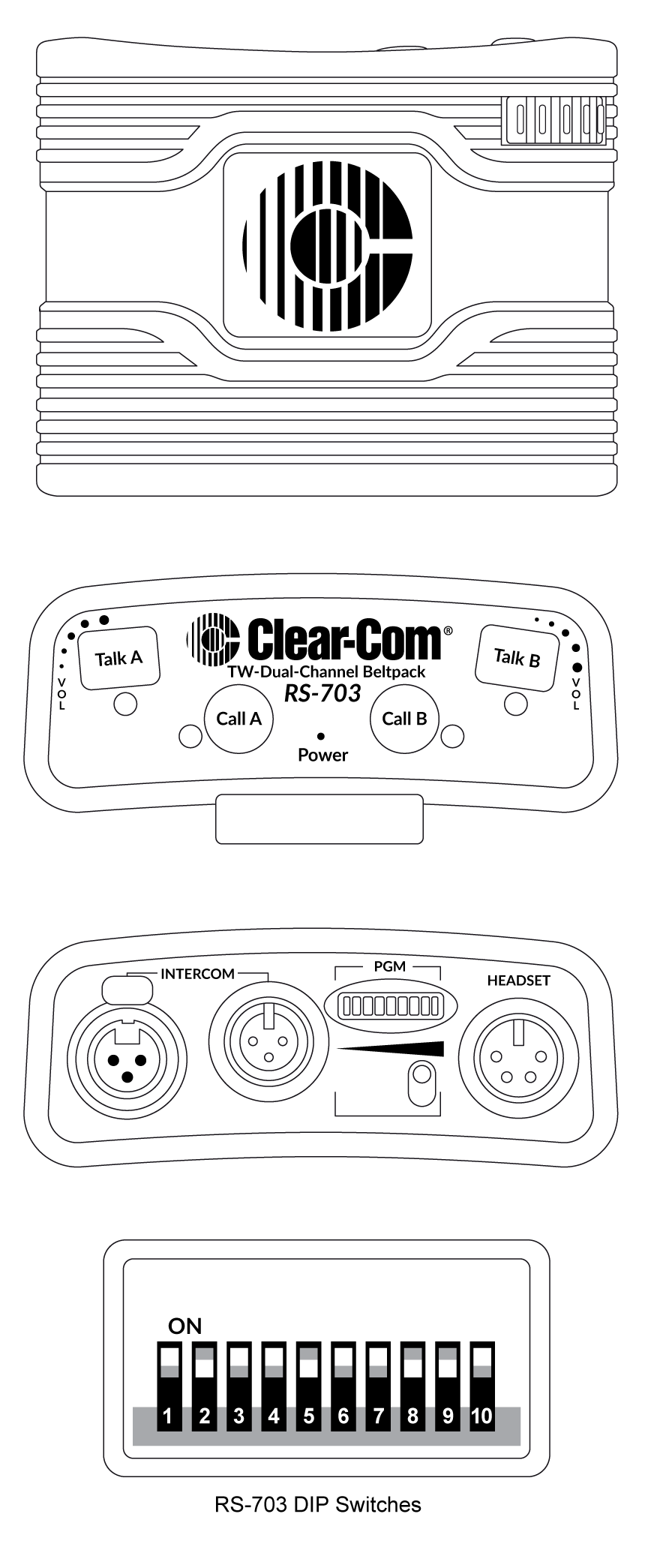

  • Concealed, programmable DIP switches
  • XLR-3 line connectors with 2-channel connectivity
  • 3.5mm Program Audio Input jack
  • RTS-TW compatible
  • Fully compatible with current and previous Clear-Com analog partyline systems
  • Low operating current for more beltpack daisy-chaining
  • Rugged and strong construction
  • “Clear-Com Sound” for intelligible audio
Item Part Number:
  • RS-703

Technical Specifications

dBu is an absolute measurement. 0 dBu is referenced to 0.775 volts RMS

Microphone Pre-Amplifier
Mic to Line (without limiter acting)
Frequency Response: 280 – 15kHz ± 3dB
Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
Microphone output to line – Distortion: <0.1%
Microphone output to line – Signal to Noise: >65dB
Clear-Com Sound: Yes

Headphone Amplifier
Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB
Headphone input from line – Audio Level (-9dBm Electret input): 7dBm
Headphone input from line – Distortion: <0.5%
Headphone input from line – Signal to Noise: >50dB
Earphone to Mic – Crosstalk: >80dB
Sidetone – Adjustment Range (-80db mic input): >45dB

Keypad Indicators
Power: Green LED
Talk A and B: Green LED
Call A and B: Orange LED

Connectors
Intercom Line: (2) 3-pin XLR–M–F
Ch. 1 2-Wire

Intercom Channel
Pin 1: Common
Pin 2: PL Power (+28VDC)/PL
Ch-A
Pin 3: PL Ch-B
Headset: 4-pin XLR–M

Headset Connector
Pin 1: Mic – (Mic Common)
Pin 2: Mic +
Pin 3: Spkr-
Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
Program Audio Input: 3.5mm TRS jack

Power
Input Voltage Range: 12-30 VDC
Input Current (Idle): <=25mA
Input Current (Max): <=40mA

Call Voltage
16.5 VDC
Minimum Voltage Needed: 3.3V

Environmental
32˚F – 158˚F (0˚C – 70˚C)

Dimensions
3.4 x 4.5 x 1.7 in (HxWxD)
(86 x 114 x 43 mm)

Weight
10.8 oz (0.31 kg)
