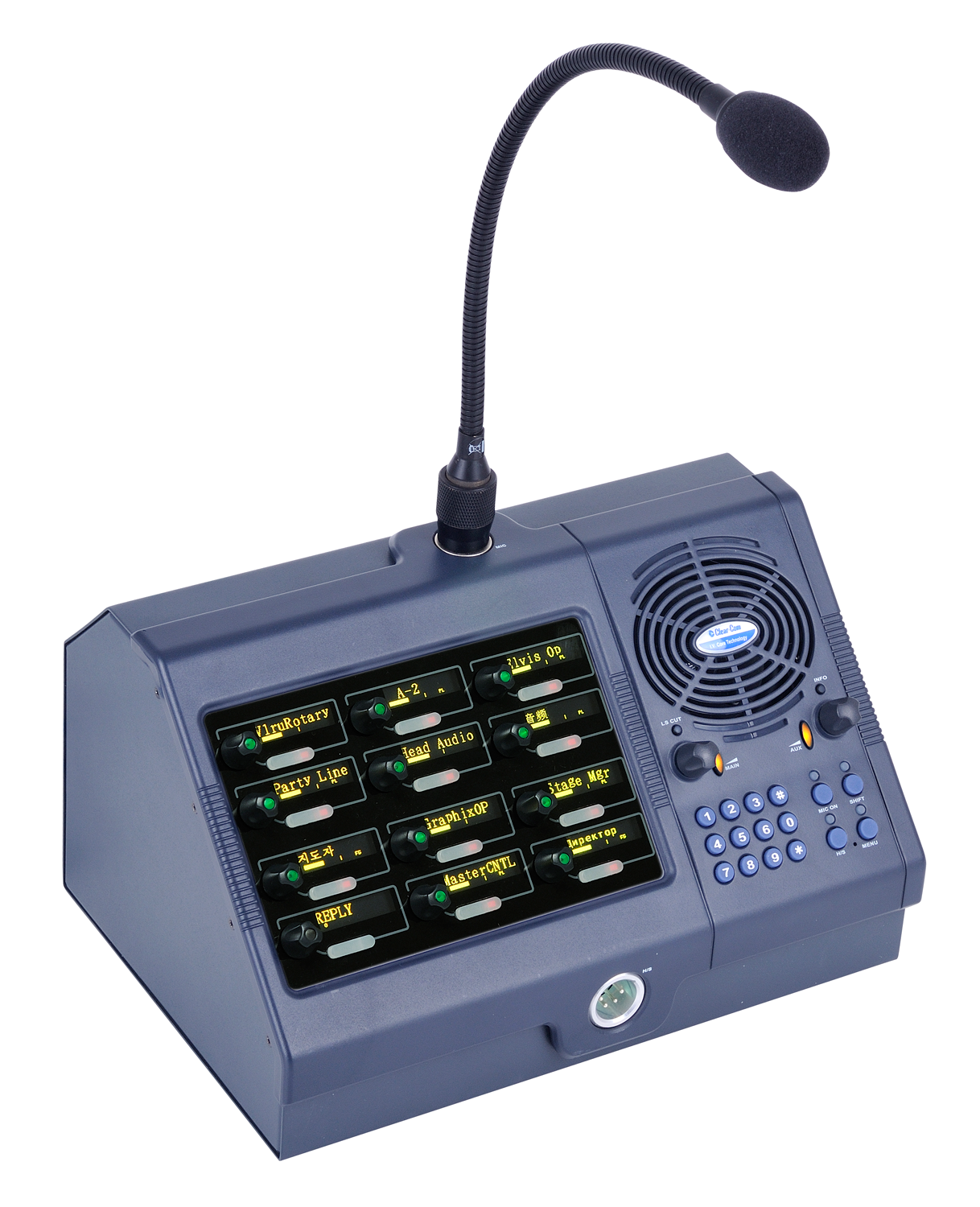

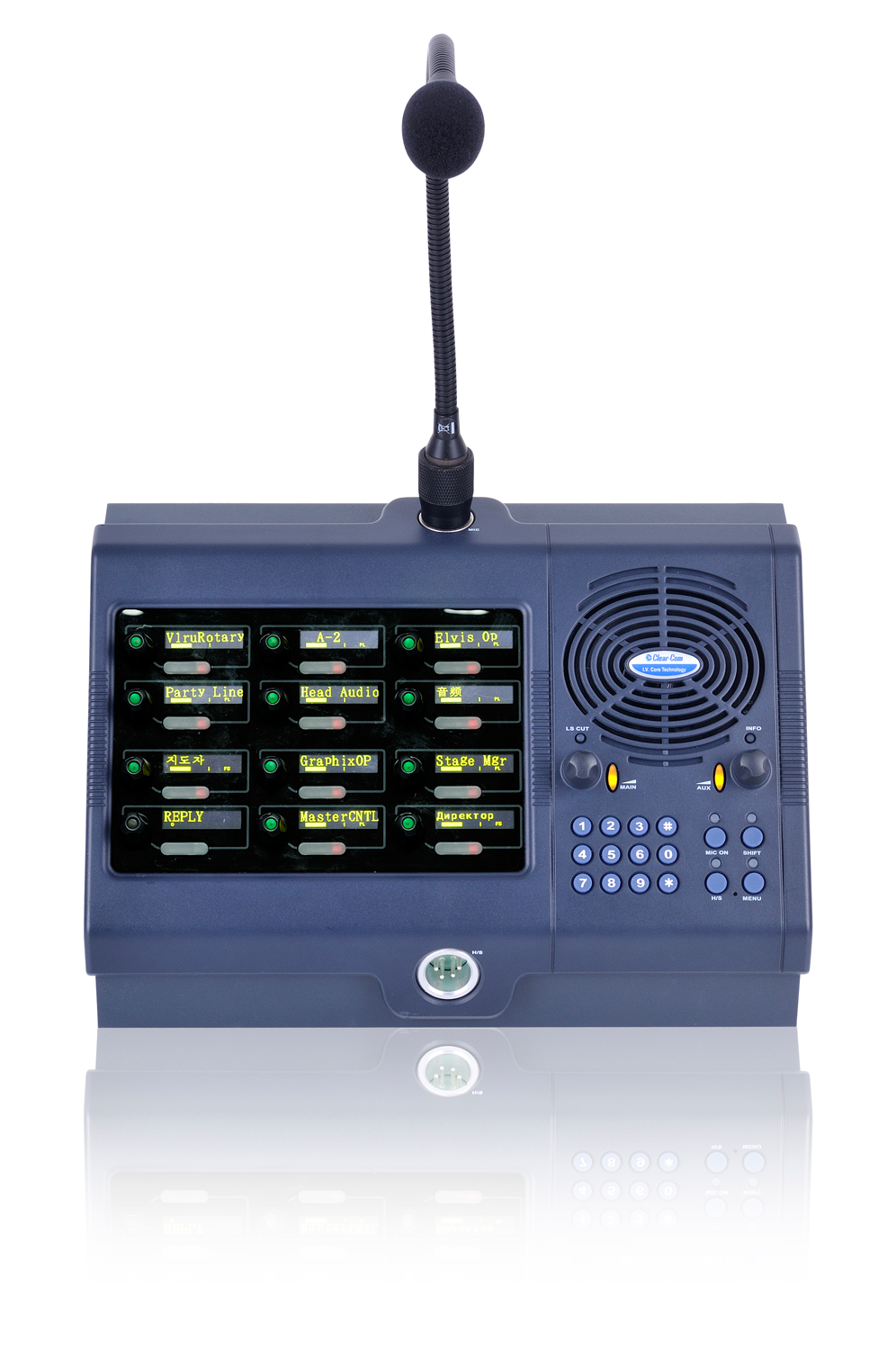

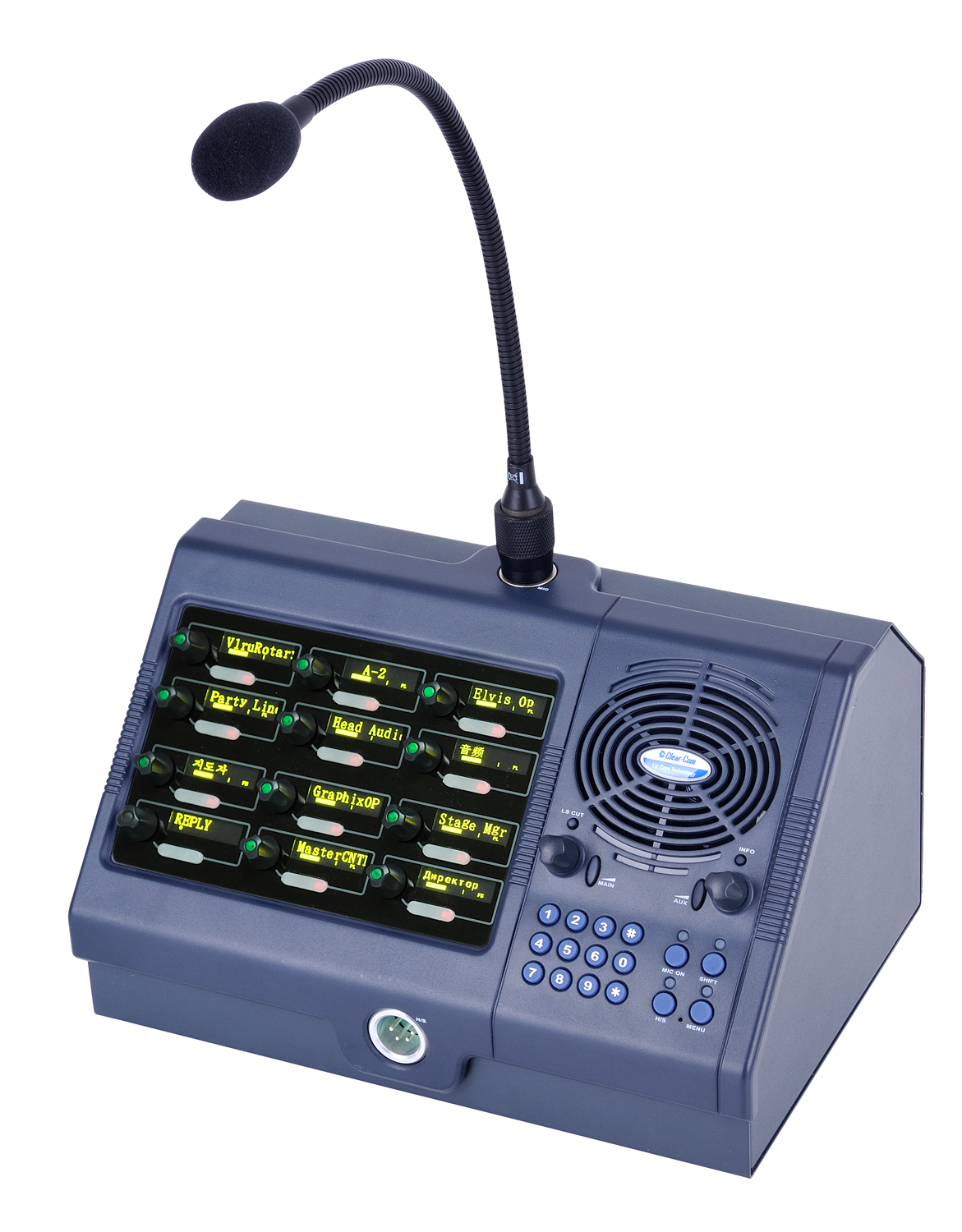

  • V-Series 12-key Rotary Desktop Panel
  • 12 Talk pushbuttons and 12 Listen rotary switches for use with Eclipse HX matrix frames
  • Individual rotary audio level controls for personal mixes
  • Yellow OLEDs for better contrast and visibility
  • Color-coded keys for easily identifiable color tallies
  • Listen Again function to replay calls
  • Fast key assign from pre-defined scroll lists and/or keypad
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Hebrew, Kanji, Katakana and Arabic
  • Digital Signal Processing for audio routing, EQ and Dynamics, IFB routing and local loudspeaker dimming
  • Optional AES-3 or AES-6 cards for connections to CAT5, co-ax, EMADI-64 or AES-6 interfaces
  • Multi-channel matrix connection: direct connect (1 main +2 aux), AES-3 (2 channels), IP (3 channels)



Item Part Number:
  • V12RDDX4
  • V12RDDX5
  • V12RDDX7
  • V12RDDX4-AES
  • V12RDDX5-AES
  • V12RDDX7-AES

Technical Specifications

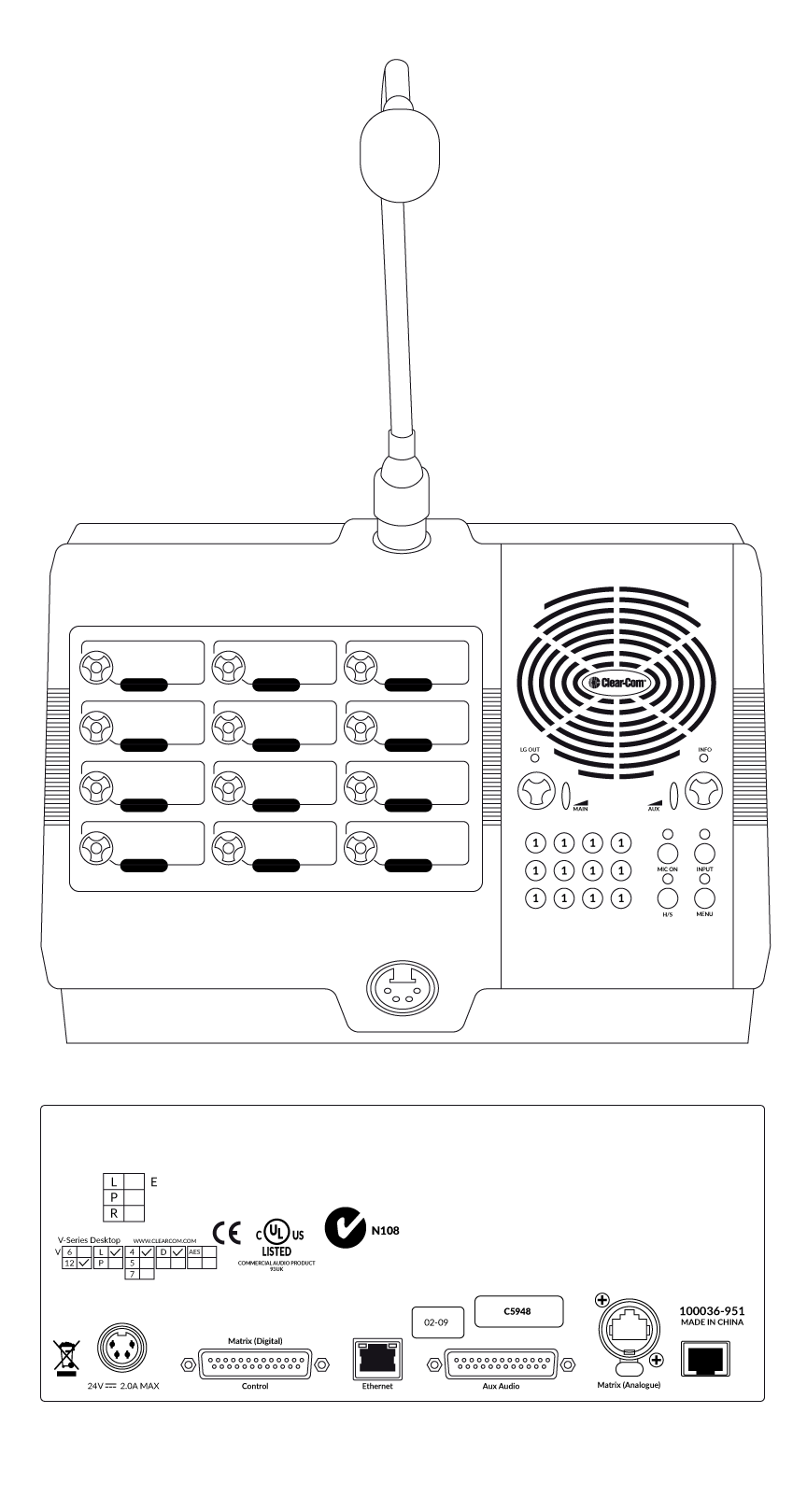

Front Panel Controls and Connectors

Talk/Listen Switches: 12

Answer Back Switch: Configurable (None, 1 or 2)

Volume Controls: 2 (Main and Aux)

Headset Connector: 1 (XLR-4M or XLR-5F)

Panel Mic Connector: 1 (3-pin)

Rear Panel Connectors

GPIO: DB-25F

Matrix: RJ-45 (single-channel)

Matrix (IP): RJ-45 (multi-channel)

Auxiliary Audio: DB-25M

Expansion Panel: RJ-45

DC Power: 4-pin DIN

With AES Option:

AES (75 Ohms Co-Ax): BNC (dual channel)

AES (CAT5): RJ-45 (dual channel)

Headset Audio

Earphone Impedence: From 32 Ohms

Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio

Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input

Type: Electret

Level: 40-70 dBu

Impedence: 1700 Ohms +/- 10%

Headset Microphone Input

Type: Dynamic or Electret

Level: -40 – 0 dBu

Main Power Supply (External)

Voltage: 100/240 VAC +/- 10%

Frequency: 50 – 60 Hz

Power: 50W maximum

Environmental

Operating: +32º – +125º F (0º – +50º C)

Storage: +32º – +150º F (0º – +70º C)

Humidity: Between 20% and 90%, Non-Condensing

Dimensions

5.9 x 10.25 x 6.75 (HxWxD)

(150 x 260 x 172 mm)

Weight

6.0lbs (2.75 kg)
