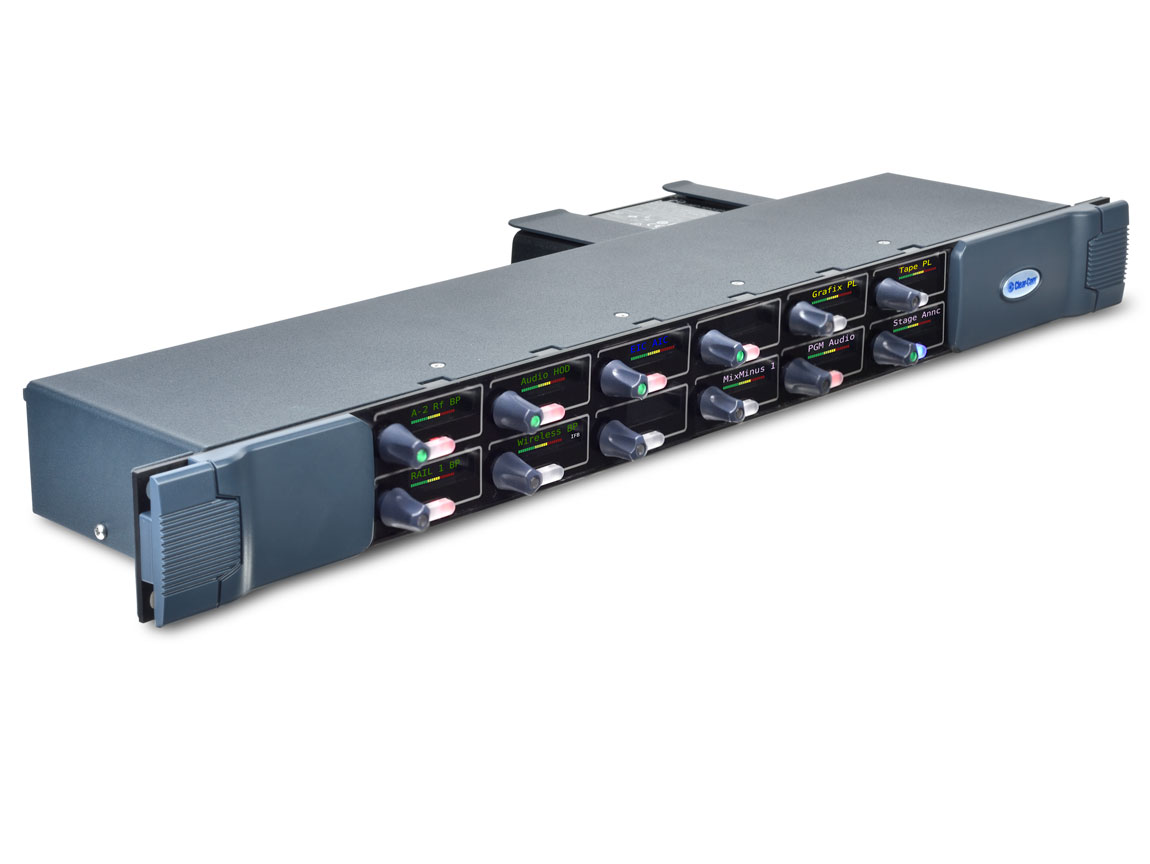

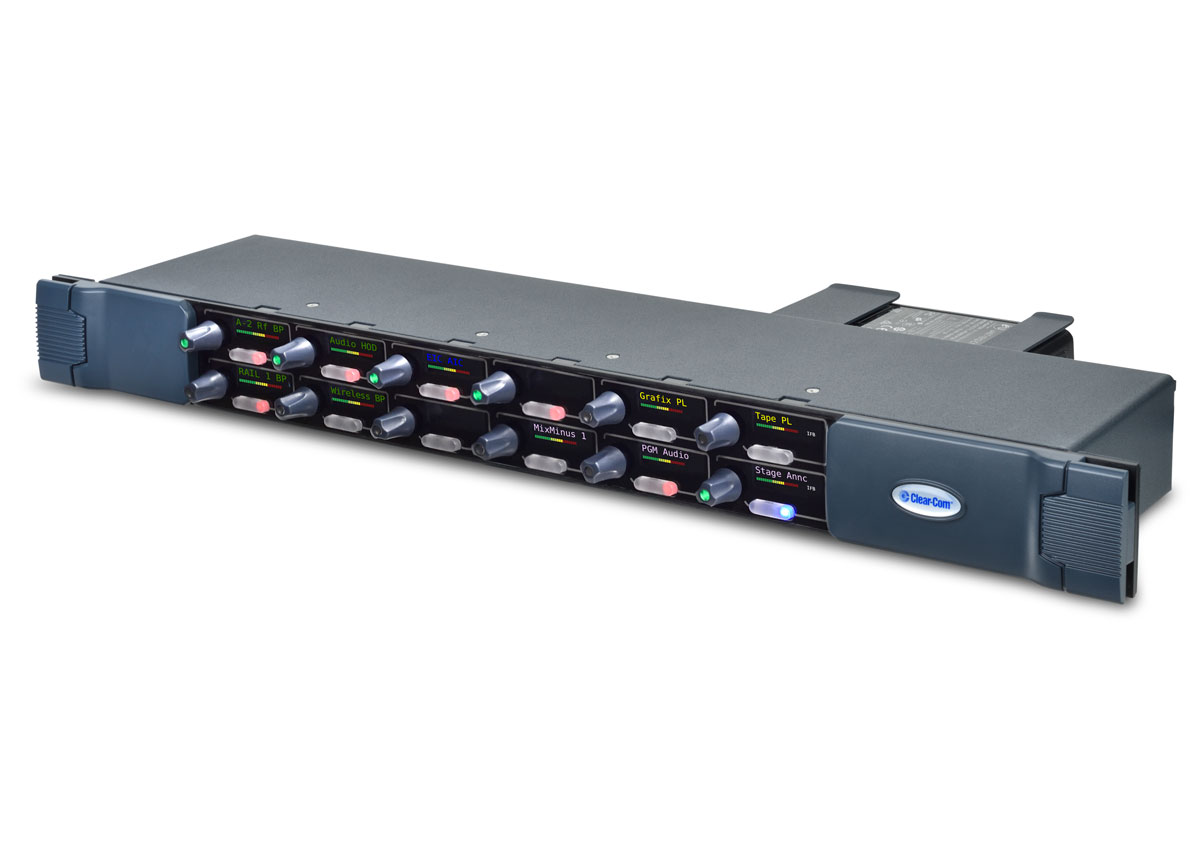

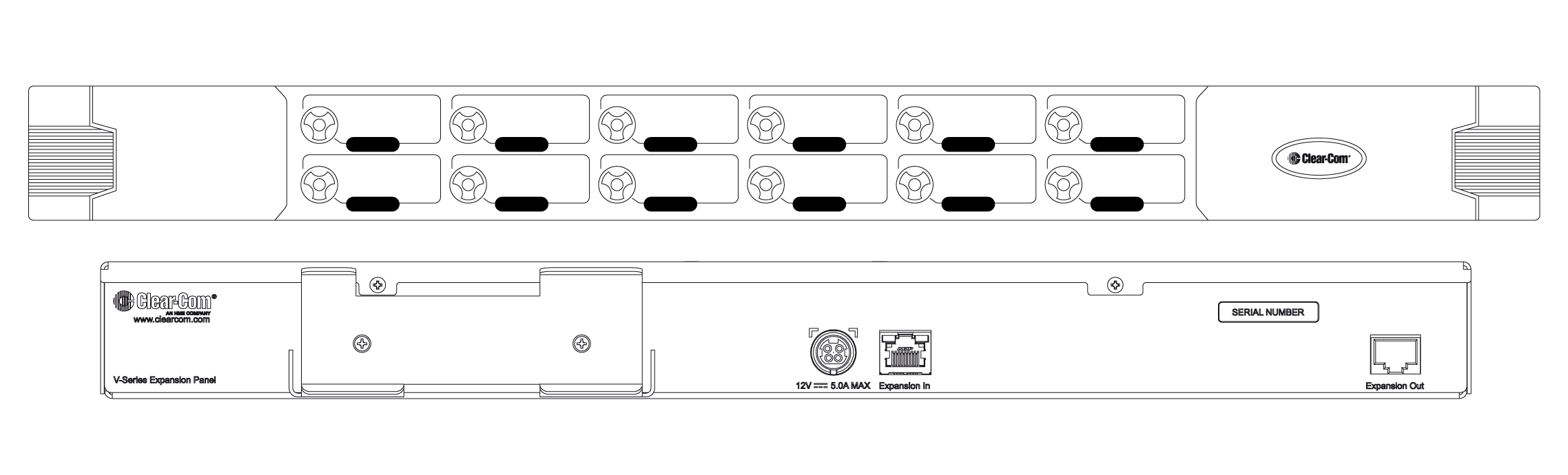

V-Series IrisX 12-key 1RU Rotary Expansion Panel

  • TFT displays for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual rotary audio level controls for personal mixes
  • Color-coded keys for easily identifiable color tallies
  • Vertical font display option
  • Fast key assign from pre-defined scroll lists
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
  • “Listen Again” function to replay calls up to 5 mins
Item Part Number:


The V-Series IrisX Rotary Panels are user control panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Rotary panels feature one display window per “key” and have two individual controls for the same display; a rotary encoder for level control with a pushbutton switch feature for Listen (push on/off) and separate pushbutton for Talk (push on/off). Each control offers discrete LED tally indication; red for Talk and green for Listen.


With IrisX panel’s IP capability, users can connect via AES67 or with Clear-Com’s AoIP I.V. Core™ protocol, as well as connect locally with a 4-wire connection. Using an E-IPA-HX
card, users can deploy up to 64 panels in an AES67-based network. IrisX panels also have a dual NIC connection which allows for seamless communication, even if the primary IP
network fails.

Technical Specifications

Front Panel Controls & Connectors
Talk/Listen Switches: 12 (Expansion)

Rear Panel Connectors
Host Panel: RJ45

Operating: +32º – +113º F (0º – +45º C)
Storage: +32º – +150º F (0º – +70º C)
Humidity: Between 20% and 90%, Non-Condensing

19 x 1.76 x 6.51in (WxHxD)
(483 x 44 x 165mm)

3.6lbs (1.63kg)
