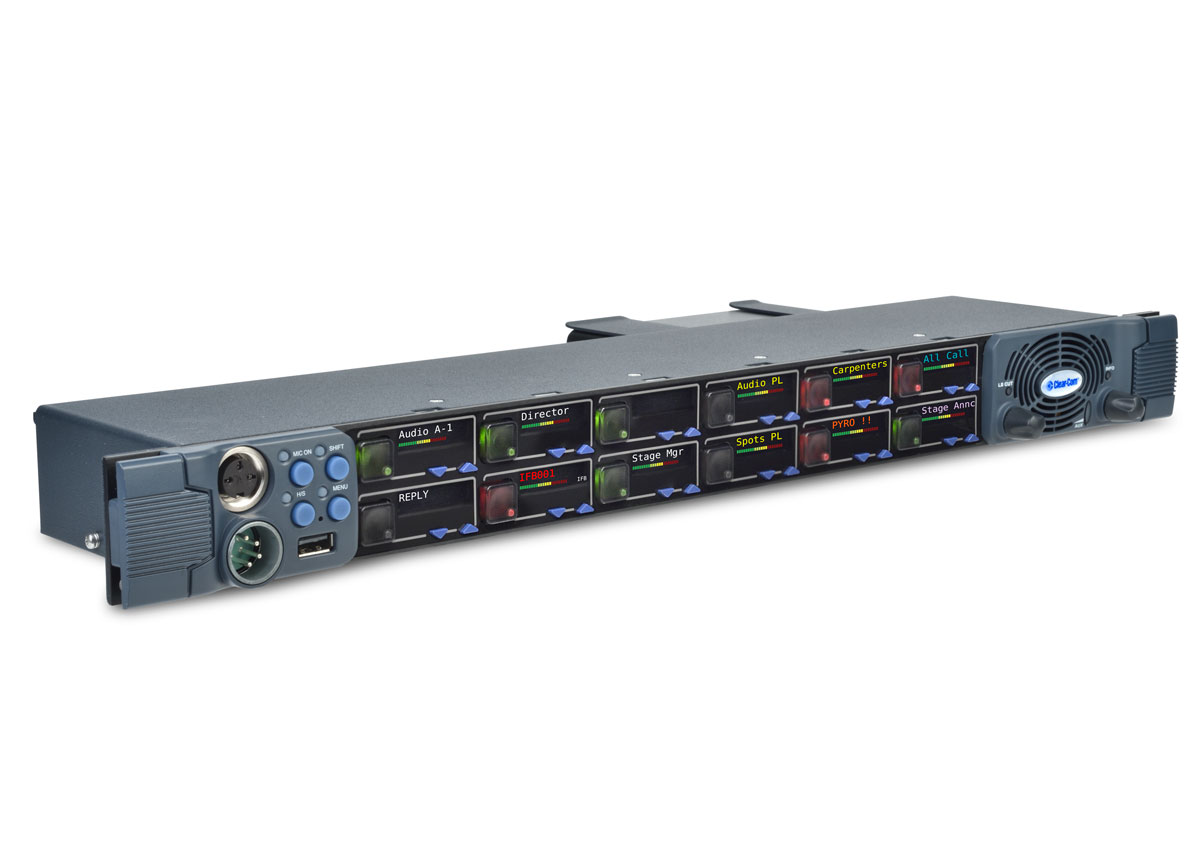

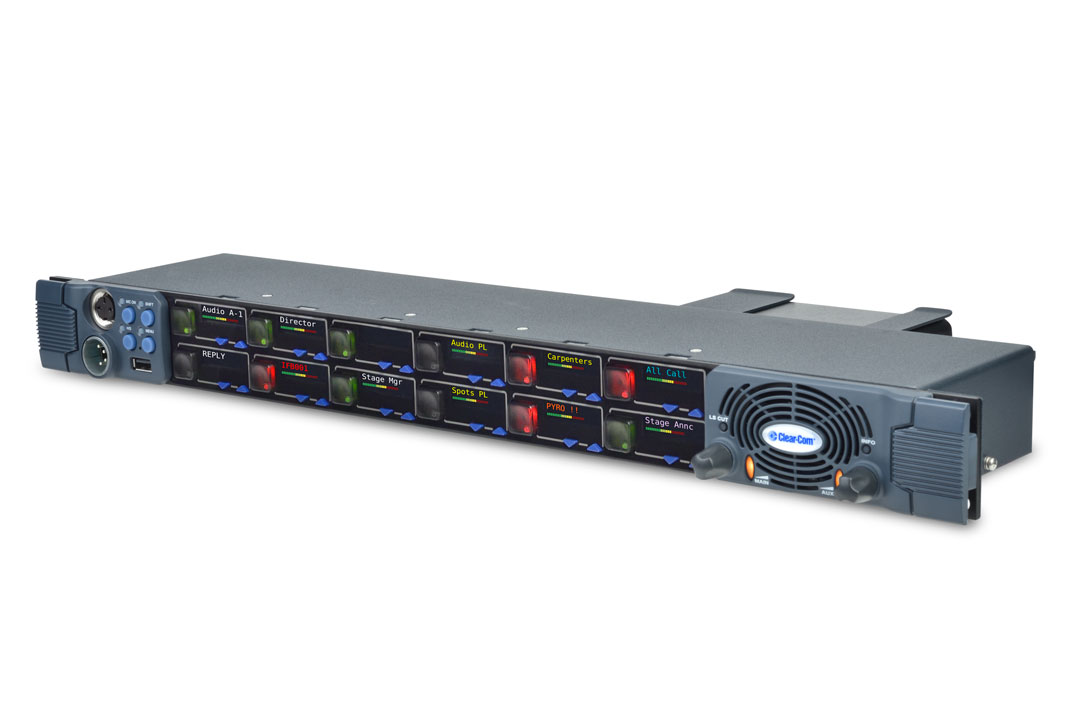

V-Series Iris 12-key 1RU Pushbutton Panel

  • Color OLEDs for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual up/down audio level controls for personal mixes
  • Fast key assign from pre-defined scroll lists or using numeric pad
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • Vertical font display option
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
Item Part Number:

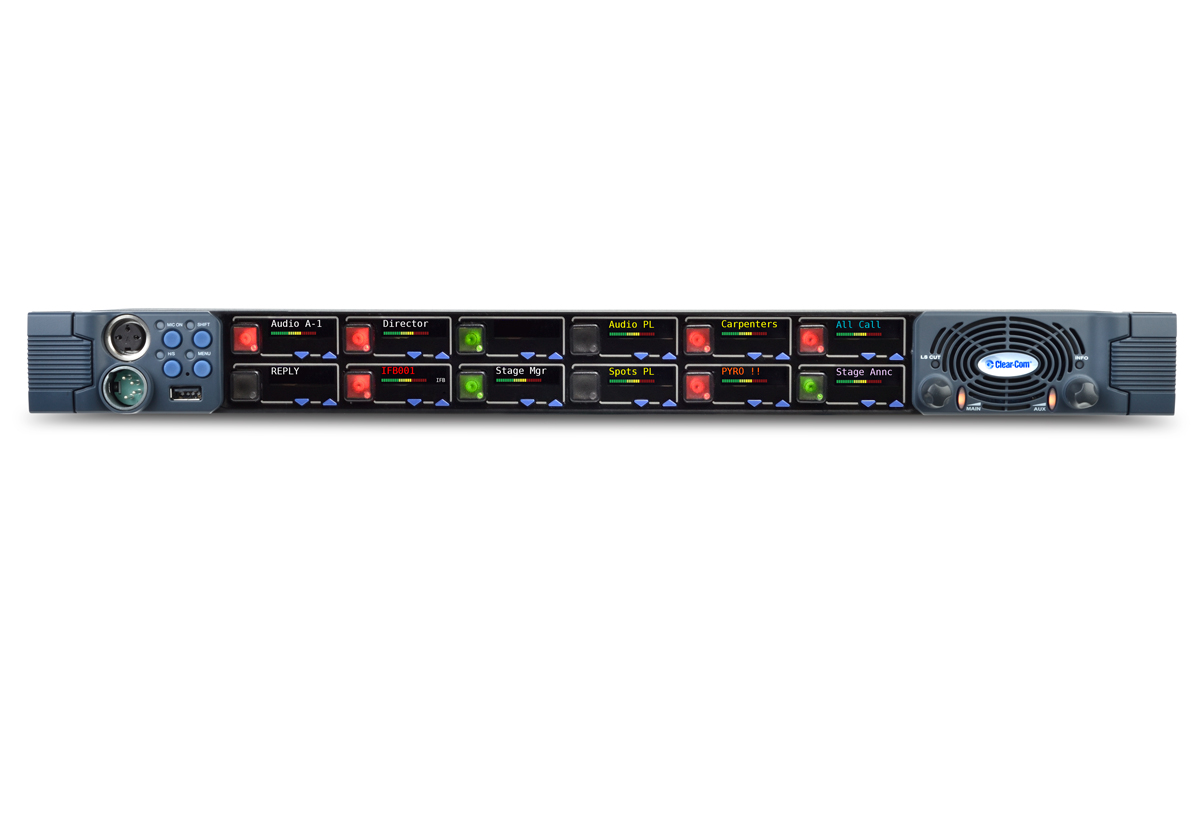

The V-Series Iris Pushbutton panels are user control panels that operate in conjunction with the Eclipse HX Digital Matrix Systems. Pushbutton panels feature one a display window per key. For each key, a red tally light indicates Talk only, green indicates Listen only and amber is for both Talk and Listen. A special mode provides dual Talk/Listen with a latchable Listen and momentary Talk on one button.

Technical Specifications

Front Panel Controls & Connectors
Talk/Listen Switches: 12 (1RU)
Answer Back Switch: Configurable (None, 1 or 2)
Volume Controls: 2 (Main and Aux)
Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)
Panel Mic Connector: 1 (3-pin)

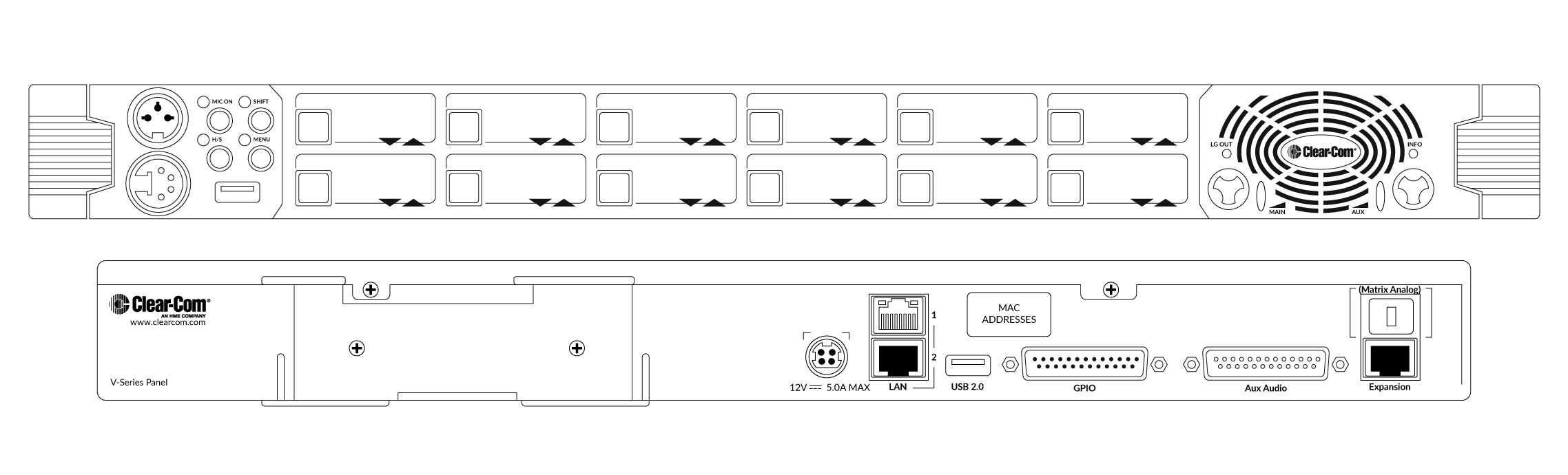

Rear Panel Connectors

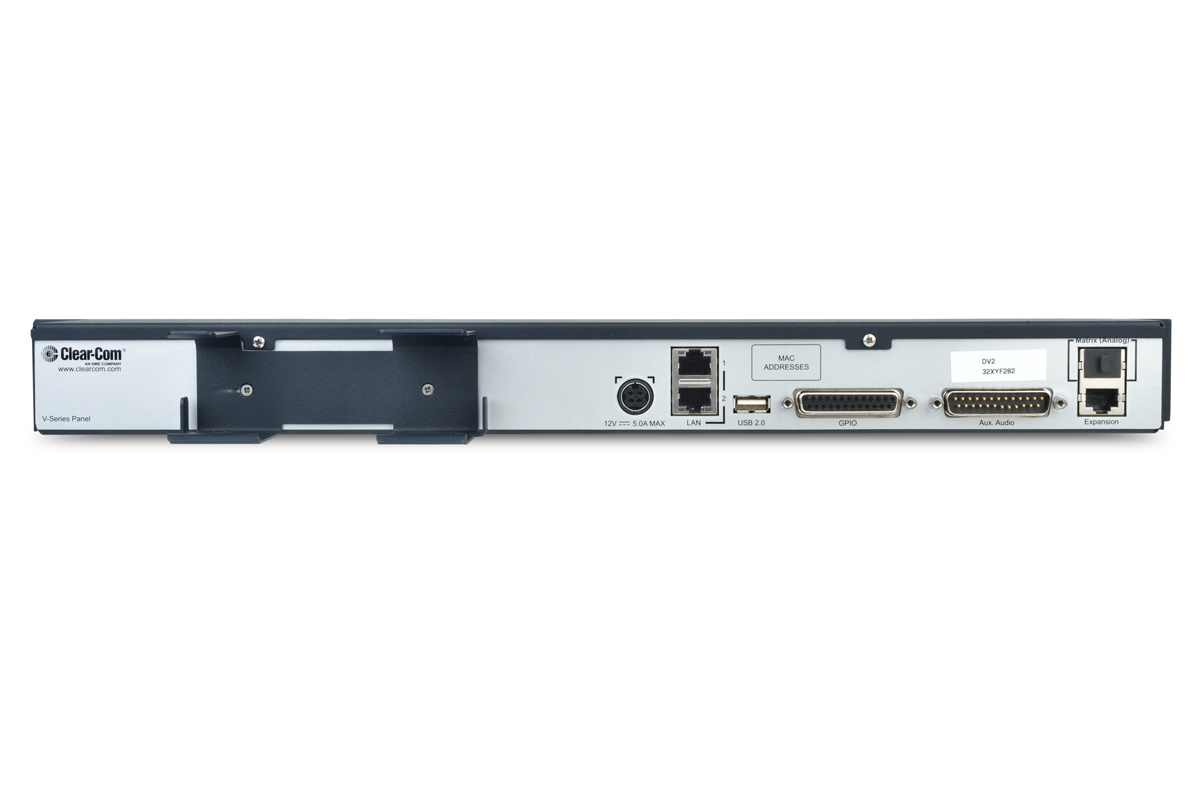

Matrix: RJ-45 (single-channel)
Matrix (IP): RJ-45 (multi-channel)
Auxiliary Audio: DB-25M
Expansion Panel: RJ-45
DC Power: 4-pin DIN (with locking sleeve)

Headset Audio
Earphone Impedance: From 32 Ohms
Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio
Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input
Type: Electret
Level: 40-70 dBu
Impedance: 1700 Ohms +/- 10%

Headset Microphone Input
Type: Dynamic or Electret
Level: -40 – 0 dBu

Main Power Supply (External)
Voltage: 100/240 VAC +/- 10%
Frequency: 50 – 60 Hz
Power: 60W maximum

Operating: +32º – +113º F (0º – +45º C)
Storage: +32º – +150º F (0º – +70º C)
Humidity: Between 20% and 90%, Non-Condensing

19 x 1.76 x 6.84 in (WxHxD)
(483 x 44 x 174 mm)

4.2 lbs (1.89 kg)
