VI-PNL-24R

VI-PNL-24R

V-Series Iris 24-key 2RU Rotary Panel

  • Color OLEDs for quick and easy key differentiation
  • AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
  • Individual key menus help ease of use and assignment
  • Individual rotary audio level controls for personal mixes
  • Fast key assign from pre-defined scroll lists or using numeric pad
  • Optional repositioning of Reply key
  • Optional additional Reply key for busy positions
  • Vertical font display option
  • International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
  • Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
  • Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
  • Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
Item Part Number:

VI-PNL-24R-X4

VI-PNL-24R-X5

VI-PNL-24R-X7

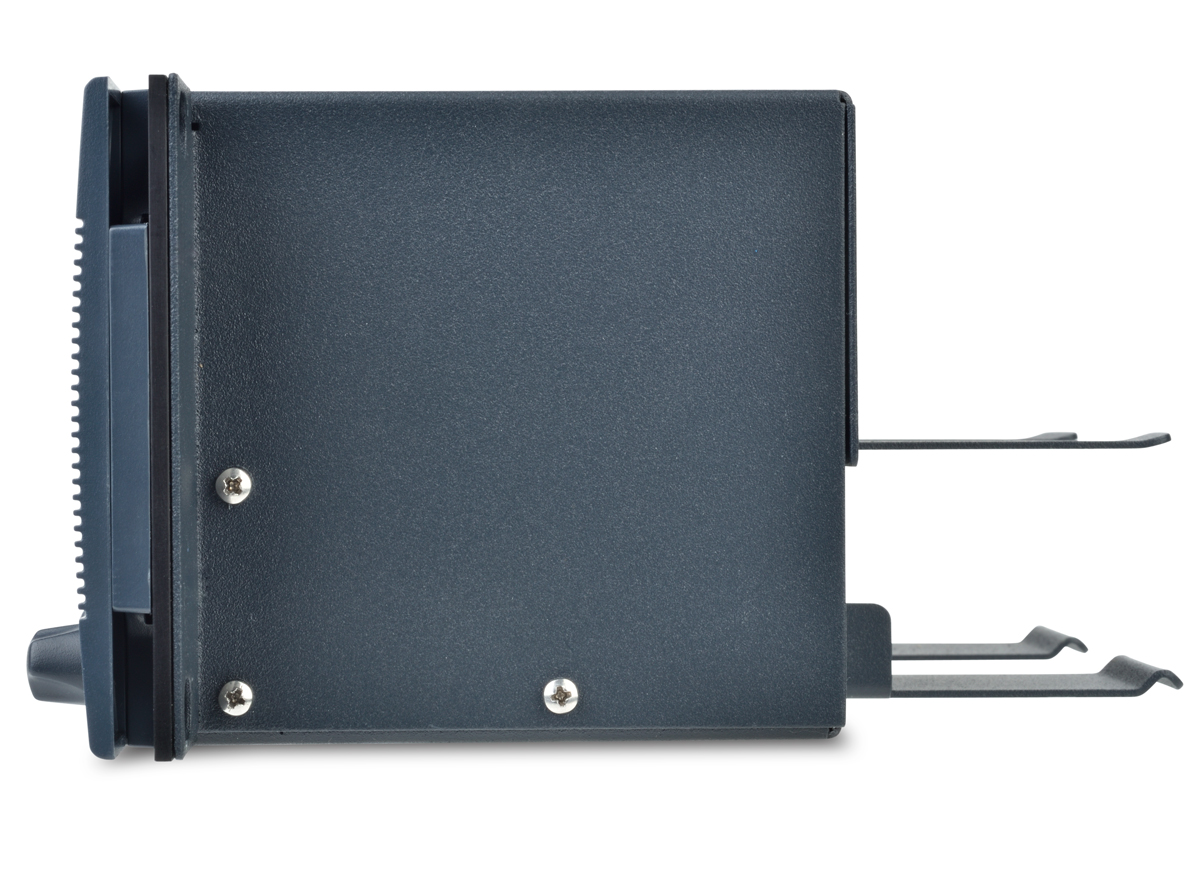

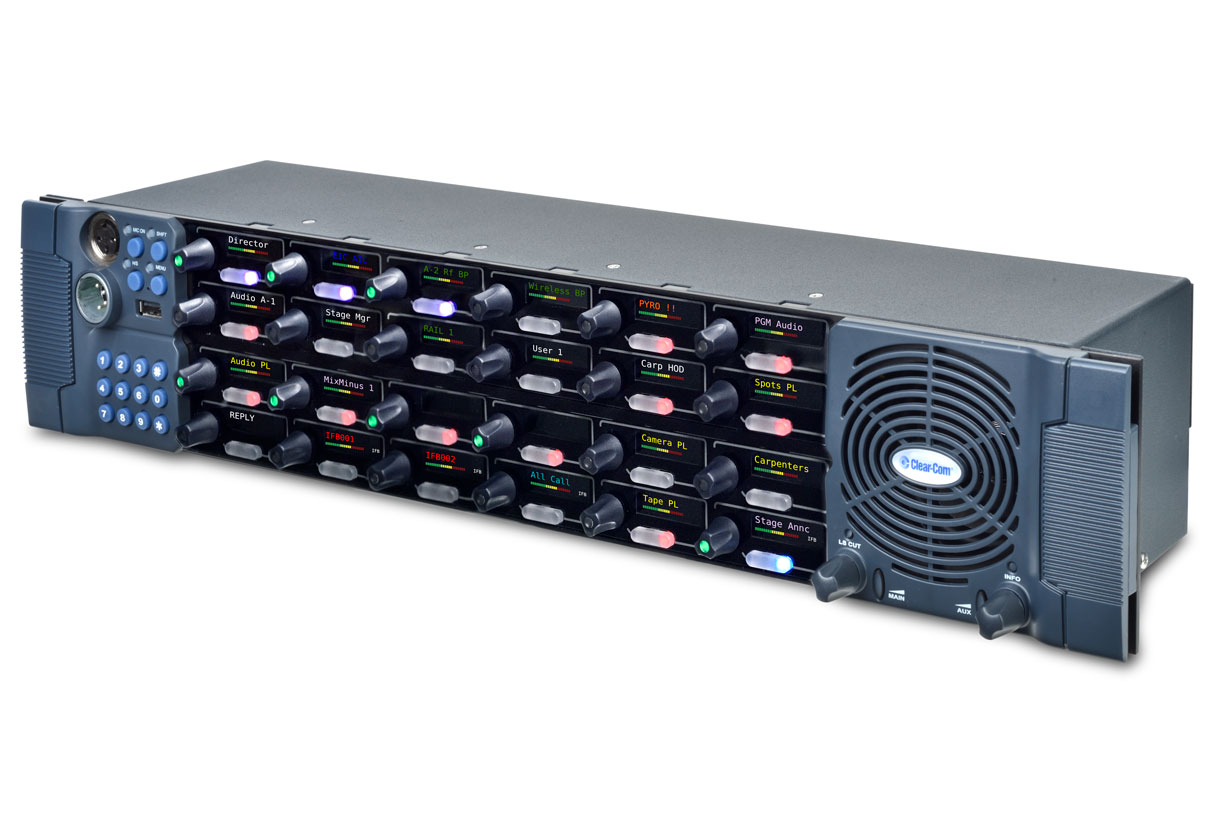

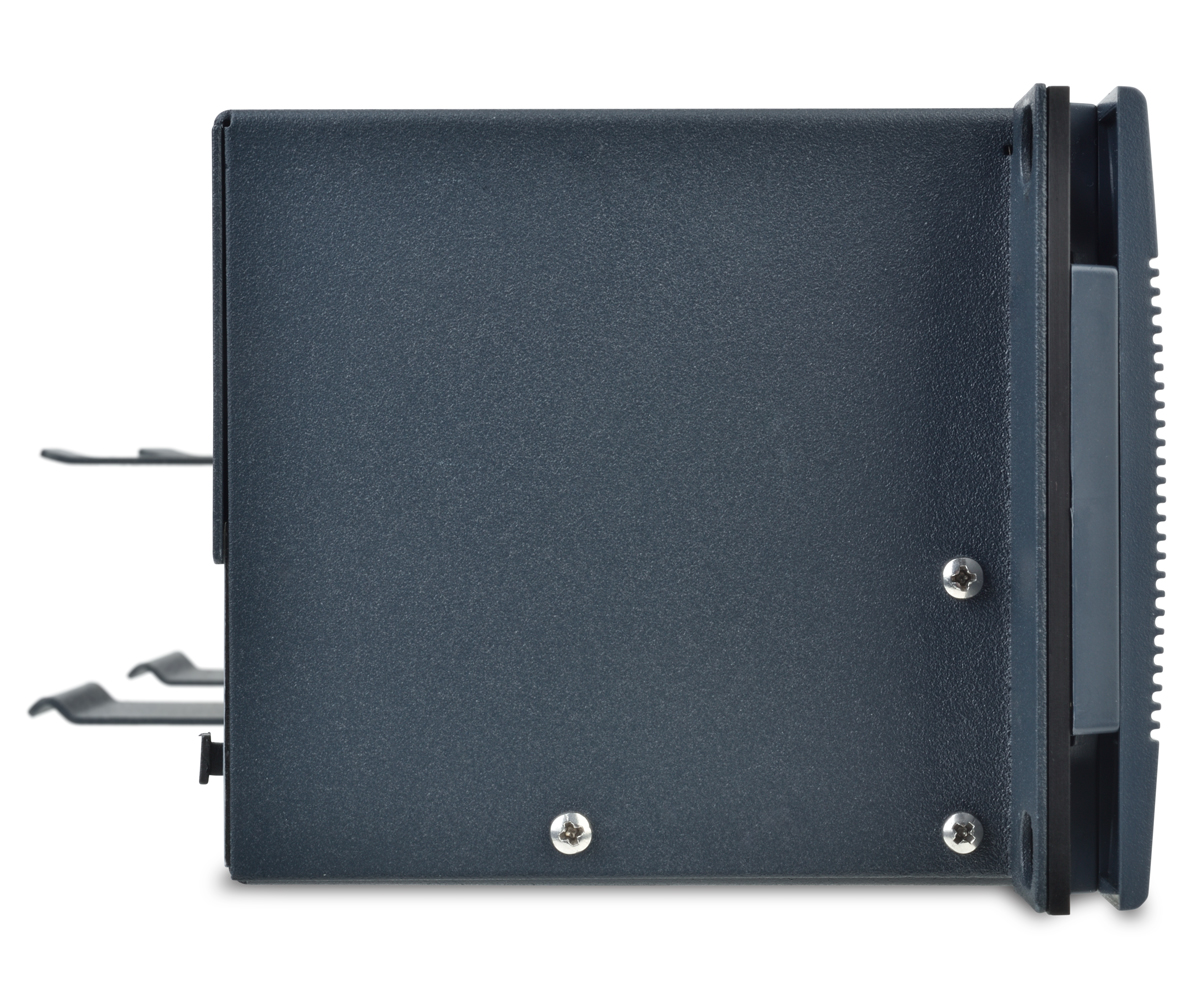

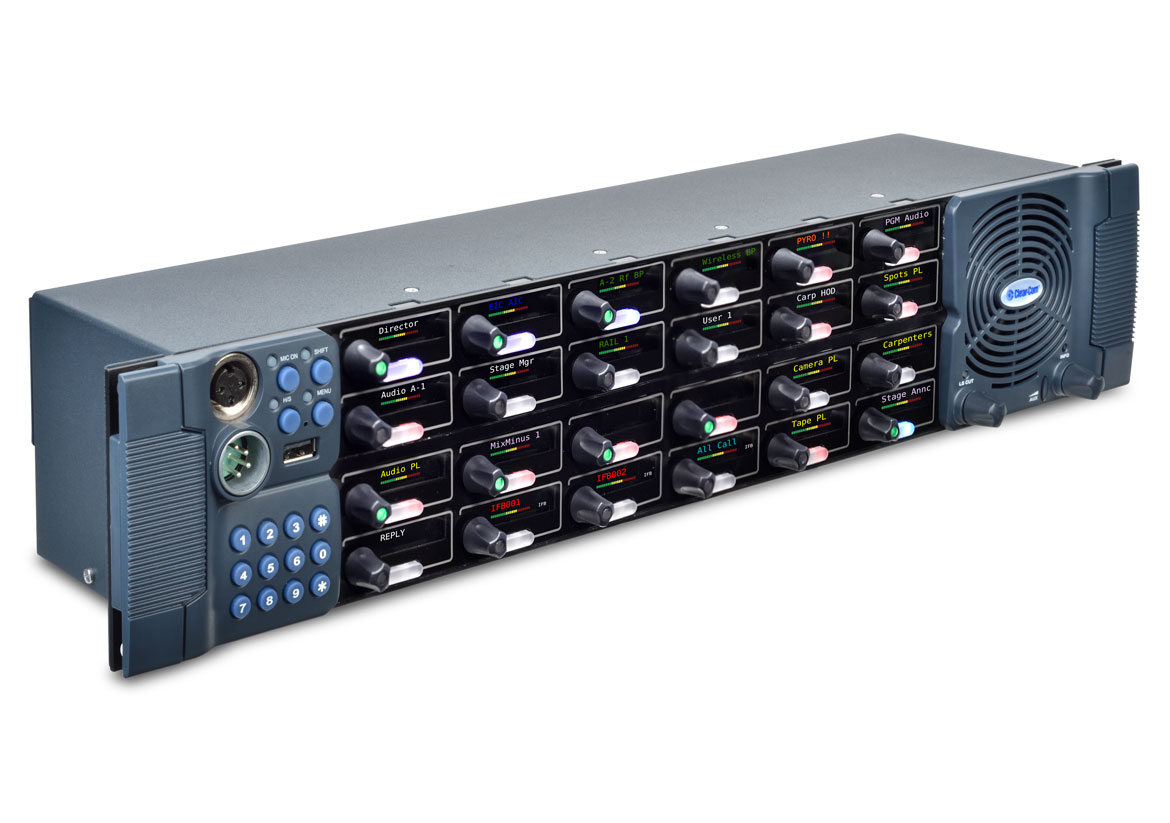

The V-Series Iris Rotary Panels are user control panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Rotary panels feature one display window per “key” and have two individual controls for the same display; a rotary encoder for level control with a pushbutton switch feature for Listen (push on/off) and separate pushbutton for Talk (push on/off). Each control offers discrete LED tally indication; red for Talk and green for Listen.

Technical Specifications

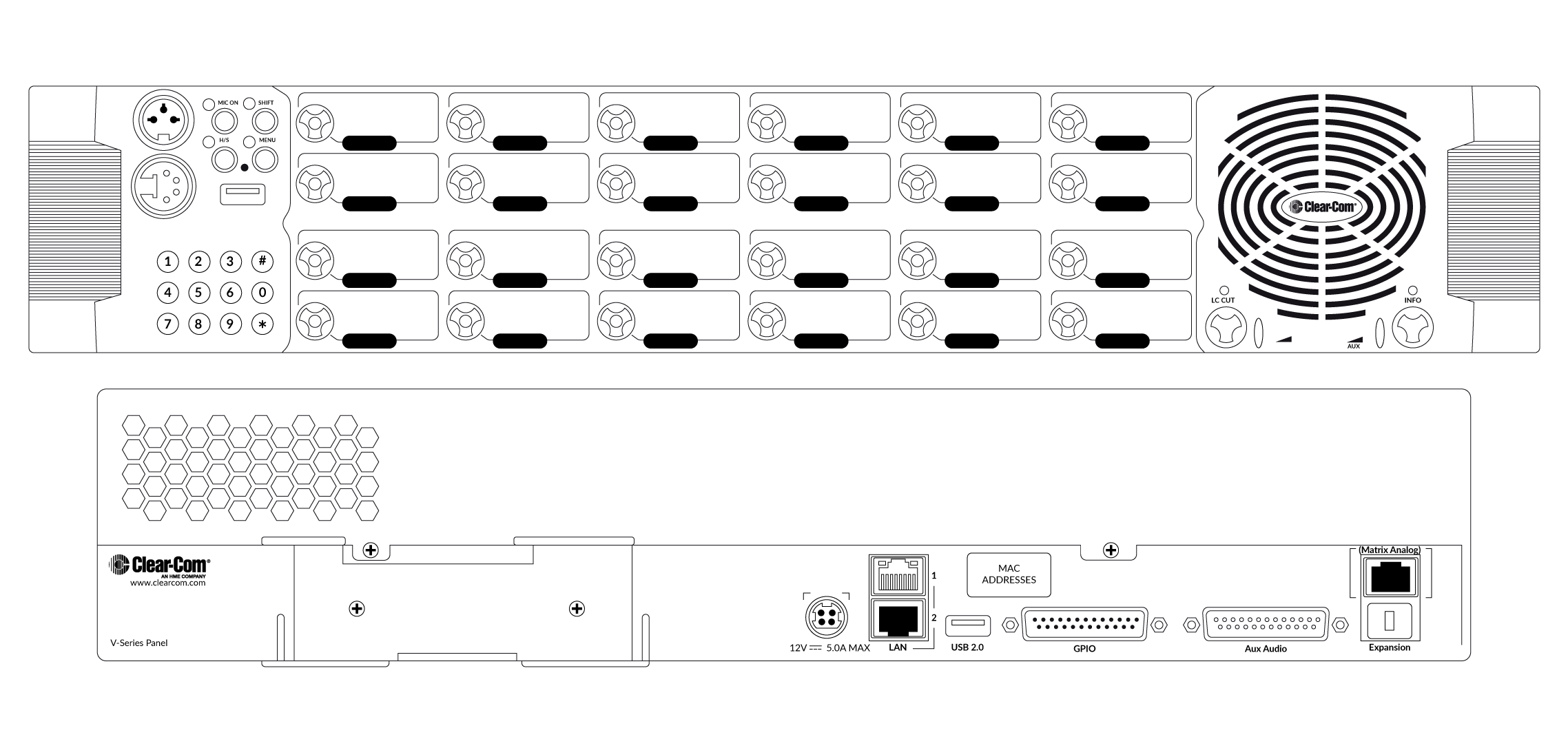

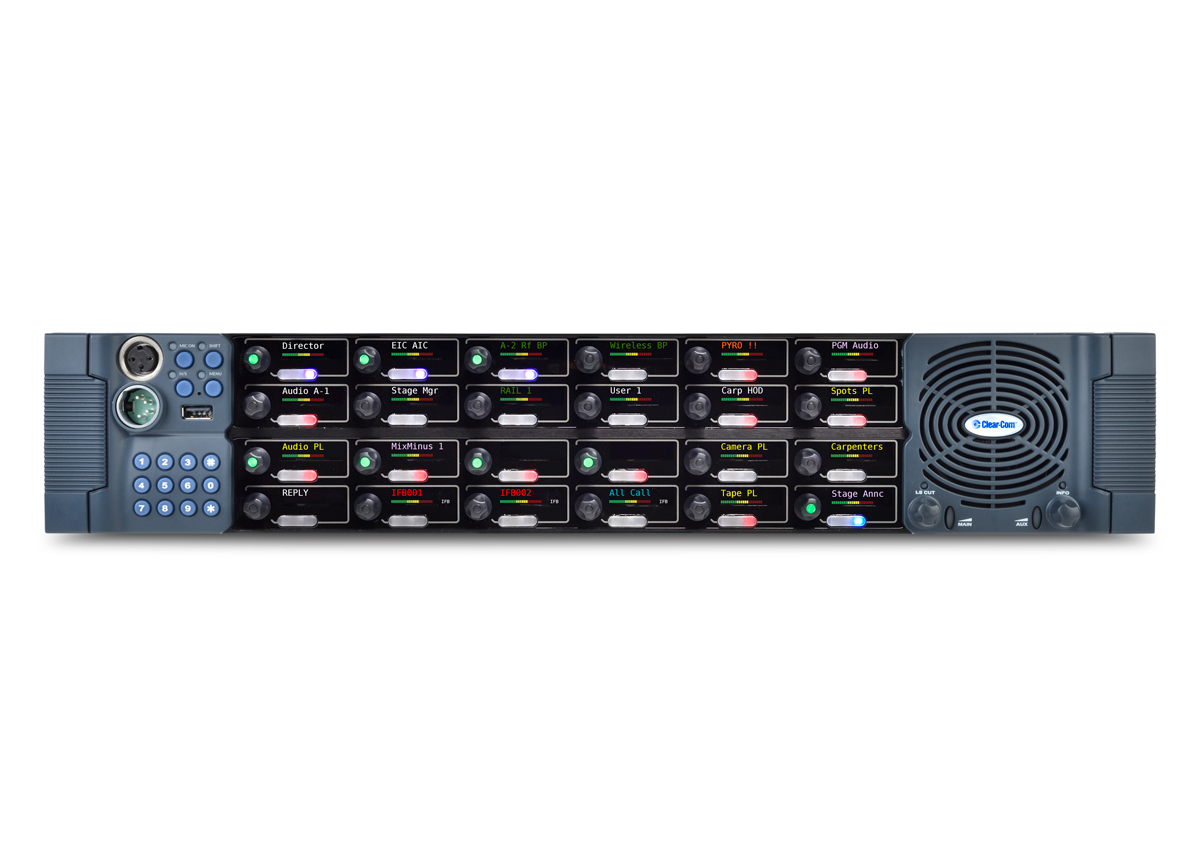

Front Panel Controls & Connectors
Talk/Listen Switches: 24 (2RU)
Answer Back Switch: Configurable (None, 1 or 2)
Volume Controls: 2 (Main and Aux)
Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)
Panel Mic Connector: 1 (3-pin)

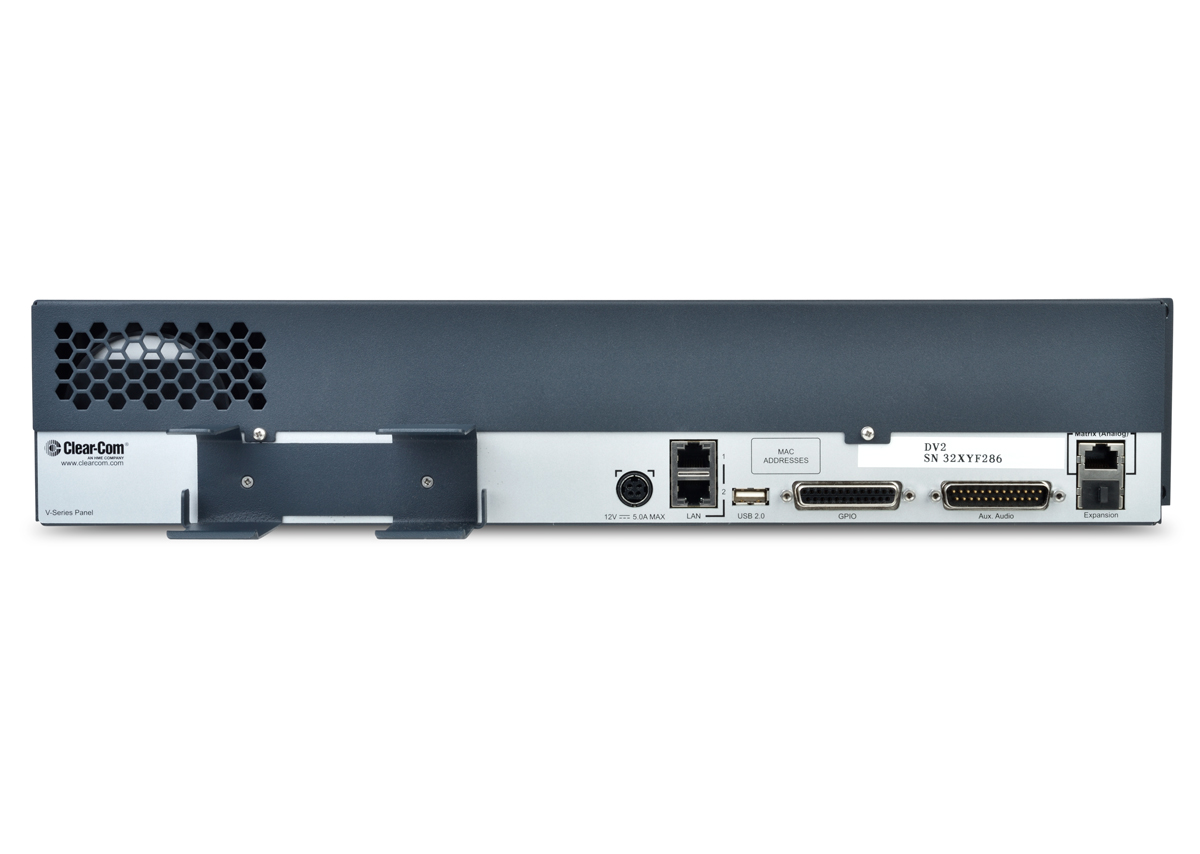

Rear Panel Connectors
GPIO: DB-25F
Matrix: RJ-45 (single-channel)
Matrix (IP): RJ-45 (multi-channel)
Auxiliary Audio: DB-25M
Expansion Panel: RJ-45
DC Power: 4-pin DIN (with locking sleeve)

Headset Audio
Earphone Impedance: From 32 Ohms
Output Power: 75mW into 50 Ohms for <1% distortion

Loudspeaker Audio
Frequency Response: 40Hz-20KHz +/- 3dB

Panel Microphone Input
Type: Electret
Level: 40-70 dBu
Impedance: 1700 Ohms +/- 10%

Headset Microphone Input
Type: Dynamic or Electret
Level: -40 – 0 dBu

Main Power Supply (External)
Voltage: 100/240 VAC +/- 10%
Frequency: 50 – 60 Hz
Power: 60W maximum

Environmental
Operating: +32º – +113º F (0º – +45º C)
Storage: +32º – +150º F (0º – +70º C)
Humidity: Between 20% and 90%, Non-Condensing

Dimensions
19 x 3.5 x 6.84 in (WxHxD)
(483 x 89 x 174 mm)

Weight
6.5 lbs (2.93 kg)
