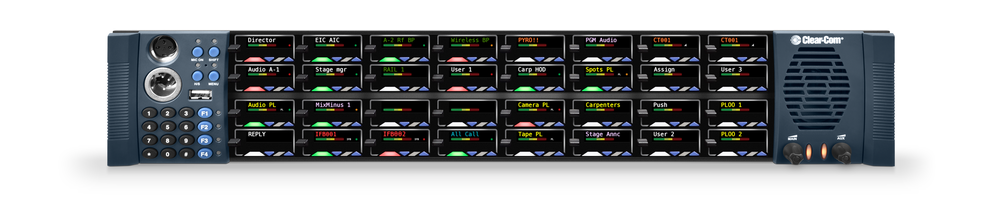

V-Series IrisX 32-key 2RU Lever Panel

TFT displays for quick and easy key differentiation
AES67 low latency audio IP connections to Eclipse HX matrix frames via E-IPA-HX card
Individual key menus help ease of use and assignment
Individual up/down audio level controls for personal mixes
Vertical font display option
Fast key assign from pre-defined scroll lists or using numeric pad
Optional repositioning of Reply key
Optional additional Reply key for busy positions
International 10-character alpha-numeric fonts: Cyrillic, Hangul, Kanji, Katakana and Arabic
Digital Signal Processing (DSP) for audio routing, Dynamics, IFB routing and local loudpseaker dimming
Built-in Interfaces: Matrix (direct connect), Matrix (Ethernet/IP), GPIO, Aux Audio, 2nd Headset
Multi-channel Matrix Connections: Direct connect (1 main + 2 aux), IP (3 channels)
“Listen Again” function to replay calls up to 5 mins

Item Part Number:

VI-PNLB-32L-X4

VI-PNLB-32L-X5

VI-PNLB-32L-X7

The V-Series IrisX Lever Panels are user control panels that operate in conjunction with Eclipse HX Digital Matrix Systems. Lever panels feature one display window per “key” and provide Listen (up) and Talk (down) operation for the displayed label. Latching and momentary operation is software configurable. The Listen (up) path does not have to be the same as the Talk (down) path. A Talk/Listen LED status indicator is provided below the display window. When a talk path is active (down) the status will indicate a red color, and when a listen path is active (up) the status will indicate a green color.

With IrisX panel’s IP capability, users can connect via AES67 or with Clear-Com’s AoIP I.V. Core™ protocol, as well as connect locatlly with a 4-wire connection. Using an E-IPA-HX
card, users can deploy up to 64 panels in an AES67-based network. IrisX panels also have a dual NIC connection which allows for seamless communication, even if the primary IP
network fails.

Technical Specifications

Front Panel Controls & Connectors

Talk/Listen Switches: 32 (2RU)
Answer Back Switch: Configurable (None, 1 or 2)
Volume Controls: 2 (Main and Aux)
Headset Connector: 1 (XLR-4M, XLR-5F, XLR-7M)
Panel Mic Connector: 1 (3-pin)

Rear Panel Connectors

GPIO: DB-25F
Matrix: RJ45 (single-channel)
Matrix (IP): RJ45 (multi-channel)
Auxiliary Audio: DB-25M
Expansion Panel: RJ45
DC Power: 4-pin DIN (with locking sleeve)
Physical LAN: 2x 100/1000BASE-T Full-Duplex Ethernet (100 used for IVC, 1000 used for AoIP)
