Arcadia Central Station System

Arcadia Central Station is a scalable intercom system core supporting all types of intercom user stations from FreeSpeak Wireless, HelixNet Wired, V-Series Keypanels, to 2-wire analog partyline.​ Coupled with LQ, I.V. Direct, Dante and analog interfacing of audio and control, Arcadia fits any infrastructure, locally and globally. ​


Product Family

Complete your Arcadia Central Station System with our suite of products.

trending_flat
Central Station

1RU IP-based standalone device that supports wired and wireless endpoints.


trending_flat
FreeSpeak Integration

Arcadia can integrate the full range of FreeSpeak wireless beltpacks and transceivers.


trending_flat
HelixNet Integration

Arcadia can integrate various HelixNet wired partyline endpoints.


trending_flat

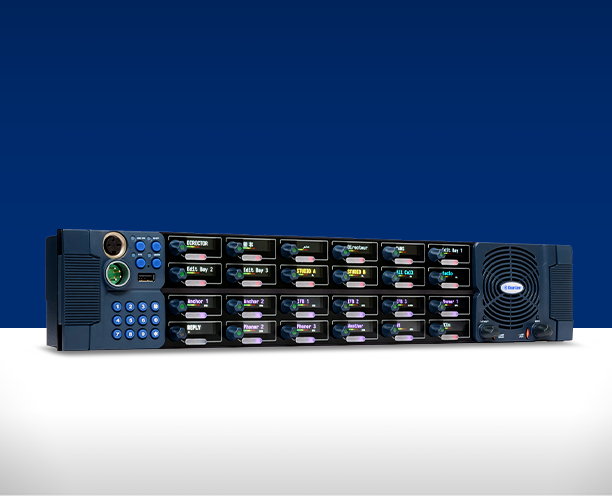

V-Series IrisX Integration

Arcadia can integrate with V-Series IrisX rotary, lever, and pushbutton keypanels.


trending_flat
Encore Integration

Arcadia can integrate various Encore analog partyline endpoints.


trending_flat
Configuration Management

Central Control and Monitoring of Arcadia.


trending_flat
Chargers & Batteries

Quick charger and long-lasting batteries for FreeSpeak beltpacks.


trending_flat
Headsets & Microphones

Headsets and microphones for Arcadia endpoints.



Why Choose Arcadia?

Wired and Wireless Integration

Integration of both wired and wireless partyline systems. The 1RU device provides 2-wire, 4-wire, SFP and GPIO connections allowing both analog and digital intercom capability including the full range of FreeSpeak® products (E1/IP TCVRs; 1.9, 2.4 and 5 GHz beltpacks), HelixNet® Wired Intercom (HelixNet Remote Station, Speaker Station, and Beltpack), V-Series IrisX Keypanels, and I.V. Direct and Dante Audio Network Interfaces.

Flexible and Future-Proof

The Central Station allows the user to increase the number of ports to 168 – with port licenses available in increments of 16. As the need for greater capacity grows or a new feature is needed, field deployable Licensed Port Upgrades can be used to increase Arcadia’s intercom footprint.

IP Interoperability

With a multitude of third-party devices running on IP, the Central Station provides tremendous flexibility by allowing communication routes to Dante devices via 64 licensable ports.

Easy Setup and Monitoring

The system is configured through a redesigned Core Configuration Manager (CCM™) enabling rapid setup, configuration and monitoring. The intuitive user interface has a consistent design for a quick and simple means of configuring the Central Station with role-based beltpacks, including save and restore, text messaging, individual beltpack and group call signal and remote mic kill.

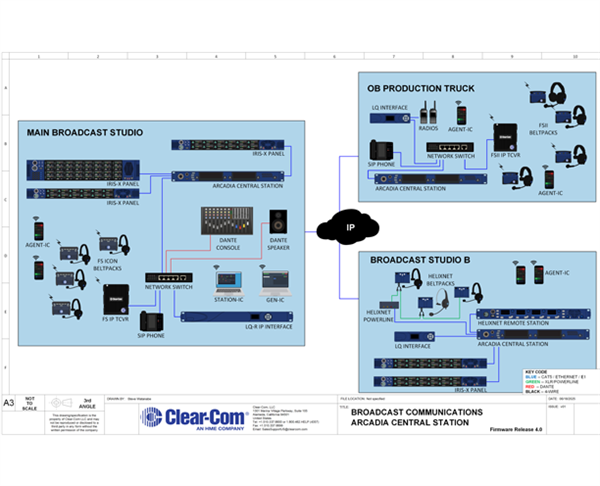

Arcadia R4 - Broadcast Communications

A mid-to-large broadcast studio may have multiple production studios and Outside Broadcasting (OB) trucks. Arcadia’s broad capabilities with both wired and wireless communications makes it a very good choice for both home and remote broadcast production. The latest firmware release for Arcadia gives it the capability to connect directly to Iris X panels giving technical directors and stage managers access to a high capacity of talk paths.

View Diagram

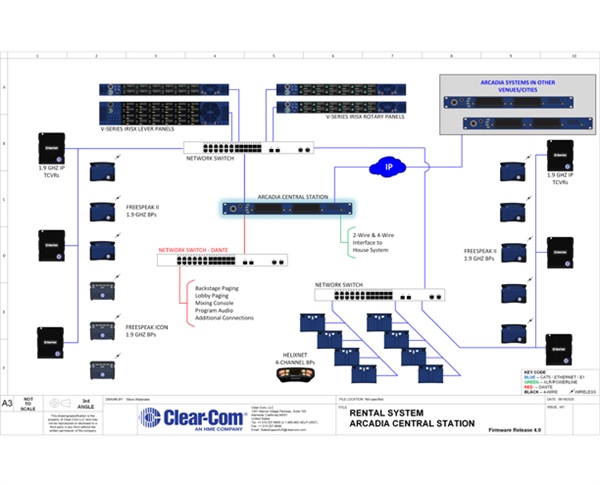

Arcadia R4 - Rental System

Large A/V Rental Houses will have an extensive amount of intercom equipment to customize systems for their customers. The customer will outline the production they are managing and the Rental House will generate a system to match. The latest firmware release for the Arcadia Central Station now adds greater port capacity, port usage flexibility, and a key feature in the addition of V-Series IrisX panels. Panels have a high capacity of talk paths giving Stage Managers, Technical Directors, Video Directors and anyone who needs to talk to a large number of individuals or groups the ability to do so. This gives the Rental House incredible device breadth all of a single 1RU Arcadia Central Station.

View Diagram
