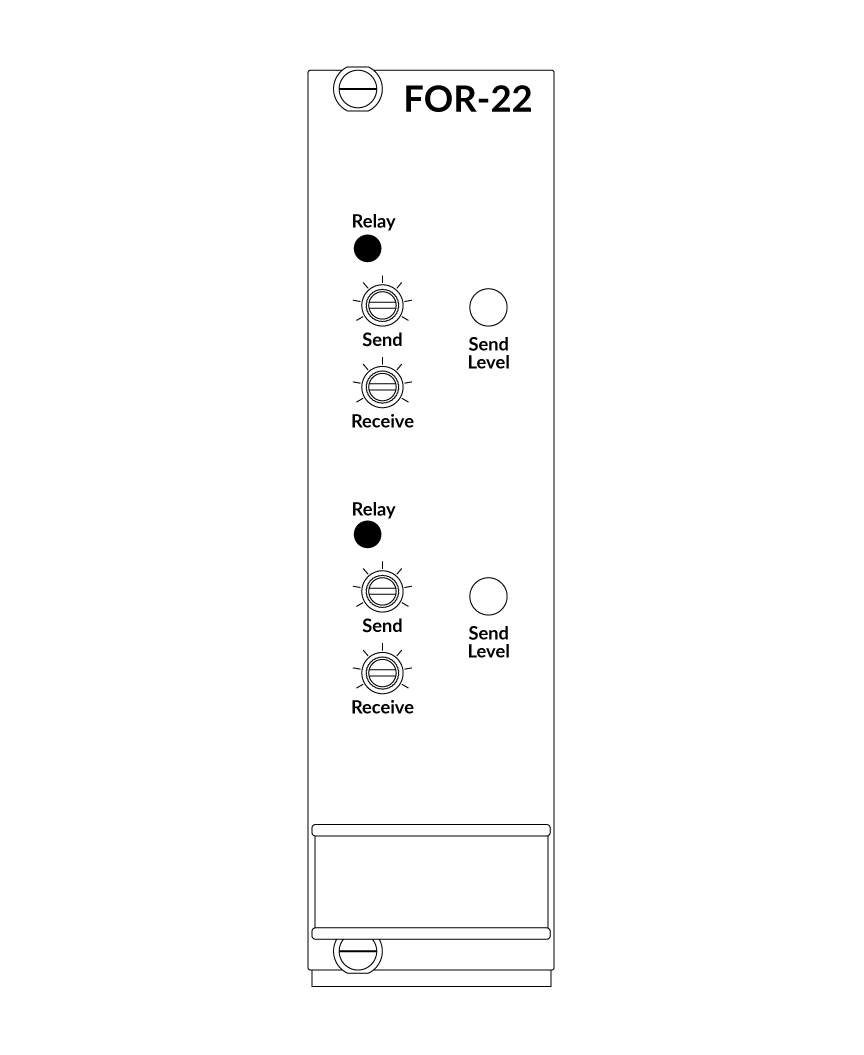

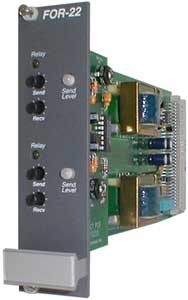

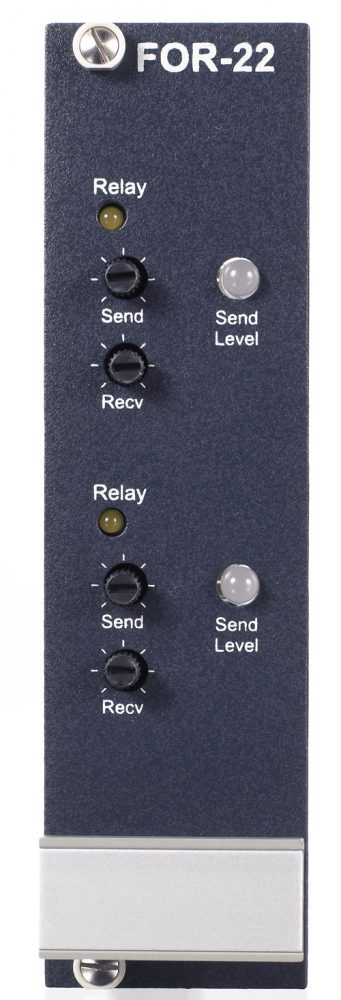

FOR-22

FOR-22

  • Dual 4-wire/2-way Radio Relay Control Interface Module
  • Two 4-wire circuit connections to Eclipse HX
  • Impedance matching
  • Transformer isolation
  • Level adjustments between systems
  • Supports external relay activation and call-sense circuitry
  • Eclipse HX Configuration Software (EHX)
Item Part Number:
  • FOR-22

Technical Specifications

Audio

Frequency Response: 20 Hz -15 kHz, +0/-3 dB
Audio Input Level: 0 dBv nominal
Input Impedance: >10K Ohms, transformer balanced

Audio Output Level

Nominal: 0 dBv, -15 dBv, or -55 dBv, jumper selectable
Maximum: +20 dBv



Output Impedance:

150 Ohms nominal, transformer balanced
Call Signal Input: 4 – 50 VDC
Relay: SPDT, 24 VDC @ 1 Amp

Power

Power Requirements: 150 mA max from
PSU-101 power supply

Environmental

Operating Temperature: 32°F – 104°F (0°C – 40°C)

Storage Temperature: -67°F – 158°F (-55°C – 70°C)

Humidity: 90% non-condensing

Dimensions

5.06 x 1.38 x 9.16 in (HxWxD)

129 x 35 x 233 mm)

Weight

12.5 oz (0.32 kg)

Features and/or Benefits

Provides 4-wire and 2-way Radio Connectivity

Connect external 4-wire circuits to Eclipse HX matrices, providing connections to camera intercoms, 2-way radios, microwave and satellite links, IFBs, and program audio inputs and outputs.
