Details

  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Routing and configuration of up to 25 FreeSpeak II beltpacks
  • Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
  • Fiber transceiver connections, supports two fiber-enables FSII splitters
  • Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
  • GPIOs allow assignment to trigger cue lights, tally or radios
  • Matrix and partyline configurations support up to 12 channels and/or groups
  • DECT Sync ports for optimizing co-located systems
  • RF Audio Filter improves system performance in hard RF environments
  • Browser-based Core Configuration Manager (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
  • Text messaging from CCM to wireless beltpacks

Item Code

FSII-Base-II

FSII-BASE-II-UPG

Technical
Specifications

Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz

No. of Beltpacks per Base Station: 25

No. of Transceiver/ Antennas Supported by Base: 10

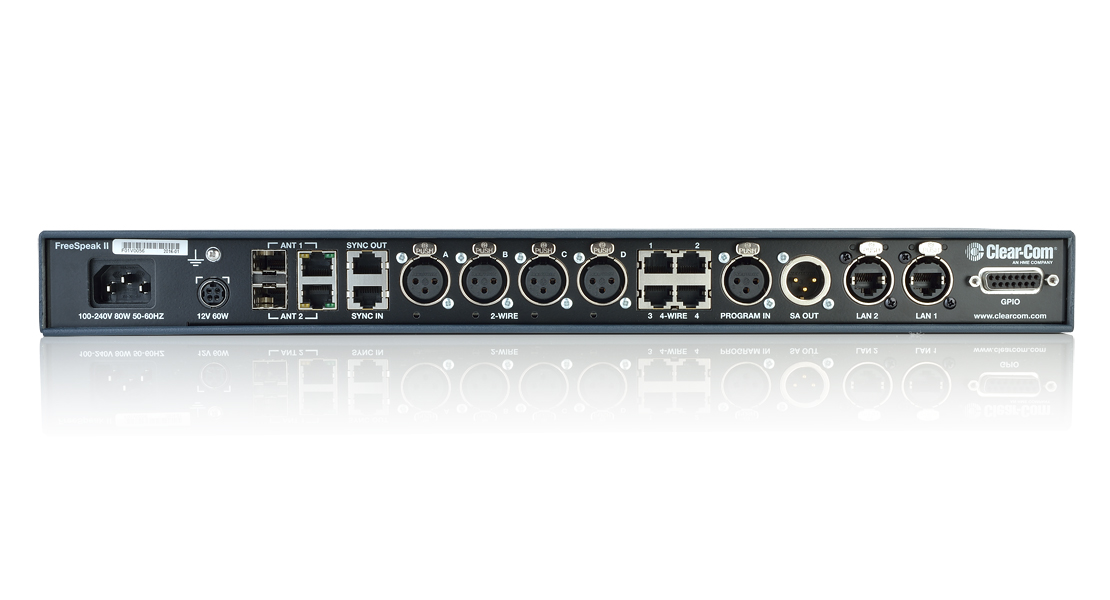

No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver

PC Programming Port: 2 LAN RJ45

Relay Port: DB15, supports one relay assigned to the SA out

Partyline A , B, C ,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible

Partyline Power On/Off: A/B, C/D paired

Partyline Output Voltage: 26 - 28V DC, 400mA per pair (A/B or C/D)

4-Wire/Matrix Connection: 4 RJ45

Program Input: XLR-3F, transformer isolated, line-level input

Stage Announce Output: XLR-3M, transformer isolated, line-level output

Front Panel Headset: 4-pin male and 5-pin female options

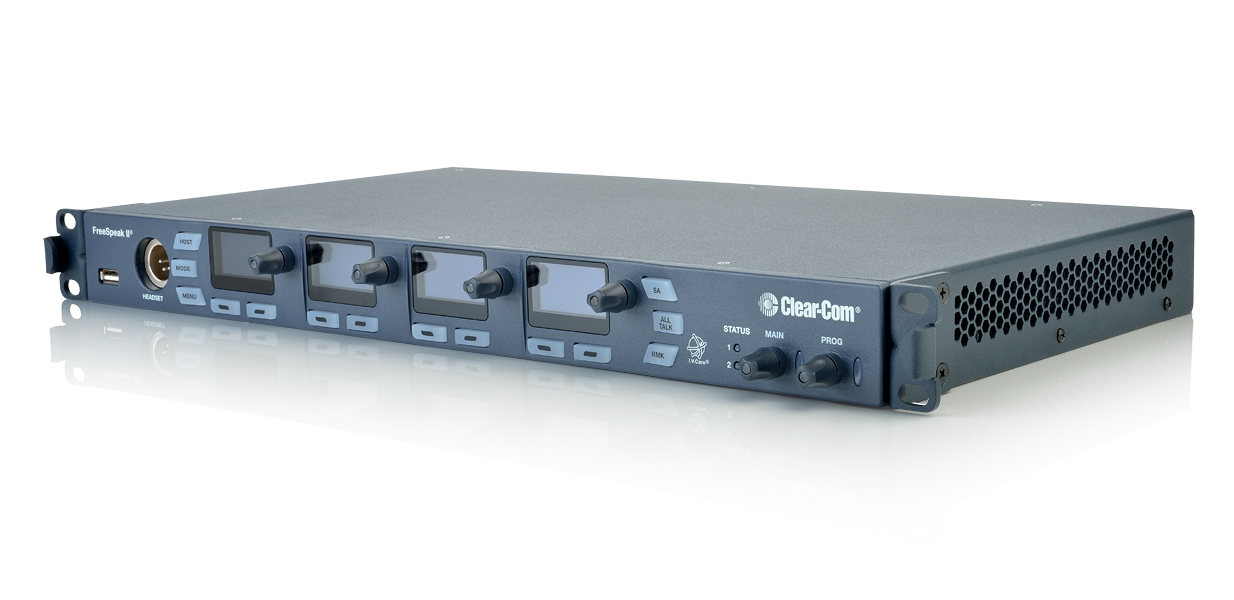

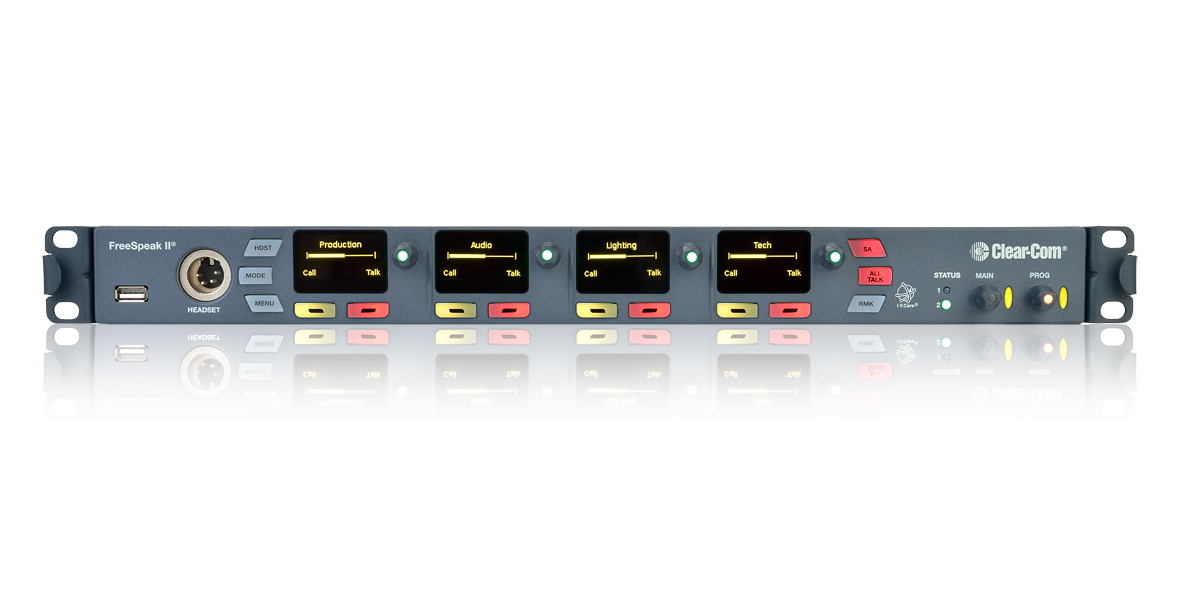

Front Panel Displays: 4 OLED’s with encoders and assignable soft keys

Front Panel Indicators: Antenna Status, Beltpack Status

External Power Supply Connection: 12V DC Base Station

Programming/Editing: Push-to-enter rotary encoder

Power

Input: 100-240V AC, 1.4A max

Output: 12V DC, 60W,

5A Current Draw: 12V, 4A max, 48W max


Dimensions

1.75 x 19.0 x 10.2in (HxWxD)

(44 x 483 x 259mm)


Weight

5.57lbs (2.5kg)
