1RU Interface Module Frame
IMF-102

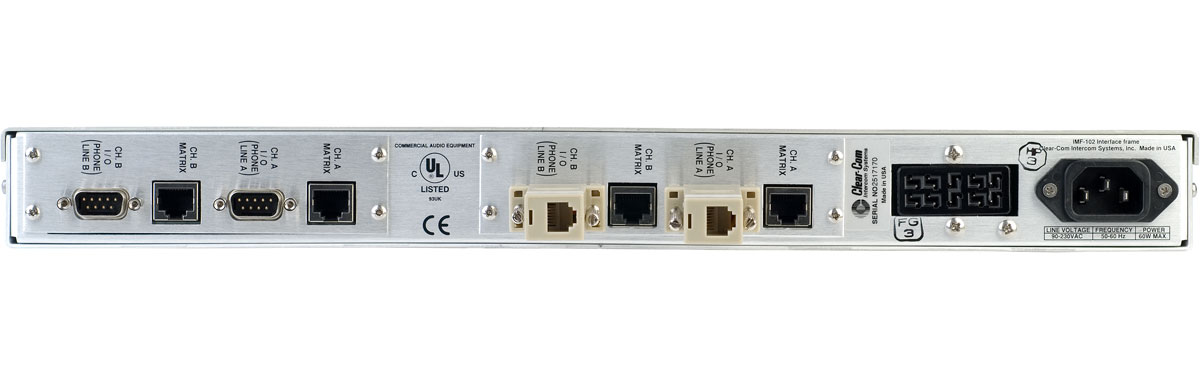

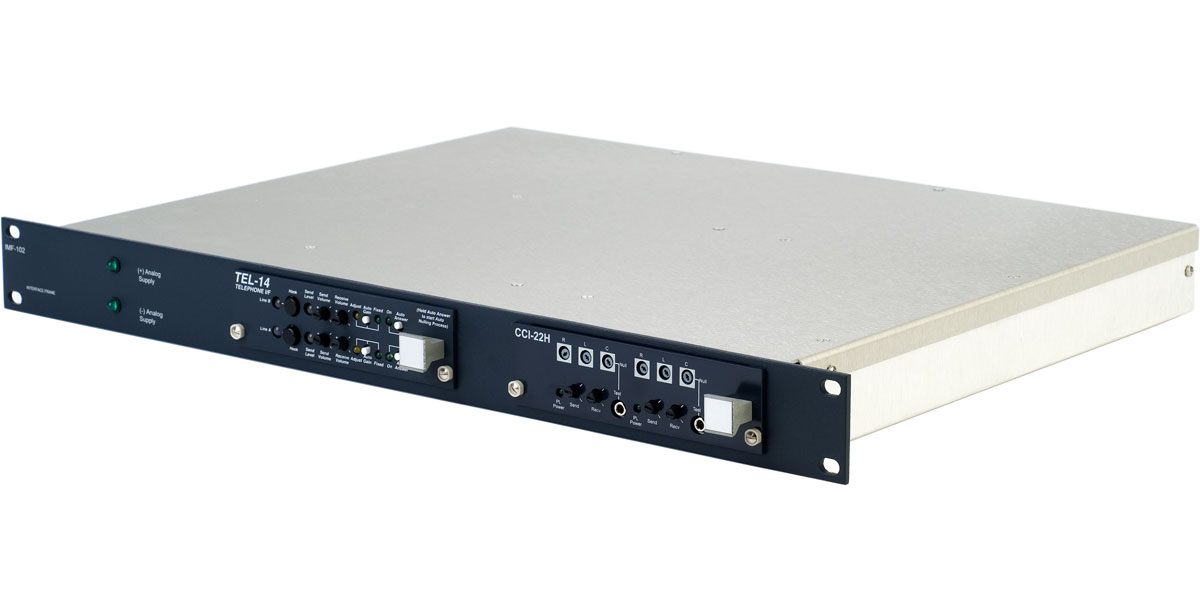

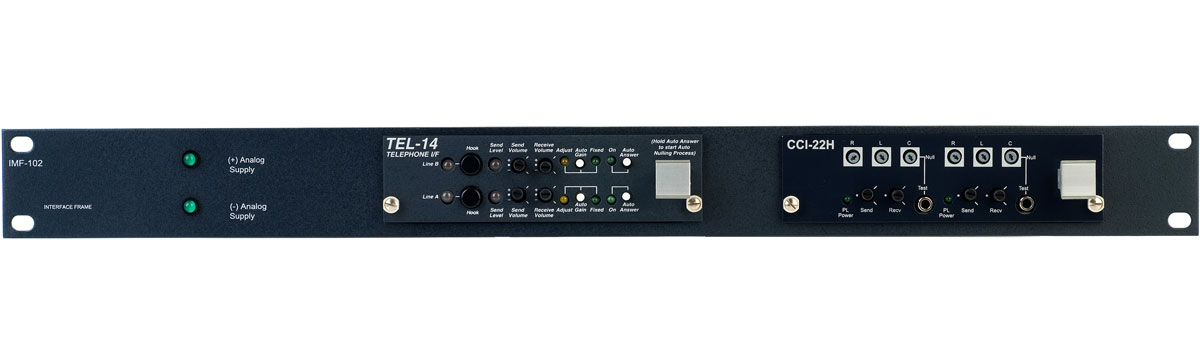

The IMF-102 interface frame combines an internal power supply, connection for a decond redundant supply, a rear input/output connector panel, and slots for two modular interfaces – all in a 1RU chassis. The compact frame offers a practical way to add a small quantity of interfaces to a digital matrix system.
Note: Interface modules not included.
Plug-in Module Capacity: 2
(1) 3-pin EIA (for internal power supply)
(1) 10-pin Jones (for PSU-101 redundant power supply)
To Matrix Frame: (4) RJ45 (when all interface modules are installed)
Interface I/O: (4) DB9-M (when all interface modules are installed)
AC Requirements: 90 – 250V AC, 20 W
+9 V Analog: 200mA (frame only)
-9 V Analog: 200mA (frame only)
Operating Temperature: 0º – 50º C (32º – 125º F)
Humidity: 20% to 90%, non-condensing
1.75 x 19 x 13.75in (HxWxD)
(89 x 483 x 345mm)
6.25lbs (2.8kg)
Slots for 2 CPU cards,
Slots for 2 CPU cards,
Slots for 2 CPU cards
