3RU Interface Module Frame
IMF-3

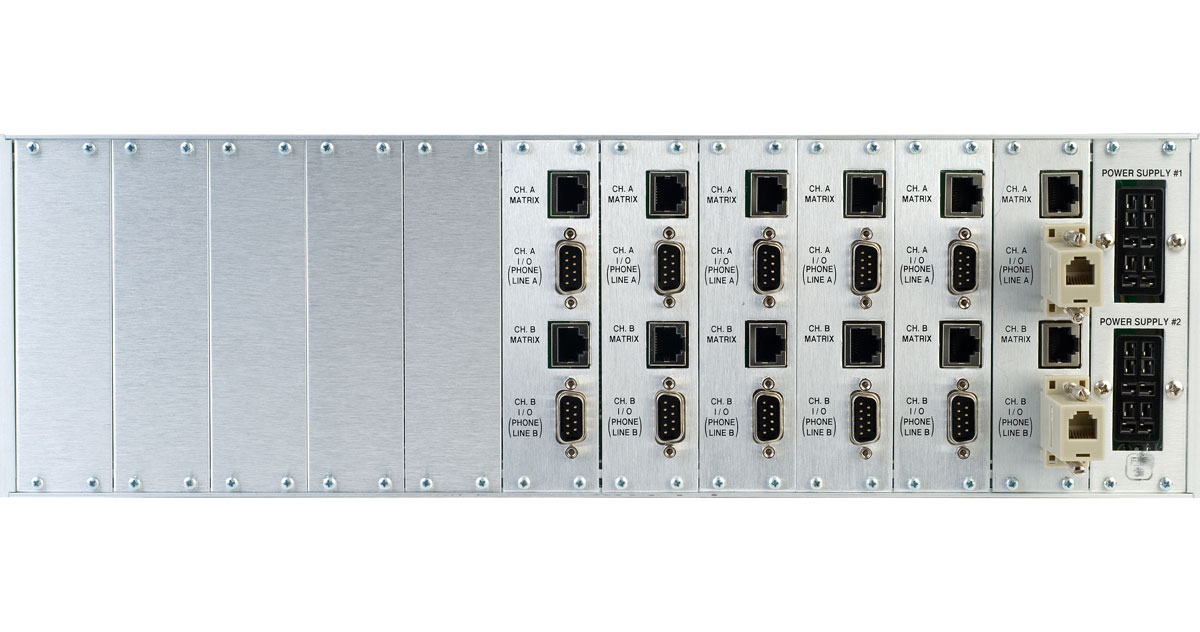

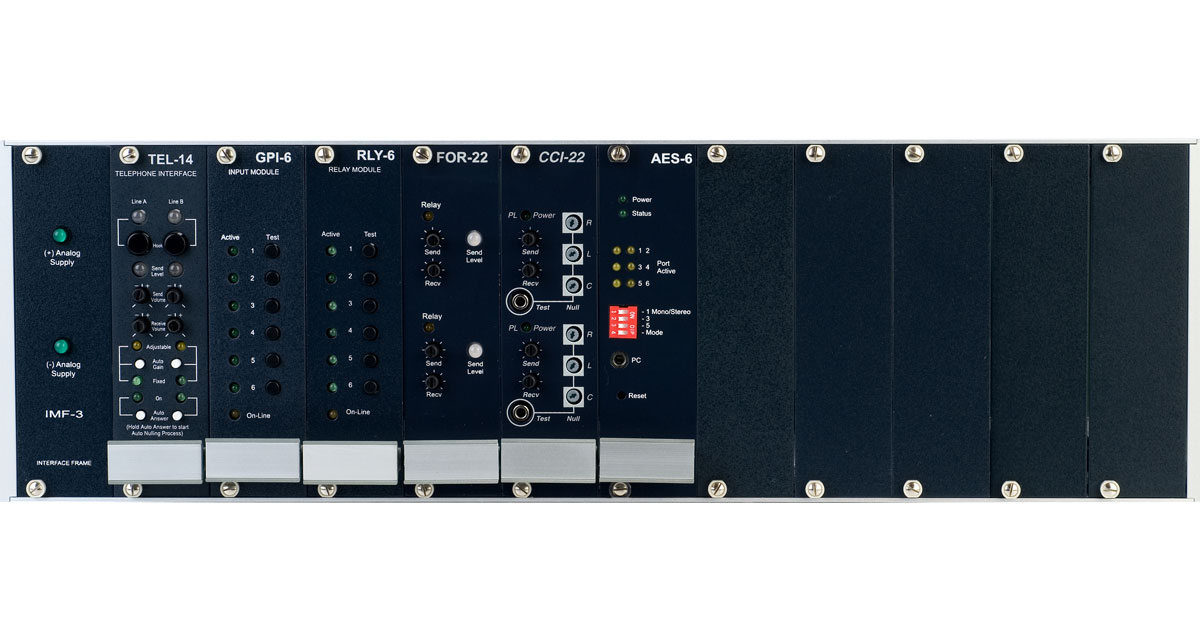

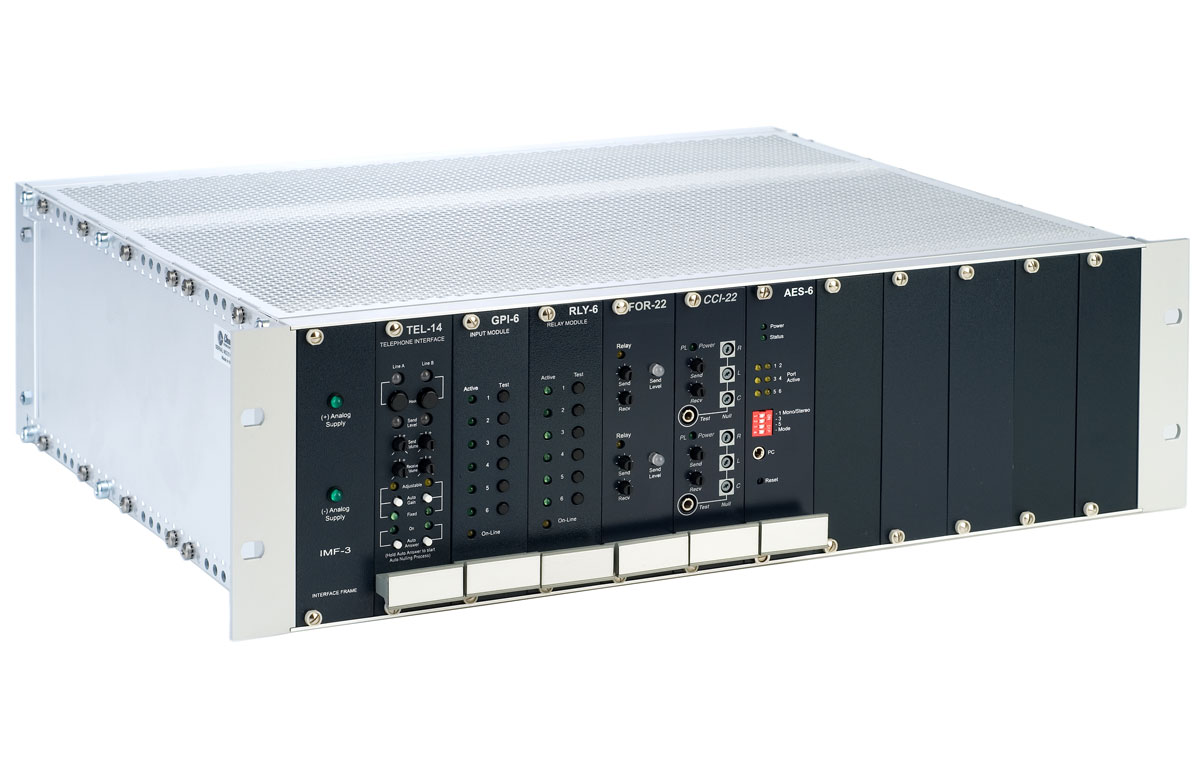

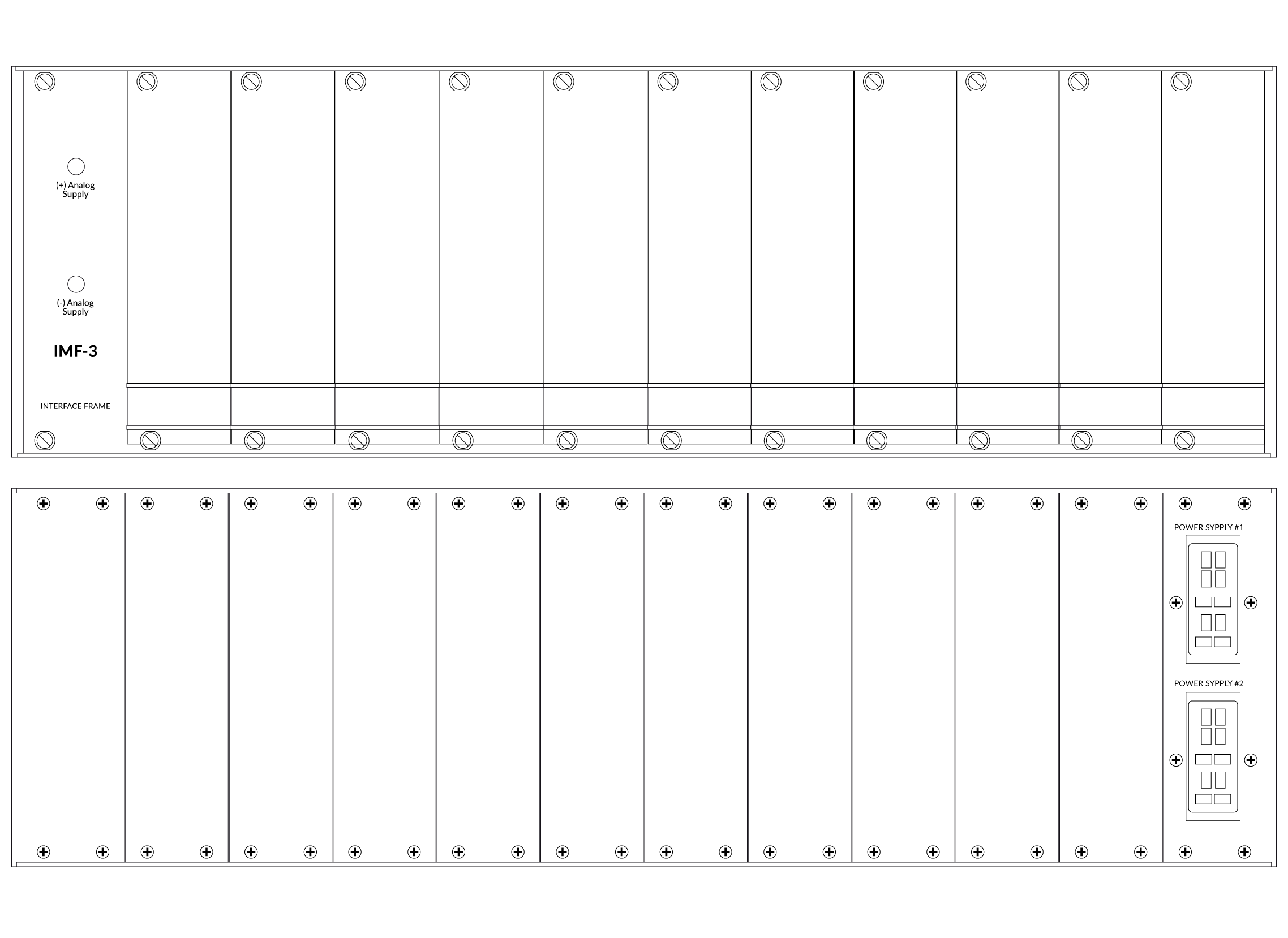

The IMF-3 is a 3RU interface frame that holds up to 11 modules. Modular rear-mounted connector panels feature two RJ45 connectors to the matrix ports and two DB9’s attaching the connected devices. The frame is used in conjunction with the PSU-101 rack-mountable power supply, providing power to the enclosed interfaces. A second PSU-101 may be attached for redundancy.
Note: Interface modules not included.
Plug-in Module Capacity: 11
(2) 10-pin Jones (for PSU-101 power supply)
To Matrix Frame: (22) RJ-45 (when all interface modules are installed)
Interface I/O: (22) DB9-M (when all interface modules are installed)
200mA from PSU-101 power supply
Operating Temperature: 0º – 50º C (32º – 125º F)
Humidity: 20% to 90%, non-condensing
5.2 x 19 x 13.75in (HxWxD)
(133 x 483 x 345mm)
10lbs (4.5kg)
