Logic Maestro

Logic Maestro

EHX Graphical Logic Module Option (bundled with EHX)

  • Replaces scripted Control Macros in EHX with simple graphic logic programming
  • Enables easier design and programming of complex logical functions
  • Output script can be used with maps to control logic between EHX entities
  • Off-line exercise to display what the control logic will do once inserted
  • Allows user annotation
  • Reports errors to text file
Item Part Number:

Included with EHX

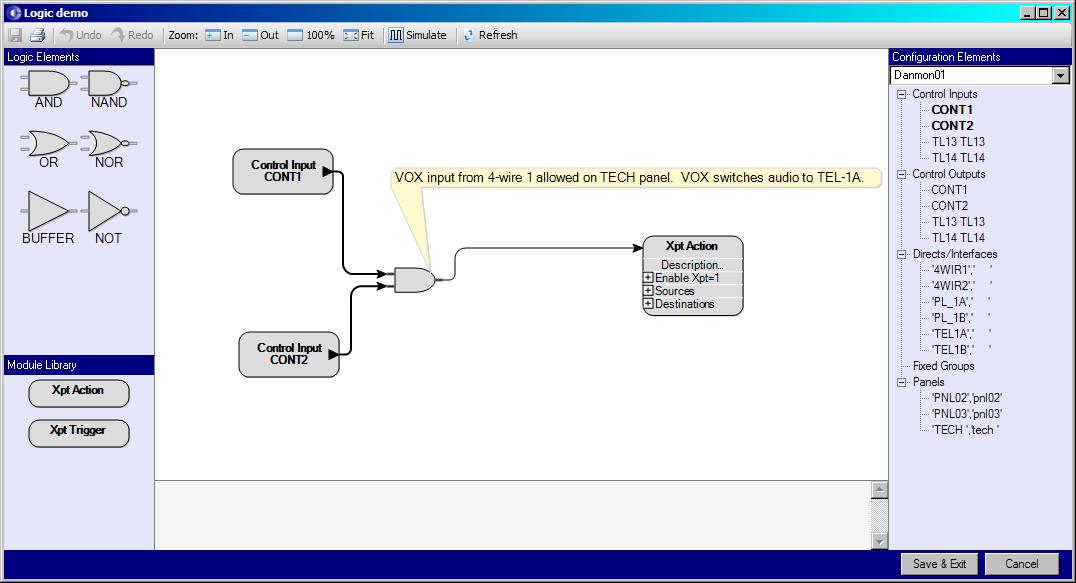

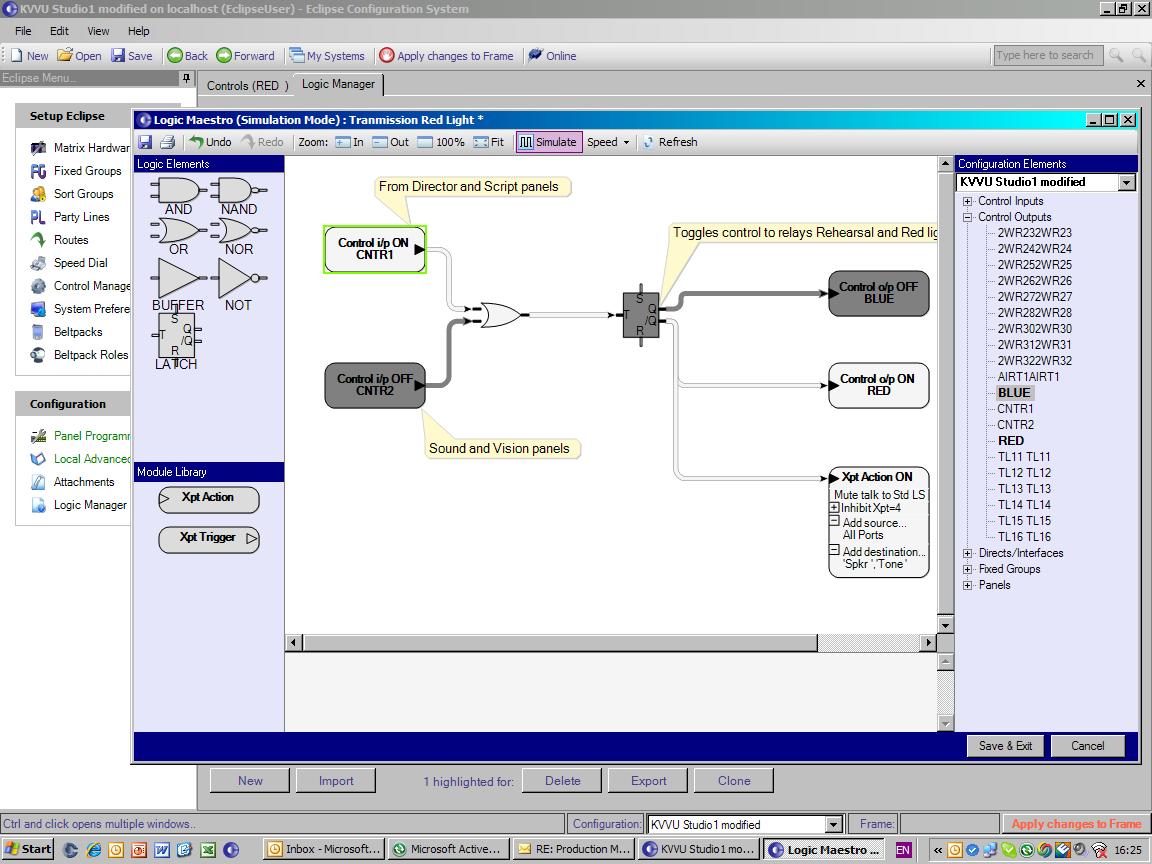

Logic Maestro augments the current text scripted Control Macros with a simple and graphical logic programming tool within EHX enabling significantly easier programming of powerful intercom control functions.

Technical Specifications


Requires the following EHX system configuration:

  • Microsoft Windows XP Professional SP3 or Windows Server 2003 SP1 (SP2 recommended) or Windows Vista SP1 operating system
  • Appropriate language support if non-Latin fonts are to be used
  • Microsoft SQL Server Express 2005 service pack 3 (supplied with EHX)
  • Microsoft Internet Explorer 6 (supplied with EHX)
  • Macromedia Flash Player 9 (supplied with EHX)
  • Microsoft .NET Framework 3.5 SP1 (supplied with EHX)
  • Personal computer with Pentium III 600 MHz or higher processor
  • 1GB RAM
  • 1 GB of free hard disk space
  • DVD-ROM drive
  • SVGA display resolution
  • Mouse or other pointing device
  • Appropriate keyboard if non-Latin fonts are to be used
  • One serial port or USB port and USB to serial adaptor
  • IEEE 802.3 Ethernet card
