FOX Sports’ College Football Pre-Game Show Relies on Clear-Com for Flexible Wireless Communications


- Soundtronics Wireless pushes FreeSpeak II and Eclipse HX to the max for free-flowing, interactive pre-game coverage -

Soundtronics Wireless of Las Vegas, NV relied on Clear-Com® to service long-time client, FOX Sports, with an Eclipse HX digital matrix and FreeSpeak II digital wireless intercom system for the network’s college football pre-game show, broadcast live from Fair Park (State Fair of Texas) on October 6.

Soundtronics has been the RF vendor serving FOX Sports for several years, handling the NFL Sunday desk show when on the road, as well as championship games, Super Bowl LII and Veteran’s Day specials.

“FreeSpeak II is one of the primary reasons we have this agreement with FOX Sports,” said Jason Waufle, Partner, Soundtronics Wireless. “It is just so far ahead of the system they were previously using. You get reliability and quality with a large number of channels, and it just works.”

Soundtronics received a call three weeks before the game to join FOX Sports in Texas. “Three weeks is pretty standard, especially with our great relationship with FOX Sports. They know what we can do and how quickly we can turn projects around,” said Waufle. “We used our comms plan for this year’s Veteran’s Day special as a template. Our knowledge and understanding of how FOX Sports does these shows is a big plus to be able to use a nearly identical package with some modifications.”

For the college football pre-game show, mics and IFBs were very important as producers wanted the show to be interactive, with talent and RF cameras moving as far as 35 yards away from the main set. That meant that communications needed to be as unobtrusive as possible for everyone.

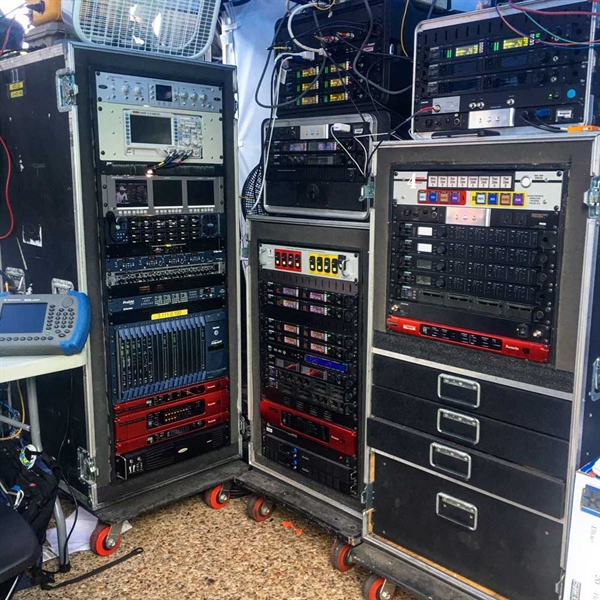

At the heart of the Soundtronics communications system was a Clear-Com Eclipse HX Omega frame with two wireless controller interface cards for FreeSpeak II connectivity, two 16-port analog interface cards adding 16-ports of audio and data per card, a 64-channel duplex Dante interface card and a 64-channel duplex MADI interface card in the frame.

The wide roaming capability of FreeSpeak II was invaluable to enable a flexible production. “We pushed our FreeSpeak II 1.9 GHz system to its maximum with 25 wireless beltpacks, supported by three transceiver splitters with five transceivers each, plus five more transceivers for a total of 20,” said Waufle. “Plus, we used the fourth FreeSpeak II frame slot for an antenna card via fiber 300 yards away for a remote hit. Fiber is everywhere these days, and we are really grateful to FOX Sports utilities for running that line, as it would be pushing the limits of Cat 5 cable. Even the Dante cables to the truck were all fiber.”

The biggest challenge faced by Waufle and all those using RF was the amount of frequencies that would be used for the event, with both FOX Sports and ESPN, the stadium itself and a music stage all closely located. In total, over 400 RF frequencies were coordinated, including 200 that Waufle and his crew would have to work around, plus their own kit and set-up.

“This was probably the best performing show I’ve ever done, and a lot of that is because of the Clear-Com equipment we were using,” said Waufle. “It performed flawlessly, and that’s what you want for your clients — not one hiccup or a single complaint.

“Fair Park was a great environment to push FreeSpeak II to its limits, and we had no issues at all,” Waufle added. “With wireless, there’s always the typical hurdles based on the size and scope of the event, especially with two competing pre-game shows and the game itself. But we had lots of really good professionals willing to cooperate to make sure that everyone’s frequencies were safe and that everyone had what they needed. It was a pretty sweet week.”

“It is absolutely satisfying to know that our customers can so easily depend upon and use Clear-Com equipment for whatever job comes their way,” said Simon Browne, Vice President, Product Management, Clear-Com. “The ability to have a set plan for one event and easily modify it for another, shows the power and flexibility of Clear-Com equipment in the hands of its users.”
