Matrix Frame Architecture
• Eclipse CPU and Audio interface cards communicate on the frame’s TDM backplane using a proprietary serial protocol that passes requests and instructions between the cards.
• Eclipse Audio interface cards make its audio inputs available on the frame’s TDM backplane using PCM audio and receives from its other card inputs for mixing to its outputs.
• Eclipse CPU controller cards communicate externally to the configuration computer or control system via a network or serial interface.
• Eclipse Audio interface cards communicate externally on their own dedicated interfaces. Externally each card is an individual clock domain and does not bridge to other cards.
• No network connections are shared or bridged between cards.

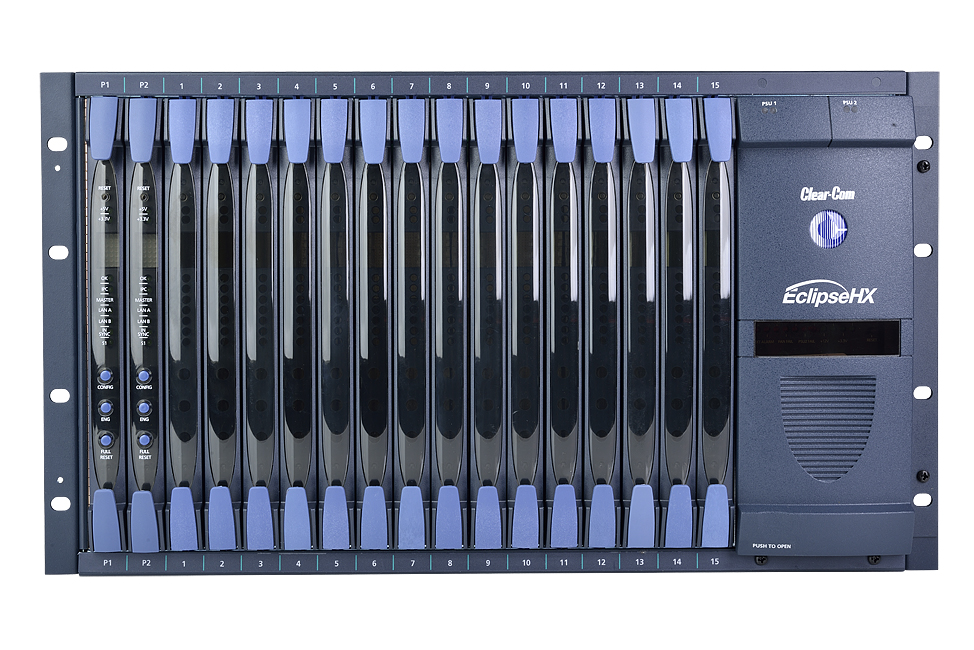

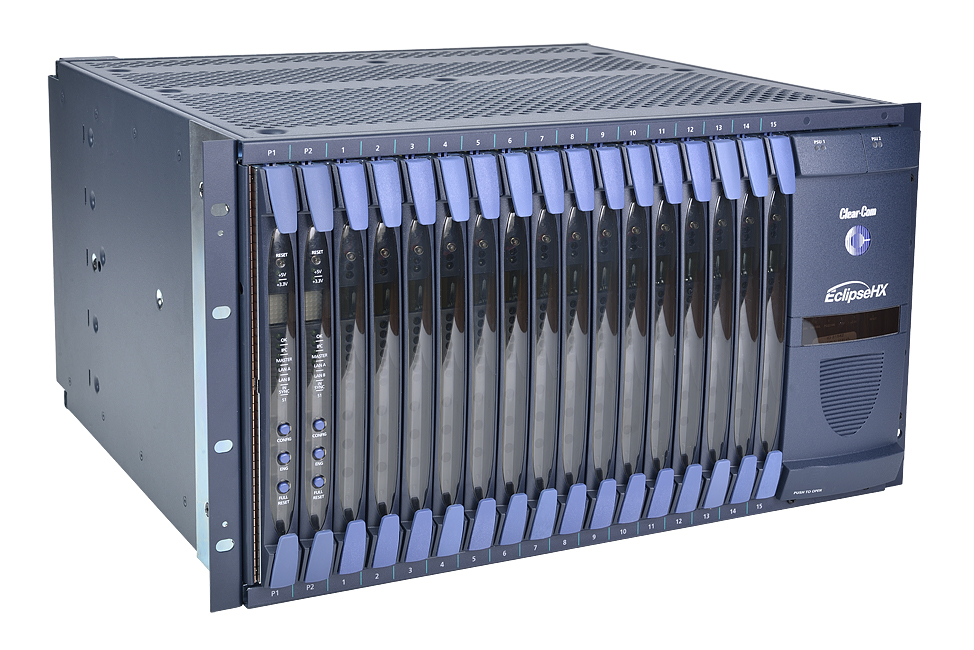

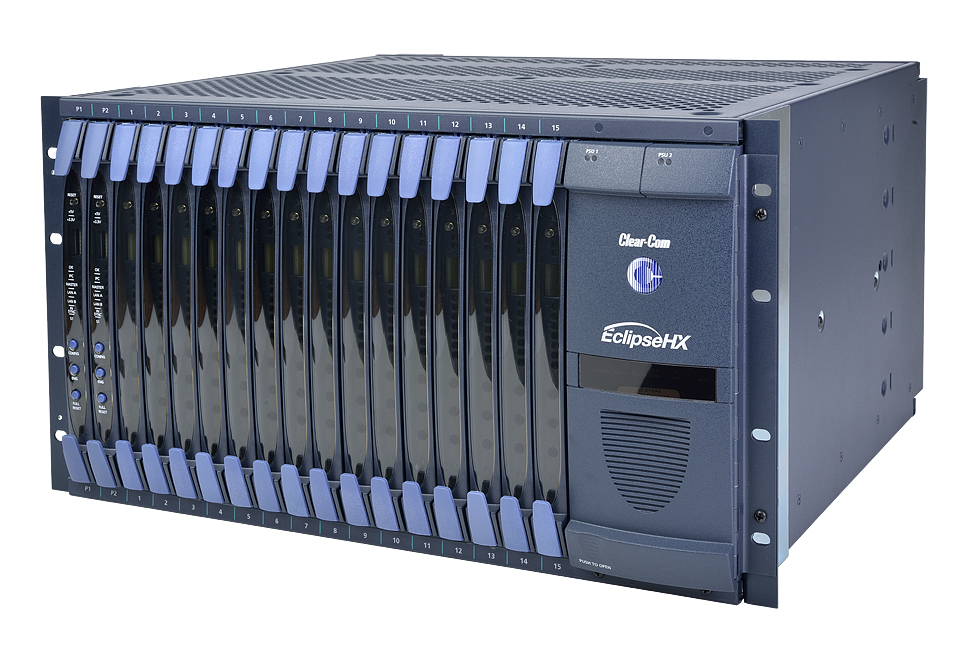

Matrix Frame
CPU Cards: 2
PSU Modules: 2
Interface Card Slots: 15
Timeslots / Ports: 496
Interface Card Capacity
MVX: 15
E-MADI, E-DANTE: 7
E-IPA: 5 or 7**
E-QUE*, IVC-32*, LMC-64*: 6***
E-FIB: 2
Maximum number of each card type in matrix frame type. Not including bundled cards. For reference only. Customer’s frame configuration should be validated for 1) timeslots / ports, 2) card power draw. See Eclipse HX Power Calculator.
Licensing
Delivery: EHX Passcode. Requires Frame Dongle ID(s) to generate
License Host: Eclipse Omega, Median, Delta or Delta-Lite frame
Transferable: No - Works only on specified Eclipse system
Recovery: Contact Clear-Com
Permanent Licensing
Agent-IC Virtual Mobile Client
Part number: AGENT-IC-HX, AGENT-IC8-HX
Licensed: For licensed number of concurrently connected Agent-IC
Validity: Permanent for major version (e.g. v2.x) of Agent-IC
Station-IC Virtual Desktop Client
Part number: STATION-IC-HX, STATION-IC8-HX
Licensed: For licensed number of concurrently connected Station-IC.
Validity: Permanent for major version (e.g. v1.x) of Station-IC
Dynam-EC Live Assignment
Part Number: DYNAM-EC-1-HX
Licensed: Per Dynam-EC connection-matrix to PC
Users x Matrices = D-EC Licenses.
Example A: (1) D-EC user connecting to (1) matrix require 1 License
Example B: (1) D-EC user connecting to (2) matrices require 2 Licenses
Example C: (2) D-EC user connecting to (2) matrices require 4 Licenses
Max 10 connections per matrix
Validity: Permanent for the Eclipse version. Upgrades with Eclipse
HCI Full Automation API
Part Number: HCI-E-HX
Licensed: Per matrix API activation for use with Full Automation API
Validity: Permanent
HCI Crosspoint & Control API
Part Number: HCI-LIVE-HX
Licensed: Per matrix API activation for use with Crosspoints & Controls only
Validity: Permanent
Site License – Dynam-EC Live Assignment
Part Number: DYNAM-EC-SITE-HX
Licensed: For all matrices on site/facility – Max 10 connections per matrix
Validity: Permanent for the Eclipse version. Upgrades with Eclipse
Site License – HCI Full Automation API
Part Number: HCI-E-SITE-HX
Licensed: For all matrices on site/facility
Validity: Permanent

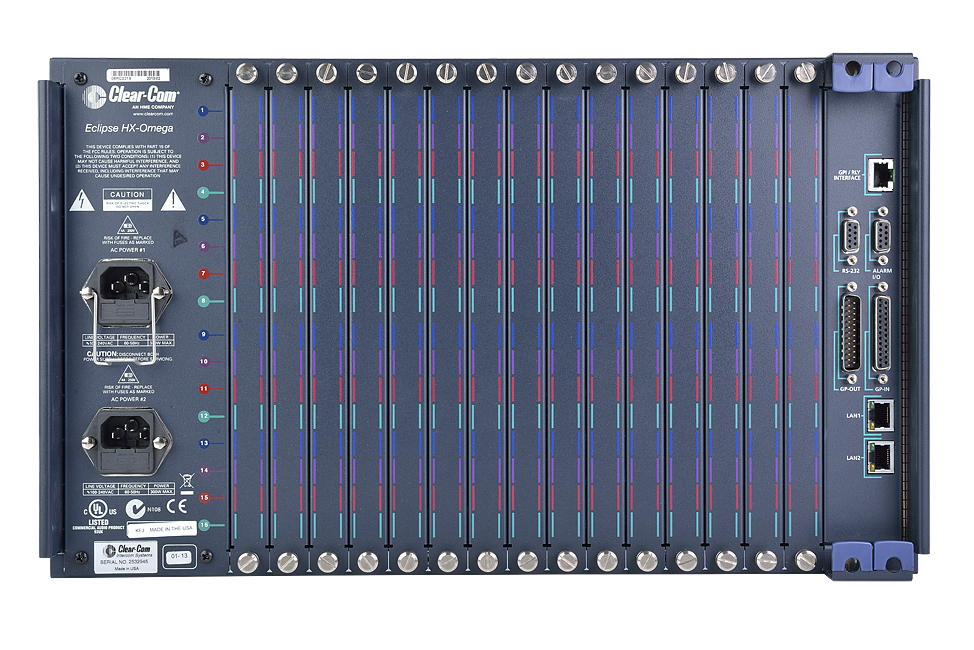

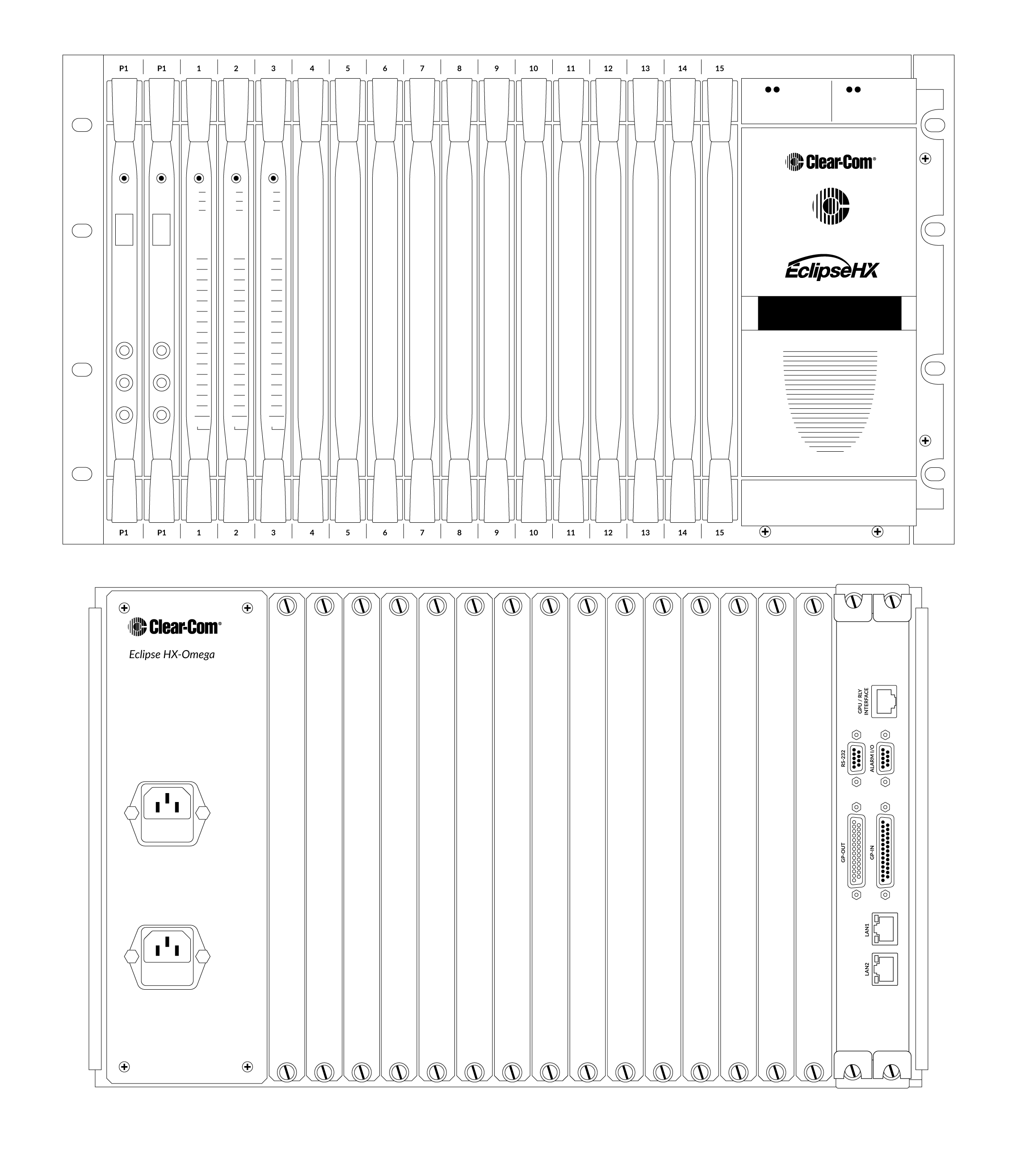

Connectors
GPI: (1) DB25F (8 GPI – inc. 12V for non-iso)
GPO: (1) DB25M (8 GPO)
Alarm: (1) DB9F (1 GPI, 1 GPO)
GPI/RLY: (1) RJ45 (for GPI-6 & RLY-6)
Serial: (1) DB9F (RS-232)
LAN: (2) RJ45 (Fast Ethernet)
AC Power: (2) IEC-C14

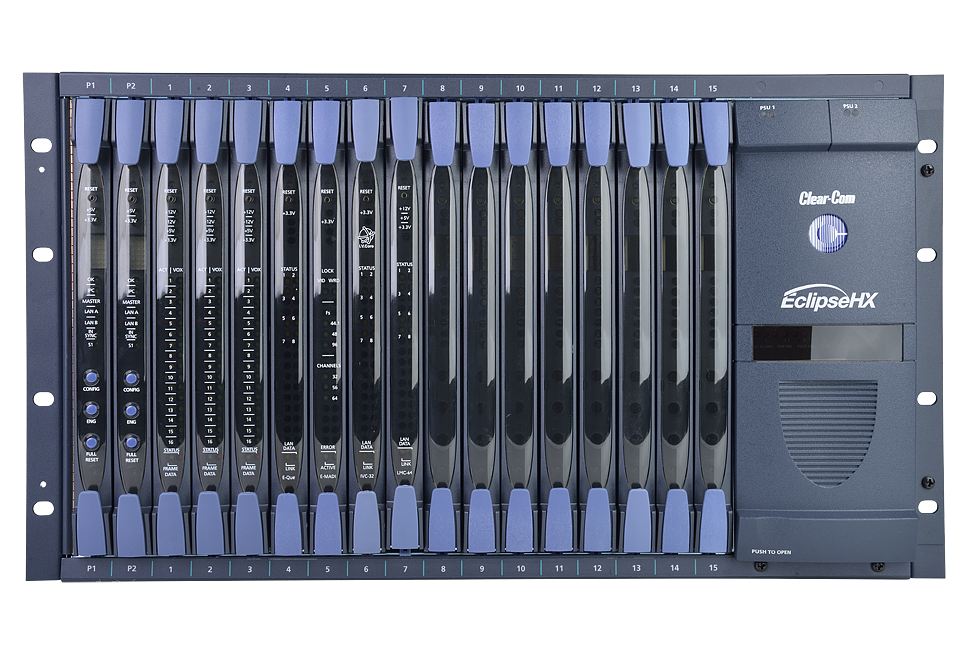

Controls and Indicators
Front Panel CPU - Per Card:
(2) Voltage Presence LED
(1) Display
(7) Status LED
(1) Config Selection Button
(1) Engineering Button
(1) Reset Button
Front Panel PSU - Per PSU:
(2) Power Status LED
Front Panel Housekeeper:
(1) Main Warning LED
(1) External Warning LED
(1) Temperature Warning LED
(2) Fan Status LED
(2) PSU Warning LED
(4) PSU Voltage Rail Status LED
(1) Alarm Reset Button
*Compatible legacy products
**Requires High-Power Installation. Coming Soon. Contact Clear-Com for further information.
***E-QUE for E&M mode max 4 cards
Audio
Audio parameters for the matrix frame
Sample Rate: 48kHz
Resolution: 24bit
Frequency Response: 30Hz - 22kHz ±3dB
Nomimal Level: 0dBu
Logic Power Output
To power Logic Inputs
Output Voltage: 12V
Logic Inputs - GPI:
Assignable to activation of Controls
Input: 8
Style: Optically Isolated or Non-Isolated (default)
Input Voltage Range: 7 - 24V DC
Input Current: >=5mA required
Logic Outputs - GPO/Relay
Assignable to Controls
Output: 8
Style: DPDT / Power Relay
Normalized: Open or Closed, separate pins
Switching Voltage (Max): 30V DC
Switching Current (Max): 1A
Power
Redundant AC Internal Power Supplies:
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50 - 60Hz
Input Power (Max): 300W
BTU (Max): 1025BTU/h
Environmental
Operating (Normal): 32°F - 104°F (0°C - 40°C)
Operating (High Power): 32°F - 85°F (0°C - 30°C)
Storage: -67°F - 158°F (-55°C - 70°C)
Dimensions
6RU
19 x 10.6 x 16in (WxHxD)
(482 x 267 x 410mm)
Weight
44–77lbs (20–35kg)
