EHX Configuration Software (EHX)

  • Online and offline configuration changes
  • Non-intrusive configuration downloads allow system changes without disruption
  • Client/Server operation enables multiple administrators to configure the system
  • Central configuration of a single Eclipse HX matrix or a complete network of intelligently linked Eclipse HX matrices
  • 4 levels of secure system management access: Guest, User, Local, Admin
  • Logic Programming for conditional changes to intercom operation
  • Remote monitoring supervision of intercom panels and FreeSpeak beltpacks
  • System health monitoring and diagnostic logging, live telemetry display from FreeSpeak beltpacks and transceivers
  • Secure access for IP connected Agent-IC and Station-IC mobile clients
  • Integrated with Dynam-EC for online assignment

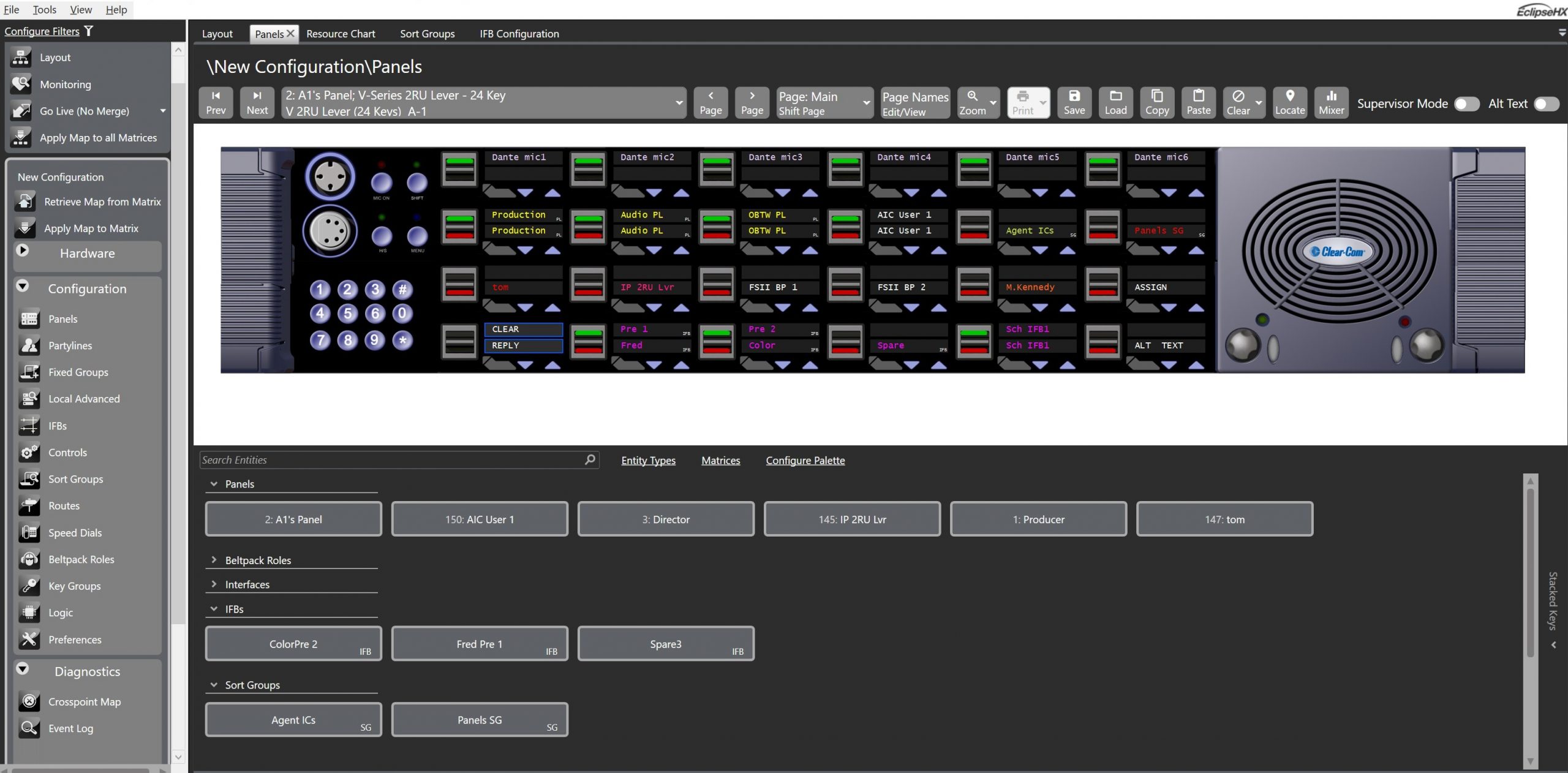

  • Configuration of multi-function operator panels with multiple shift pages, interlocked keys, Reply keys, etc.

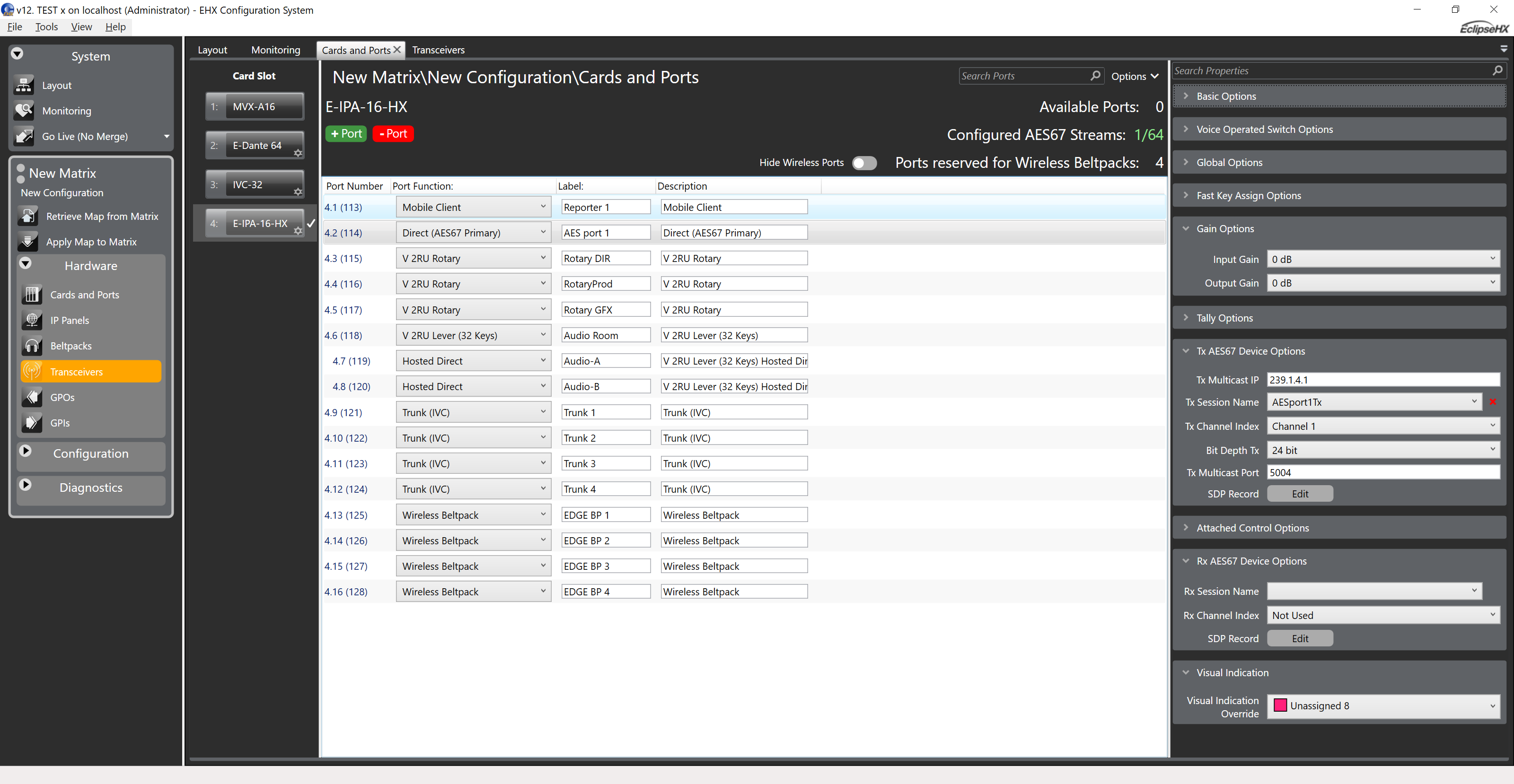

  • N+1 card redundancy on E-IPA cards to back up primary cards in a frame
  • LAN connection network redundancy
  • Layer 3 (Network) support for connectivity with AES67 endpoints
  • 200 beltpacks on 1 Eclipse frame
Item Part Number:


The Windows-based EHX configuration software configures and controls the operation of one or more Eclipse HX matrices. EHX can both download and upload system configurations to a target Eclipse HX matrix for either offline editing or live changes.

EHX v13.0

EHX version 13 offers N+1 card redundancy, allowing primary cards to have one or more back-ups. This version also includes LAN connection network redundancy for AES67 or IVC protocols*. Layer 3 support for AES67 endpoints enables users to better manage PTP offset timing. New Dynam-EC control capability allows a macro to be assigned to a keyset. There is also support for a .csv file upload to update an EHX map. New system capabilities allow up to 200 wireless beltpacks.

*Dual network license is required for this feature

Technical Specifications

Recommended PC Requirements for Hosting EHX
Operating Systems

Windows 10

Windows Server 2019

Windows Server 2016


8GB for standard systems

16GB for large networked systems, servers, and heavily used Dynam-EC clients


Intel i7 10th generation or equivalent


Dedicated GPU for large network systems
